Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

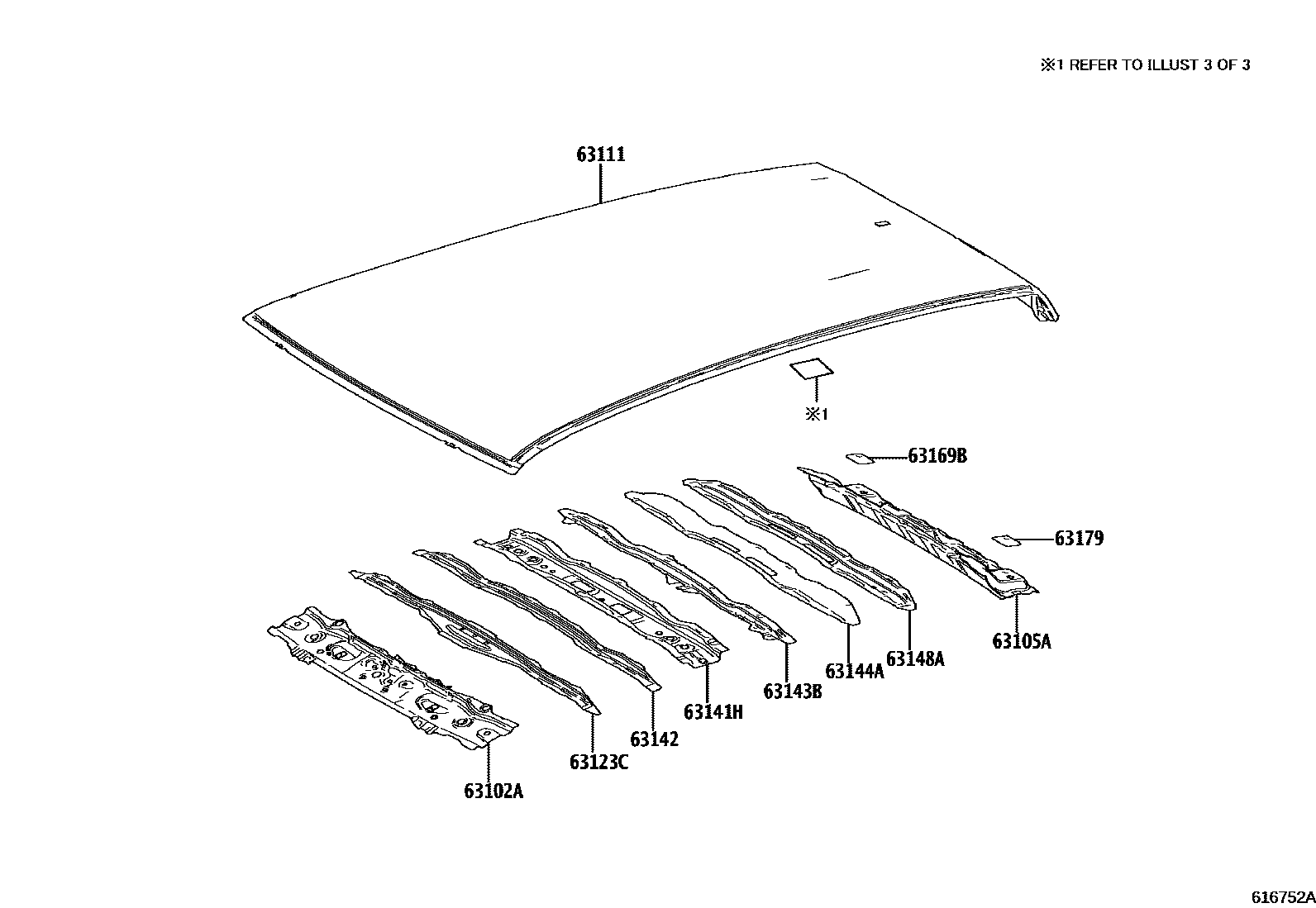

| 63102A | Windshield roof sub-assembly | 63102-52270 |
| 63105A | Back door opening frame sub-assembly | 63105-52230 |
| 63111 | roof panel | 63111-52480 · 63111-52490 |
| 63123C | Roof panel reinforcement | 63123-52030 |
| 63141H | Center roof panel reinforcement | 63141-52210 |
| 63142 | No. 2 roof panel reinforcement | 63142-52120 |
| 63143B | No. 3 roof panel reinforcement | 63143-52230 |
| 63144A | No. 4 roof panel reinforcement | 63144-52180 |
| 63148A | No. 7 roof panel reinforcement | 63148-52150 |
| 63169B | Right roof panel reinforcement panel | 63169-48010 |
| 63179 | Left roof panel reinforcement panel | 63179-48010 |

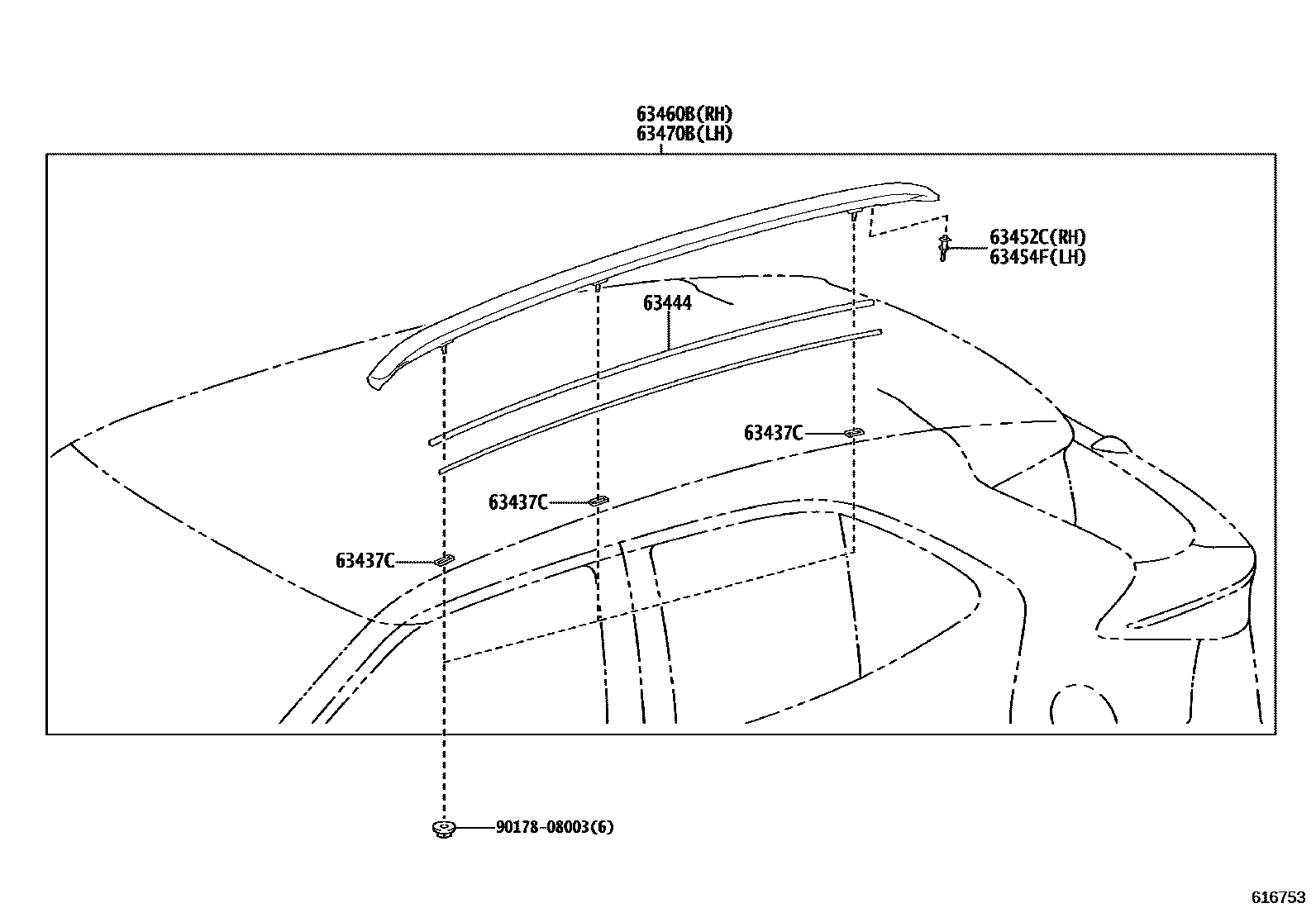

| 63437C | Roof rack seal | 63437-02030 |
| 63444 | No. 1 roof rack protector | 63444-K2010 |
| 63452C | Right rear roof rack fixing | 63451-02020 |
| 63454F | Left rear roof rack fixing | 63451-02020 |
| 63460B | Roof right luggage rack assembly | 63460-K2010 |
| 63470B | Roof left luggage rack assembly | 63470-K2010 |
