Toyota YARIS 地板垫和地毯 — Figure 5804

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 2 images and 6 PNC and OE references.

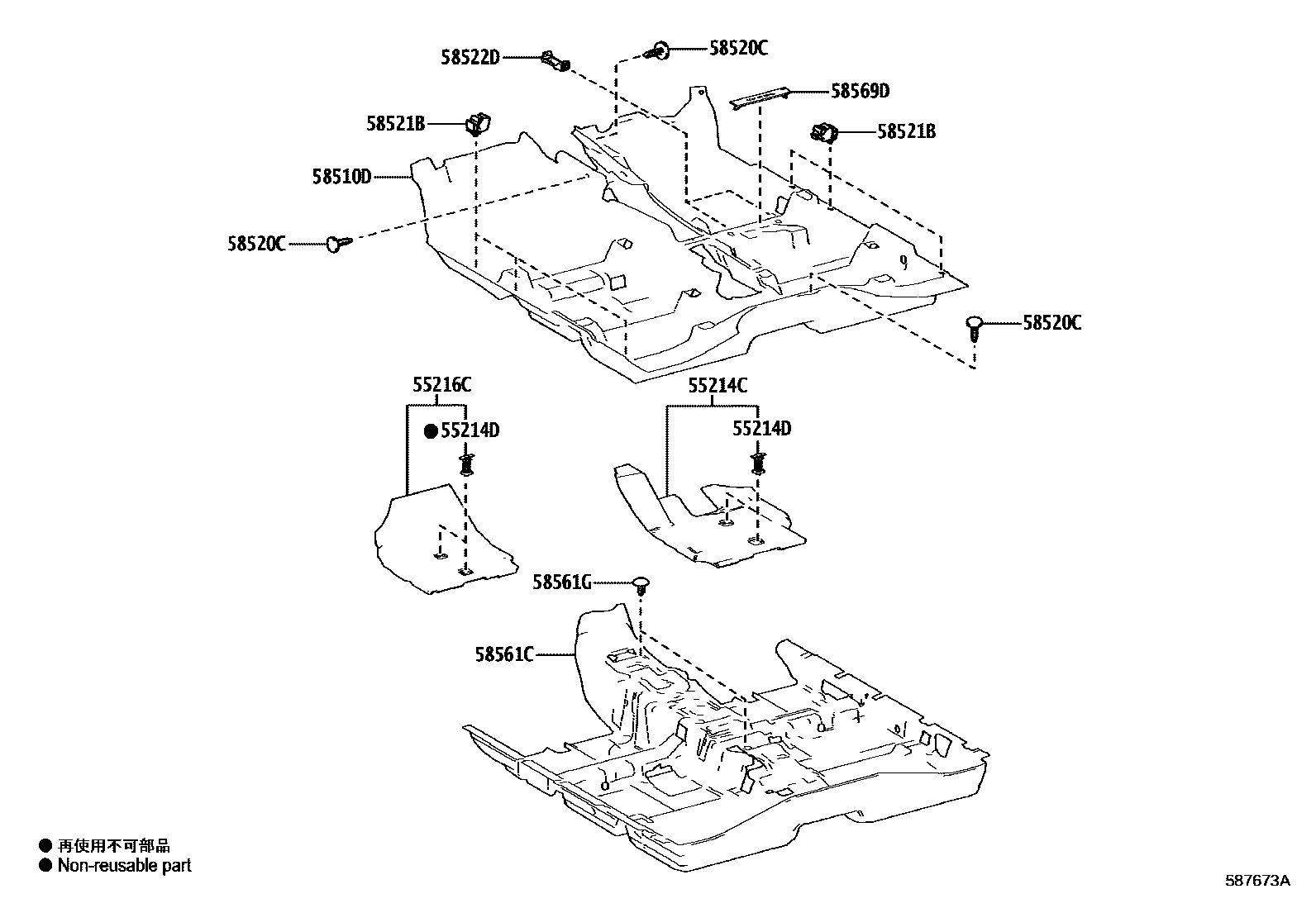

Toyota YARIS 地板垫和地毯 EPC diagram — 587673A
地板垫和地毯 — 587673A (202008 – 999999)

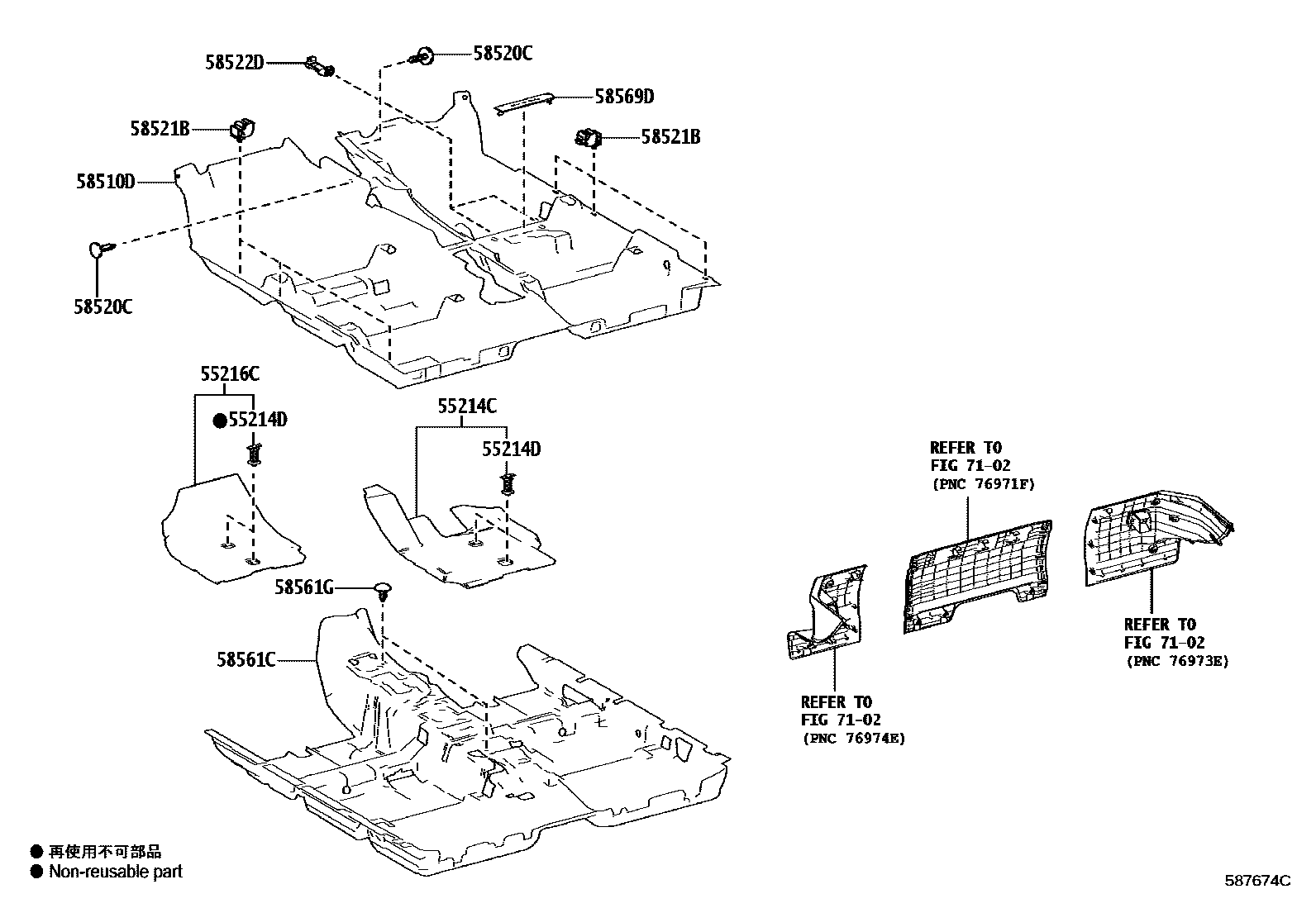

Toyota YARIS 地板垫和地毯 EPC diagram — 587674C
地板垫和地毯 — 587674C (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
55214CNo. 2 insulation pad for front wall panel55214-52210 · 55214-52220
55214DToyota part58198-52020 · 58198-52040
55216CNo. 4 heat insulation pad for front wall55216-52070 · 55216-52080
58521Bcarpet hook58521-33060
58522DCarpet hook number 258522-52030
58561CFront floor silencer No. 158561-K0020 · 58561-K0040 · 58561-K0060 · 58561-K0170
