Toyota YARIS 地板隔热垫 — Figure 5802

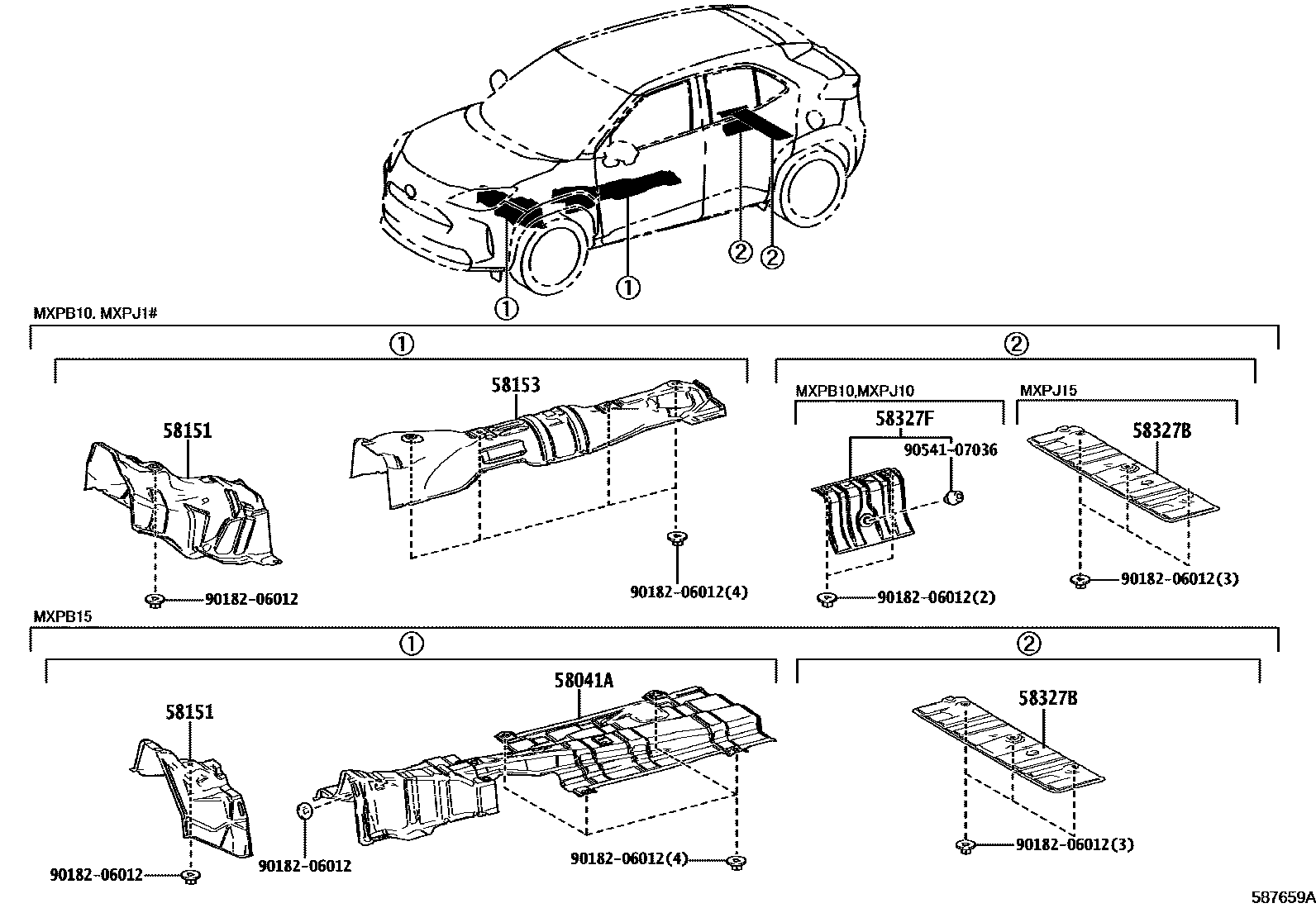

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58041A | Front floor insulation pad sub-assembly No. 1 | 58041-52040 |
| 58151 | Front floor insulation mat No. 1 | 58151-K0010 · 58151-K0030 · 58151-K0040 |
| 58153 | Front floor insulation mat No. 2 | 58153-52200 · 58153-K0040 |
| 58327B | Main muffler heat insulation pad | 58327-K0020 |
| 58327F | Main muffler right heat insulation pad | 58327-52170 |
