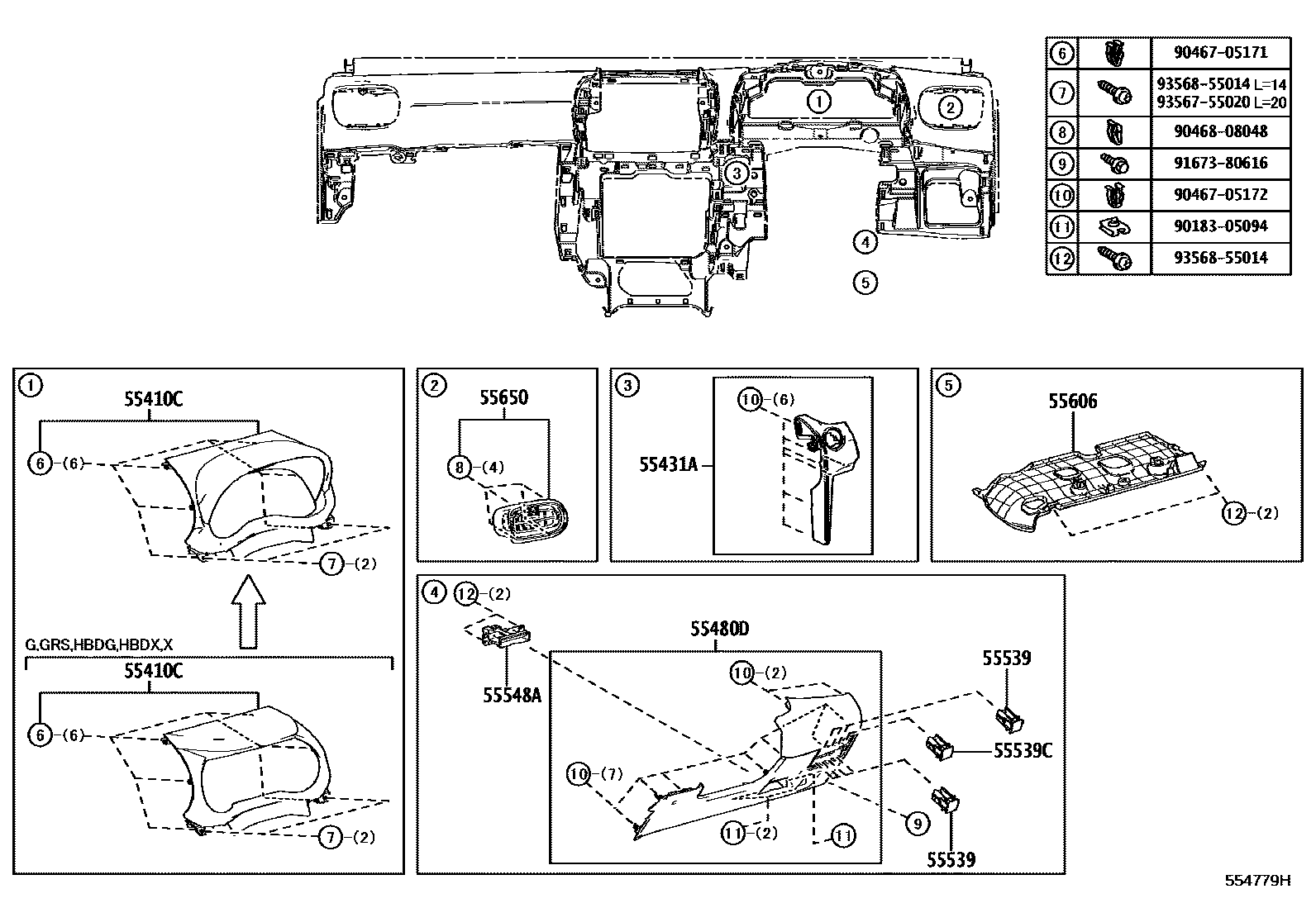

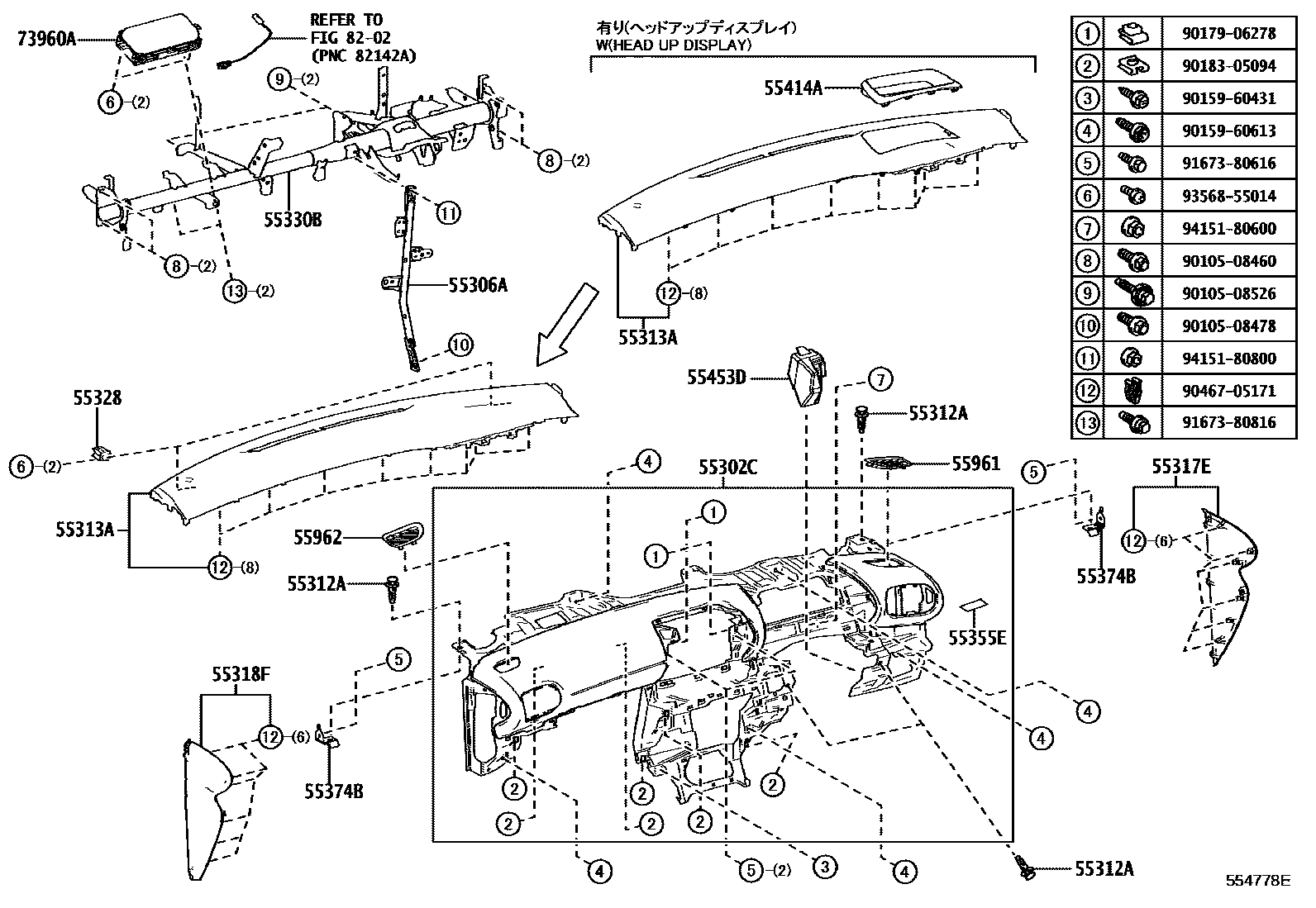

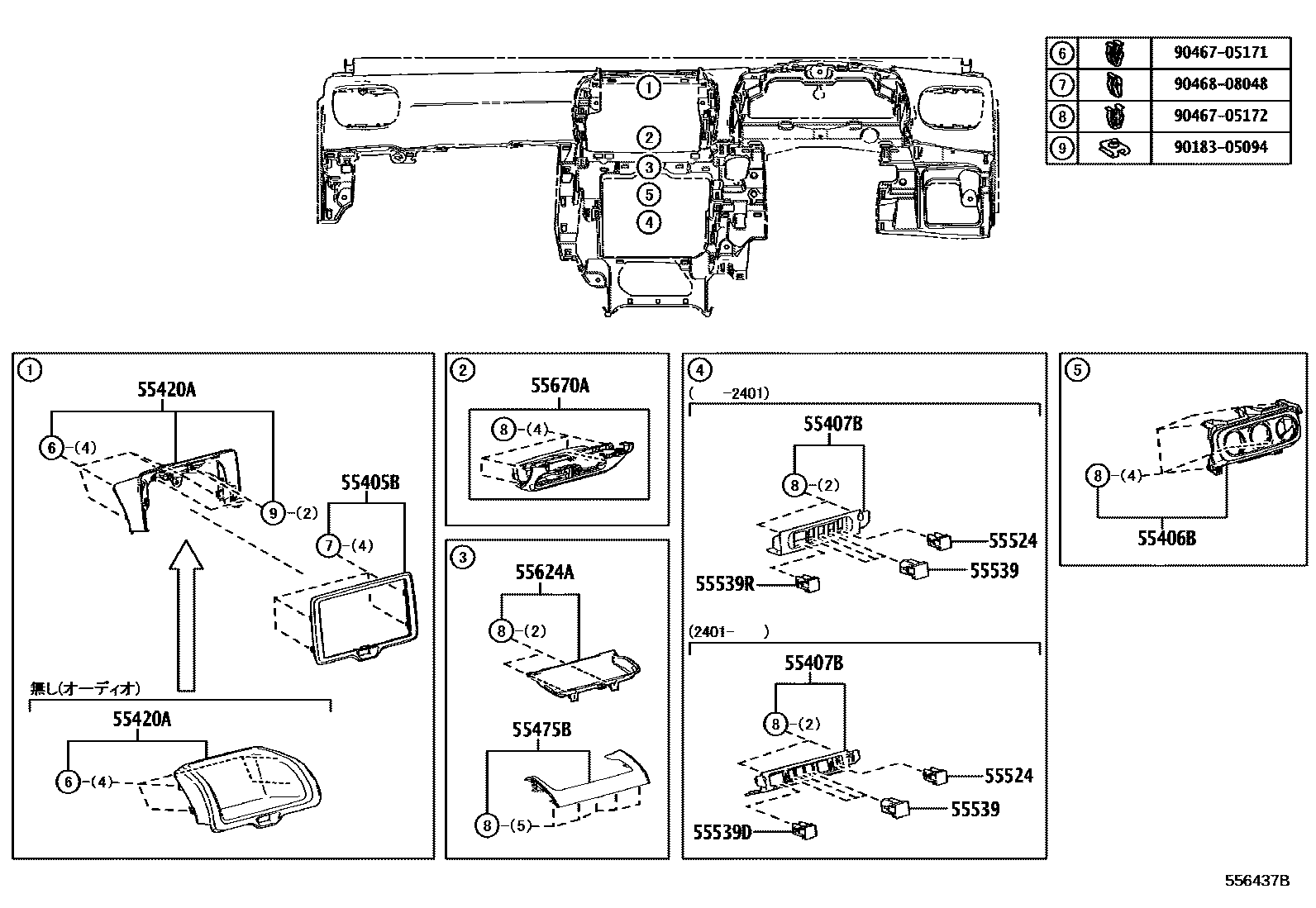

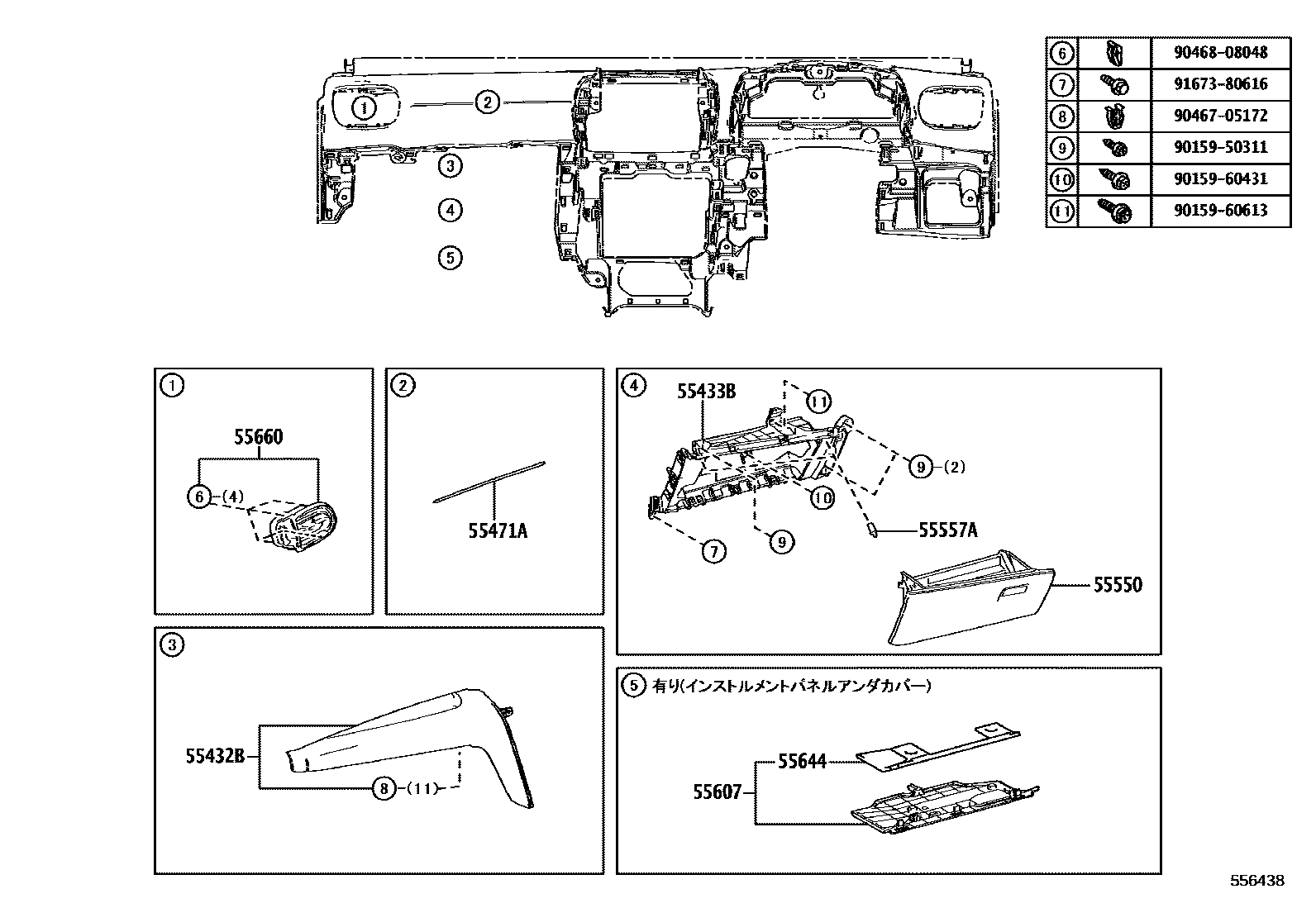

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-K0010 |
| 55312A | Dashboard clip | 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-52A10 · 55330-52B20 |
| 55355E | Dashboard cushion | 55355-53050 |
| 55374B | Dashboard bracket | 55363-52010 · 55363-52020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52E00 · 55405-K0010 · 55405-K0020 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-52380 |
| 55407B | Switch hole seat sub-assembly | 55407-52031 · 55407-52160 |
| 55410C | Instrument cluster decorative panel assembly | 55410-K0010 · 55410-K0020 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-52160 · 55420-52220 · 55420-52230 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52160 |
| 55475B | Center instrument cluster decorative panel trim parts | 55475-52110 · 55475-52250 |
| 55539 | Spare switch hole cover | 55539-33170 |
| 55557A | Glove box cover limit pad | 55557-10040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-K0010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-K0010 |
| 55644 | No. 2 lower instrument panel muffler pad | 55644-K0030 |
| 55670A | Instrument panel central air register assembly | 55670-K0010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-K0010 |
