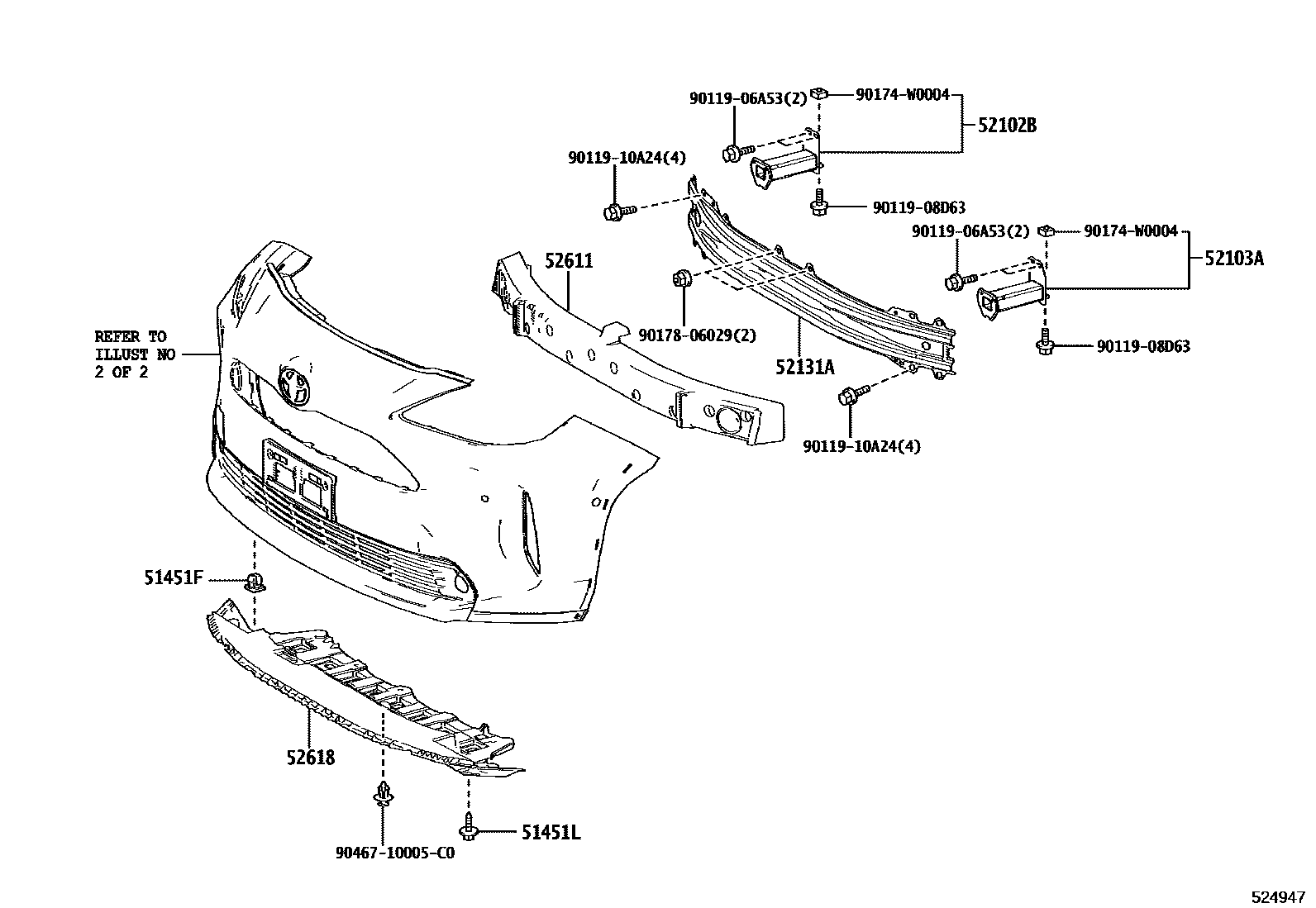

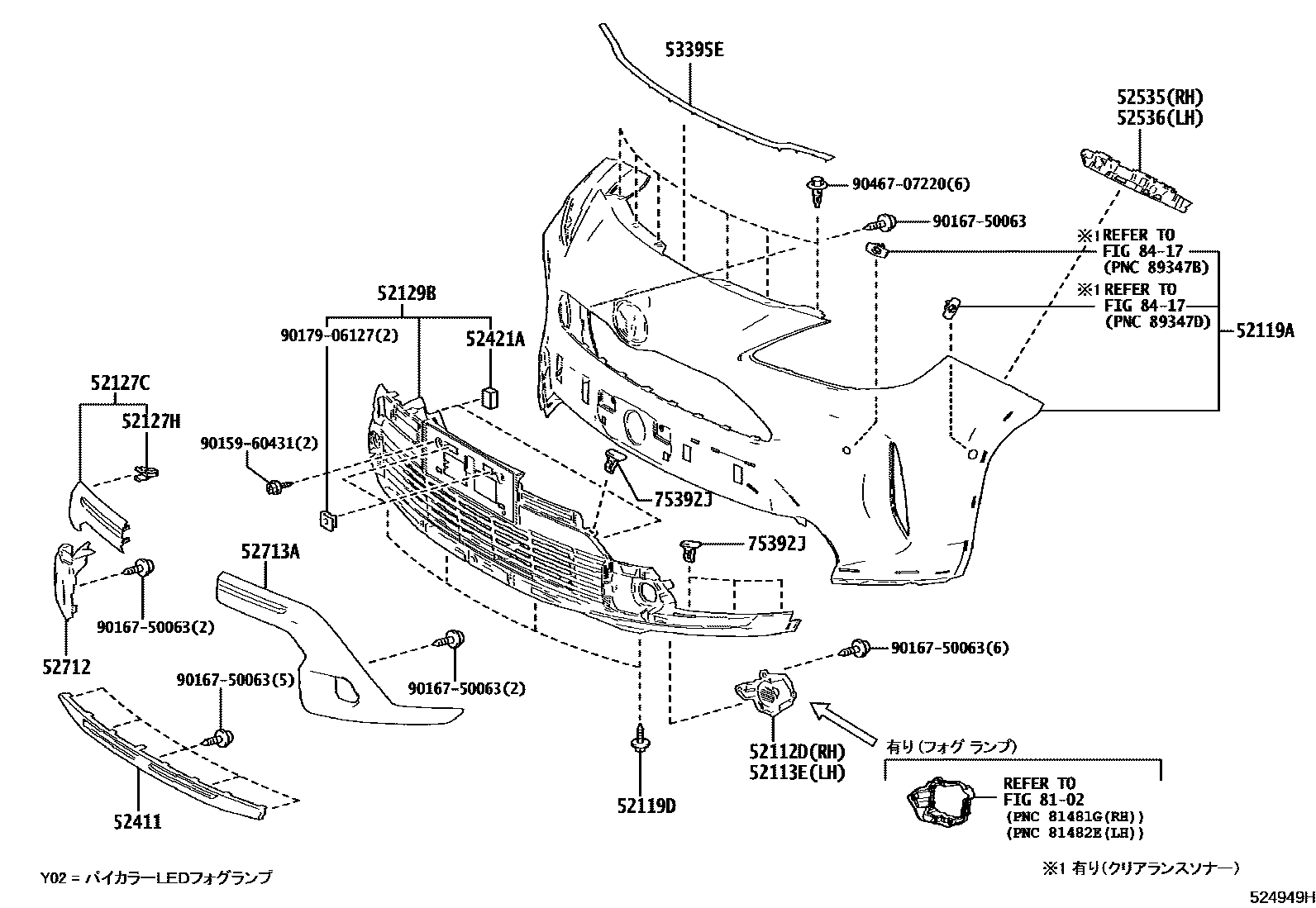

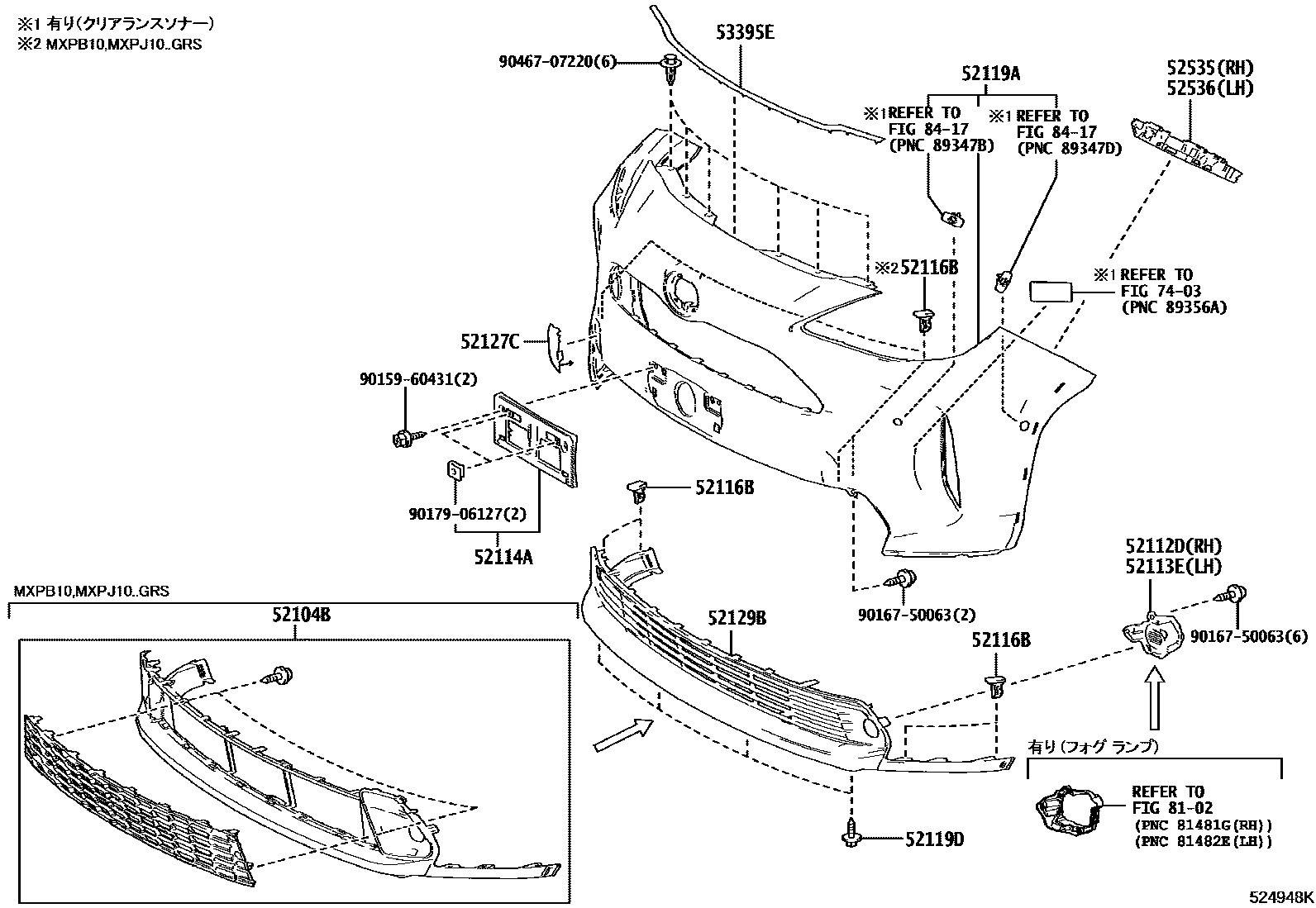

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Toyota part | 90189-06237 |
| 51451L | Toyota part | 90119-06A13 |
| 52102B | Front bumper right extension section sub-assembly | 52102-K0020 |
| 52103A | Front bumper left extension section sub-assembly | 52103-K0020 |
| 52104B | Toyota part | 52104-52040 |
| 52112D | Front bumper right extension | 52112-52110 |
| 52113E | Front bumper left extension | 52113-52110 |
| 52114A | Front bumper extension mounting bracket | 52114-52200 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119D | Toyota part | 90159-60477 |
| 52127C | Front bumper hole cover | 52127-52720 · 52127-52958 |
| 52127H | Toyota part | 90467-10203 |
| 52129B | Front bumper lower cover | 52129-52240 · 52129-52250 |
| 52131A | Front bumper reinforcement | 52131-52360 · 52131-K0011 |
| 52411 | Front bumper anti-collision bar | 52411-52020 |
| 52421A | front bumper lining | 52421-52080 |
| 52535 | Front bumper right side fixing bracket | 52535-52210 |
| 52536 | Front bumper left fixed bracket | 52536-52200 |
| 52611 | front bumper energy absorber | 52611-52380 |
| 52618 | Front bumper lower shock absorber | 52618-52150 |
| 52712 | Front bumper right side protective strip | 52712-52220 |
| 52713A | Front bumper left protective strip | 52713-52180 |
| 53395E | Engine cover to front end plate seal | 53395-52110 |
| 75392J | External protective strip fixings | 75392-35220 |
