Toyota YARIS 后盘式制动器卡钳和防尘罩 — Figure 4707

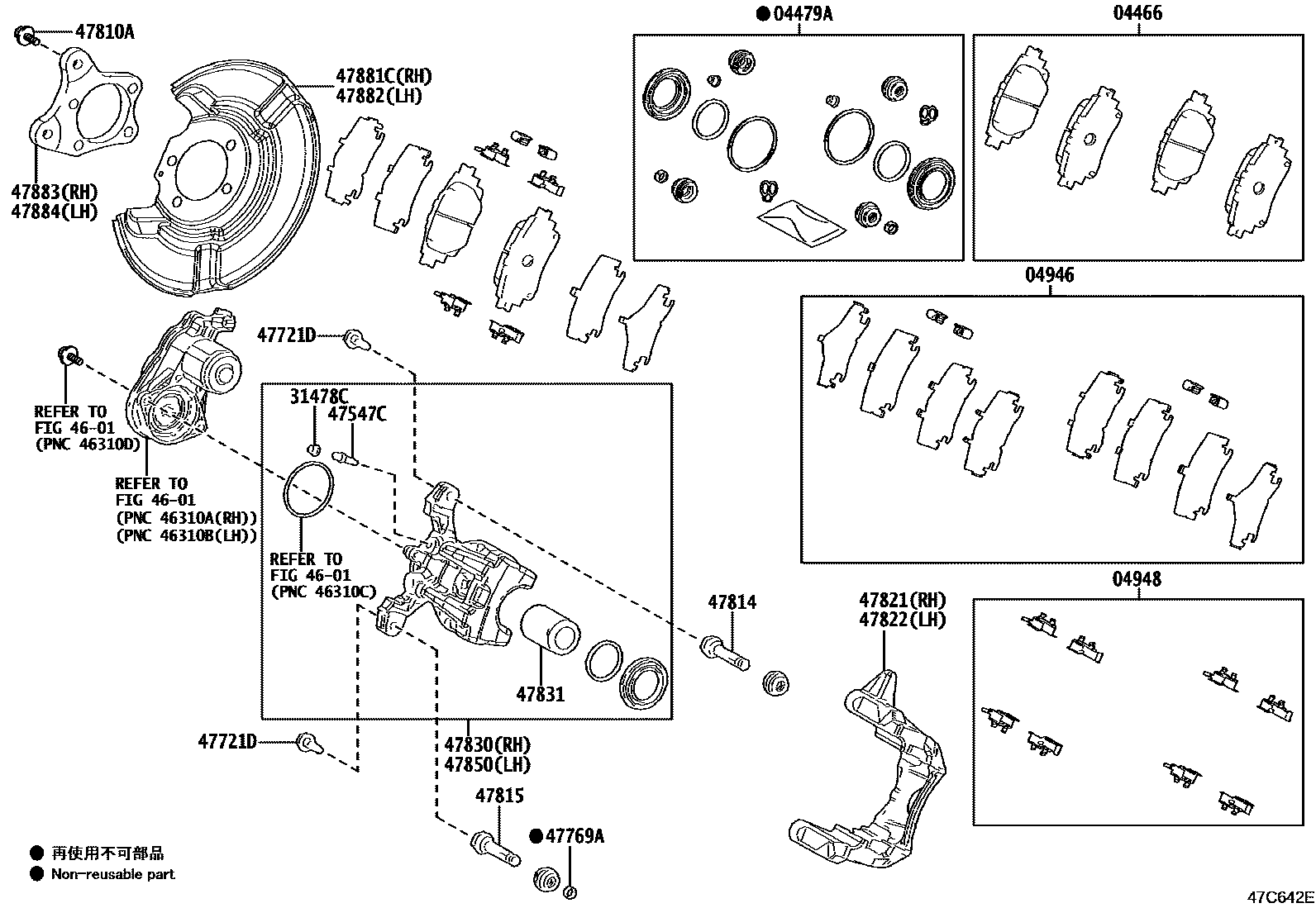

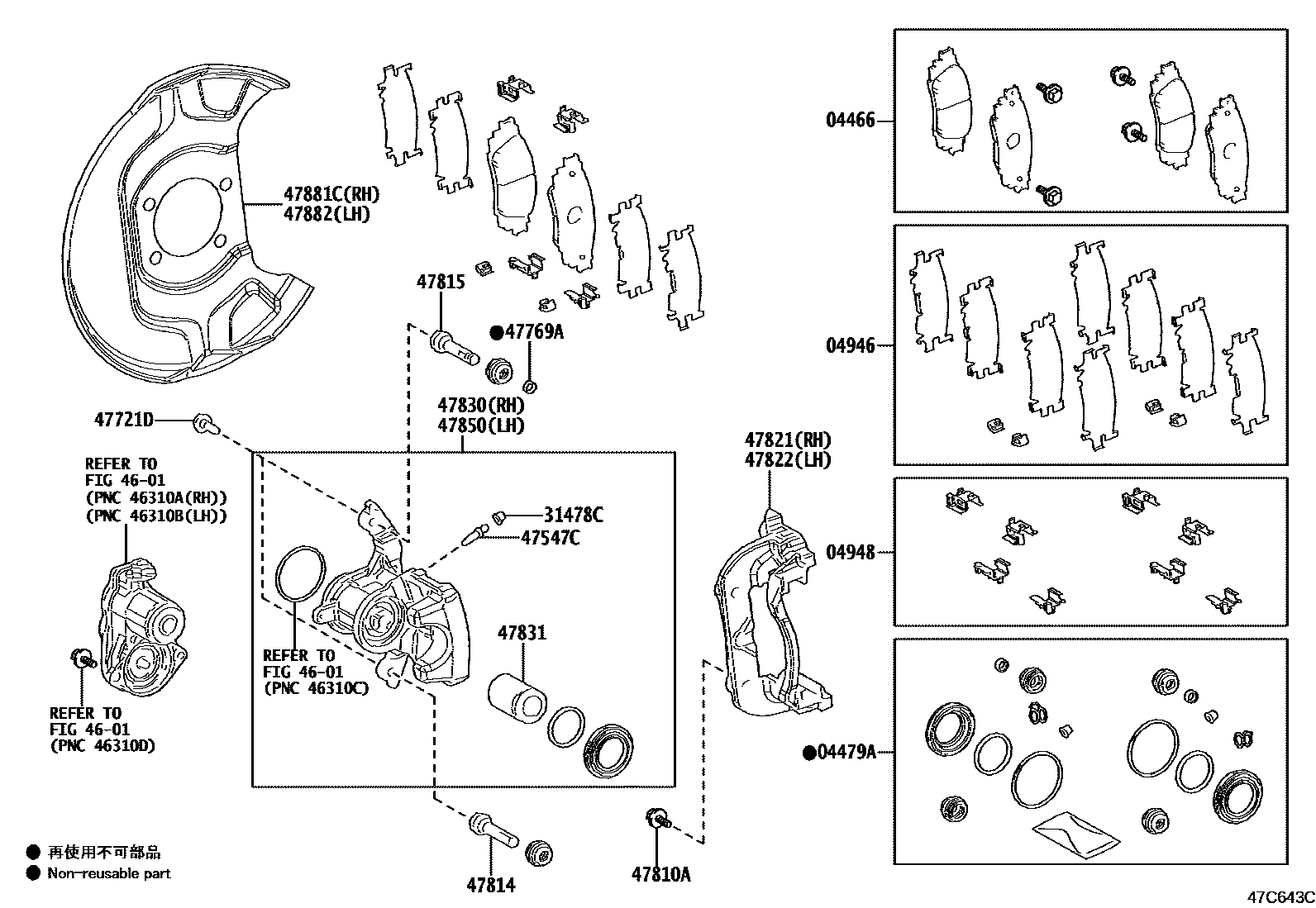

Toyota YARIS EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-10011 · 04466-52210 |
| 04479A | Rear disc brake cylinder assembly | 04479-10091 · 04479-52290 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-48130 · 04946-52130 |
| 04948 | Rear disc brake mounting assembly | 04948-52060 · 04948-58010 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA603 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-50010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-78010 |
| 47821 | Right disc brake cylinder retaining bracket | 47821-10030 · 47821-52240 · 47821-52290 |
| 47822 | Left disc brake cylinder retaining bracket | 47822-10030 · 47822-52240 · 47822-52290 |
| 47830 | Right rear disc brake cylinder assembly | 47830-52240 · 47830-52260 · 47830-52290 · 47850-12280 |
| 47831 | rear disc brake piston | 47831-10030 |
| 47850 | Left rear disc brake cylinder assembly | 47830-12280 · 47850-52240 · 47850-52260 · 47850-52290 |
| 47881C | Toyota part | 47881-52070 · 47881-52080 |
| 47882 | Toyota part | 47882-52070 · 47882-52080 |
| 47883 | Right rear brake caliper bracket | 47883-52030 |
| 47884 | Left rear brake caliper bracket | 47884-52030 |
