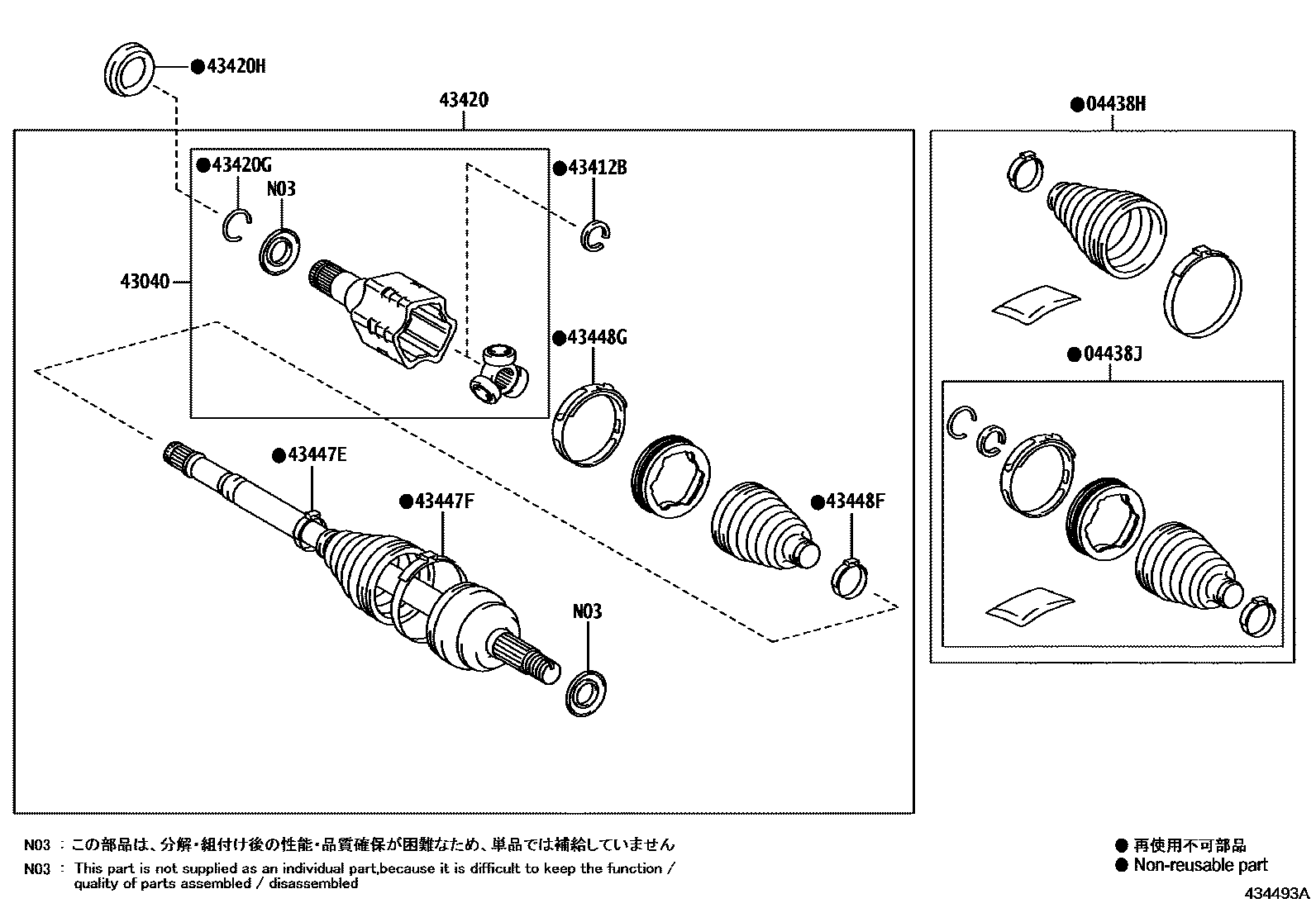

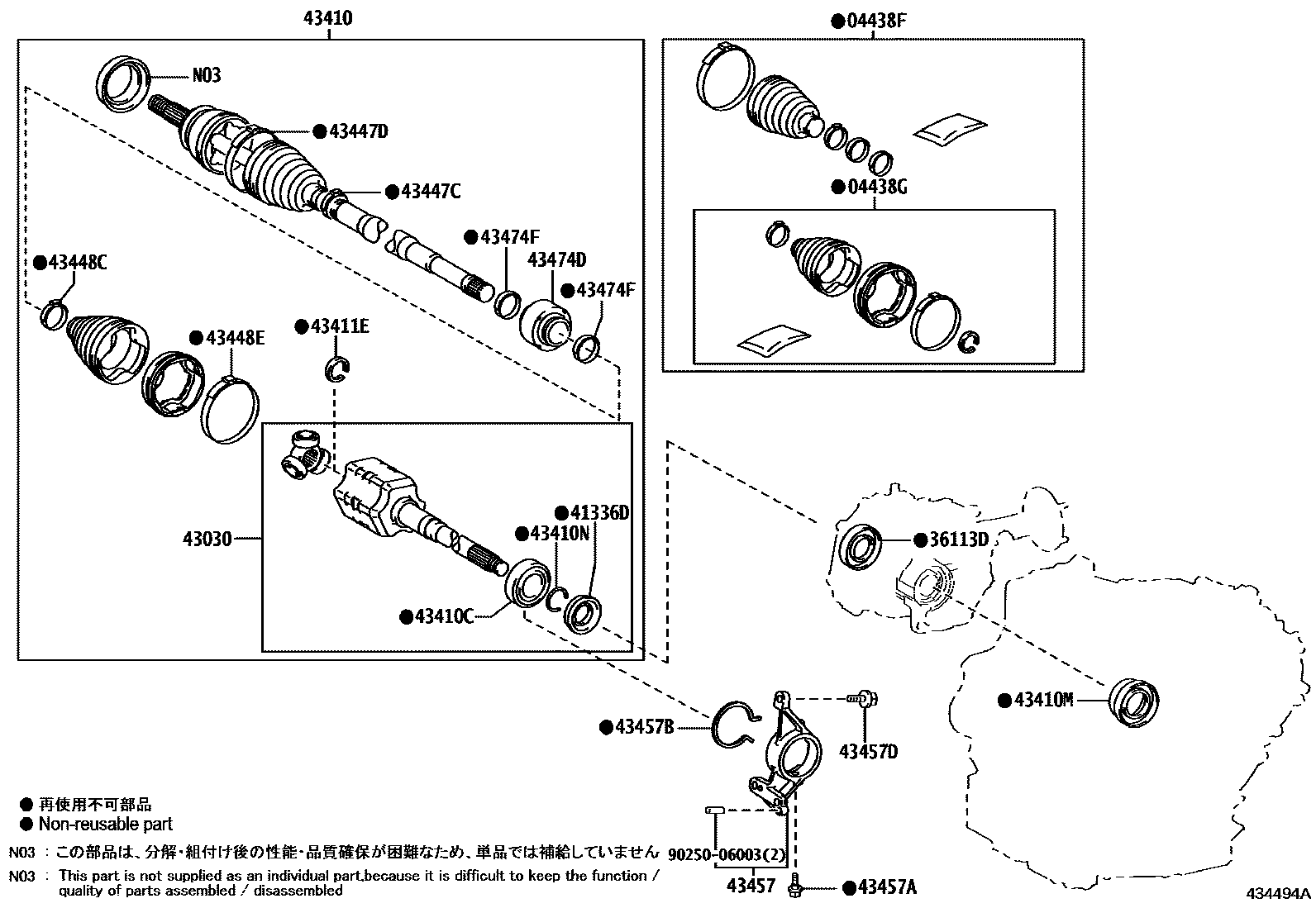

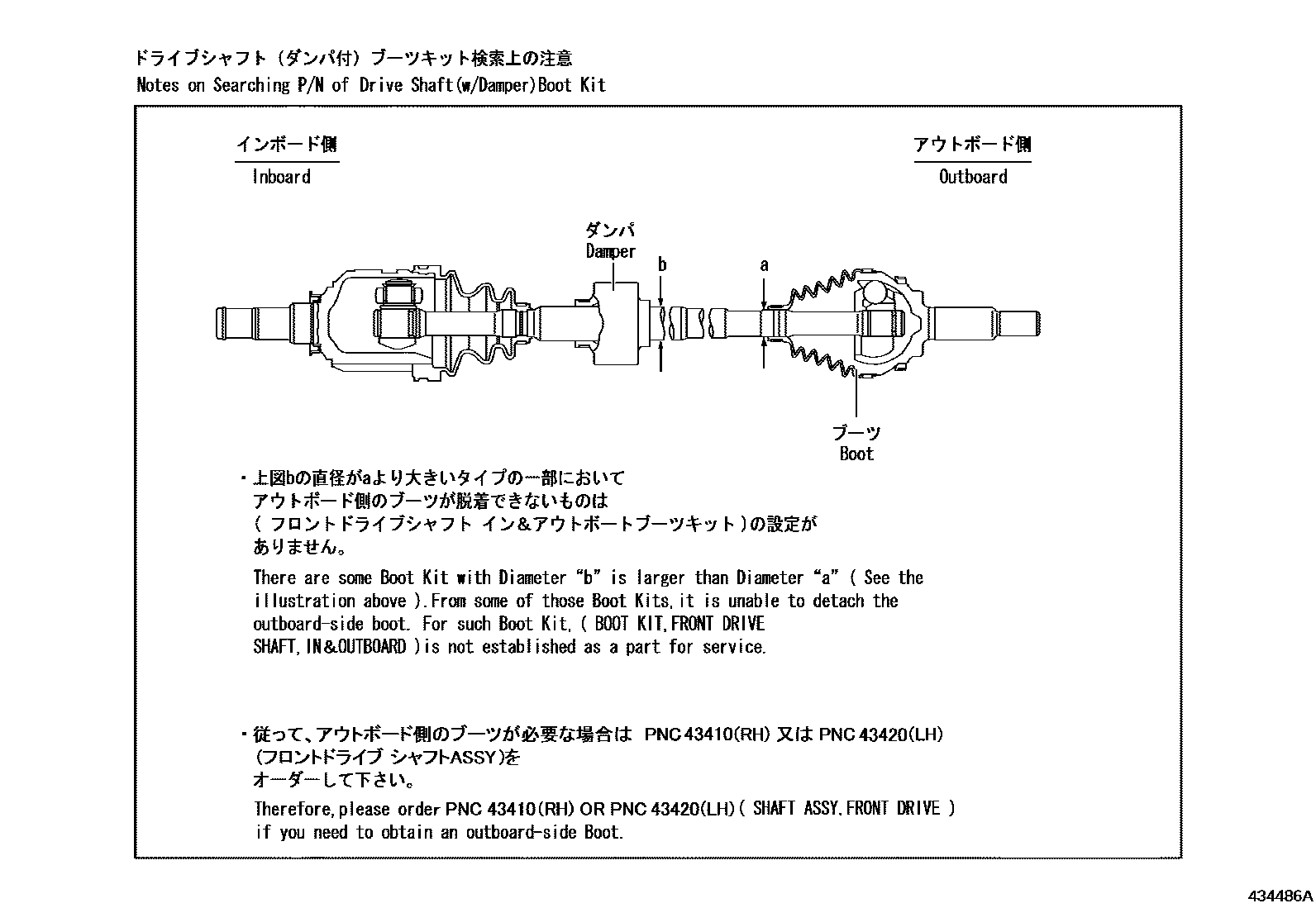

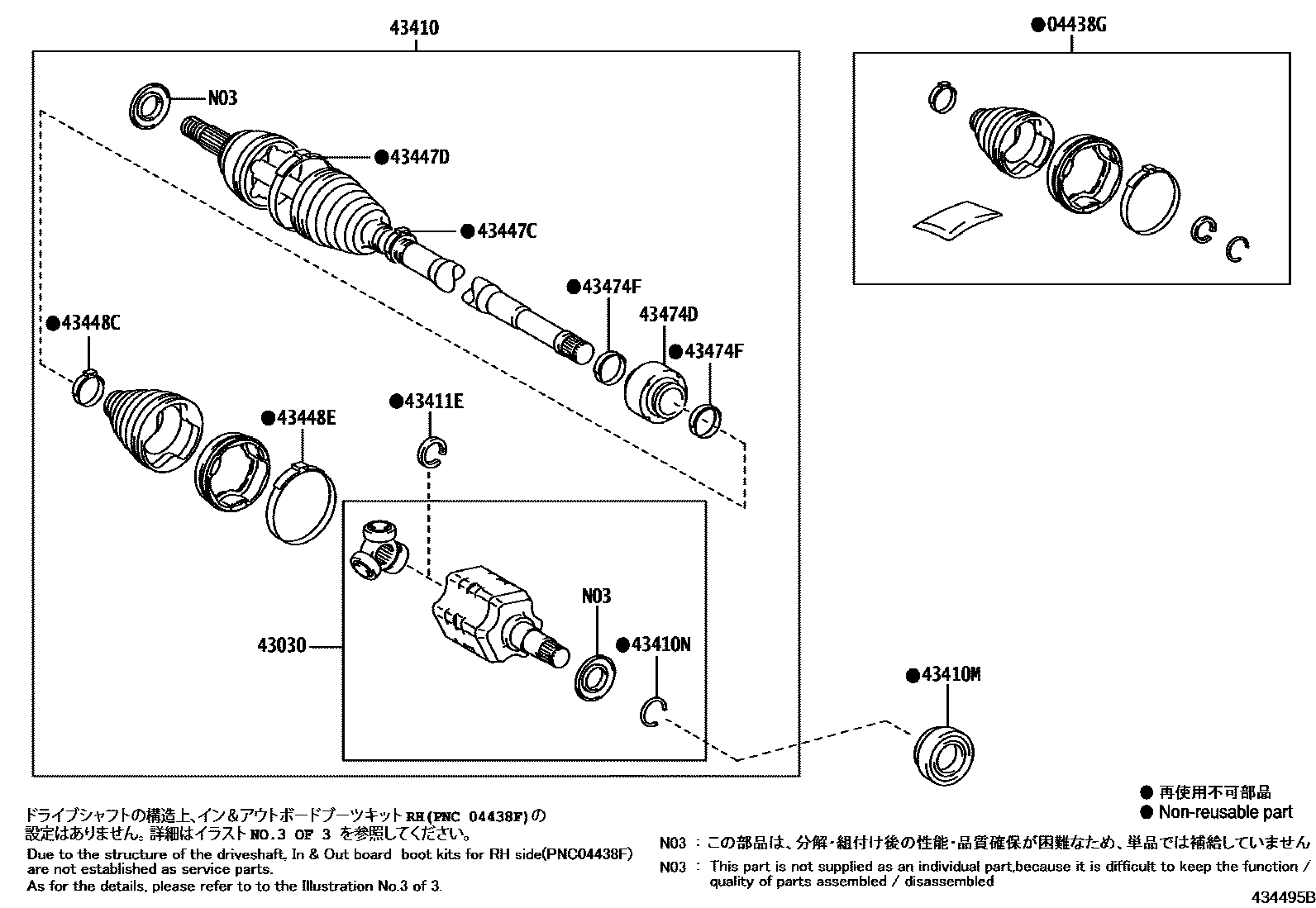

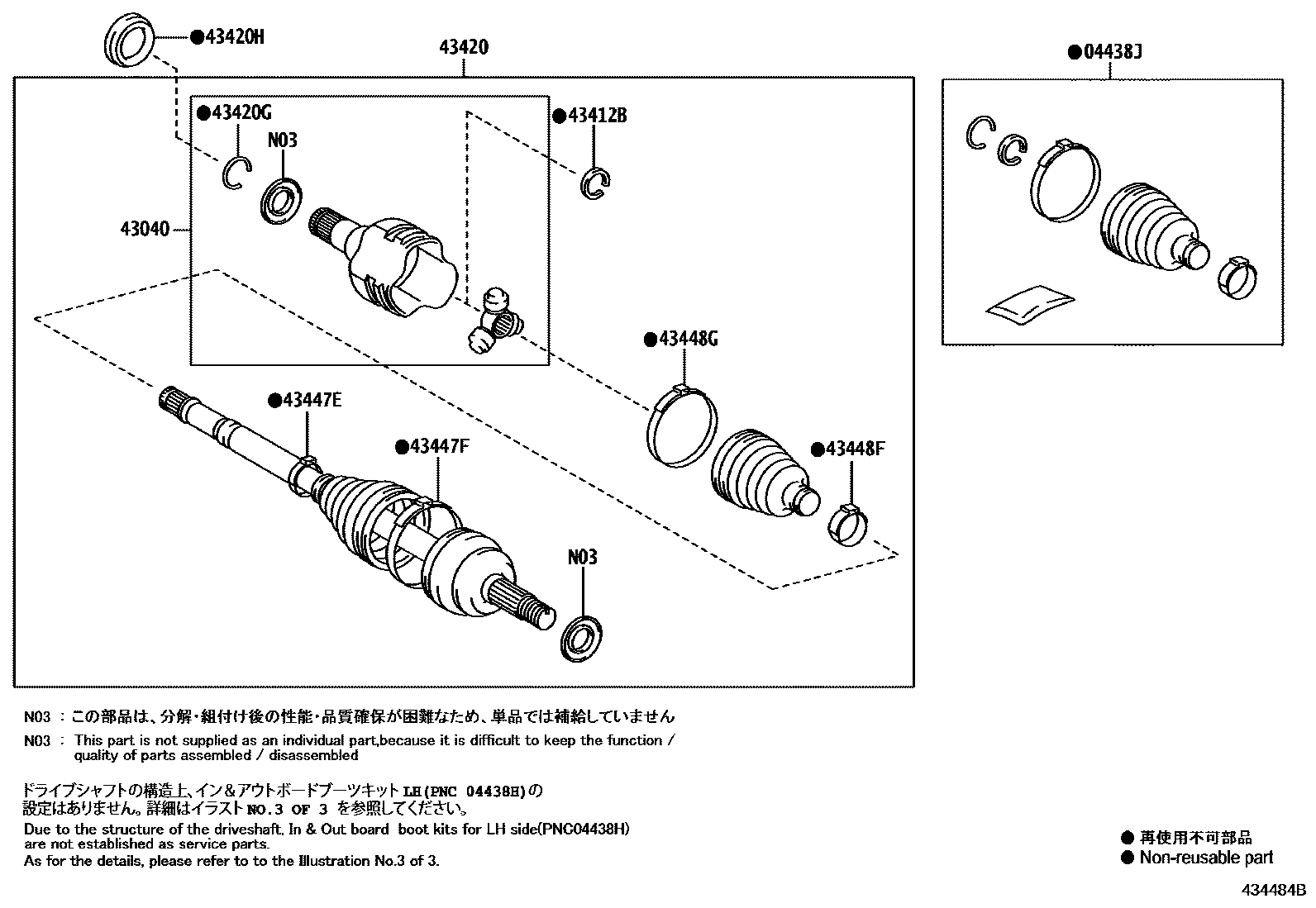

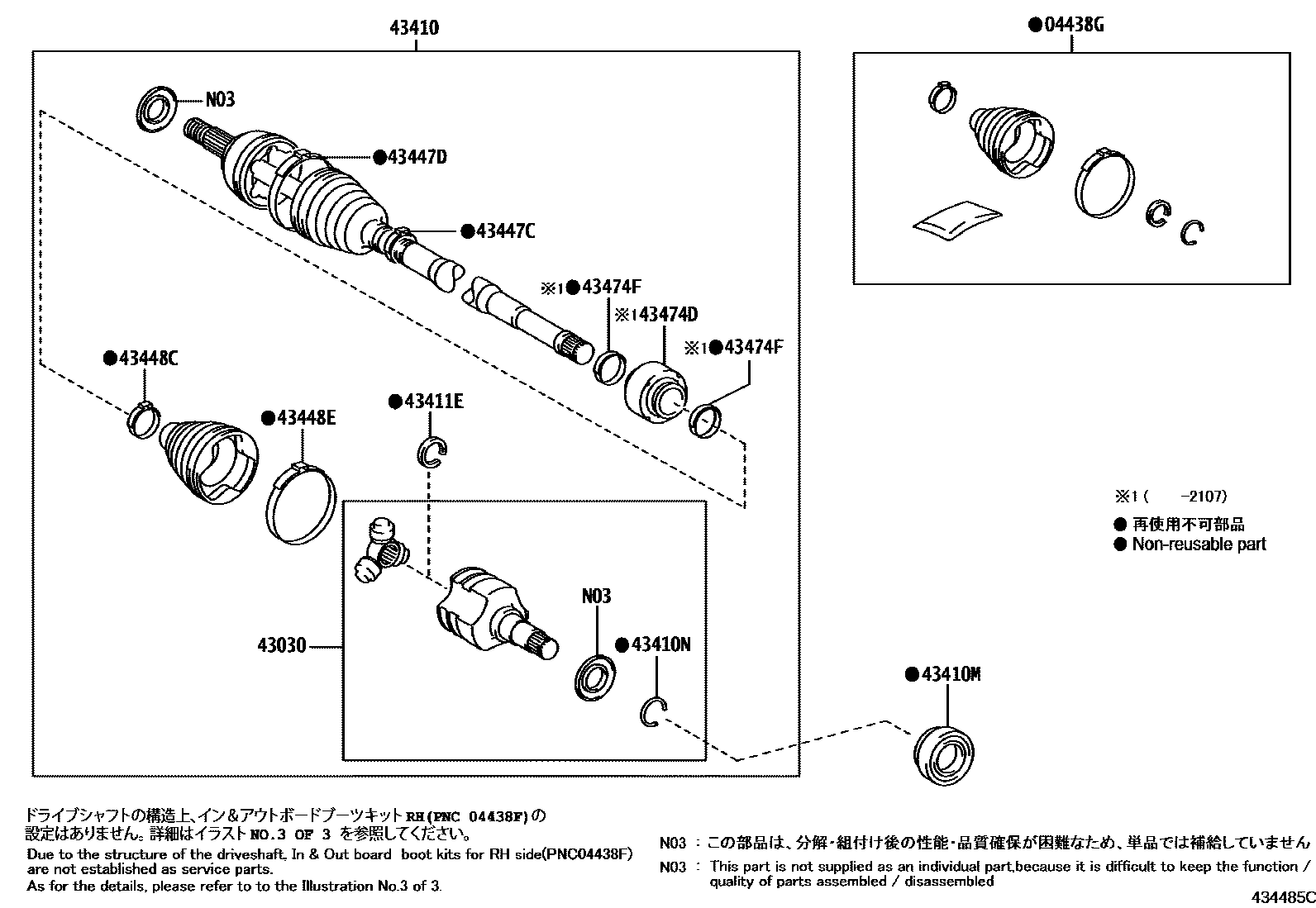

Toyota YARIS Front Drive Shaft — Figure 4302
Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-53000 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-52490 · 04437-53050 · 04437-K0020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52905 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52490 · 04437-K0020 |
| 36113D | Toyota part | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-52020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-K0010 · 43040-0D130 · 43040-K0010 · 43040-K0020 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0D150 · 43040-K0010 · 43040-K0020 |
| 43410 | Right front driveshaft assembly | 43410-0D680 · 43410-52360 · 43410-52370 · 43410-52380 · 43410-52490 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 |
| 43410M | Toyota part | 90311-35083 · 90316-28003 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02260 · 90520-33008 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-05080 · 43425-12070 · 90520-22029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-05120 · 43425-12070 · 90520-22029 |
| 43420 | Left front drive shaft assembly | 43420-0D750 · 43420-52320 · 43420-52350 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02260 · 90521-27005 |
| 43420H | Toyota part | 90311-35082 · 90311-9U001 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02C50 · 42345-12230 · 42345-52260 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02C60 · 42345-12240 · 42345-52250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02C50 · 42345-12230 · 42345-52260 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02C60 · 42345-12240 · 42345-52250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02C50 · 42345-12230 · 42345-52340 · 42345-K0080 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02G70 · 42345-12180 · 42345-K0091 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02C50 · 42345-12230 · 42345-52340 · 42345-K0080 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-05130 · 42345-12180 · 42345-K0091 |
| 43457 | drive shaft bearing bracket | 43457-K0010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43474D | Right front driveshaft shock absorber | 43474-12160 · 43474-52110 · 43474-52130 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D770 · 42345-12090 |
