Toyota YARIS 油冷却器和配管(HV或FCV) — Figure 3914

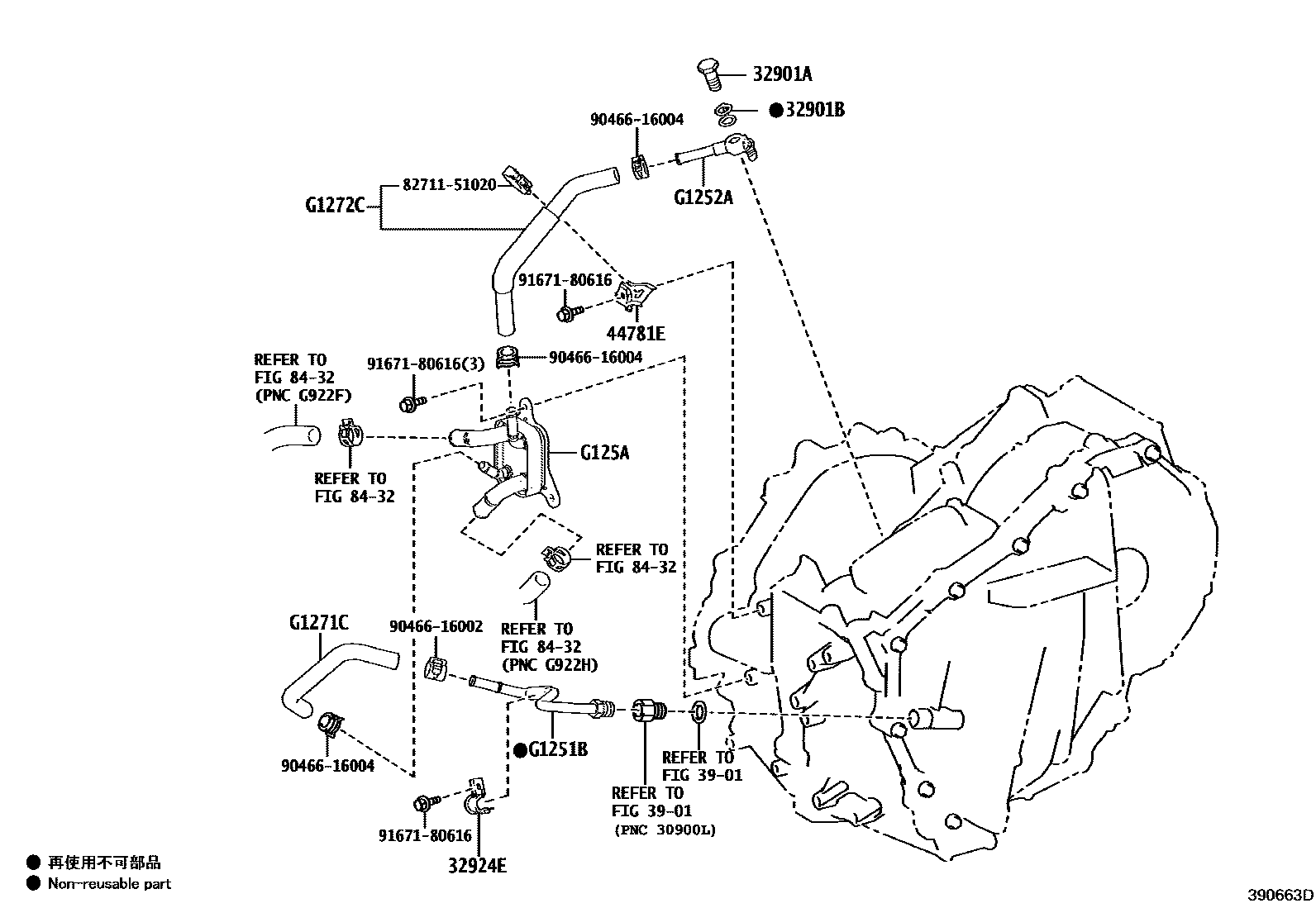

Toyota YARIS EPC diagram 3914, 油冷却器和配管(HV或FCV), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901A | Connector bolt (for oil cooler) | 90401-12039 |
| 32901B | Gasket (for transmission oil cooler connector) | 90430-12037 |
| 32924E | No. 2 transmission oil cooler pipe clamp | 32924-48010 |
| 44781E | Toyota part | 44781-K0010 |
| G1251B | Toyota part | G1251-K0010 |
| G1252A | Toyota part | G1252-K0010 |
| G125A | Toyota part | G125A-K0010 |
| G1271C | No. 1 motor cooling hose | G1271-K0010 |
| G1272C | No. 2 motor cooling hose | G1272-K0010 |
