Toyota YARIS HV或FCV传动桥总成 — Figure 3901

Toyota YARIS EPC diagram 3901, HV或FCV传动桥总成, with 3 images and 38 PNC and OE references.

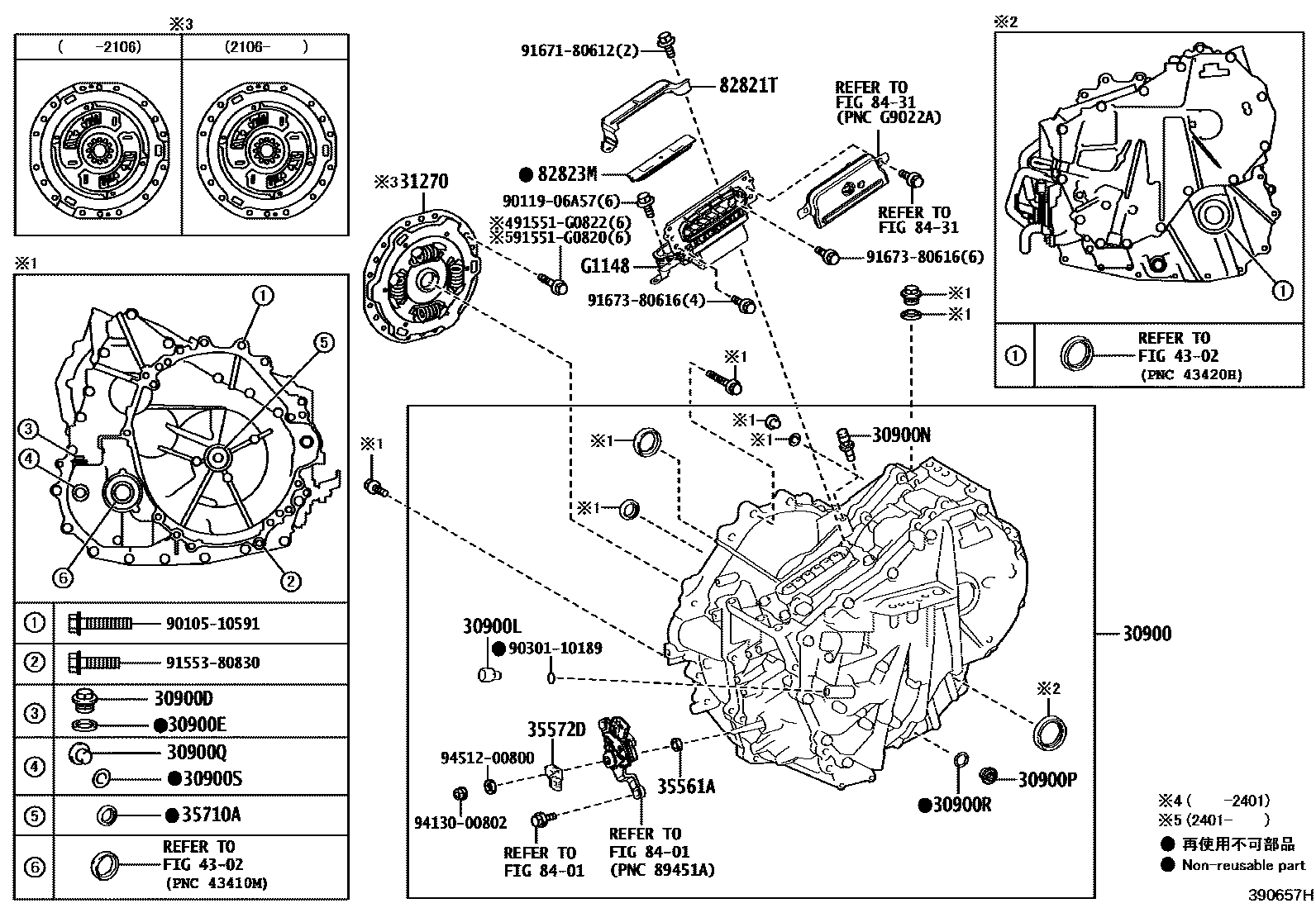

Toyota YARIS HV或FCV传动桥总成 EPC diagram — 390657H
HV或FCV传动桥总成 — 390657H (202008 – 999999)

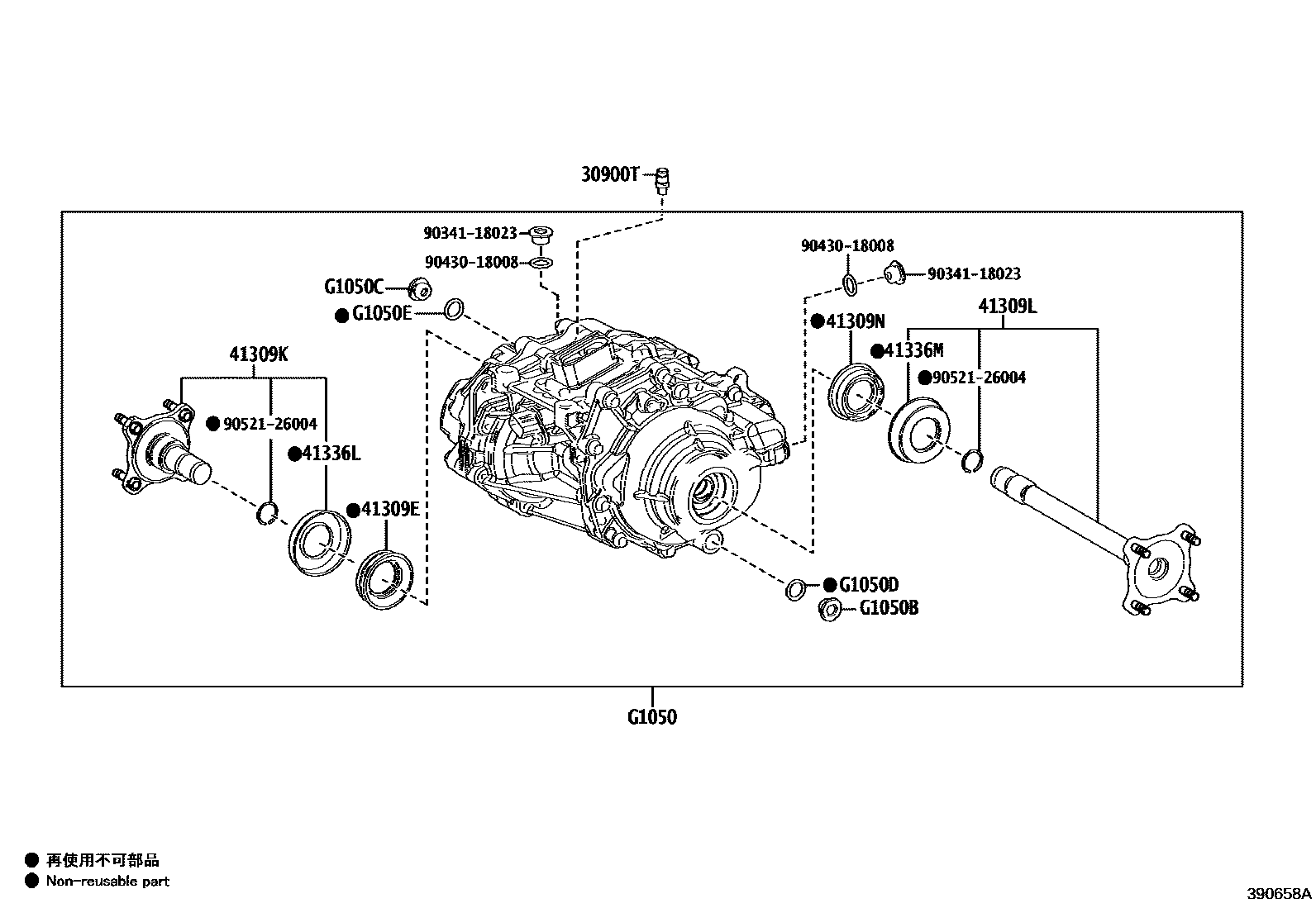

Toyota YARIS HV或FCV传动桥总成 EPC diagram — 390658A
HV或FCV传动桥总成 — 390658A (202008 – 999999)

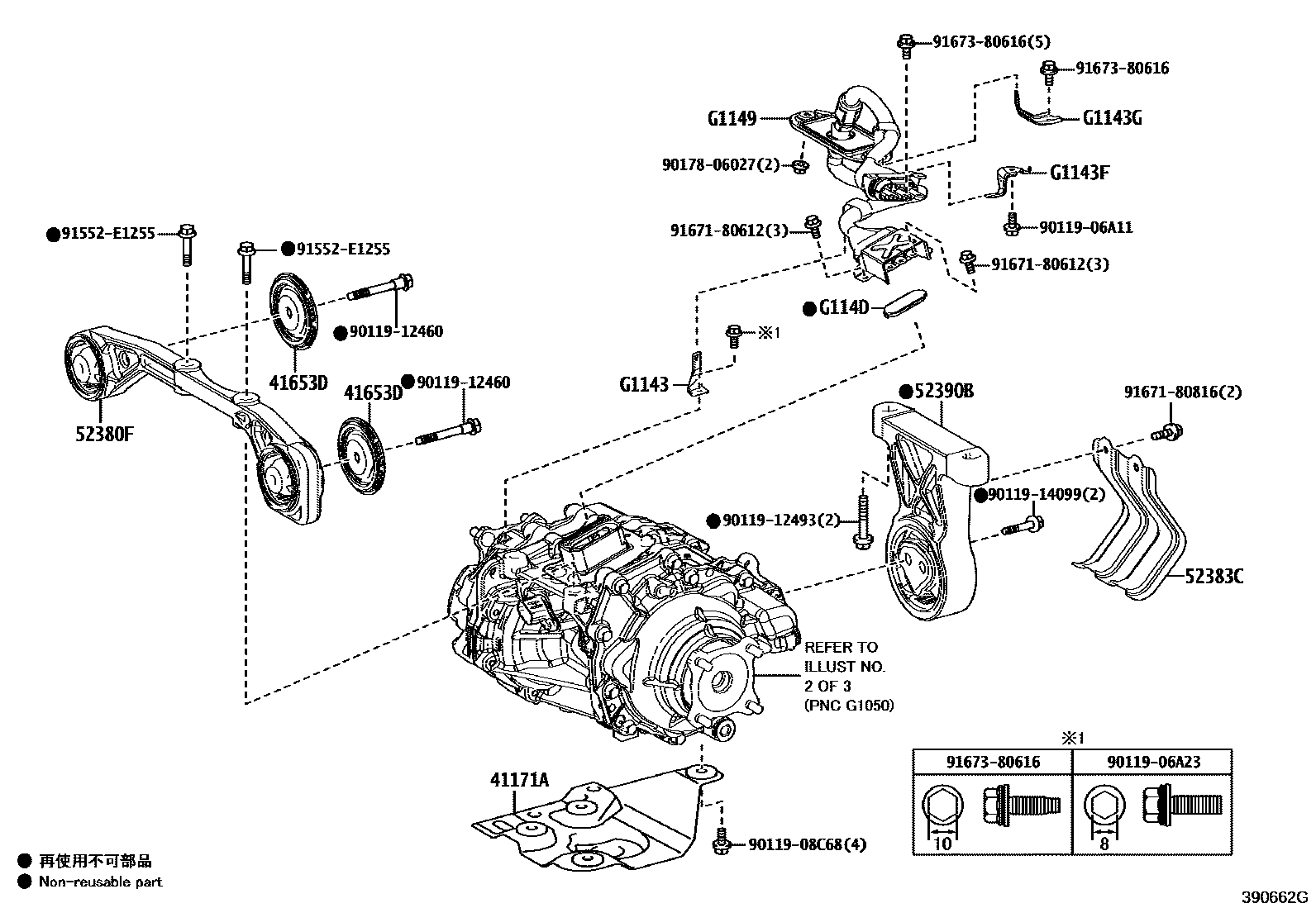

Toyota YARIS HV或FCV传动桥总成 EPC diagram — 390662G
HV或FCV传动桥总成 — 390662G (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
30900Hybrid vehicle transmission axle assembly30900-52040
30900DHeaded straight thread plug (for transaxle housing and transaxle housing)90341-18060
30900EGasket (for transaxle housing and transaxle housing)90430-18008
30900LConnector (for transaxle housing)90404-16031
30900NBreather plug (for transaxle)90930-03201
30900PToyota part90341-18016
30900QToyota part90341-18016
30900RToyota part90430-18008
30900SToyota part90430-18008
30900TToyota part90930-03031
31270Transmission input damper assembly31270-K0012 · 31270-K0013
35561AT-type oil seal (for parking lock axle)90311-12016
35572Dtransmission control lever35572-K0010
35710AT-type oil seal (for input shaft)90311-25025
41171ADifferential guard41170-52010
41309EToyota part90311-38097
41309KDifferential side gear shaft sub-assembly41309-47020 · 41309-47021
41309LDifferential side gear shaft sub-assembly41309-47010 · 41309-47011 · 41309-47012
41309NToyota part90311-42056
41336Ldust cover41336-47020
41336Mdust cover41336-47010
41653DDifferential fixed part upper stop41653-K0010
52380FFront differential bracket assembly52380-K0040
52383CDifferential bracket protective cover52383-K0010
52390BRear differential bracket assembly52390-K0020
82821TConnector cover82821-52350
82823MTerminal cover82823-47040
G1050Rear traction motor assembly with transmission axleG1050-52010 · G1050-52011 · G1050-52012
G1050BToyota part90341-18023
G1050CToyota part90341-18023
G1050DToyota part90430-18008
G1050EToyota part90430-18008
G1143Motor cable bracketG1143-K0010
G1143FToyota partG1143-K0020
G1143GToyota partG1143-K0030
G1148Motor cableG1148-K0010
G1149Toyota partG1149-K0010
G114DMotor cable terminal coverG114D-47021
