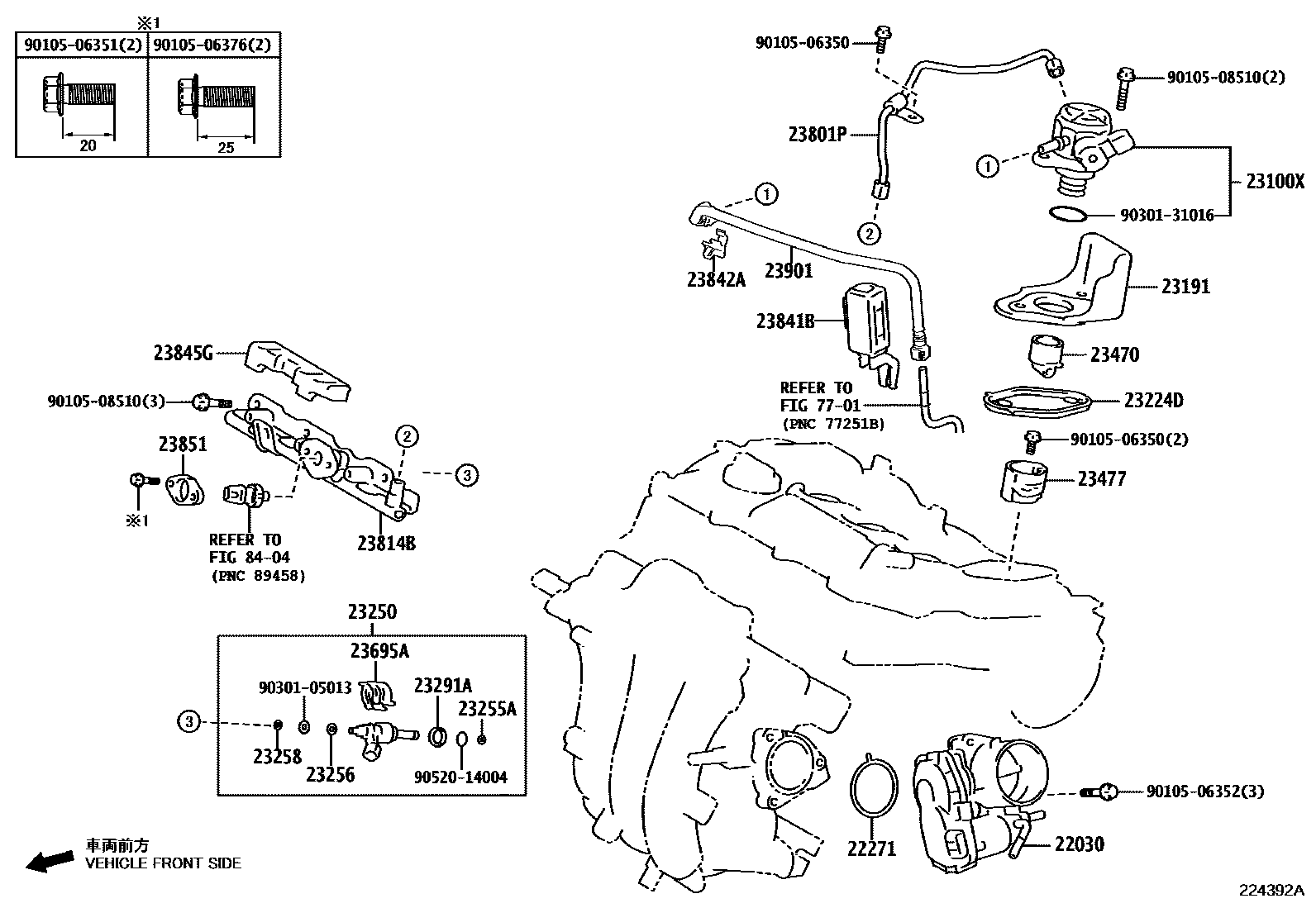

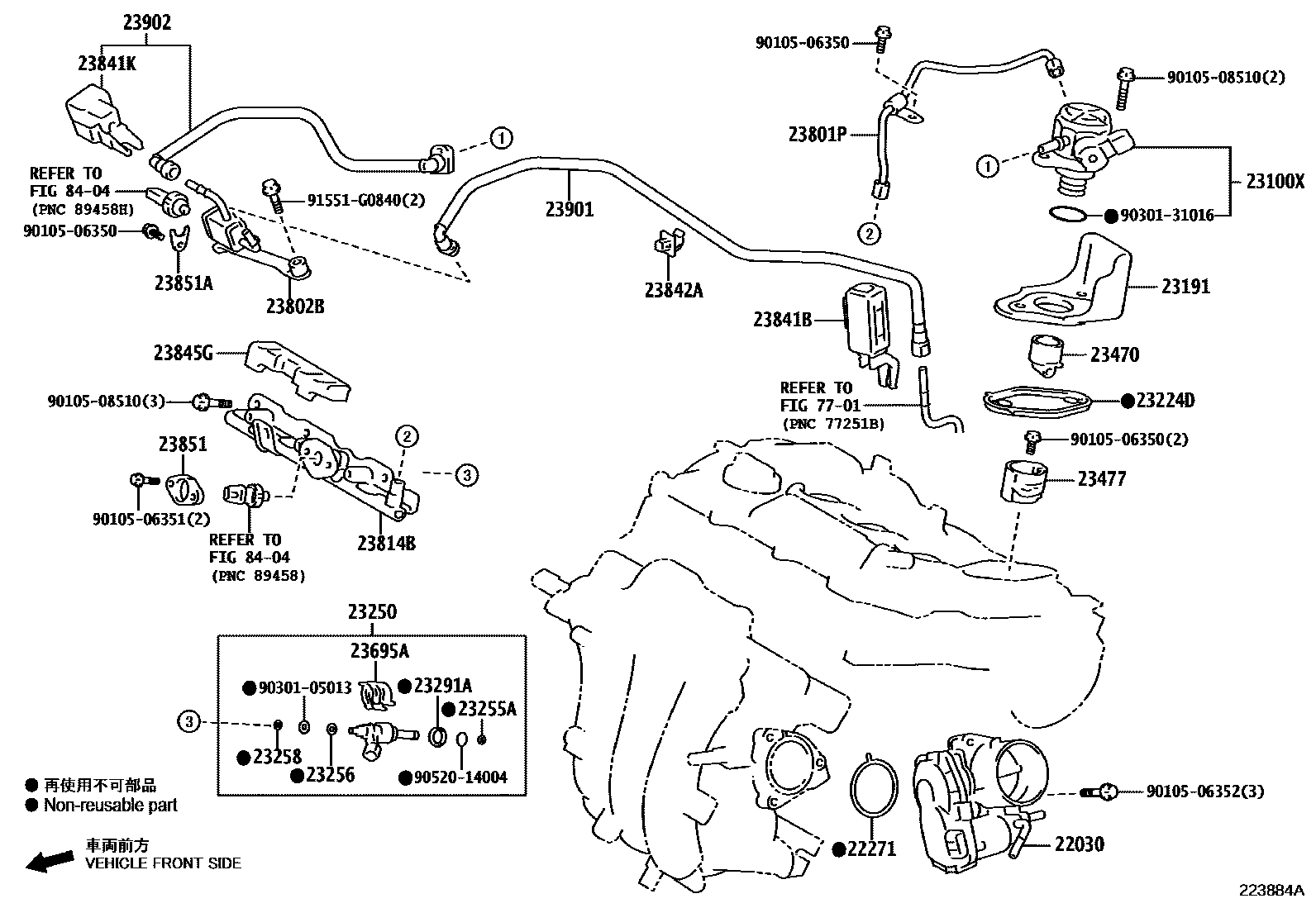

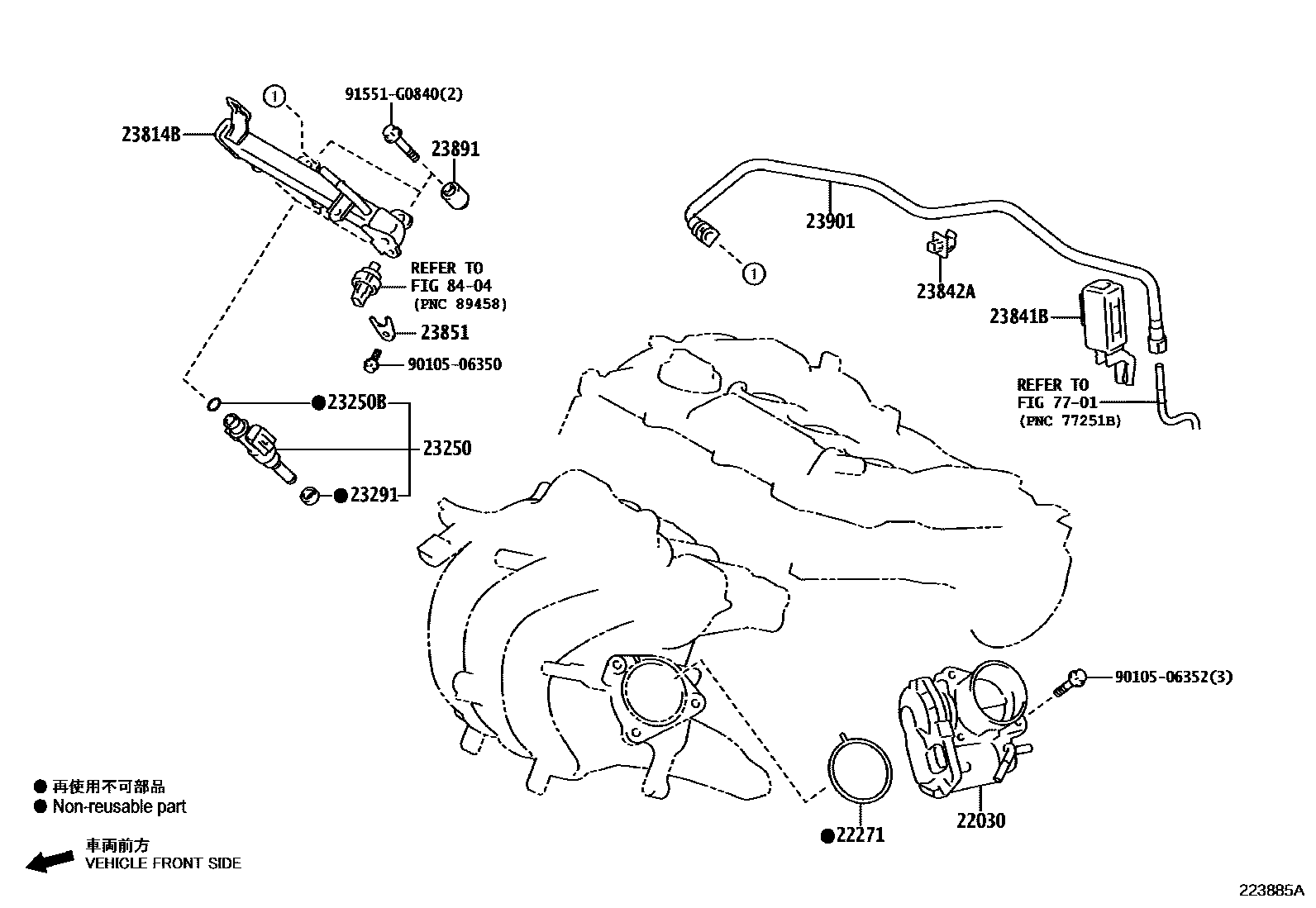

Toyota YARIS 燃油喷射系统 — Figure 2211
Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-15010 |
| 22271 | Throttle body gasket | 22271-15050 |
| 23100X | fuel pump assembly | 23101-25040 |
| 23191 | Toyota part | 23191-25050 |
| 23224D | Toyota part | 23224-25010 · 23224-25011 |
| 23250 | Fuel injector assembly | 23209-19025 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23255A | Injector seal | 23255-25010 |
| 23256 | No. 1 injector retaining ring | 23256-25010 |
| 23258 | No. 3 injector retaining ring | 23258-47010 |
| 23291 | Injector vibration isolation pad | 23291-28020 |
| 23291A | Injector vibration isolation pad | 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 |
| 23477 | fuel pump tappet guide | 23477-25010 |
| 23695A | Injector body clamp | 23695-24010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-15070 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-15010 |
| 23814B | oil pipeline | 23814-15070 · 23814-15071 · 23814-15080 · 23814-15090 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-15030 · 23841-15050 |
| 23841K | Toyota part | 23841-15020 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-15060 · 23841-47050 |
| 23845G | Toyota part | 23845-15010 · 23845-15011 |
| 23851 | Toyota part | 23851-25020 · 23851-25030 |
| 23851A | Toyota part | 23851-25030 |
| 23891 | oil pipe septum | 23891-24010 |
| 23901 | Fuel pipe sub-assembly | 23901-15050 · 23901-15060 · 23901-15070 · 23901-15100 · 23901-15120 |
| 23902 | Fuel pipe sub-assembly | 23901-15040 |
