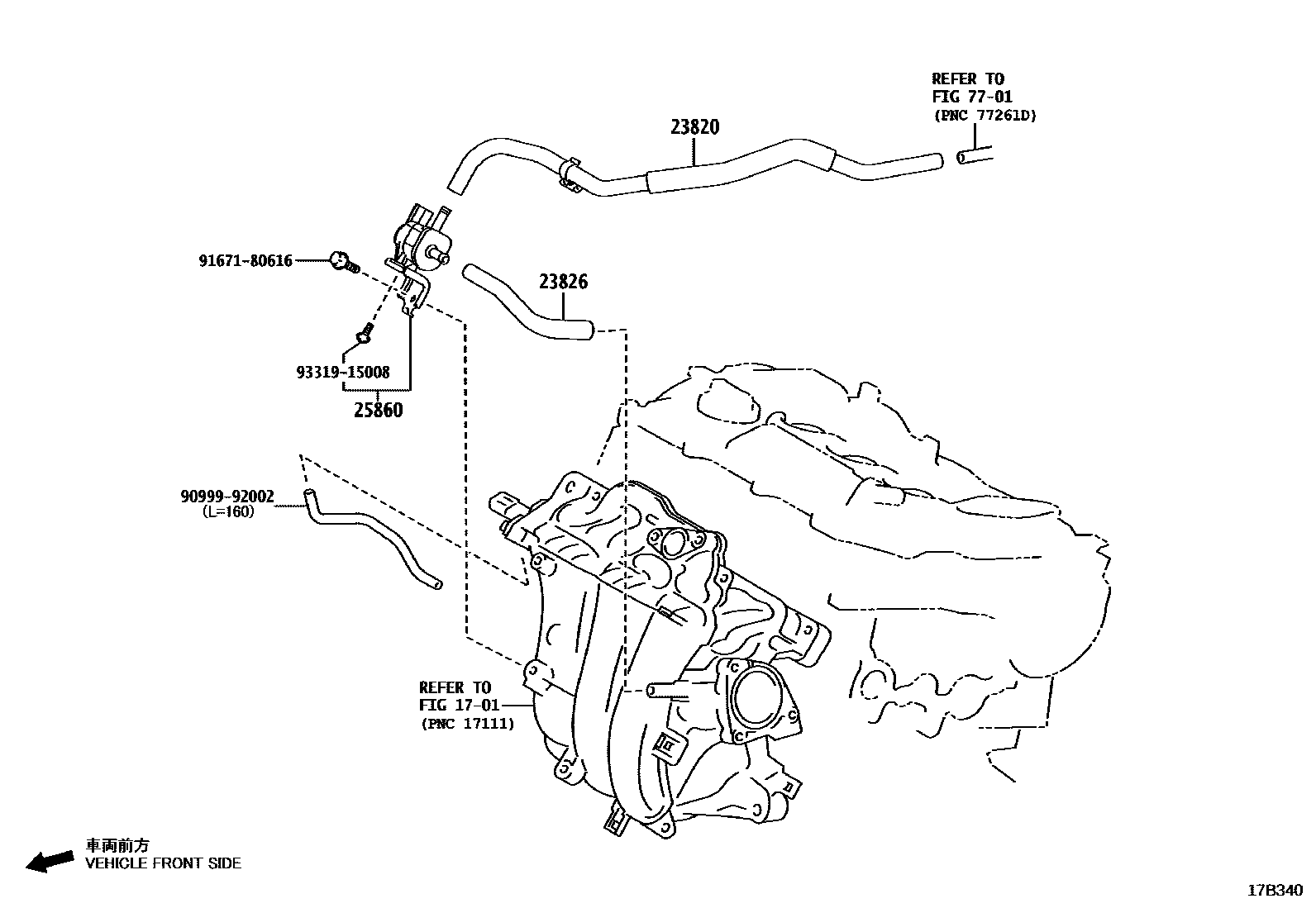

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-15010 · 23820-15020 |
| 23826 | No. 1 fuel vapor supply hose | 23826-15010 · 23826-15020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-15040 · 25860-15050 |
