Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 5 images and 14 PNC and OE references.

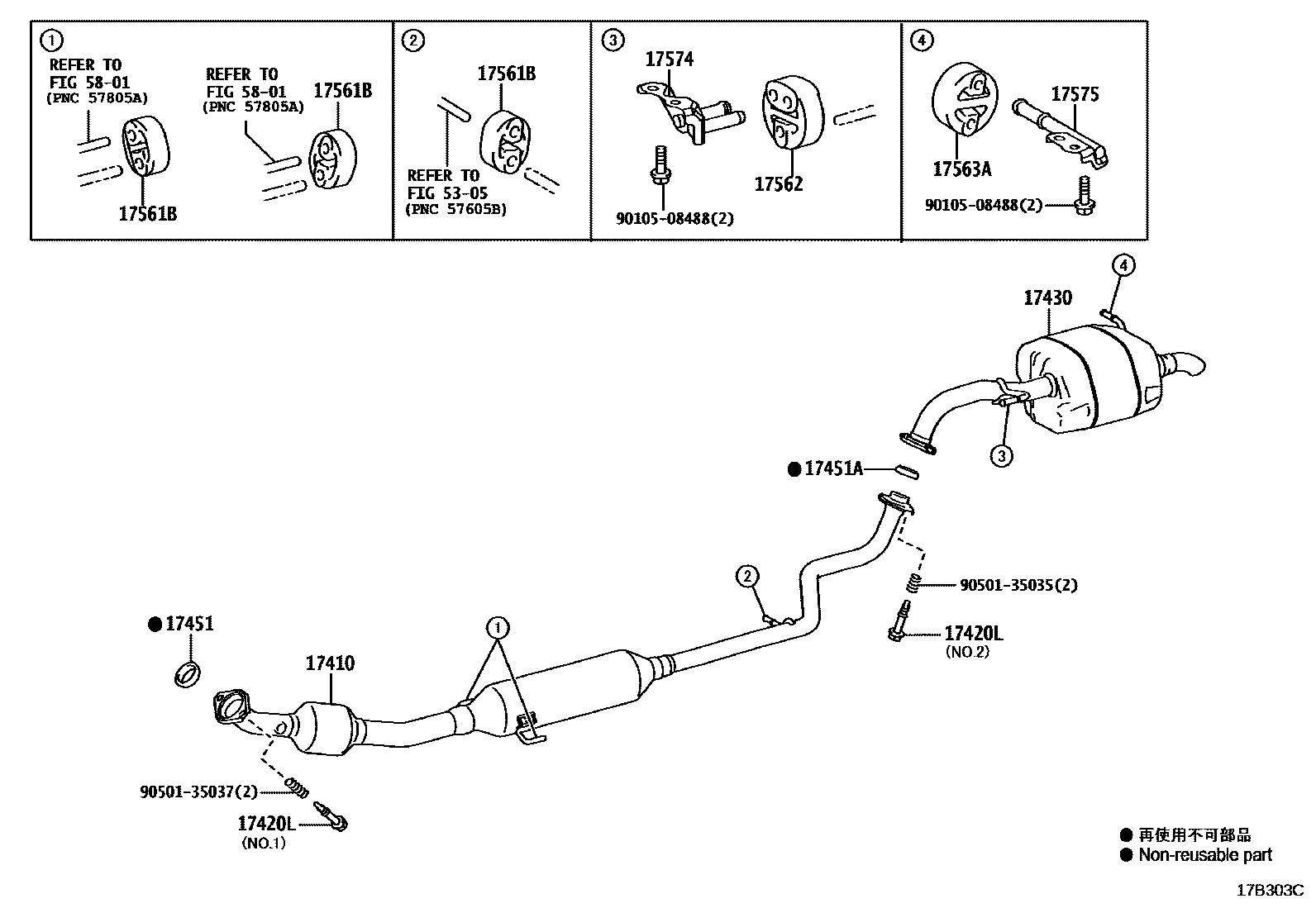

Toyota YARIS Exhaust Pipe EPC diagram — 17B303C
Exhaust Pipe — 17B303C (202008 – 202401)

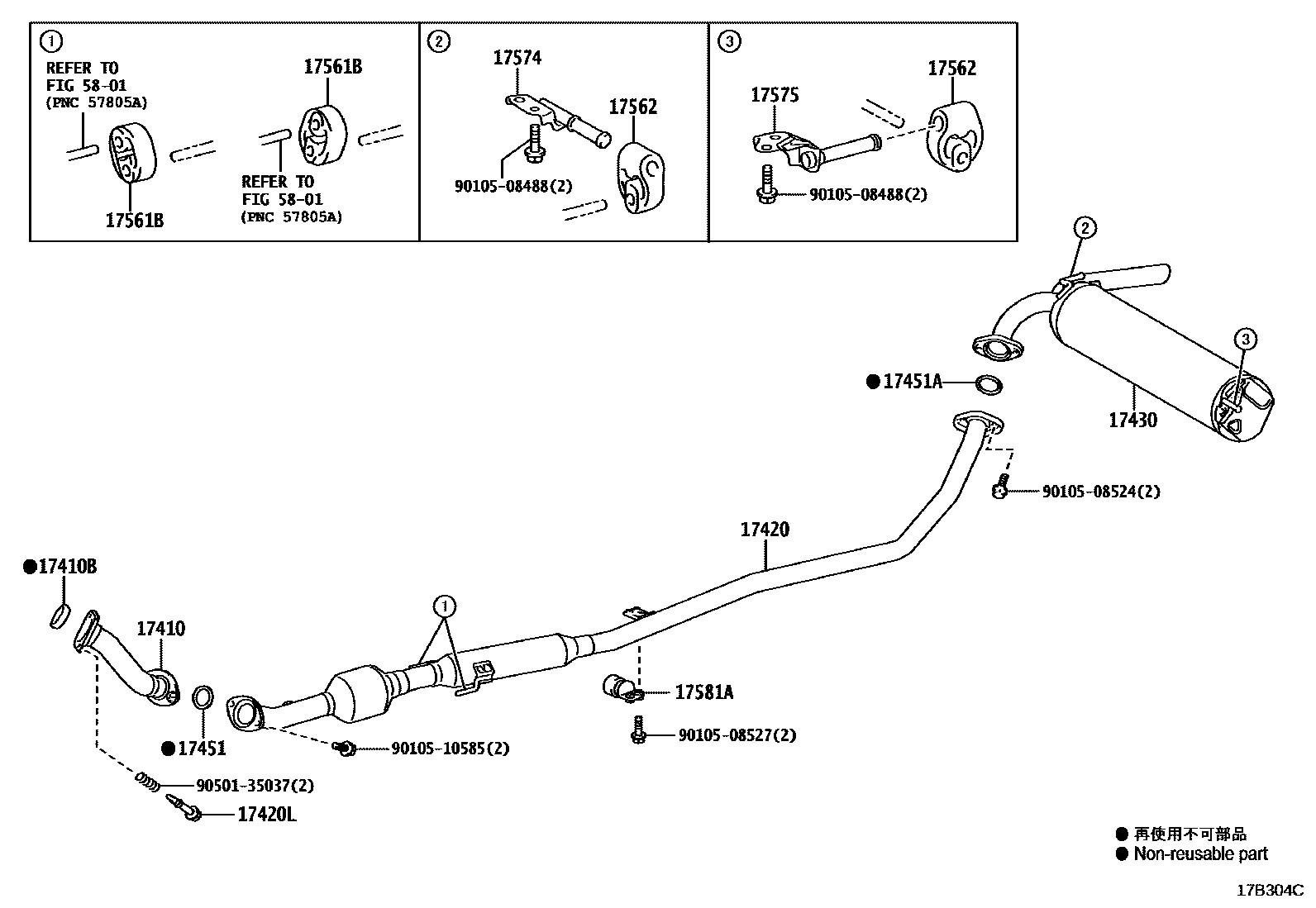

Toyota YARIS Exhaust Pipe EPC diagram — 17B304C
Exhaust Pipe — 17B304C (202008 – 999999)

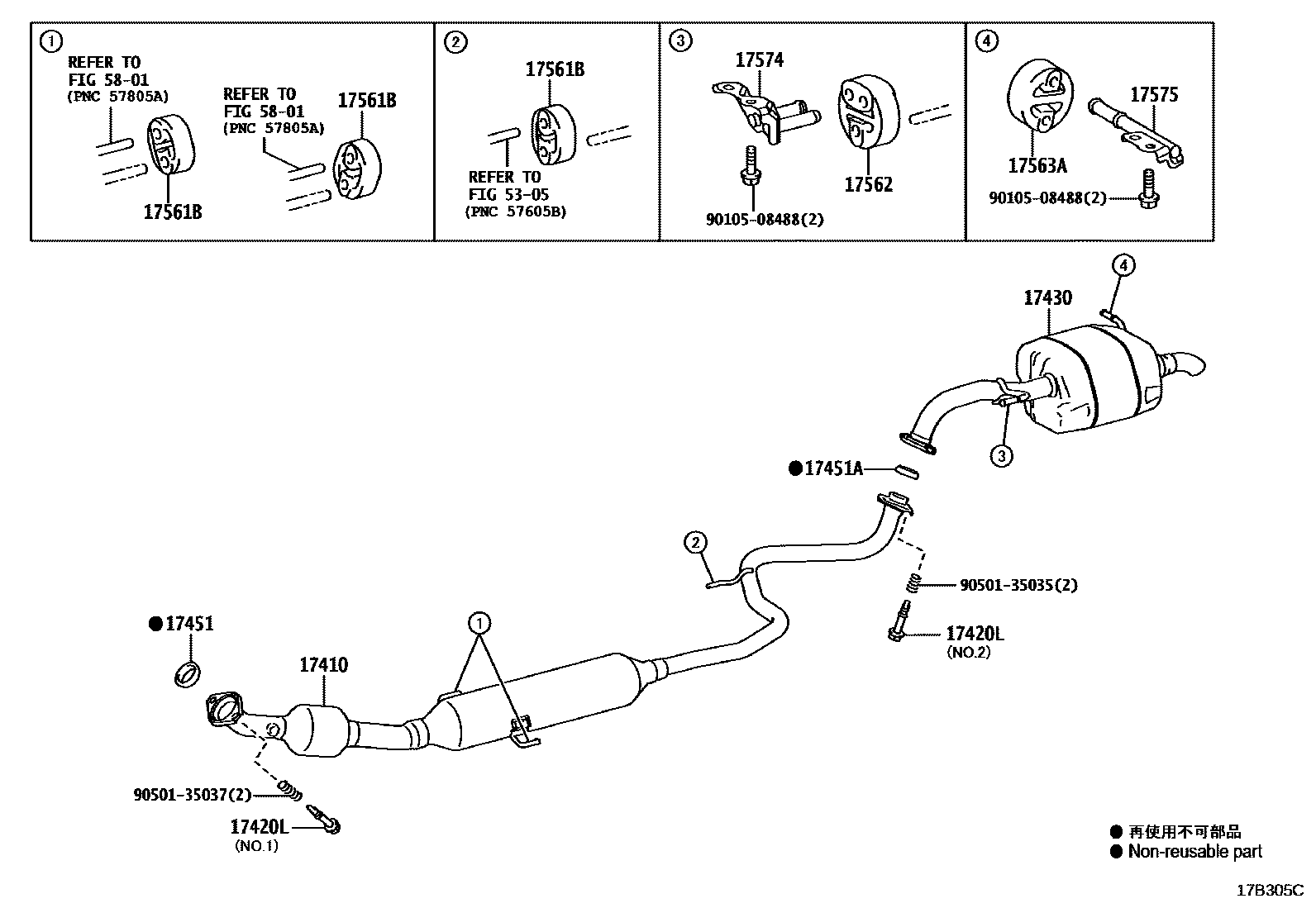

Toyota YARIS Exhaust Pipe EPC diagram — 17B305C
Exhaust Pipe — 17B305C (202008 – 999999)

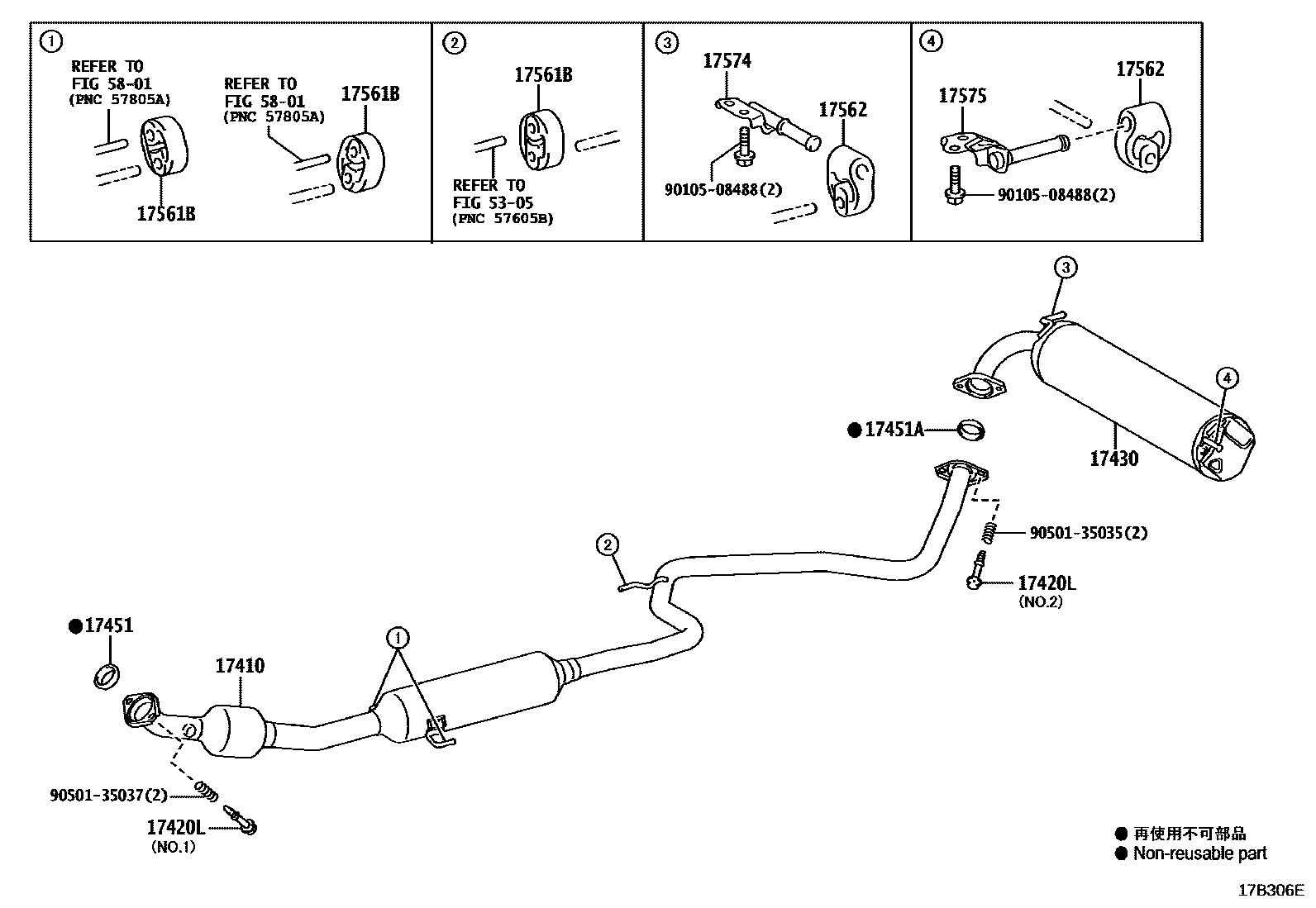

Toyota YARIS Exhaust Pipe EPC diagram — 17B306E
Exhaust Pipe — 17B306E (202008 – 999999)

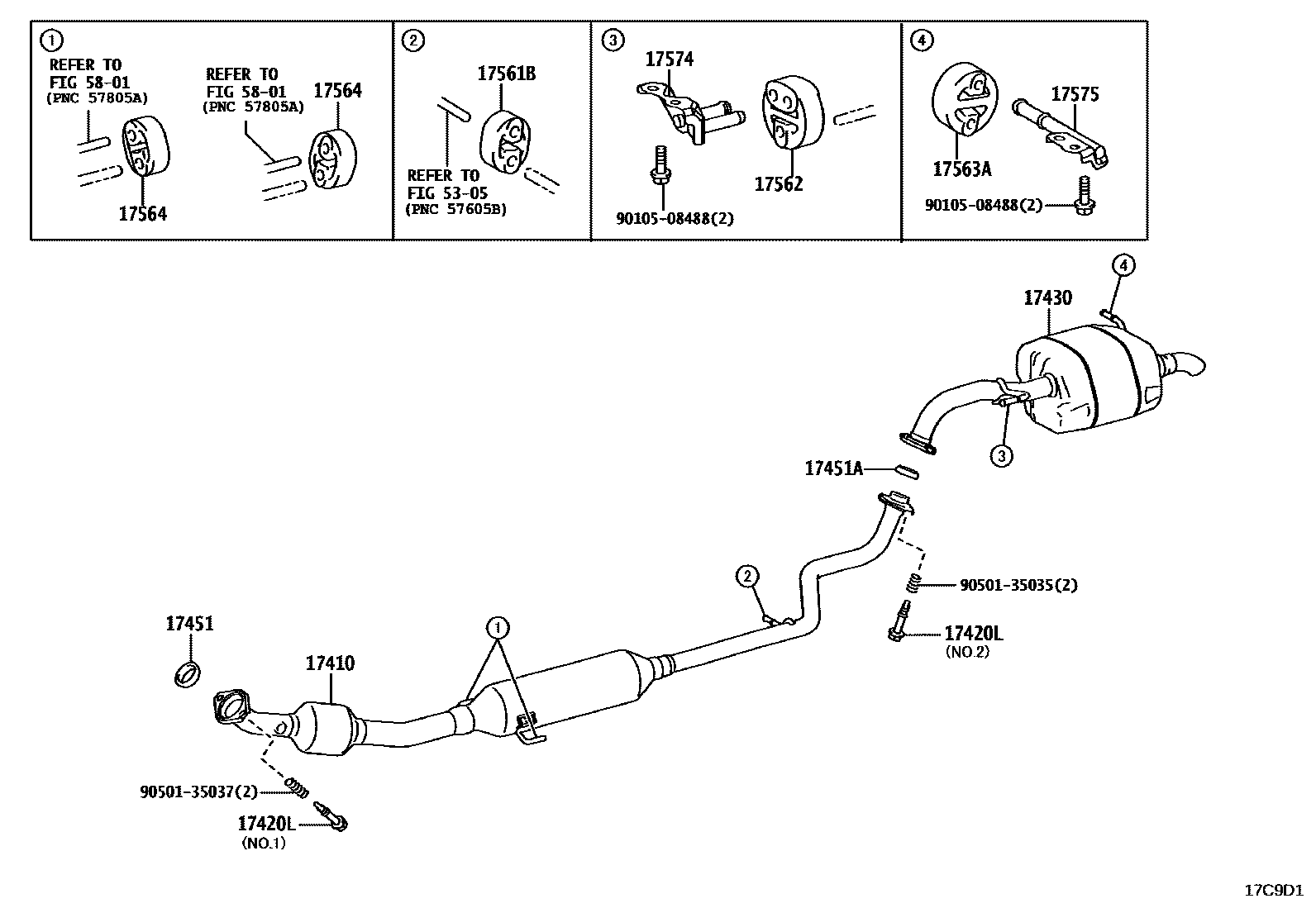

Toyota YARIS Exhaust Pipe EPC diagram — 17C9D1
Exhaust Pipe — 17C9D1 (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-15290 · 17410-15300 · 17410-15310 · 17410-15320 · 17410-15490 · 17410-15510 · 17410-15520
17410BExhaust pipe gasket17451-21070
17420Central exhaust pipe assembly17420-15180 · 17420-15200
17420LToyota part90109-10182 · 90109-10183 · 90901-05020 · 90901-05026
17430Exhaust tailpipe assembly17430-15670 · 17430-15680 · 17430-15681 · 17430-15682 · 17430-15740 · 17430-15741 · 17430-15742 · 17430-15770
17451Exhaust pipe gasket17451-21070 · 90917-06048
17451ANo. 2 exhaust pipe gasket17451-23042 · 17451-23043 · 90917-06048
17561BNo. 1 exhaust pipe lifting lug17565-47010
17562No. 2 exhaust pipe lifting lug17565-28020 · 17565-74320
17563ANo. 3 exhaust pipe lifting lug17565-28010
17564No. 4 exhaust pipe lifting lug17565-15150
17574No. 4 exhaust pipe bracket17574-15060 · 17574-15070
17575No. 5 exhaust pipe bracket17575-15040 · 17575-15050
17581AExhaust pipe damper17581-67010
