Toyota YARIS Camshaft & Valve — Figure 1302

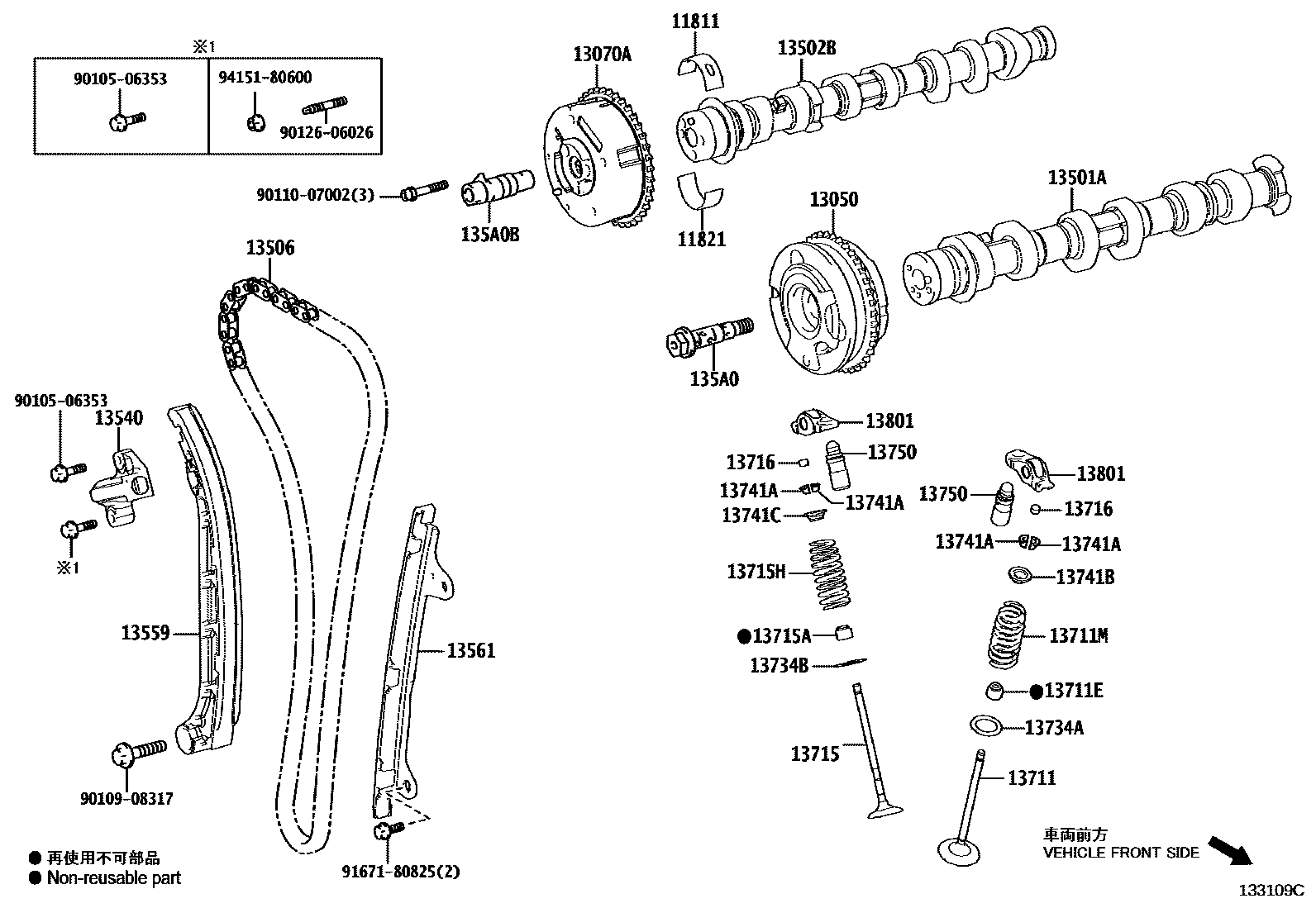

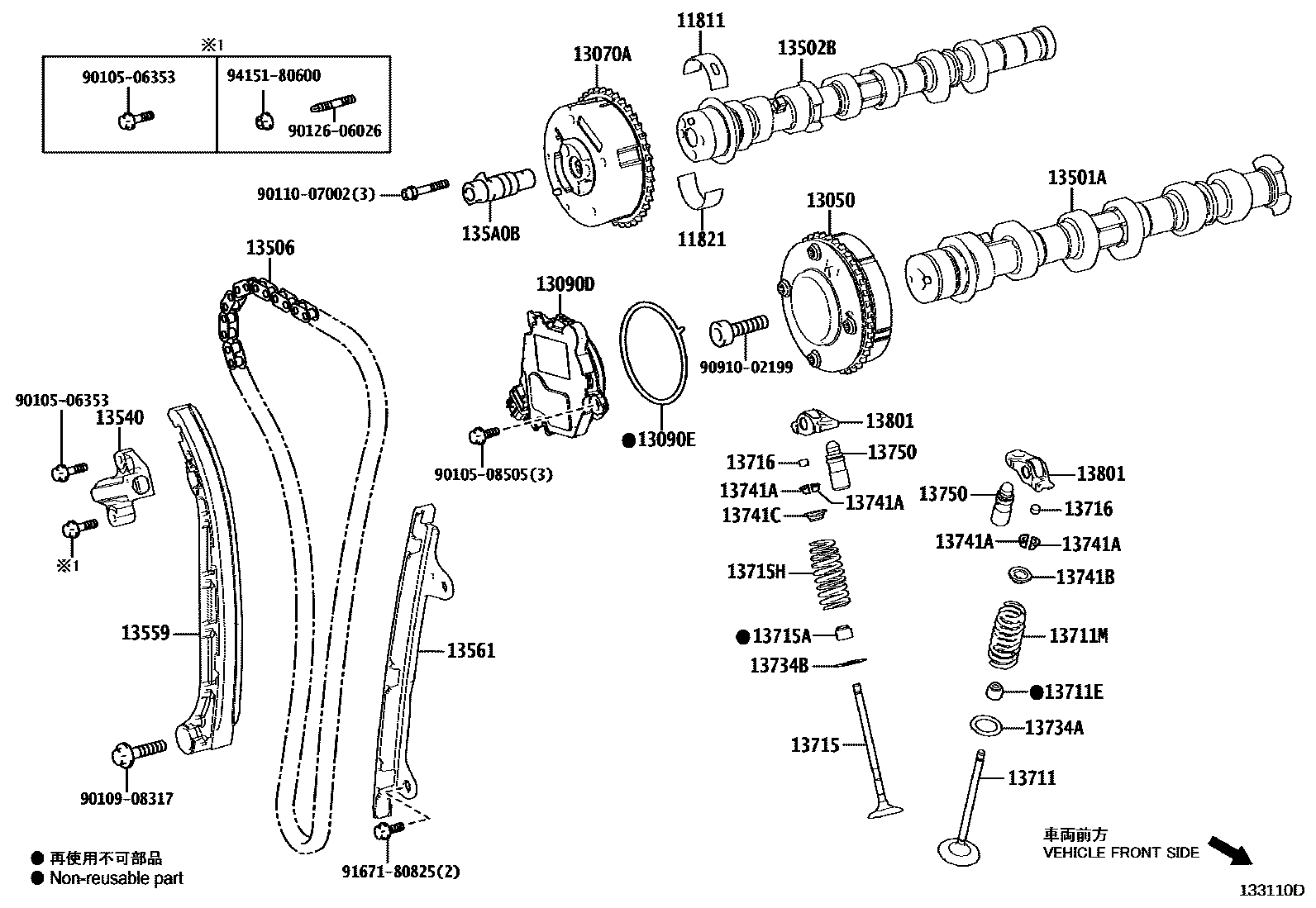

Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-15010 |
| 11821 | No. 2 camshaft bearing | 11821-15010 |
| 13050 | Camshaft timing gear assembly | 13050-15010 · 13050-15020 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-25030 |
| 13090D | Toyota part | 13090-25010 |
| 13090E | Toyota part | 90301-92005 |
| 13501A | Toyota part | 13501-15080 · 13501-15090 |
| 13502B | Toyota part | 13502-15080 · 13502-15090 |
| 13506 | Chain sub-assembly | 13506-24020 |
| 13540 | No. 1 chain tensioner assembly | 13540-15010 |
| 13559 | chain tensioner guide plate | 13559-15010 |
| 13561 | No. 1 chain shock absorber | 13561-15010 |
| 135A0 | Toyota part | 135A0-31020 |
| 135A0B | Toyota part | 135A0-70020 |
| 13711 | intake valve | 13711-24040 |
| 13711E | Intake valve stem oil seal | 90913-02101 |
| 13711M | Toyota part | 90501-30043 · 90501-32076 |
| 13715 | exhaust valve | 13715-15090 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 |
| 13715H | Toyota part | 90501-30043 · 90501-32076 |
| 13716 | valve stem cover | 13716-25010 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-25010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 |
