Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.

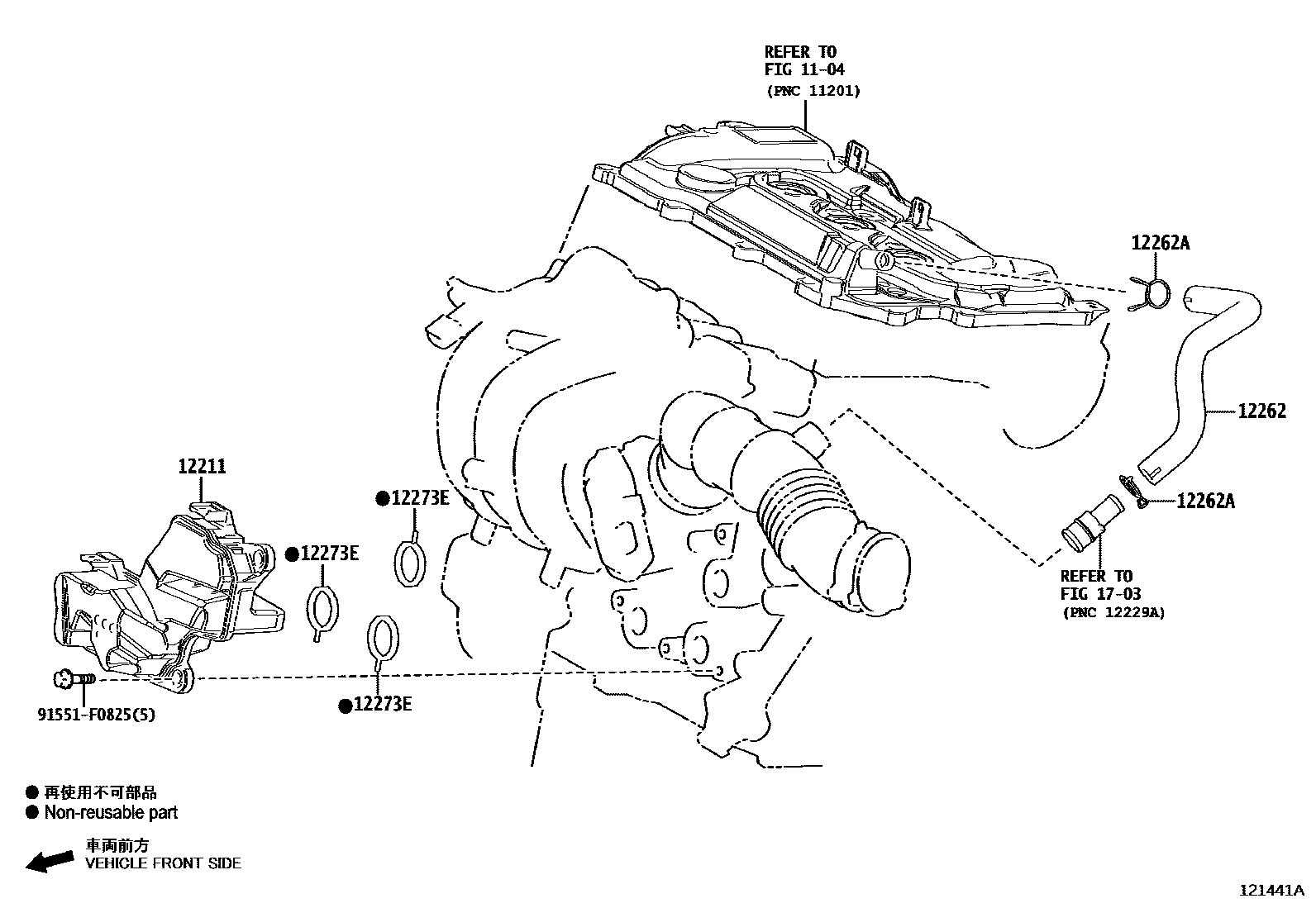

Toyota YARIS Ventilation Hose EPC diagram — 121441A
Ventilation Hose — 121441A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-15060 · 12211-15061
12262Ventilation hose No. 212262-15100 · 12262-15110
12262AClamp (for vent hose No. 2)90467-21004
12273EToyota part12273-15010
