Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 8 PNC and OE references.

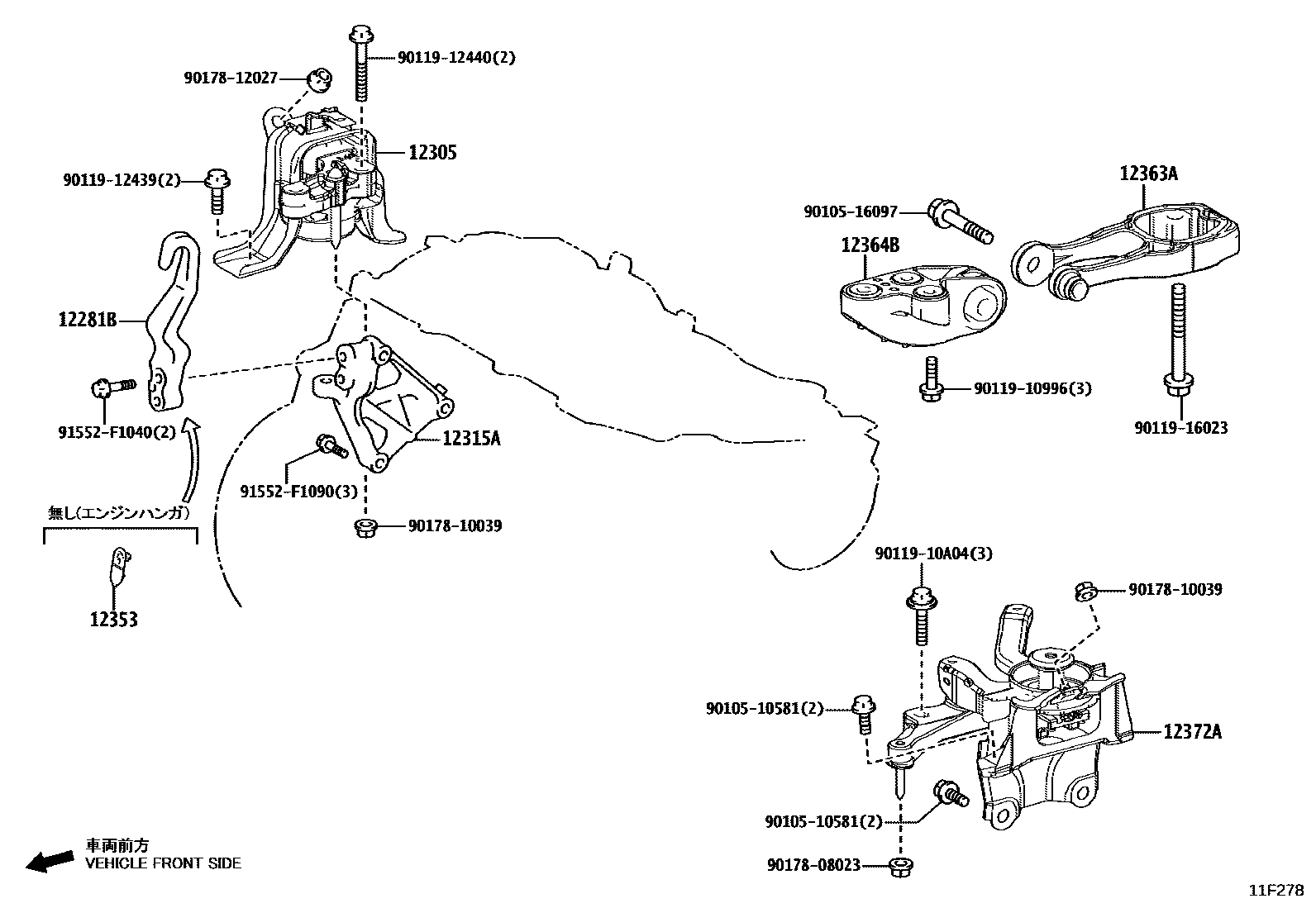

Toyota YARIS Engine Mounting EPC diagram — 11F278
Engine Mounting — 11F278 (202008 – 999999)

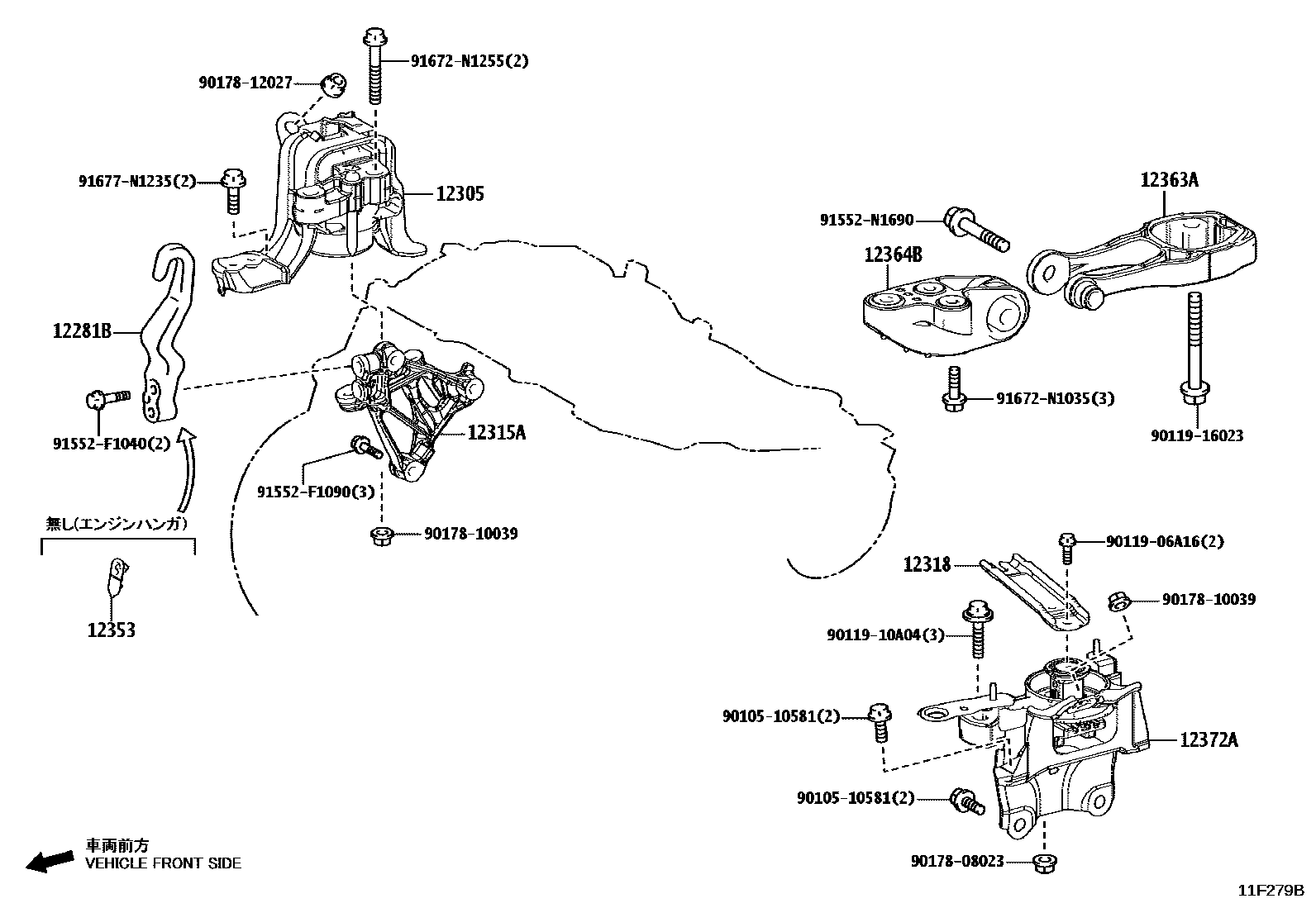

Toyota YARIS Engine Mounting EPC diagram — 11F279B
Engine Mounting — 11F279B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BToyota part12281-25030
12305Engine right side mounting vibration isolation pad sub-assembly12305-15090 · 12305-15100 · 12305-15110
12315AEngine right side mounting bracket (for transversely mounted engine)12315-15090 · 12315-15100
12318Engine left mounting bracket12318-15070
12353Toyota part12353-15010
12363AEngine movement control lever12363-15030 · 12363-15050 · 12363-15060
12364BEngine No. 2 motion control lever12364-15010 · 12364-15060
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-15270 · 12372-15281 · 12372-15291
