Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 2 images and 17 PNC and OE references.

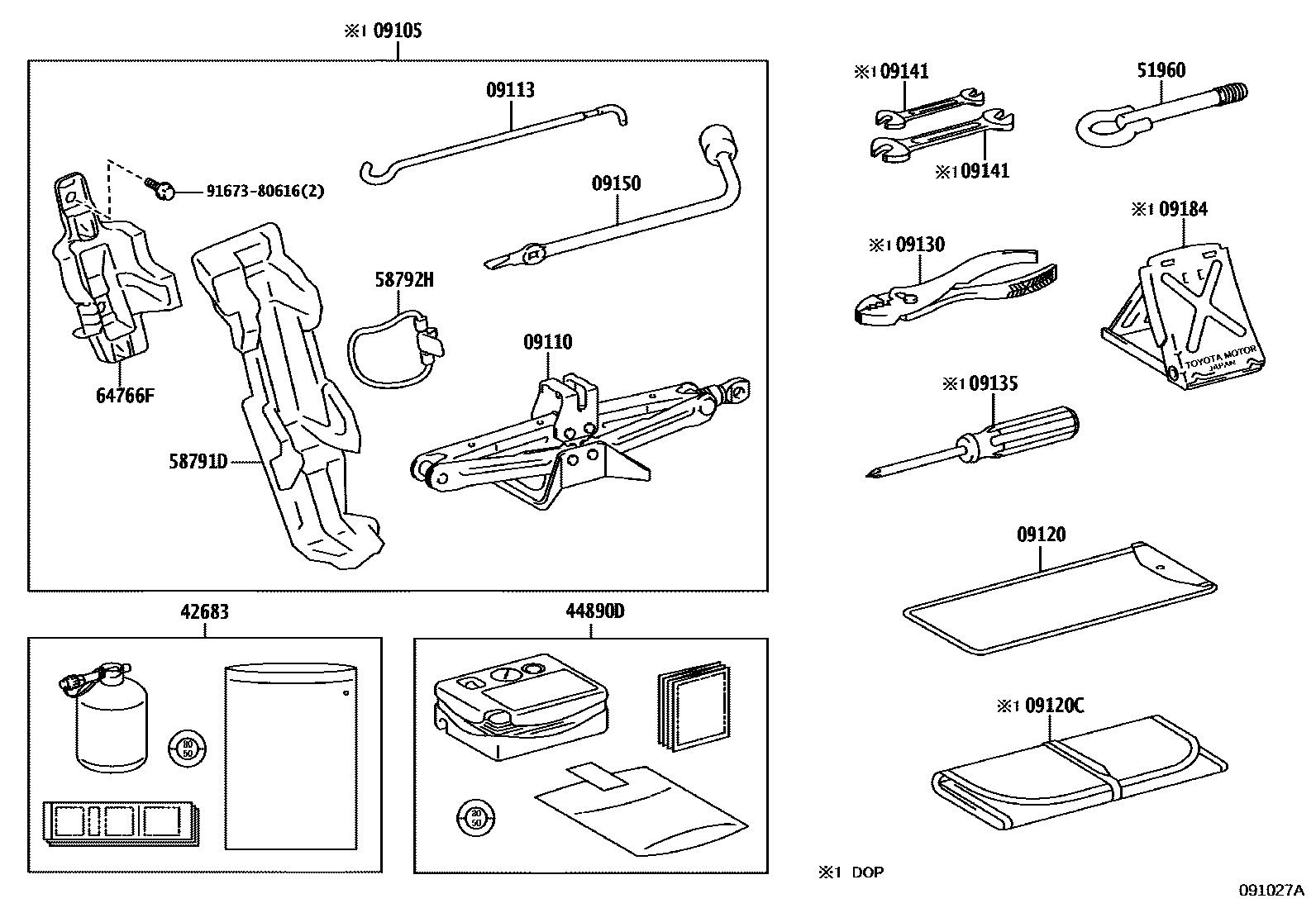

Toyota YARIS Standard Tools EPC diagram — 091027A
Standard Tools — 091027A (202008 – 999999)

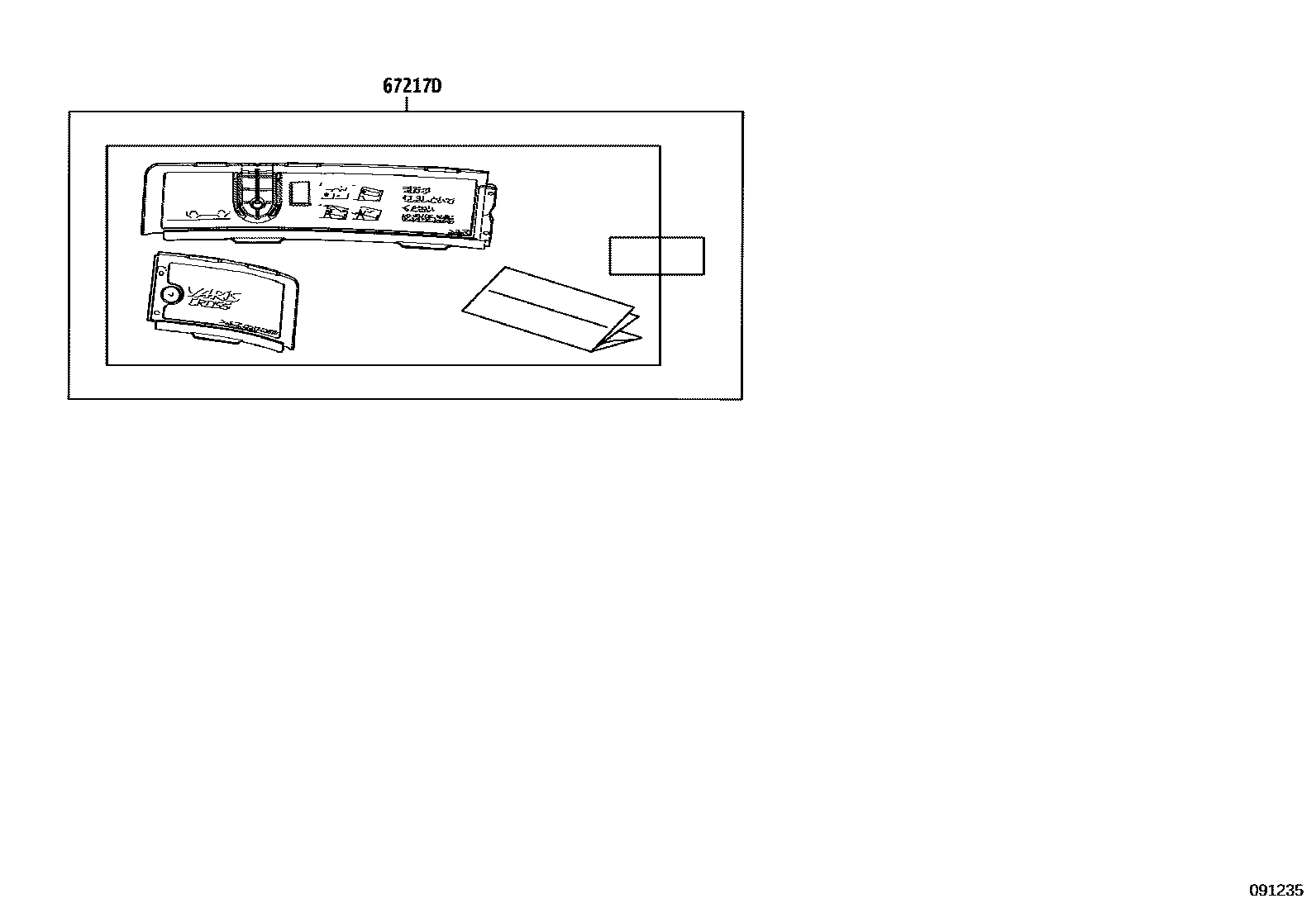

Toyota YARIS Standard Tools EPC diagram — 091235
Standard Tools — 091235 (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
09105Toyota part09105-52020
09110Jack Assembly09111-47050 · 09111-47051
09113Jack Handle09113-42030
09120Tool Bag09120-37030
09120CToyota part09120-16030
09130Pliers99913-11500
09135Screwdriver99915-10700
09141Wrench99914-10810 · 99914-11214
09150Wheel Nut Wrench09150-42010
09184Wheel Chock09184-00010
42683Tire Repair Sealant42606-F4040 · 42606-F4041
44890DAir Compressor Assembly42680-F4011 · 42680-F4012 · 42680-F4013
51960Front Towing Hook Assembly51960-12110
58791Djack bracket58791-K0040
58792HToyota part58792-K0010
64766FToyota part64766-K0040
67217DToyota part67217-52070
