Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

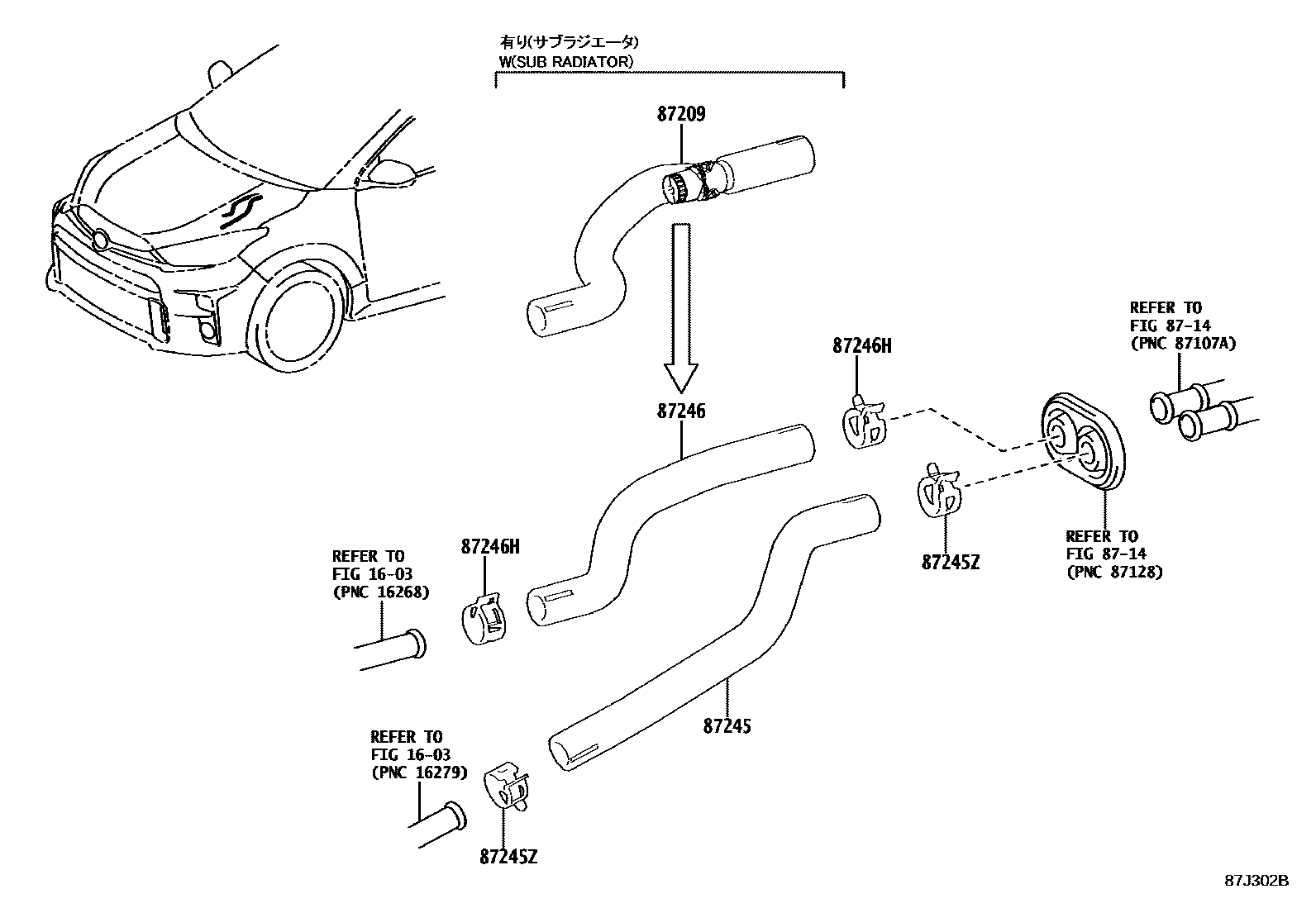

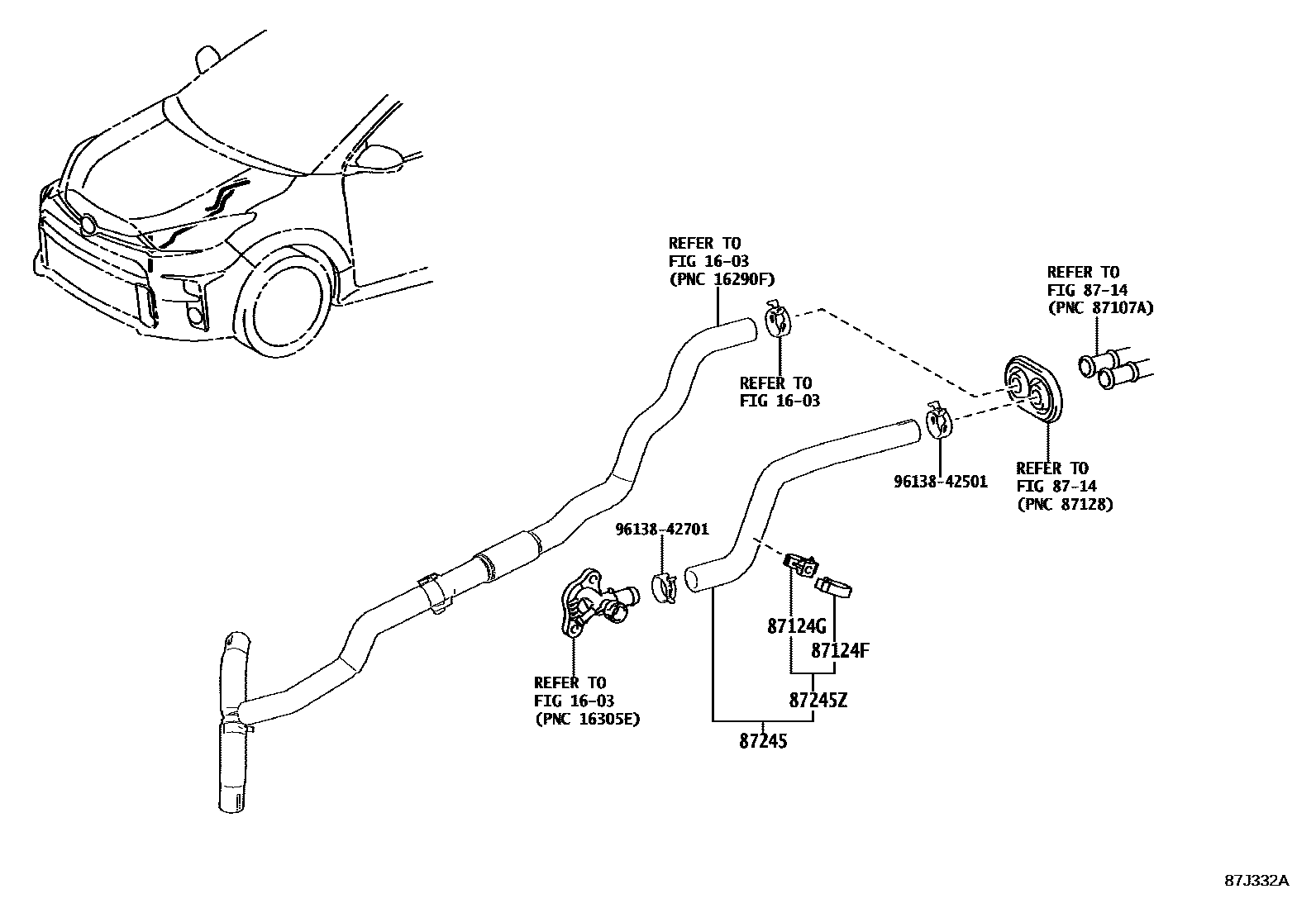

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124F | No. 1 heater hose clamp | 87124-11030 |
| 87124G | No. 2 heater hose clamp | 87124-50060 |
| 87209 | Water hose sub-assembly | 87209-52390 |
| 87245 | Heater water inlet hose | 87245-52320 · 87245-52380 |
| 87245Z | Clip or clip (for heater water hose) | 16581-70060 · 96138-42501 |
| 87246 | Heater outlet hose | 87245-52370 |
| 87246H | Clip or clip (for heater water hose) | 96138-42501 |
