Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 13 PNC and OE references.

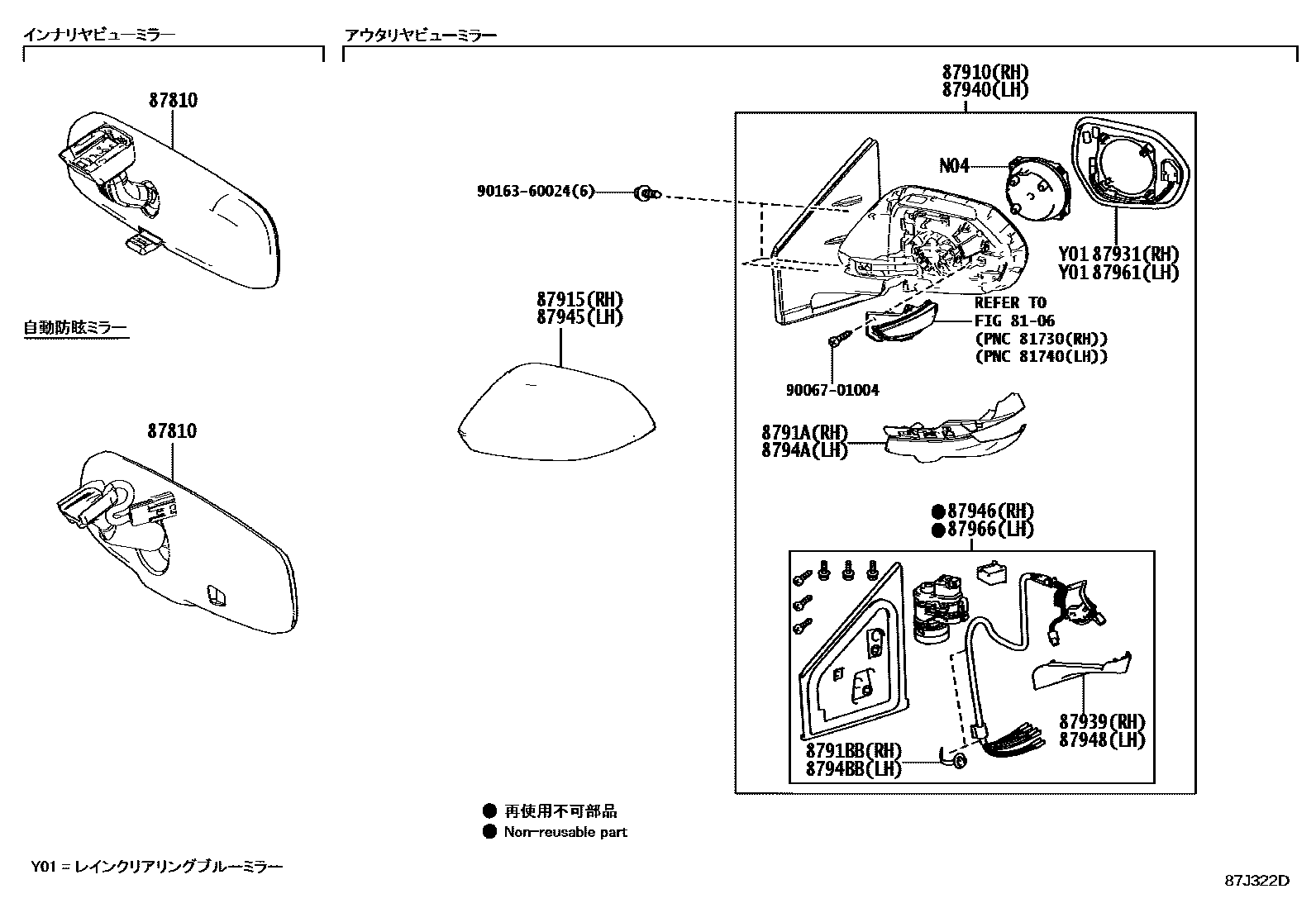

Toyota YARIS 后视镜 EPC diagram — 87J322D
后视镜 — 87J322D (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-28140 · 87810-52041 · 87810-K0050 · 87840-0W670
87910Right exterior rearview mirror assembly87910-52K40 · 87910-52K41 · 87910-52K50 · 87910-52K51 · 87910-52K60 · 87910-52K61 · 87910-52K70 · 87910-52K71
8791ARight exterior rearview mirror cover No. 28791A-K0310
8791BBToyota part8791B-K0310
87931Right exterior rearview mirror87931-52K40 · 87931-52K50 · 87931-52K60 · 87931-52K70
87939Right exterior rearview mirror hole cover87939-52K40
87940Left exterior rearview mirror assembly87940-52K10 · 87940-52K11 · 87940-52K20 · 87940-52K21 · 87940-52K30 · 87940-52K31 · 87940-52K40 · 87940-52K41
87946Right exterior rearview mirror retractor87946-52K40 · 87946-52K50 · 87946-52K60 · 87946-52K70
87948Left exterior rearview mirror hole cover87948-52K10
8794ANo. 2 left exterior rearview mirror cap8794A-K0370
8794BBToyota part8791B-K0310
87961Left exterior rearview mirror87961-52K10 · 87961-52K20 · 87961-52K30 · 87961-52K40
87966Left exterior rearview mirror retractor87966-52K10 · 87966-52K20 · 87966-52K30 · 87966-52K40
