Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 8 PNC and OE references.

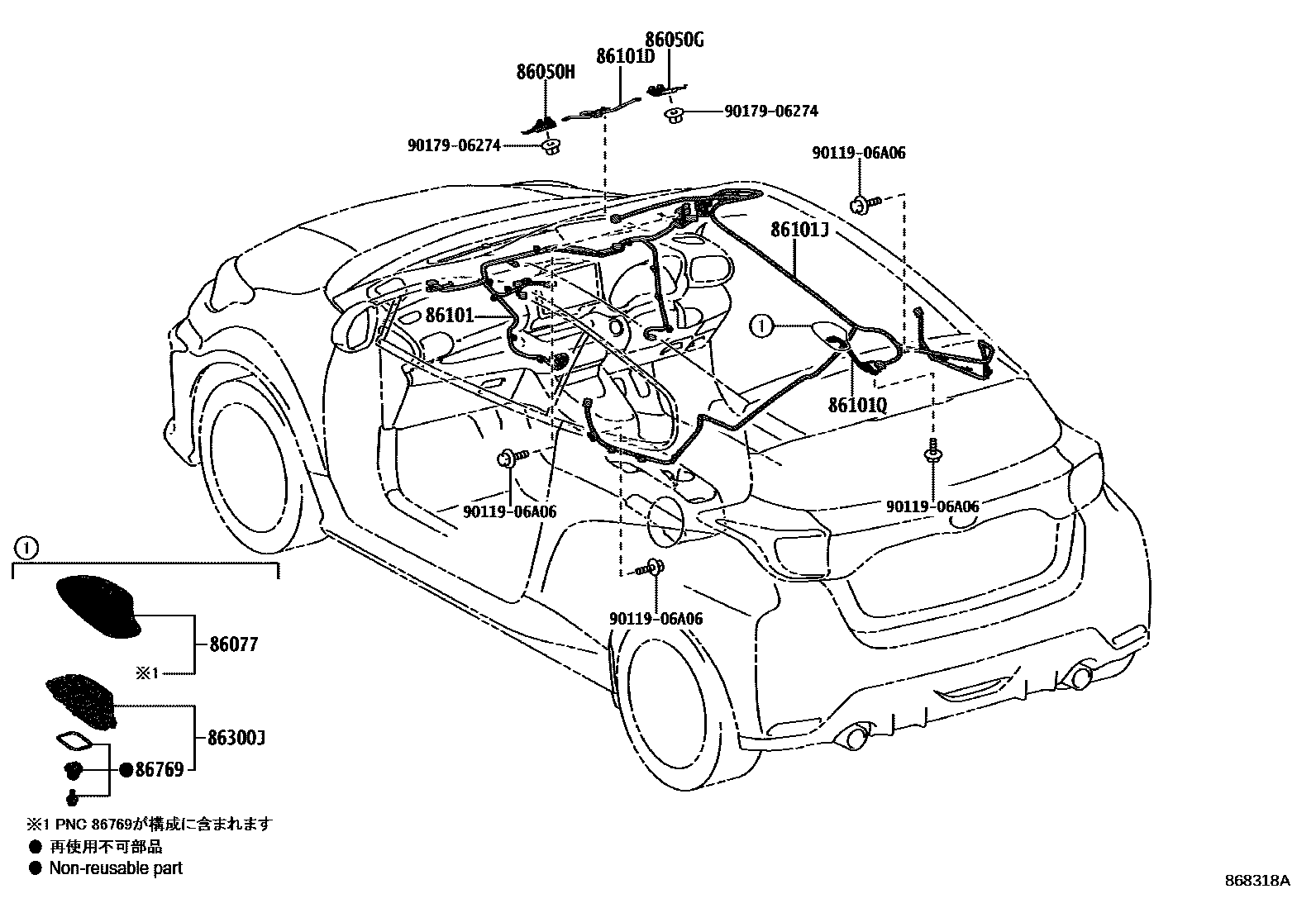

Toyota YARIS antenna EPC diagram — 868318A
antenna — 868318A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050GToyota part86050-53180
86050HToyota part86050-53190
86101Antenna wire sub-assembly86101-52E60 · 86101-52F10 · 86101-52F70 · 86101-52P60 · 86101-K0820
86101DNo. 3 antenna wire sub-assembly86101-52E20
86101JNo. 2 antenna wire sub-assembly86101-52E30 · 86101-52F80 · 86101-52T20 · 86101-52T30 · 86101-52T40
86101QNo. 4 antenna wire sub-assembly86101-52F40 · 86101-52F90 · 86101-52S90 · 86101-52T50
86300JRoof antenna assembly86300-42250 · 86760-K0010
86769Toyota part86769-K0010
