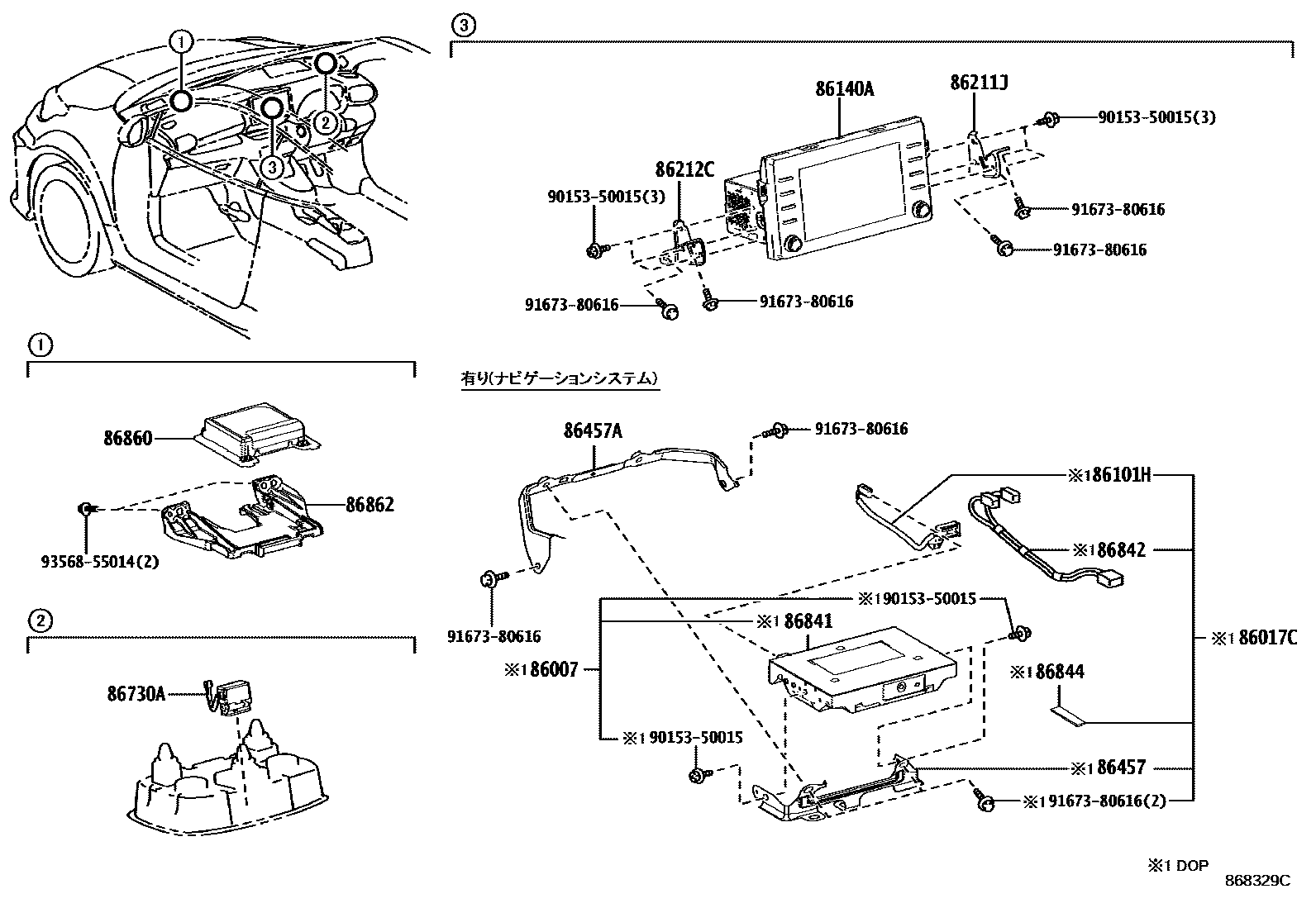

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

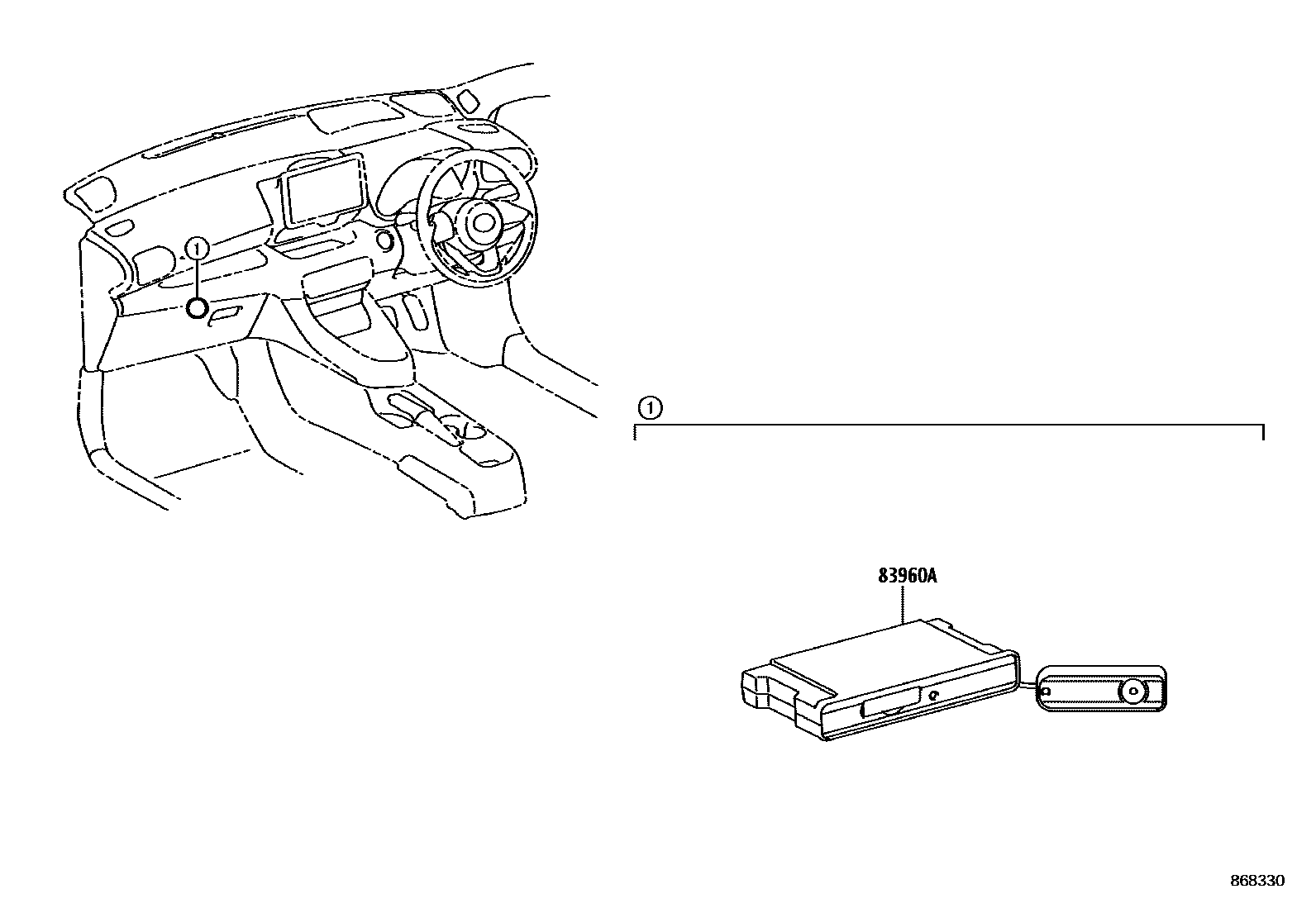

| 83960A | Toyota part | 83960-52020 |
| 86007 | Toyota part | 86007-52010 · 86007-52020 |
| 86017C | Toyota part | 86017-52010 |
| 86101H | Antenna wire sub-assembly | 86101-52J50 |
| 86140A | Radio and display receiver assembly | 86100-52330 · 86100-52331 · 86140-52350 · 86140-52370 · 86140-52580 · 86140-52590 · 86140-52C10 · 86140-52C11 · 86140-52C20 · 86140-52C21 |
| 86211J | No. 1 radio bracket | 86211-52430 · 86211-52450 · 86211-K0010 |
| 86212C | No. 2 radio bracket | 86212-52430 · 86212-52450 · 86212-K0010 |
| 86457 | Multimedia module bracket No. 1 | 86457-K0010 |
| 86457A | Multimedia module bracket No. 2 | 86457-K0110 |
| 86730A | Telephone amplifier assembly | 86730-75010 · 86730-78010 |
| 86841 | Navigation ECU | 86007-52051 · 86007-52052 · 86007-52053 · 86007-52061 · 86007-52062 · 86007-52063 · 86840-K0035 · 86840-K0036 · 86840-K0037 · 86840-K0038 · 86840-K0039 · 86840-K0045 · 86840-K0046 · 86840-K0047 · 86840-K0048 · 86840-K0049 |
| 86842 | Navigation harness No. 1 | 86842-52100 · 86842-K0010 |
| 86844 | Navigation ECU cover fixing piece | 86844-52010 |
| 86860 | Navigation antenna assembly | 86880-52010 · 86880-52030 |
| 86862 | Navigation antenna bracket | 86862-50070 · 86862-K0010 |
