Toyota YARIS 扬声器 — Figure 8602

Toyota YARIS EPC diagram 8602, 扬声器, with 2 images and 13 PNC and OE references.

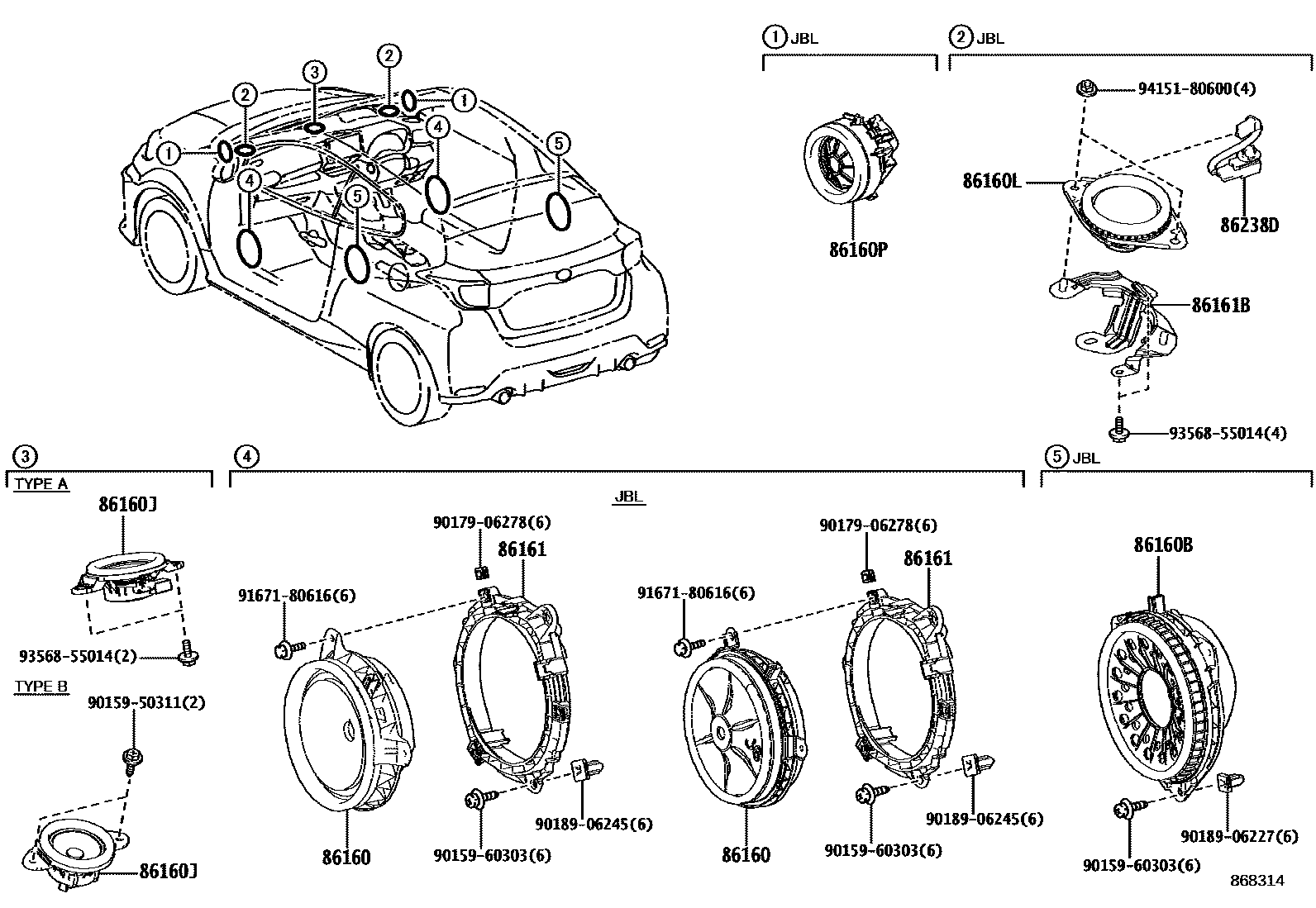

Toyota YARIS 扬声器 EPC diagram — 868314
扬声器 — 868314 (202008 – 999999)

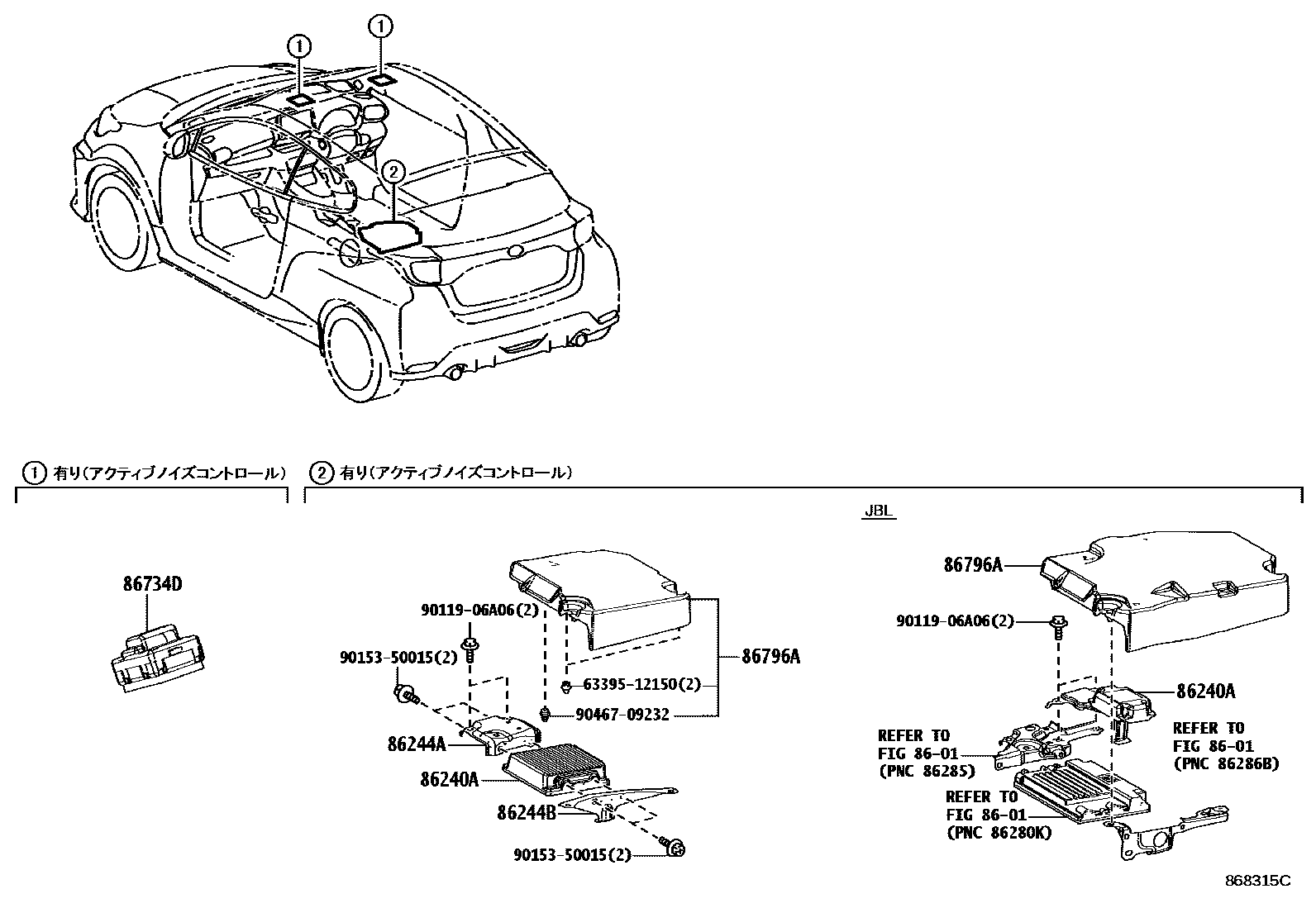

Toyota YARIS 扬声器 EPC diagram — 868315C
扬声器 — 868315C (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
86160No. 1 front speaker assembly86150-K0010 · 86160-30E00
86160BRear speaker assembly86160-02B70 · 86160-30E00
86160JNo. 3 front speaker assembly86150-52100 · 86150-52120 · 86150-62130
86160LNo. 4 front speaker assembly86160-42200 · 86160-K0010
86160PNo. 2 front speaker assembly86150-K0020 · 86160-52170
86161Front speaker bracket No. 186161-52030
86161BNo. 2 front speaker bracket86161-K0010 · 86163-K0010
86238Dspeaker harness86238-52010 · 86238-52020
86240AToyota part86240-30140 · 86240-52010 · 86240-52040
86244AToyota part86244-52010
86244BToyota part86244-52020
86734DToyota part86734-11030
86796AToyota part86183-52010 · 86796-K0010
