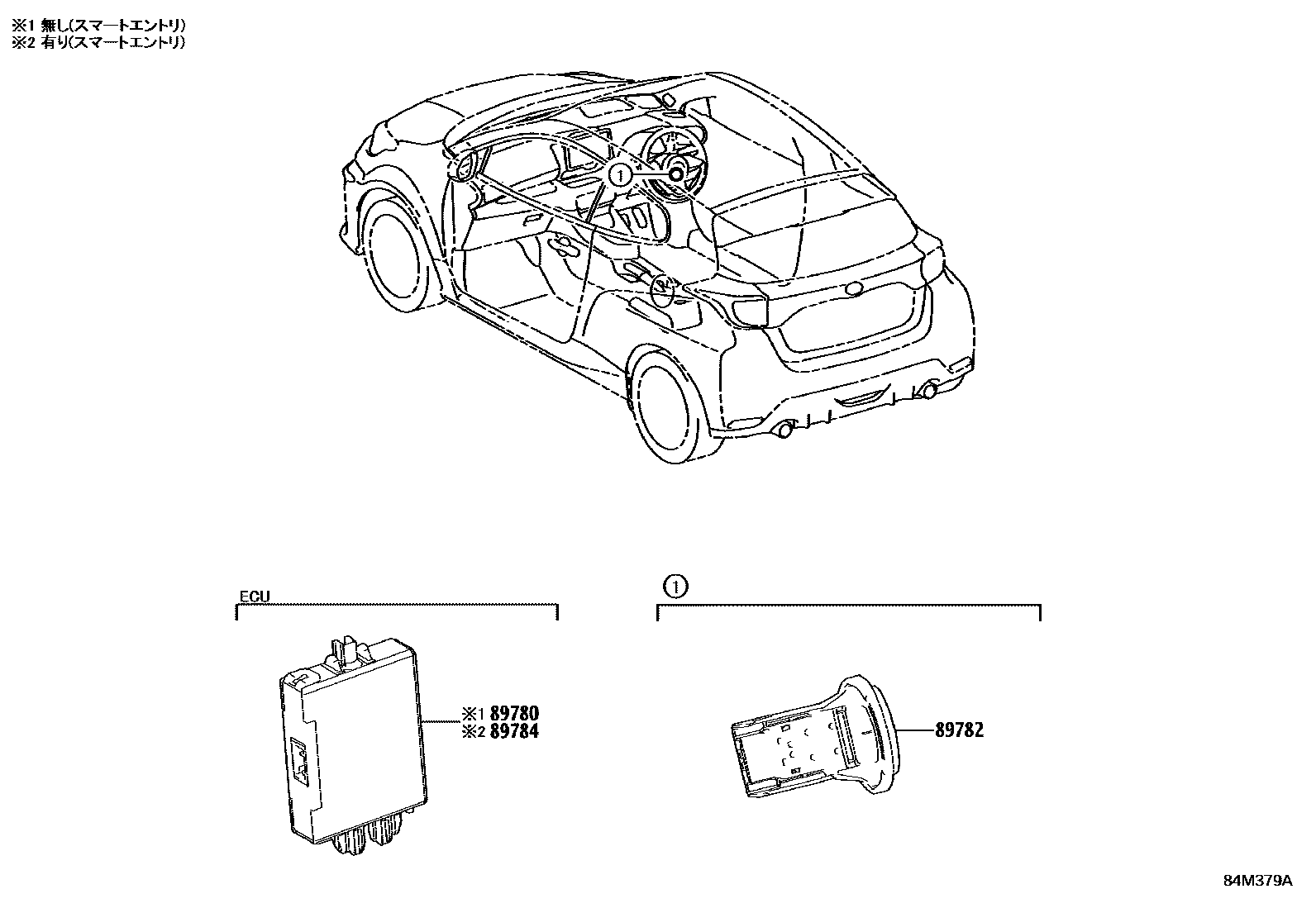

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 897H0-K0010 |
| 89782 | transceiver key coil | 89782-12060 |
| 89784 | Shutdown code system ECU | 89784-48060 |
