Toyota YARIS 空气囊 — Figure 8421

Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.

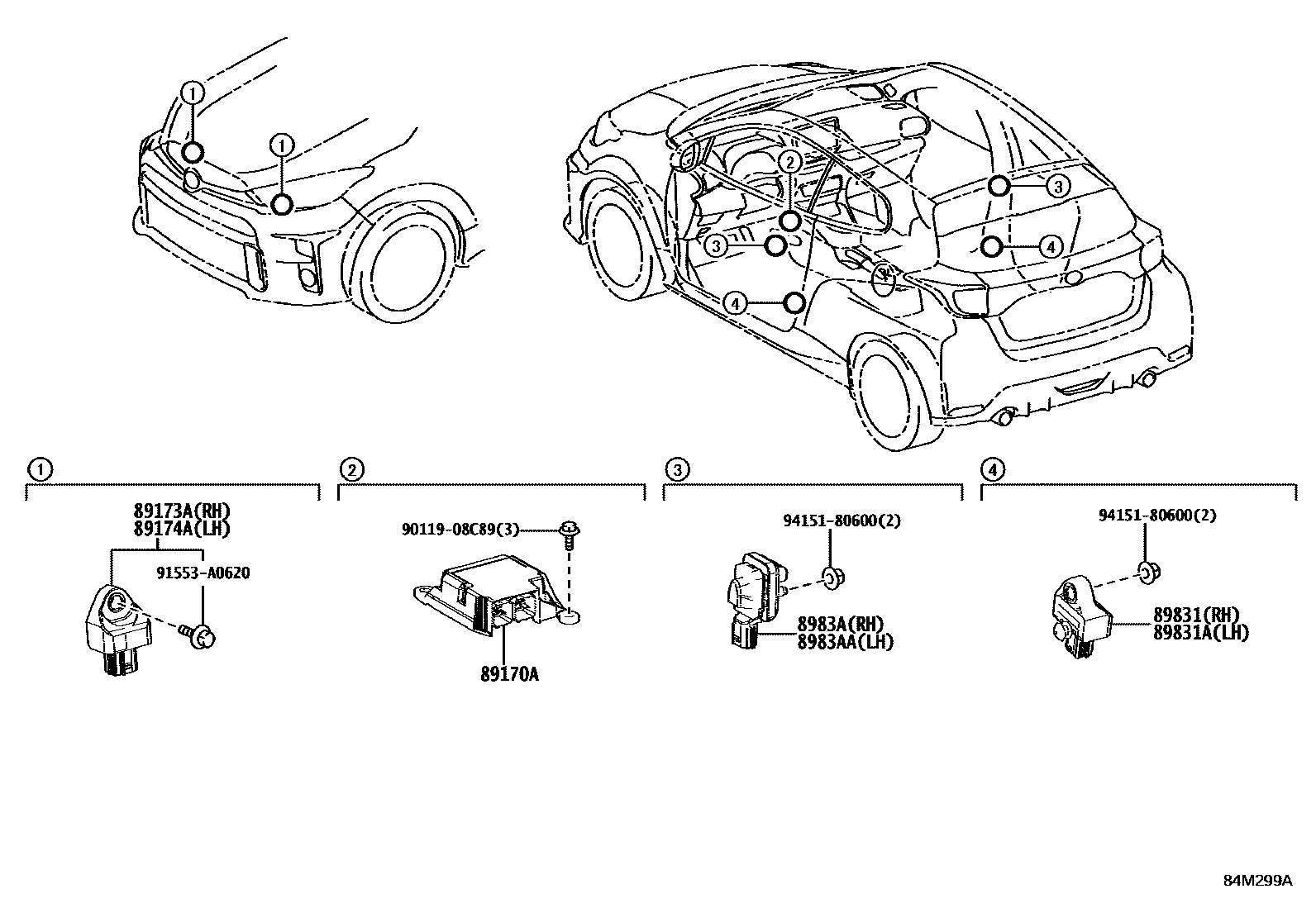

Toyota YARIS 空气囊 EPC diagram — 84M299A
空气囊 — 84M299A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
89170AAir bag ECU assembly89170-52P80 · 89170-52Q30 · 89170-52S00 · 89170-52S10
89173ARight front air bag sensor89173-59335
89174ALeft front air bag sensor89173-59335
89831Toyota part89831-52120
89831AToyota part89831-52120
8983AToyota part8983A-52010 · 8983A-52011
8983AAToyota part8983A-52010 · 8983A-52011
