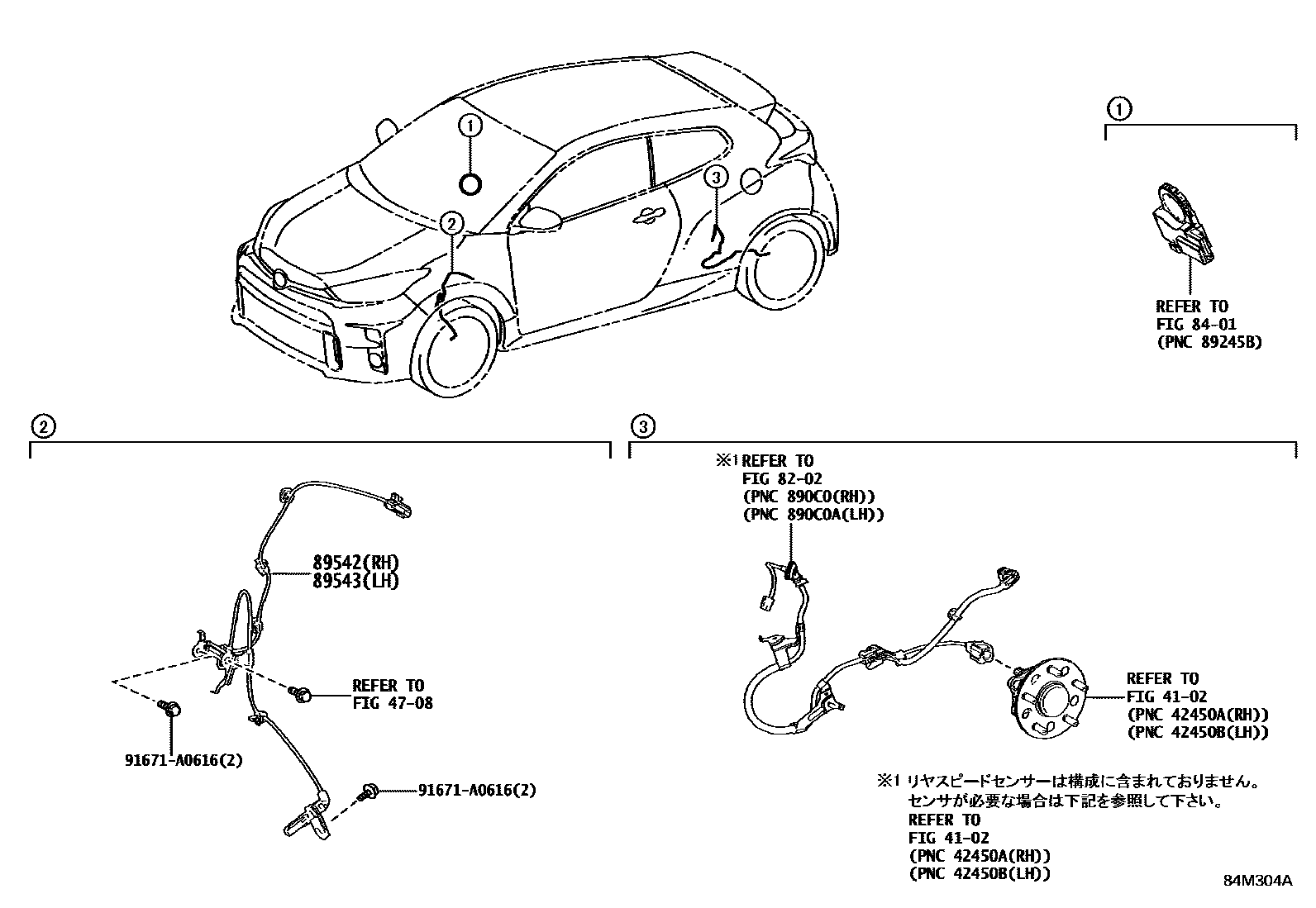

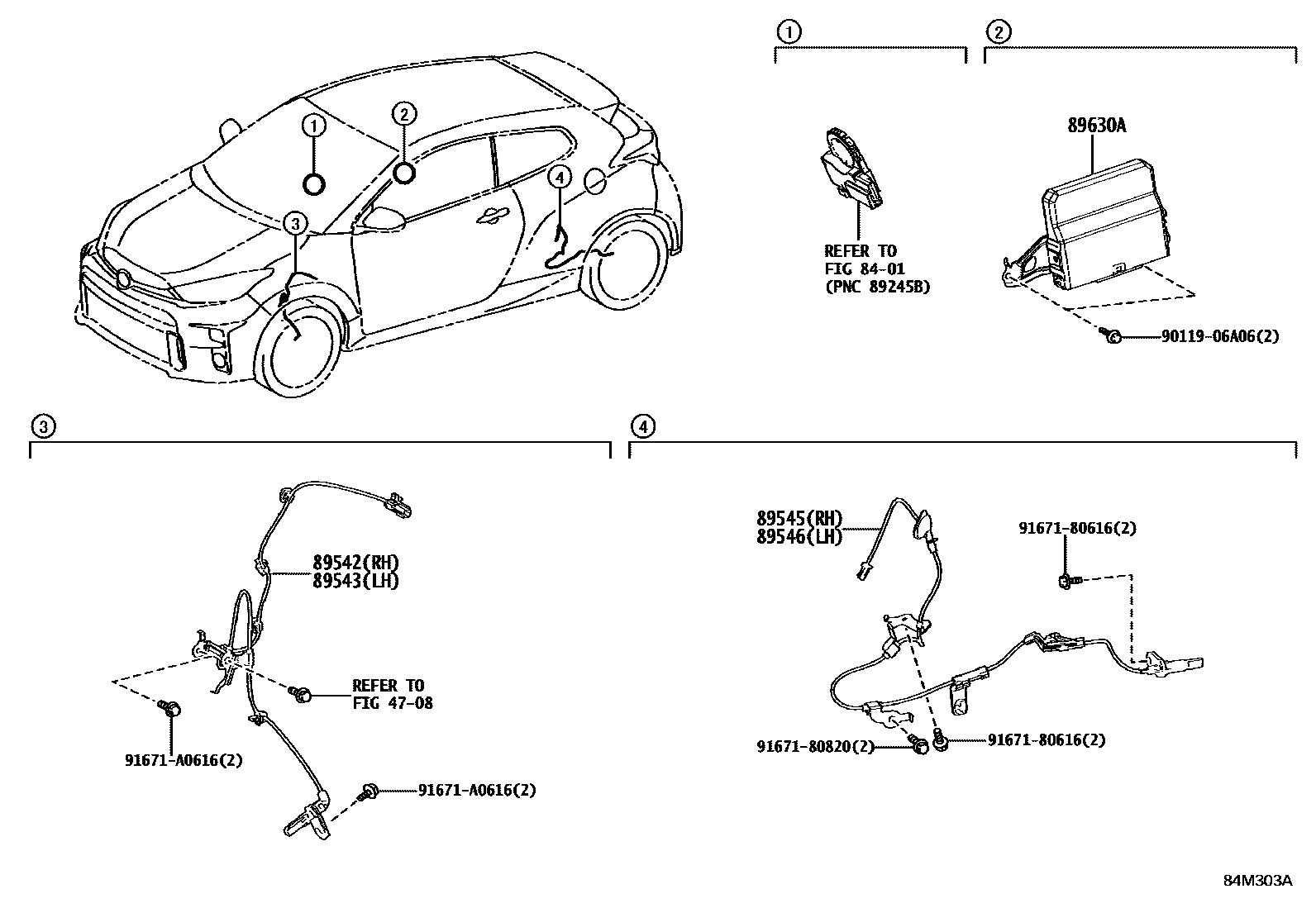

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89542 | Right front wheel speed sensor | 89542-52110 |
| 89543 | Left front wheel speed sensor | 89543-52110 |
| 89545 | Right rear wheel speed sensor | 89545-52080 |
| 89546 | Left rear wheel speed sensor | 89546-52080 |
| 89630A | Four-wheel drive ECU assembly | 89630-52090 · 89630-52100 · 89630-52110 · 89630-52120 · 89630-52130 · 89630-52190 |
