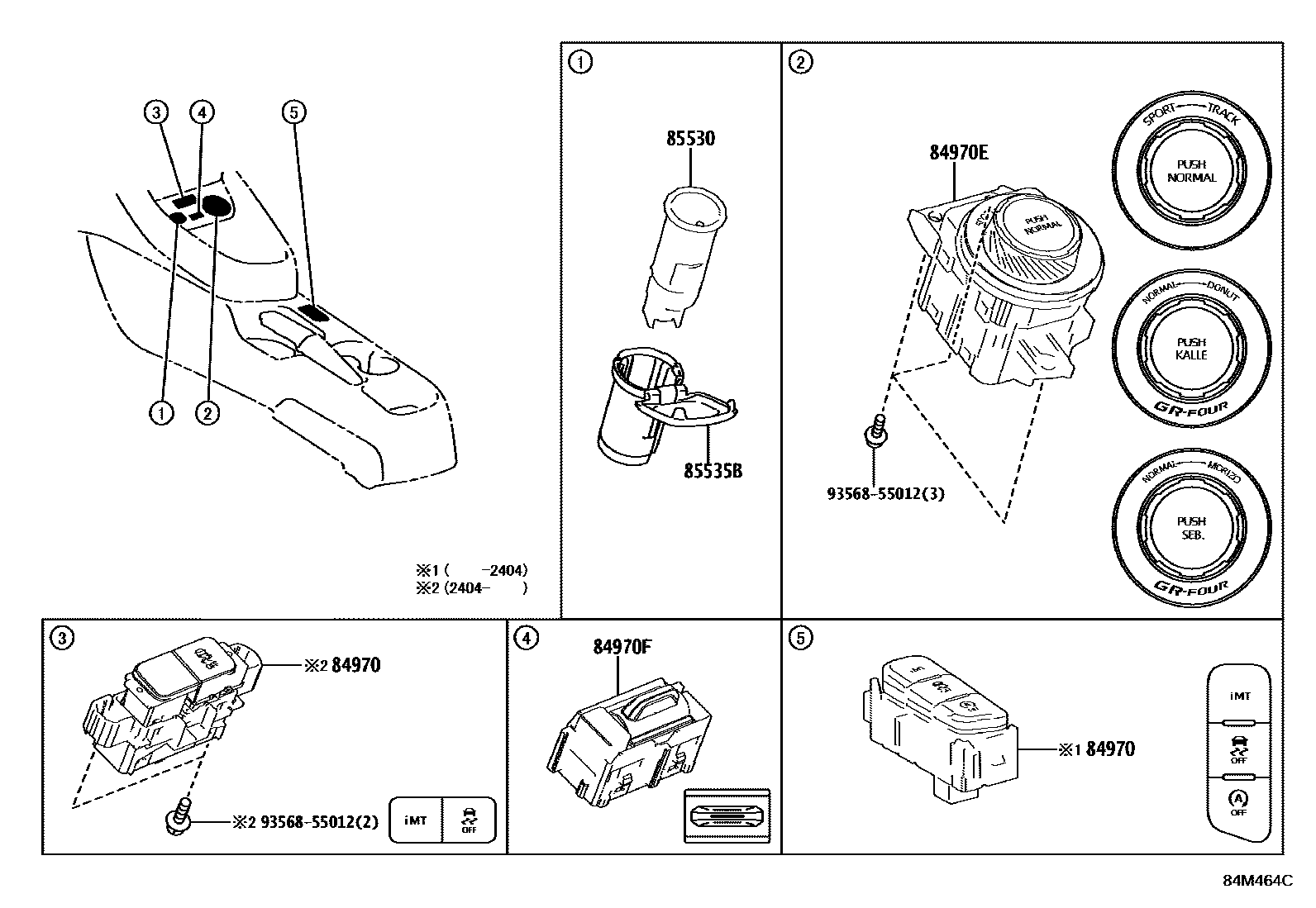

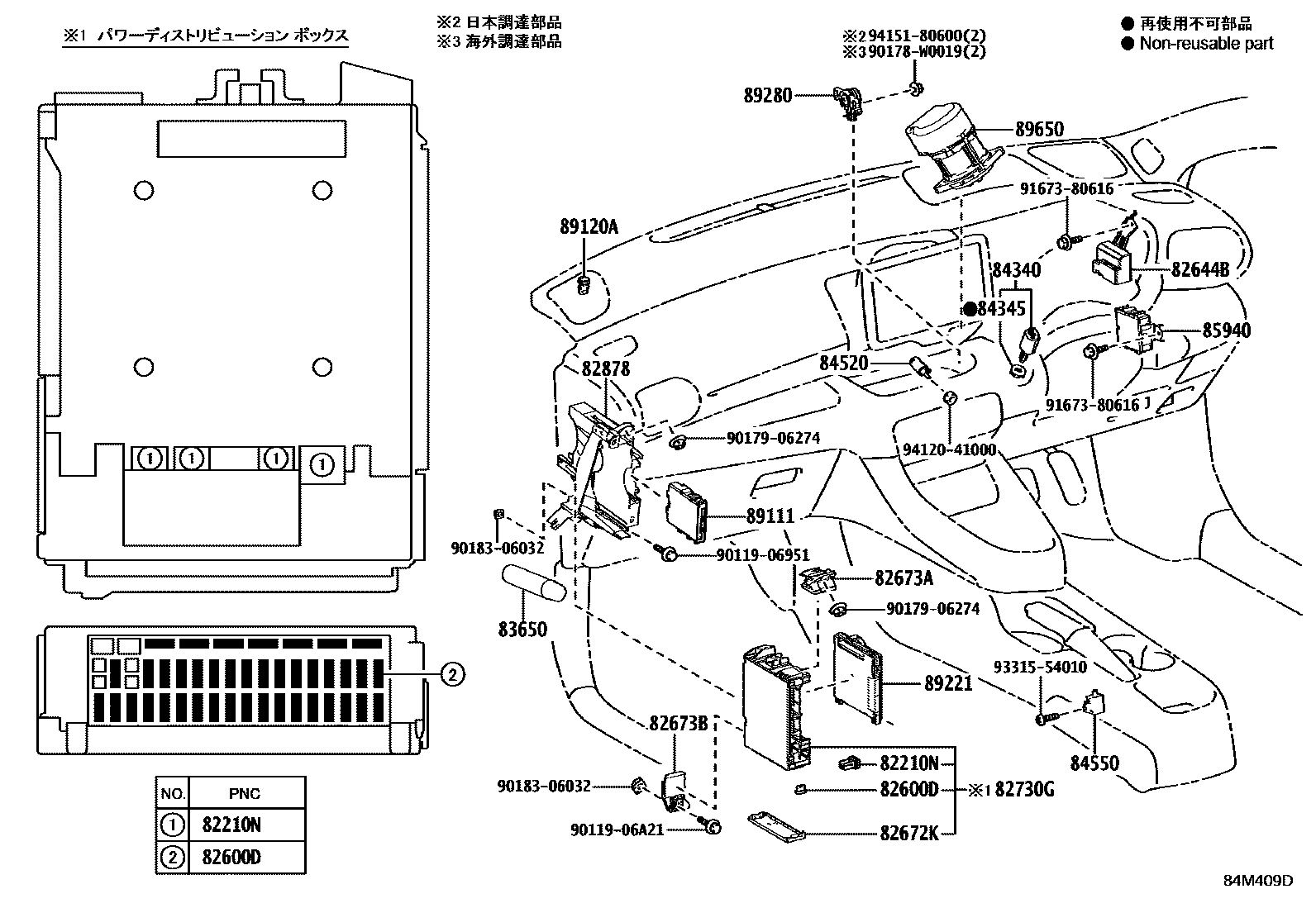

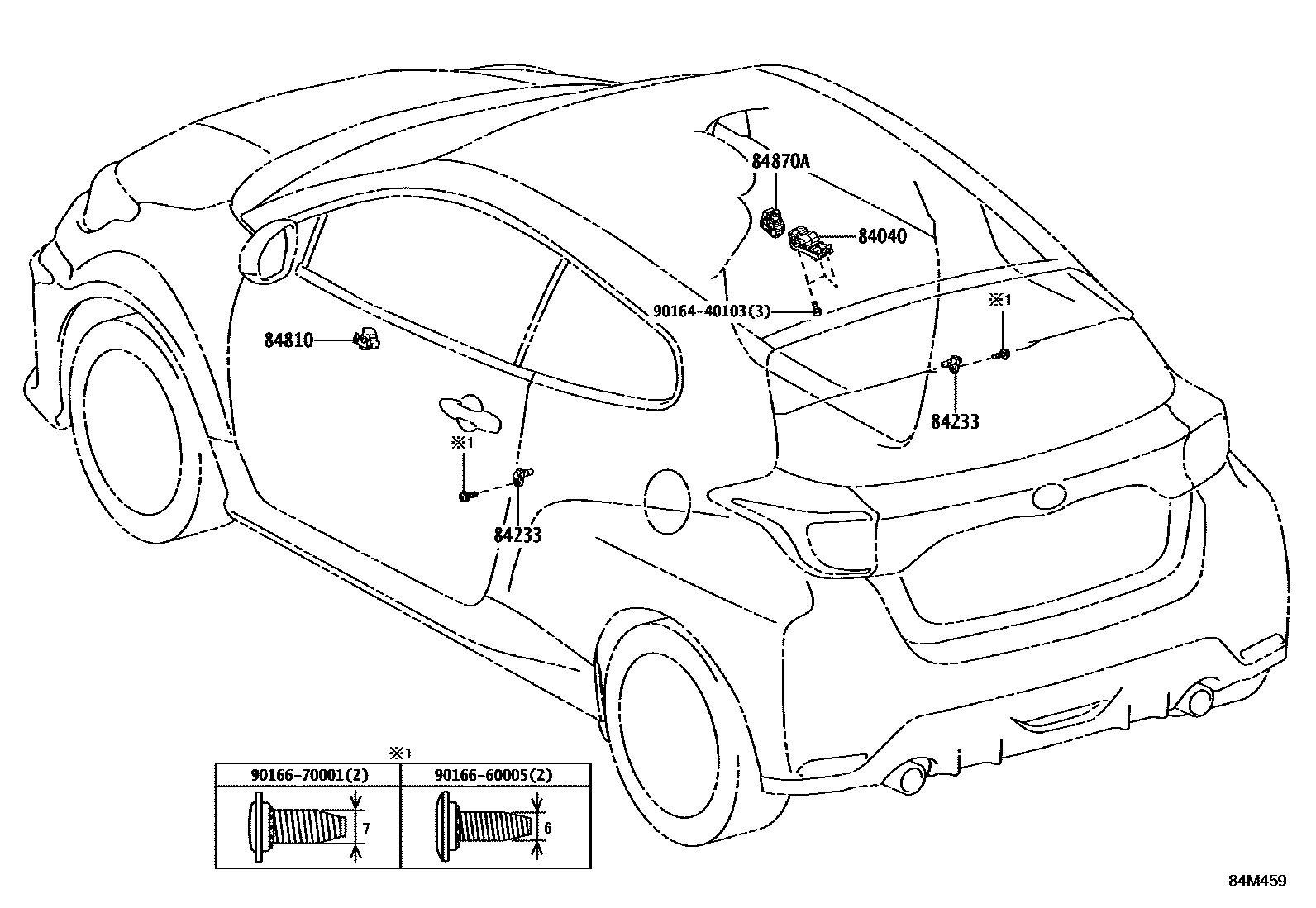

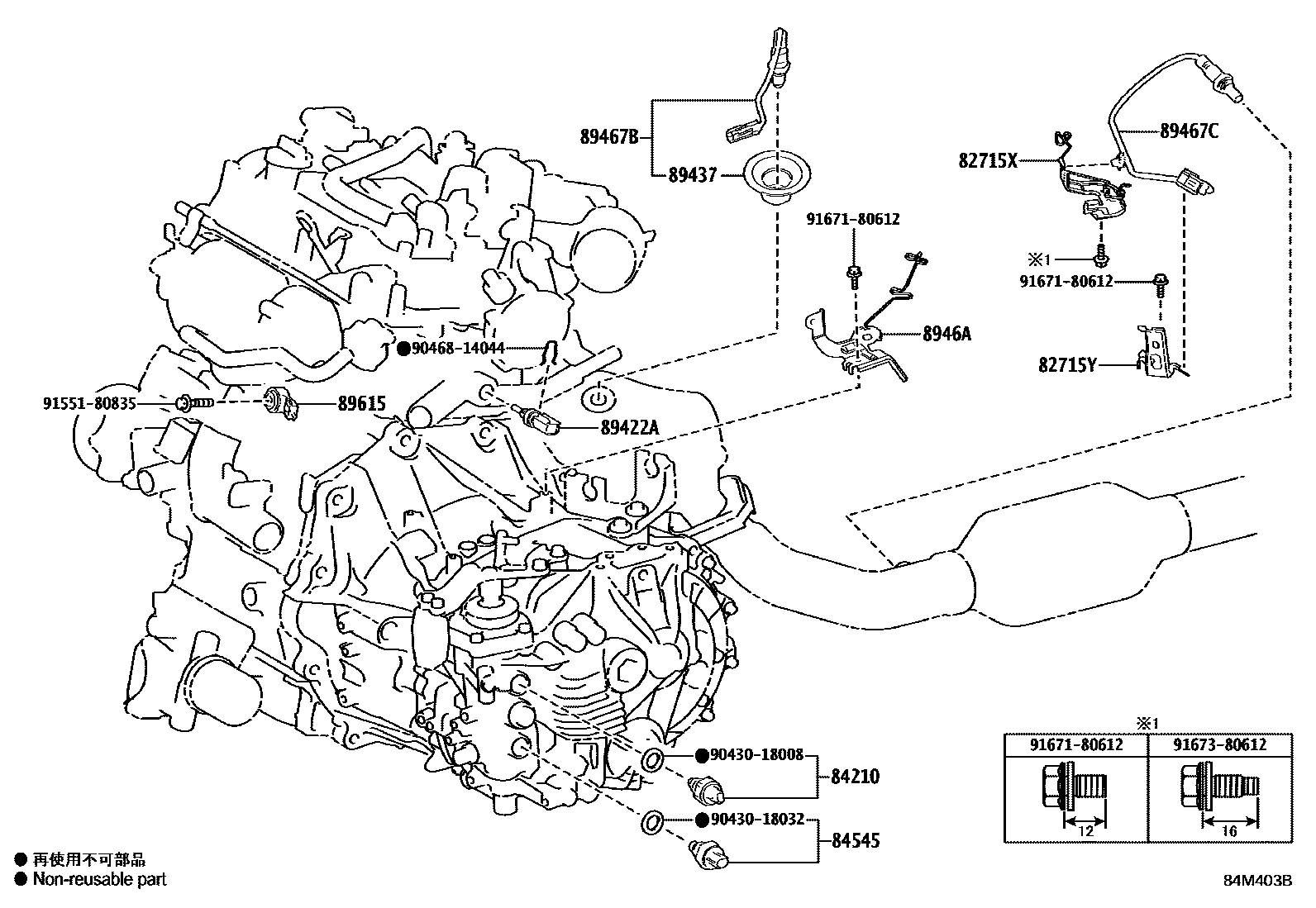

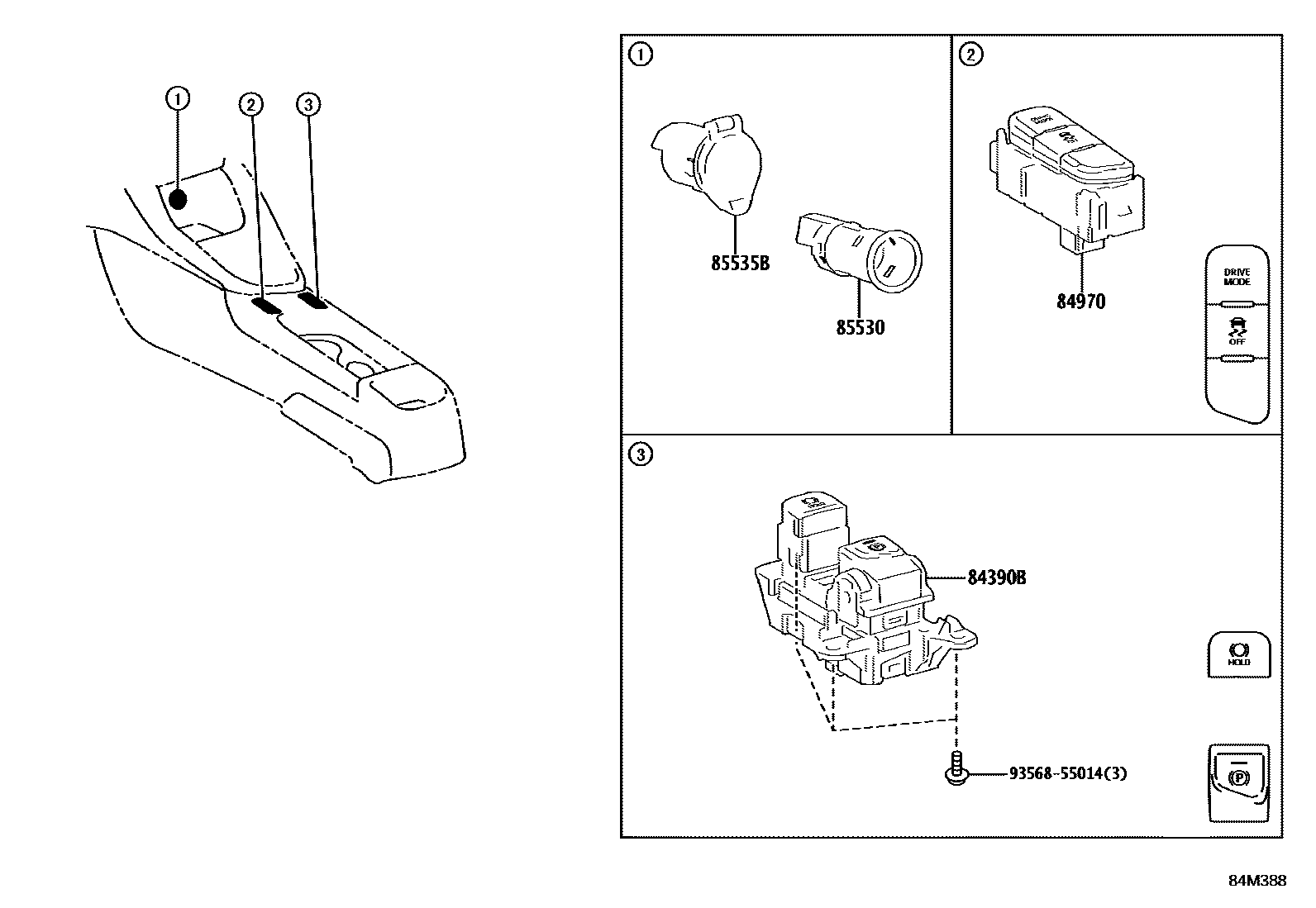

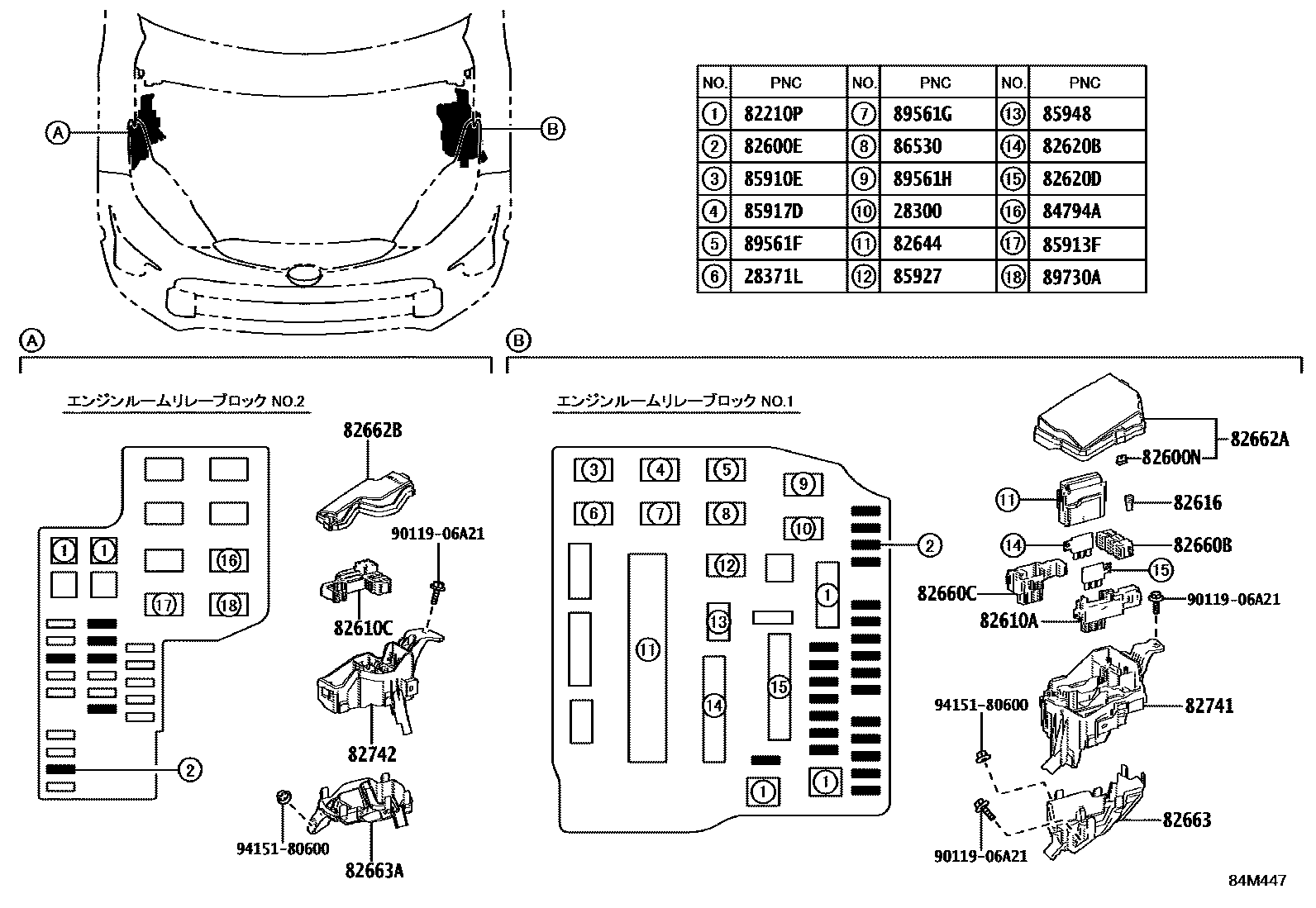

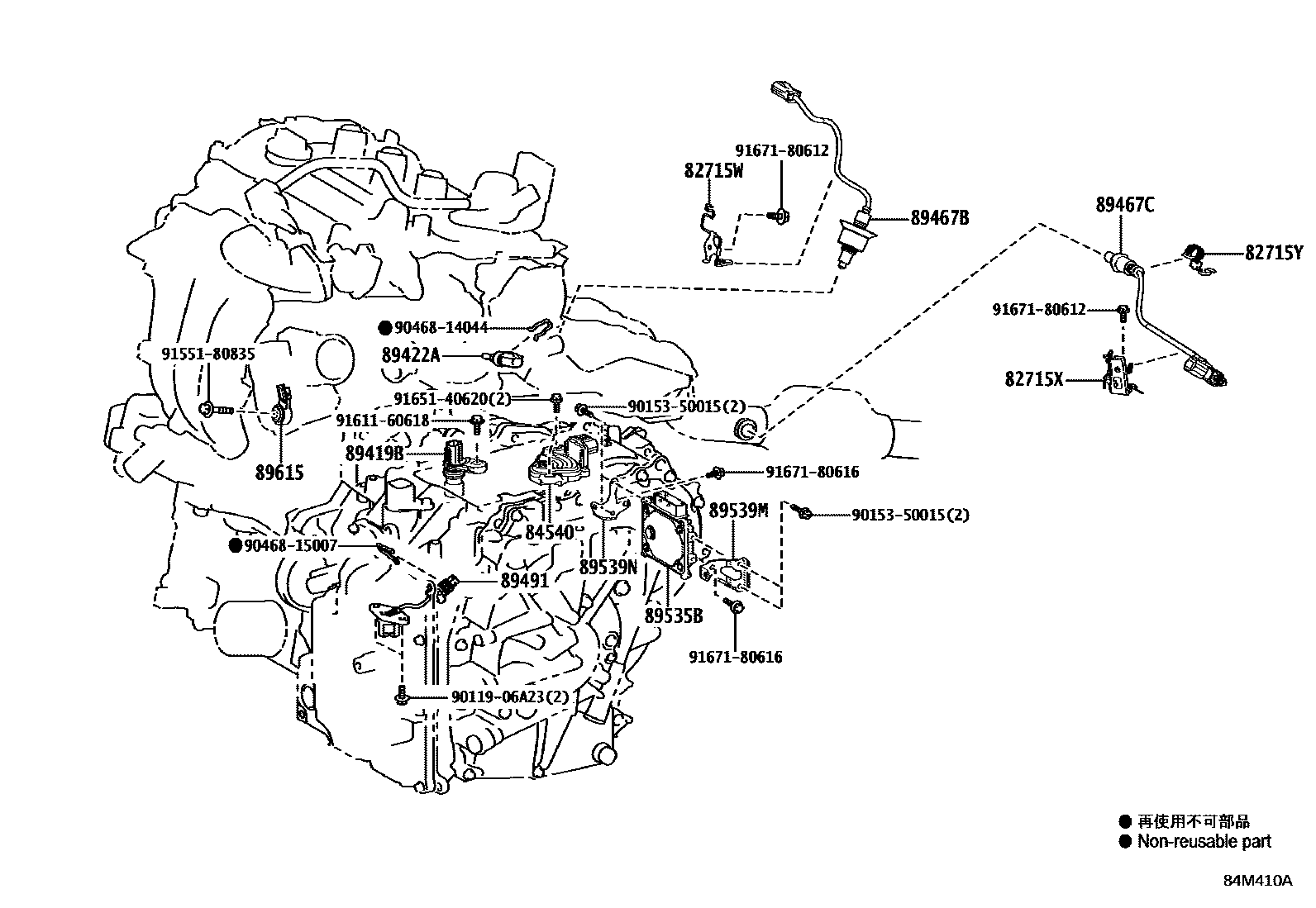

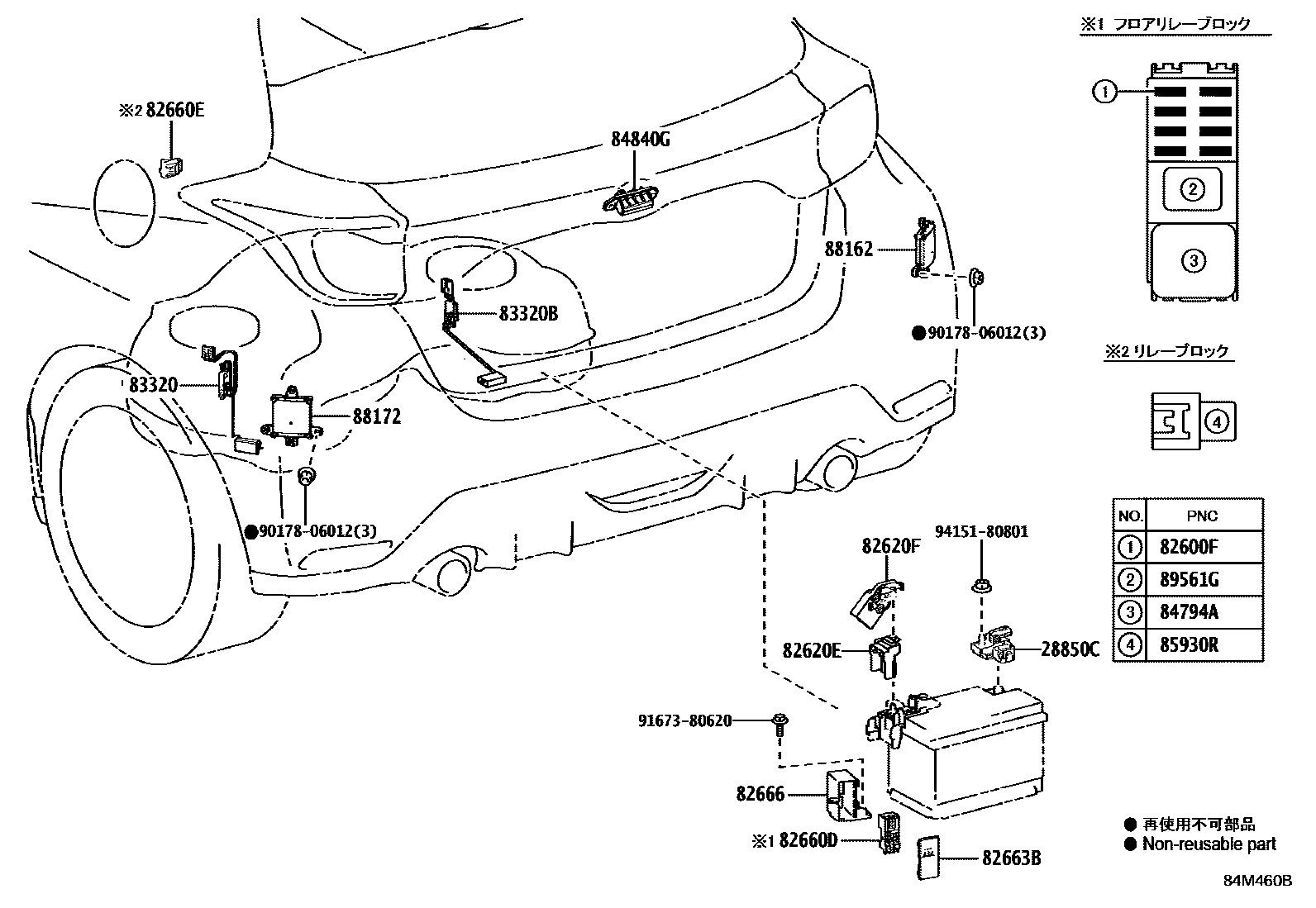

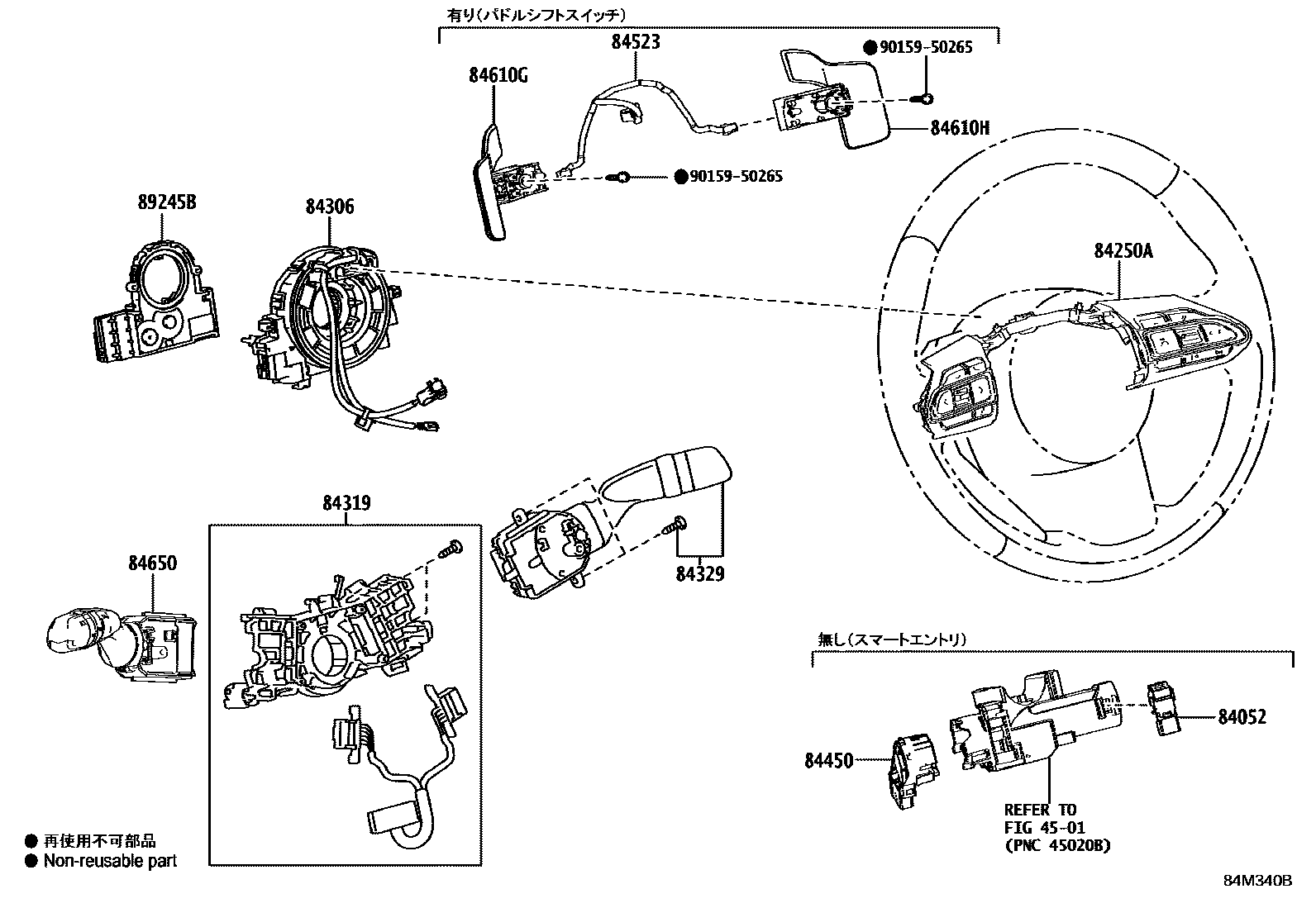

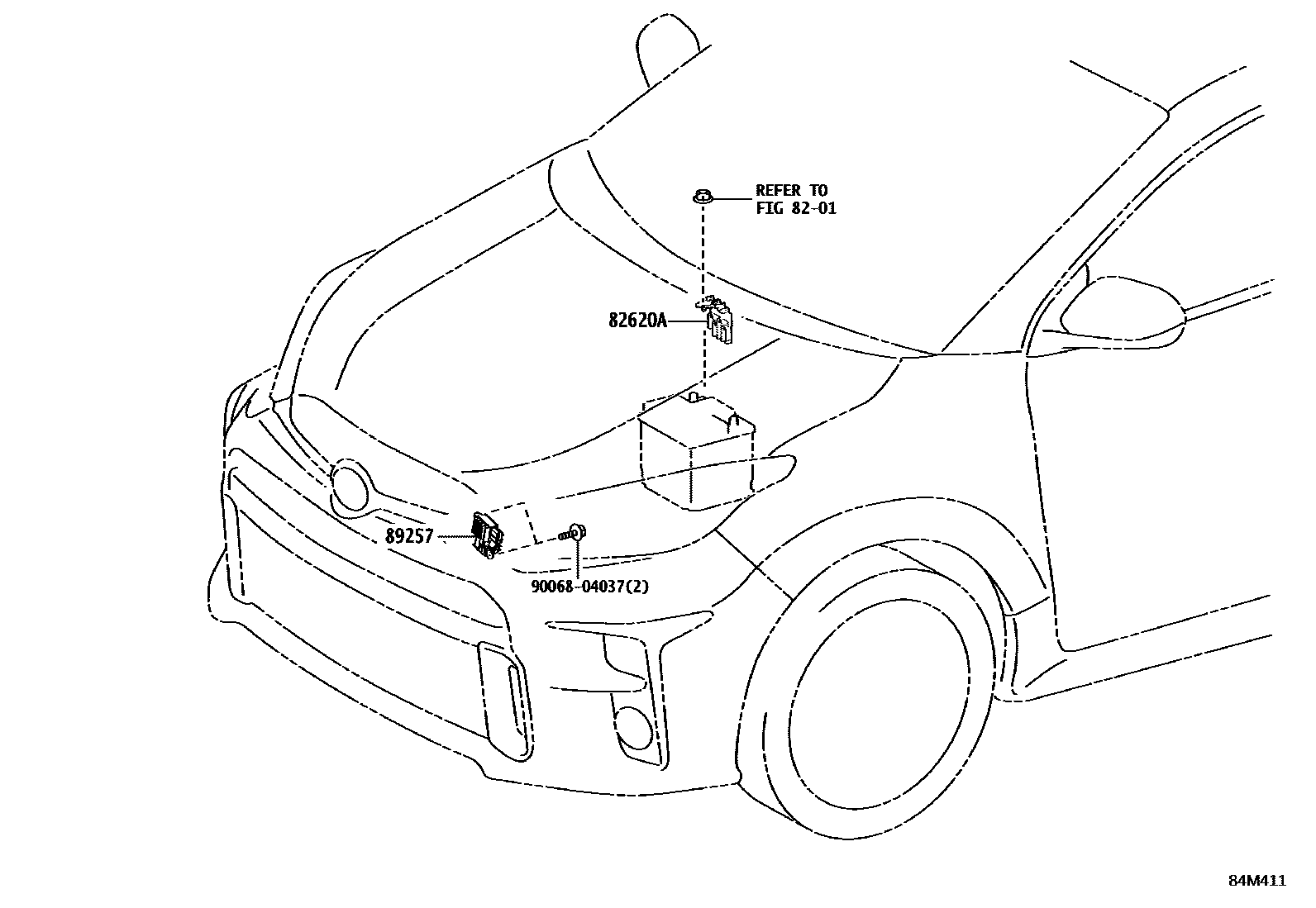

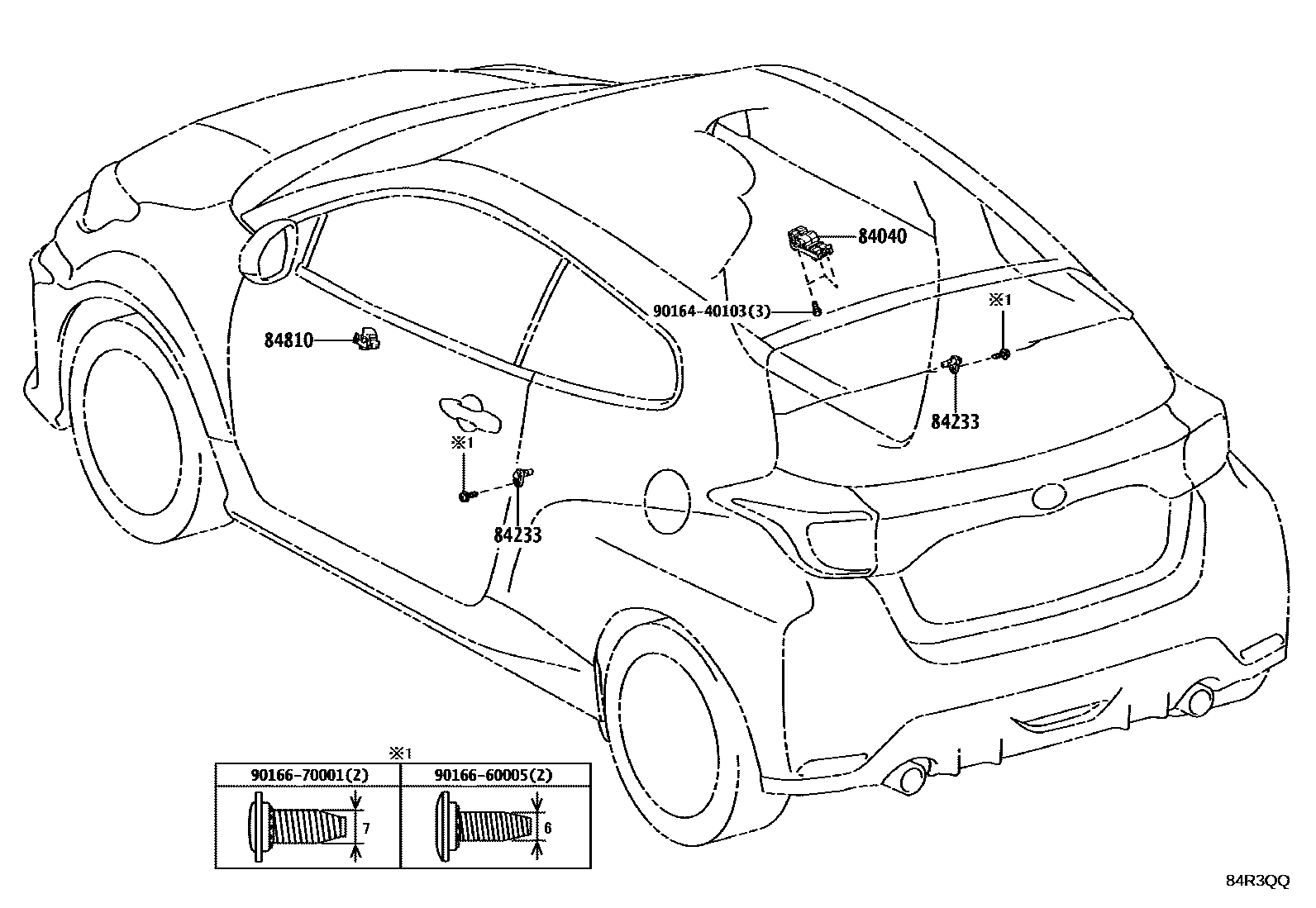

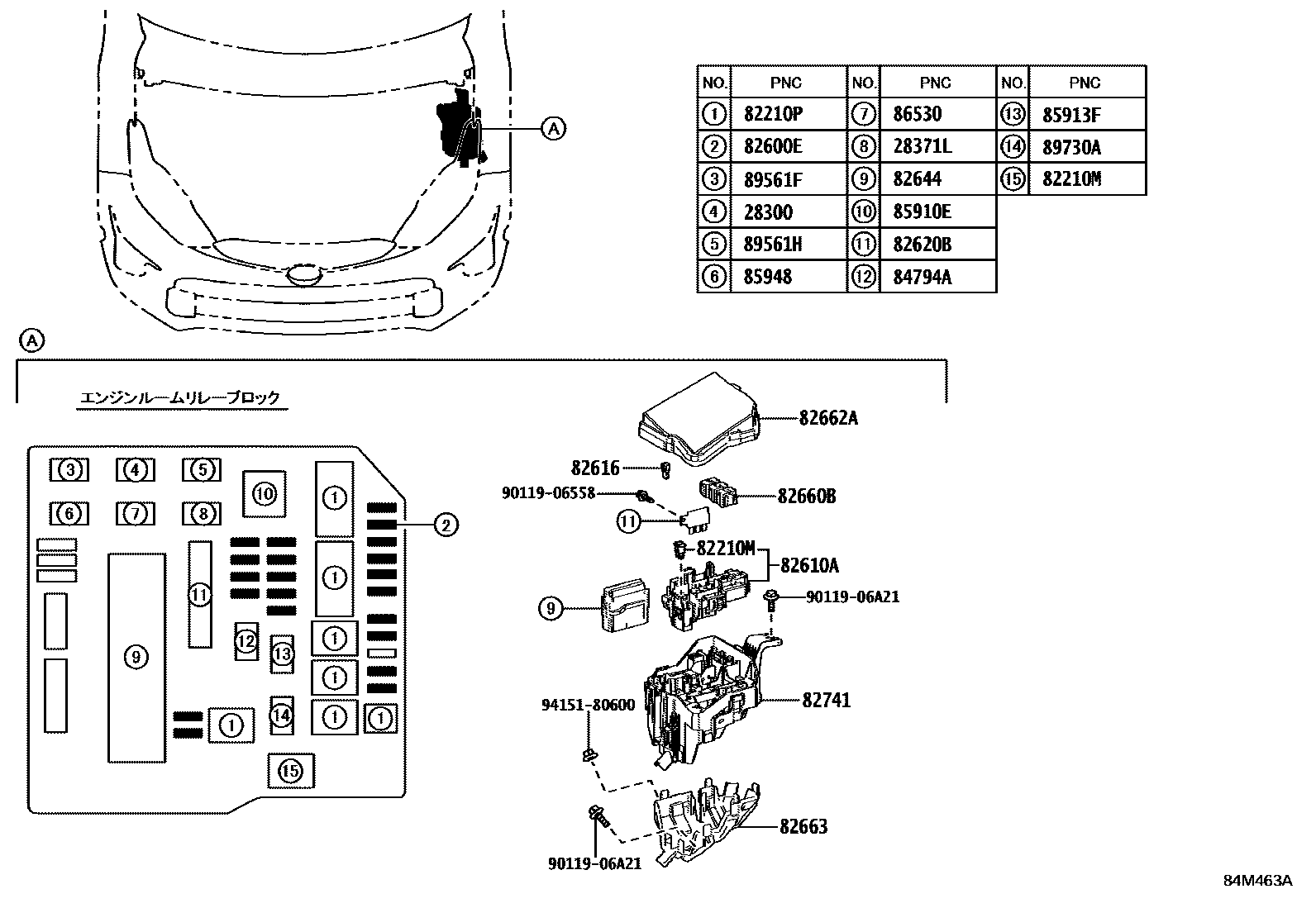

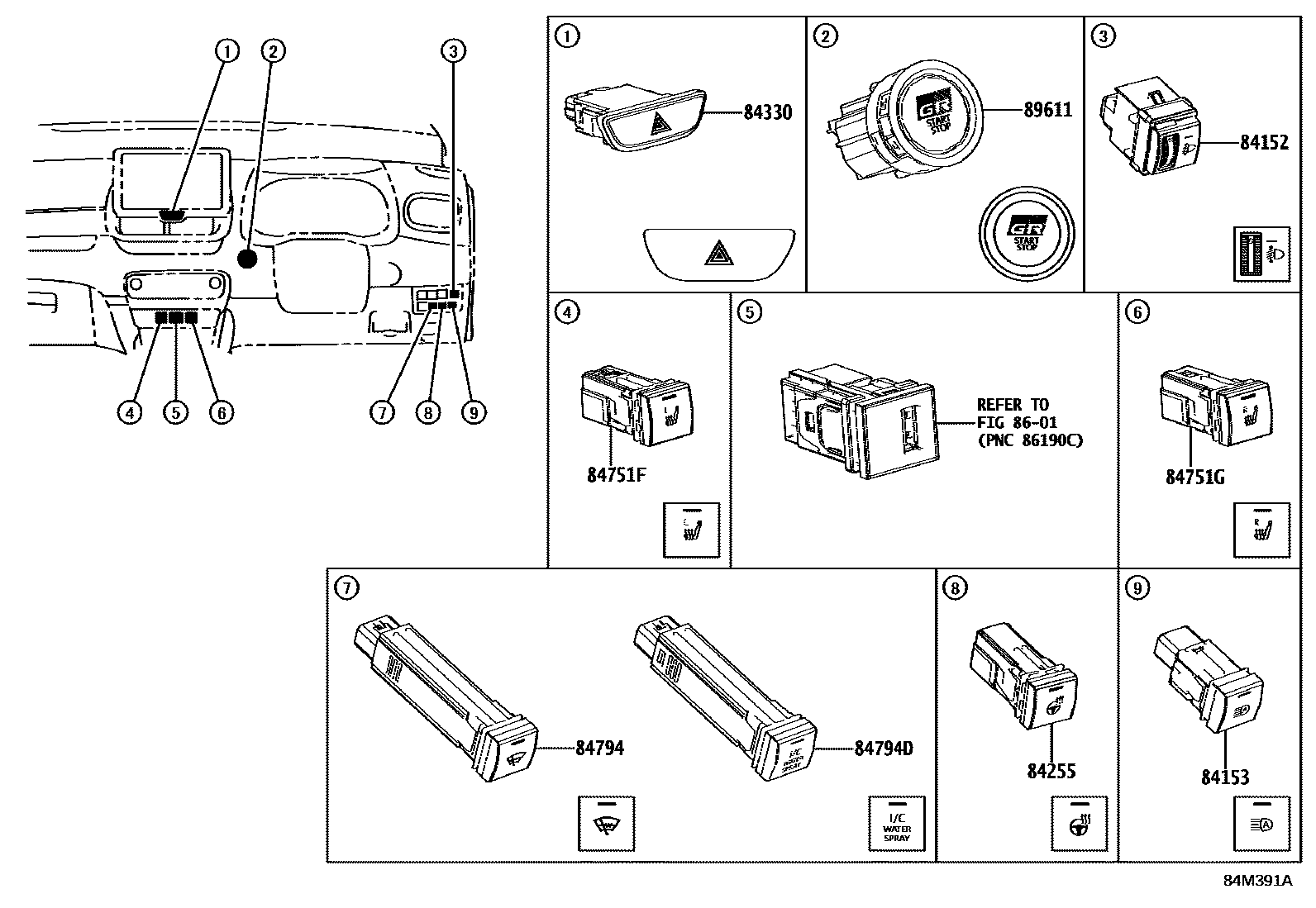

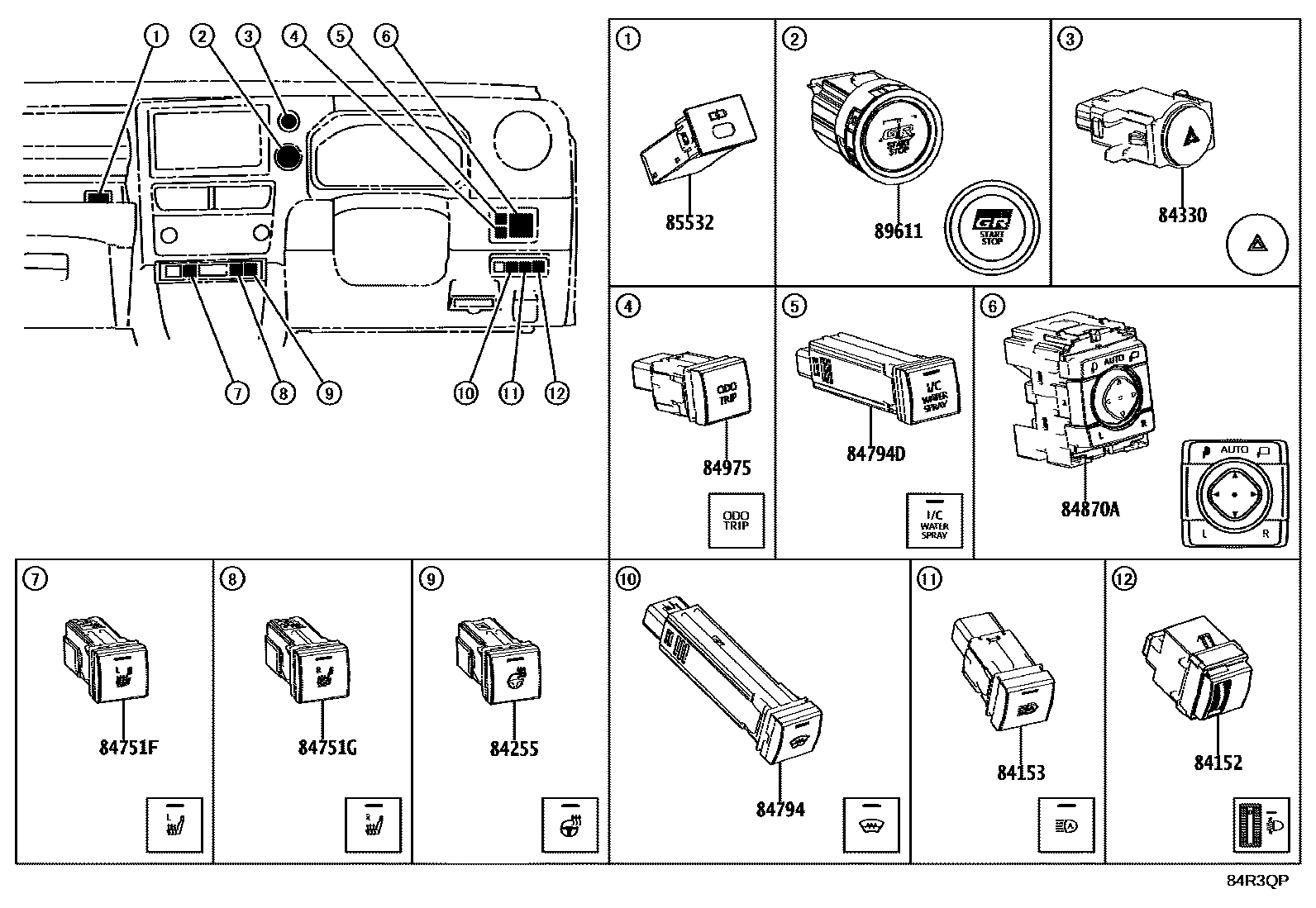

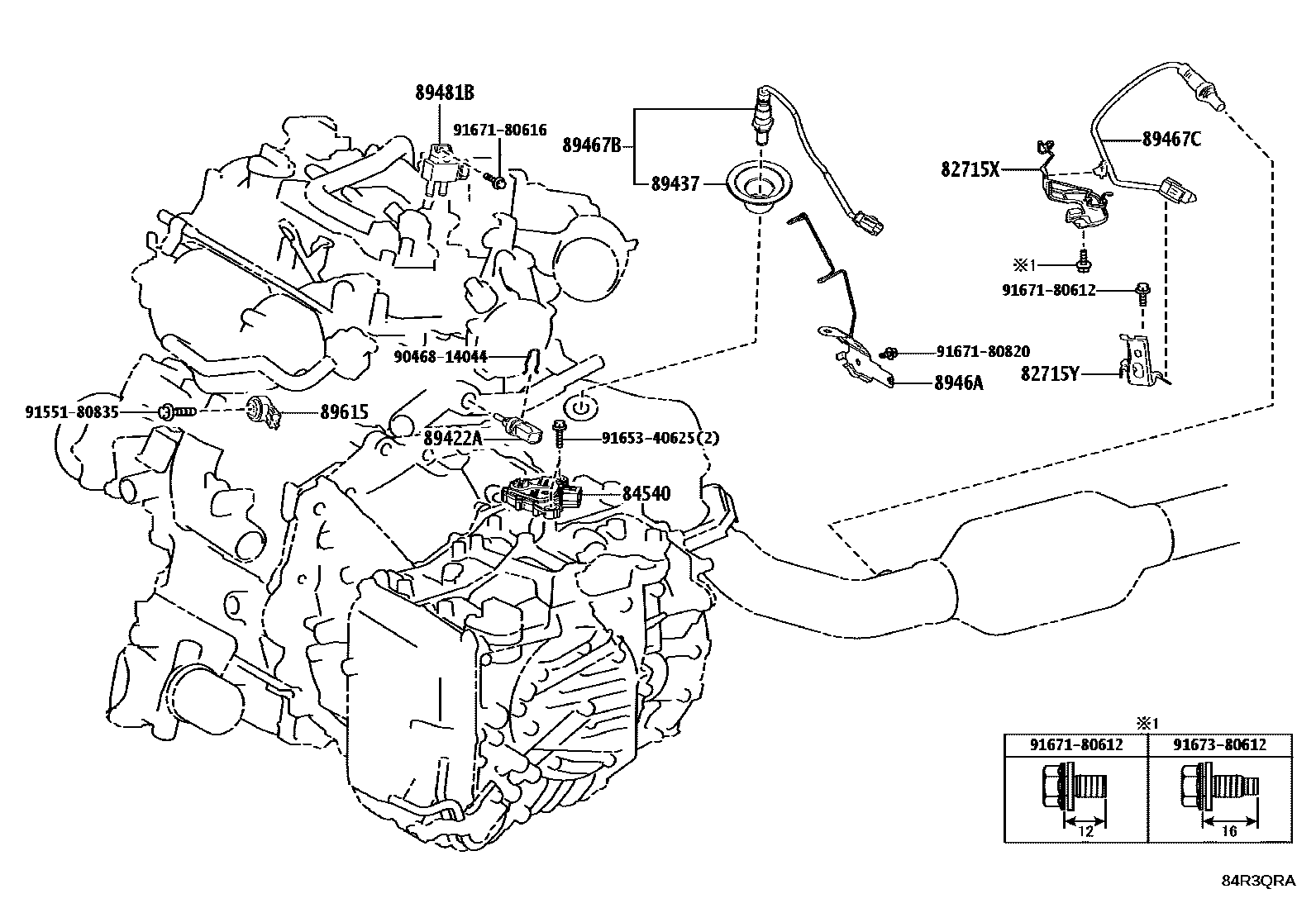

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 15 images and 115 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371L | Toyota part | 90987-02027 |
| 28850C | Toyota part | 28850-K0010 |
| 82210M | fuse | 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08306 · 90982-08311 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08300 · 90982-08301 · 90982-08304 · 90982-08305 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09021 · 90982-09023 · 90982-09025 |
| 82600N | Toyota part | 90982-09020 · 90982-09023 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-52030 · 82610-K0010 |
| 82610C | Fuse box assembly | 82610-K0030 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-K0030 |
| 82620B | Fuse box assembly | 82620-K0040 · 82620-K0050 |
| 82620D | Fuse box assembly | 82620-K0060 |
| 82620E | Fuse box assembly | 82620-50230 |
| 82620F | Toyota part | 82620-50260 |
| 82644 | Toyota part | 82644-52050 · 82644-52100 · 82644-K0050 |
| 82644B | Toyota part | 82644-52040 · 82644-K0060 |
| 82660B | Relay assembly | 82660-K0030 |
| 82660C | Relay assembly | 82660-K0020 |
| 82660D | Relay assembly | 82660-K0010 |
| 82660E | Relay assembly | 82660-52030 |
| 82662A | No. 1 relay box upper cover | 82662-52B70 · 82662-52C20 · 82662-52D10 · 82662-52D30 |
| 82662B | No. 2 relay box upper cover | 82662-52B90 |
| 82663 | Relay box lower cover | 82663-K0050 · 82663-K0060 |
| 82663A | No. 2 relay box lower cover | 82663-K0070 |
| 82663B | No. 3 relay box lower cover | 82663-K0040 |
| 82666 | Connector holder | 82666-52260 · 82666-52380 |
| 82672K | Toyota part | 82672-52240 · 82672-52250 · 82672-K0010 · 82672-K0020 |
| 82673A | Junction box bracket | 82673-K0010 |
| 82673B | Junction box bracket | 82673-K0020 |
| 82715W | Toyota part | 82715-K0030 |
| 82715X | Toyota part | 82715-47390 · 82715-K0040 |
| 82715Y | Toyota part | 82715-42710 · 82715-K0080 |
| 82730G | Toyota part | 82730-52T20 · 82730-52T30 · 82730-K0020 · 82730-K0040 |
| 82741 | Engine room relay box | 82741-52110 · 82741-K0050 |
| 82742 | Engine room No. 2 relay box | 82741-K0060 |
| 82878 | Left ECU integrated box | 82878-52010 · 82878-K0010 |
| 83320 | Fuel gauge sensor assembly | 83320-12A10 · 83320-52370 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-10290 |
| 83650 | fuse | 90986-01005 |
| 84040 | Multi-channel network main switch assembly | 84040-0D040 · 84040-0W010 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-52420 · 84250-52530 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-12020 · 84308-33110 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-52170 · 84332-52220 |
| 84340 | brake light switch assembly | 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-52010 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84520 | Clutch start switch assembly | 88280-70010 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-33021 · 84540-K0010 |
| 84545 | Toyota part | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84610G | Toyota part | 84610-33011 |
| 84610H | Toyota part | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-33580 · 84652-33590 |
| 84751F | Seat heater switch | 84751-15020 · 84751-52120 |
| 84751G | Seat heater switch | 84751-15030 · 84751-52150 |
| 84794 | Front wiper de-icer switch | 84794-33050 · 84794-62010 |
| 84794A | Front wiper de-icer relay | 90987-02025 · 90987-02027 |
| 84794D | Toyota part | 84974-52010 · 84974-52020 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-12140 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12180 · 84872-42330 |
| 84970 | Combination switch assembly | 84970-52230 · 84970-52250 · 84970-52640 · 84970-52650 · 84970-K0050 |
| 84970E | No. 2 combination switch assembly | 84970-52120 · 84970-52510 · 84970-52660 · 84970-52670 |
| 84970F | Toyota part | 84970-52430 |
| 84975 | trip odometer switch | 84975-42030 |
| 85530 | No. 1 power socket assembly | 85530-42010 · 85530-52010 |
| 85532 | Toyota part | 85532-60060 |
| 85535B | No. 1 power outlet cover | 85535-28090 · 85535-30020 · 85535-78010 |
| 85910E | Injector relay | 90987-02025 · 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85917D | Toyota part | 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85930R | Toyota part | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-K0010 |
| 85948 | windshield wiper relay | 90987-02027 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-52020 · 88162-52021 · 88162-52060 |
| 88172 | Blind spot monitor left sensor | 88162-52020 · 88162-52021 · 88162-52060 |
| 89111 | Network gateway ECU | 89111-52040 · 89111-52220 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-5CJ50 · 89220-5CJ60 · 89220-5CJ70 · 89220-5CJ80 · 89221-52820 · 89221-52821 |
| 89245B | steering sensor | 8924B-K0010 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-K0010 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89419B | Toyota part | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89437 | sensor cover | 89437-52020 |
| 89467B | air fuel ratio sensor | 89467-52300 · 89467-52350 · 89467-K0020 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-52310 · 89467-K0030 |
| 8946A | Toyota part | 8946A-52050 · 8946A-52110 |
| 89491 | Engine oil level sensor | 89491-50081 · 89491-50082 |
| 89535B | Toyota part | 89535-52130 · 89535-52290 |
| 89539M | No. 1 transmission control ECU bracket | 89539-K0010 |
| 89539N | No. 2 transmission control ECU bracket | 89539-K0020 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02027 · 90987-02033 |
| 89611 | push button start switch | 89611-52050 · 89611-52090 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52G10 · 89650-52G20 · 89650-52G30 · 89650-52M10 · 89650-52M20 · 89650-52Q10 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
