Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 15 images and 95 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

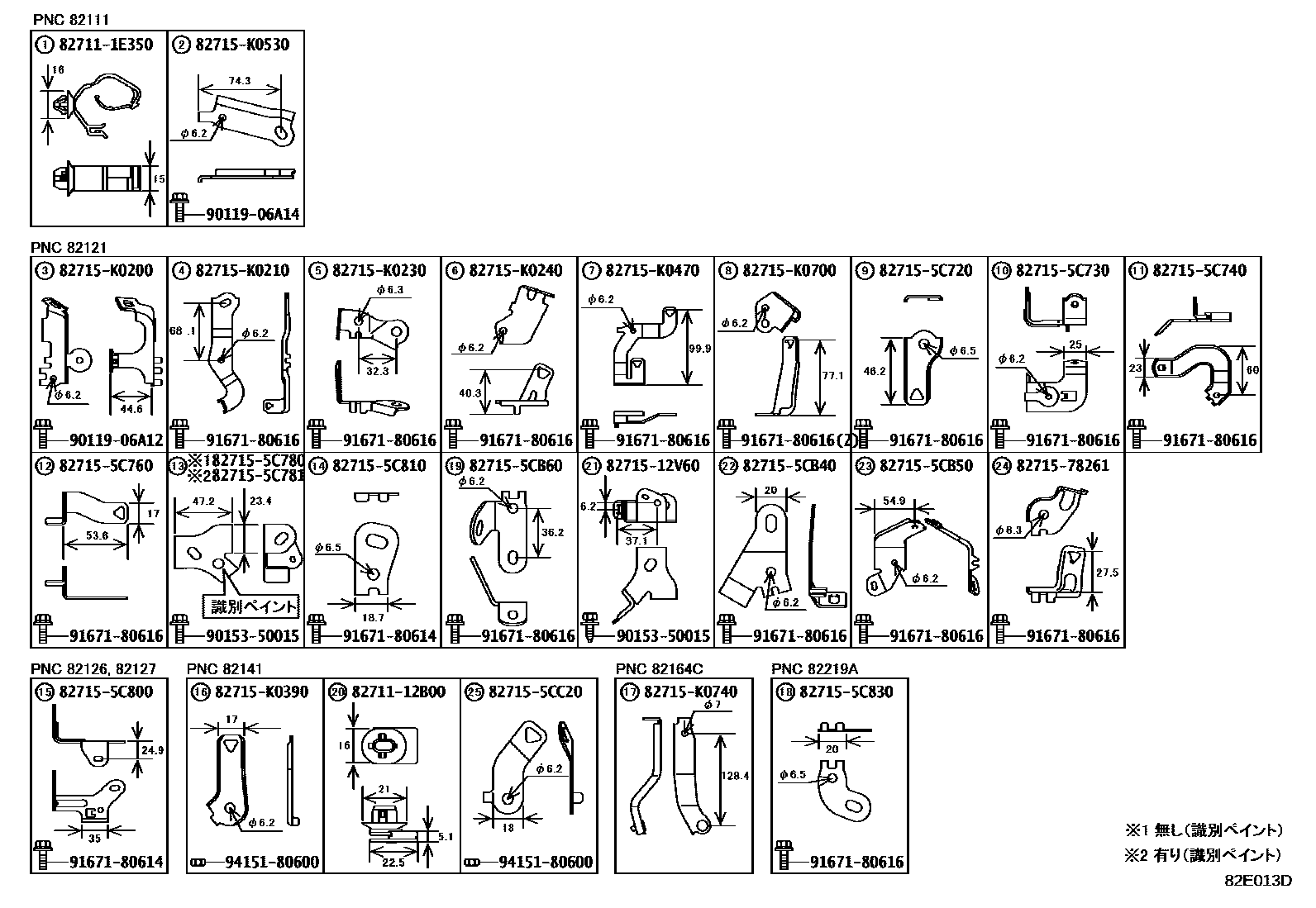

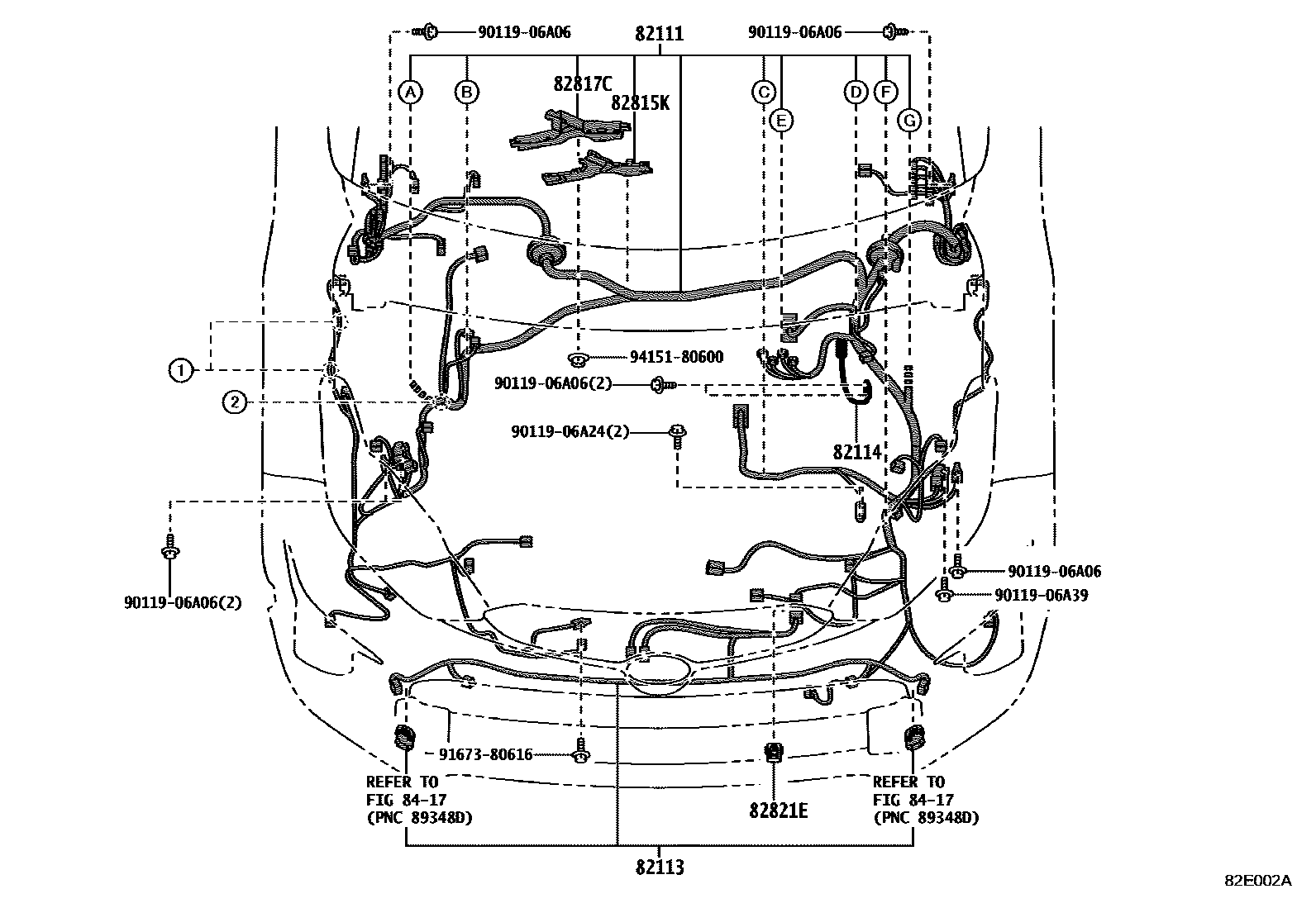

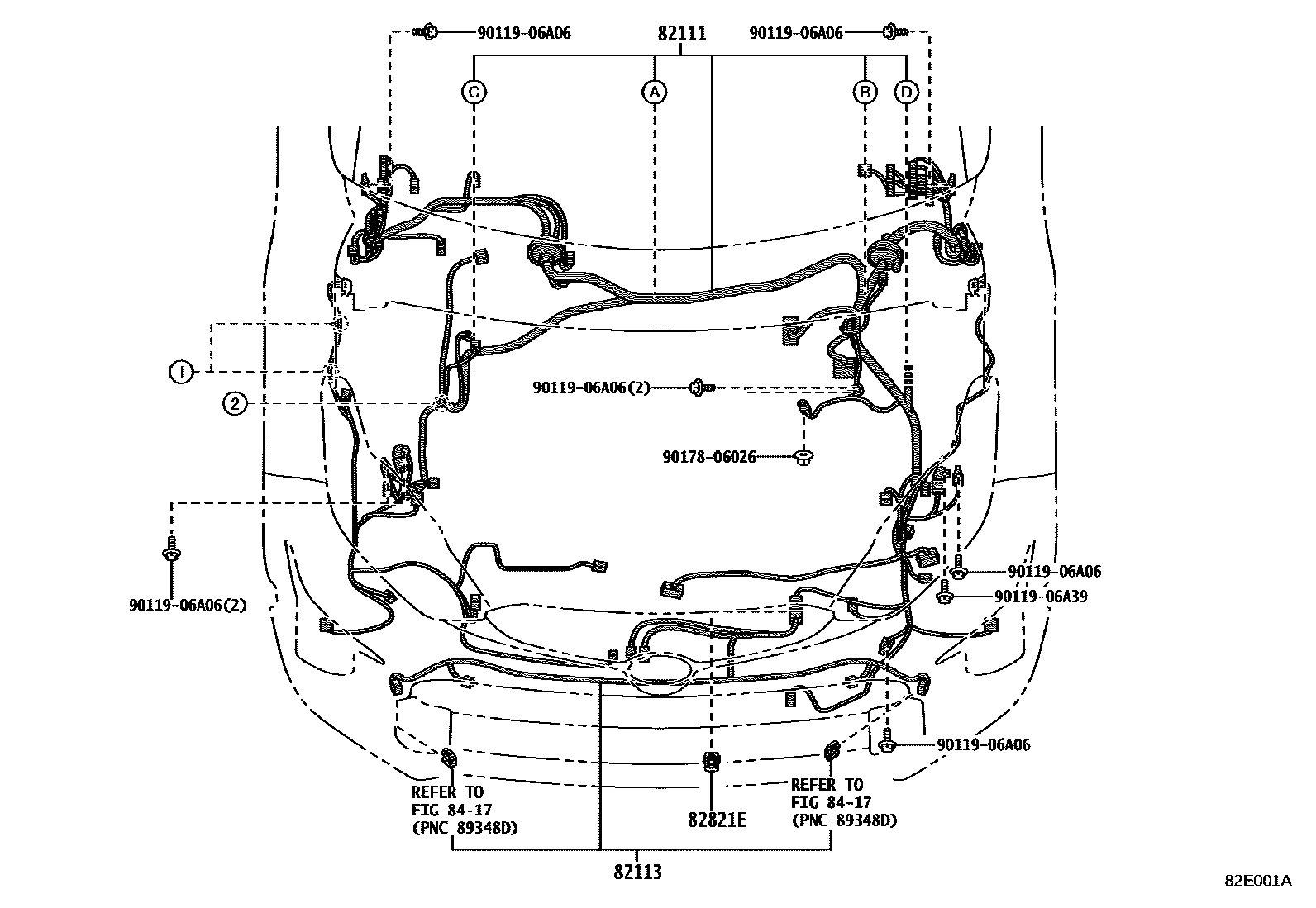

| 82111 | Engine room main wiring harness | 82111-5DL70 · 82111-5DW30 · 82111-5DW60 · 82111-5DW80 · 82111-5DX10 · 82111-5DX20 · 82111-5DY60 · 82111-5DY70 · 82115-52A00 · 82115-52E80 · 82115-52Y10 · 82115-52Y90 · 82115-52Z00 · 82115-52Z10 · 82115-52Z50 · 82115-5CA20 · 82115-5CA30 · 82115-5CA40 |
| 82113 | Engine room wiring harness No. 3 | 82113-52250 · 82113-52C10 · 82113-52D90 |
| 82114 | Engine room wiring harness No. 4 | 82114-52060 |

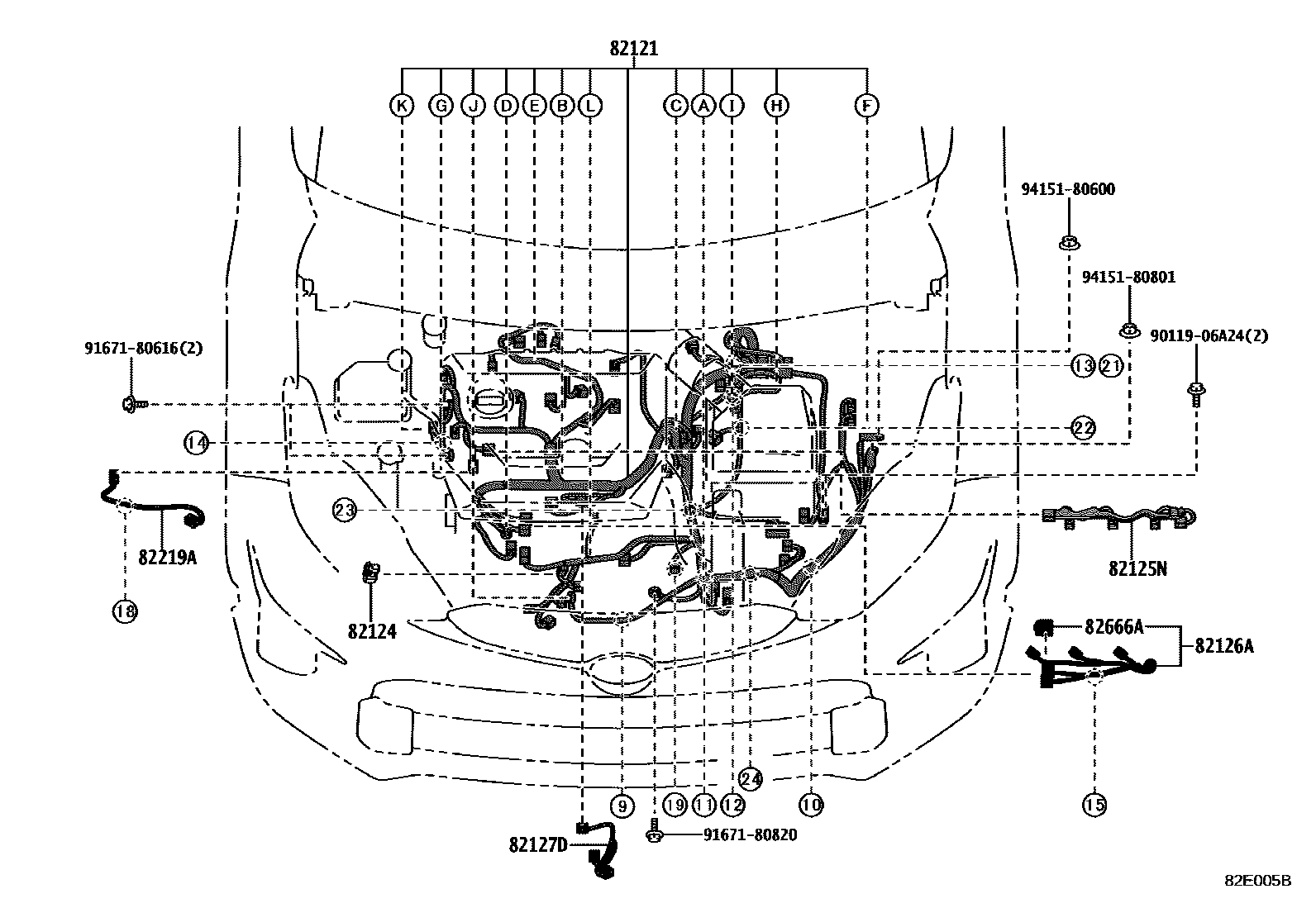

| 82121 | Engine wiring harness | 82121-52P70 · 82121-52P71 · 82121-52V00 · 82121-52V10 · 82121-52V90 · 82121-52W00 |
| 82124 | Engine No. 4 wiring harness | 82124-52030 |
| 82125N | Engine No. 5 wiring harness | 82125-52150 |
| 82126A | Toyota part | 82126-52020 · 82126-K0040 |
| 82127D | Engine No. 7 wiring harness | 82127-12010 · 82127-52010 |

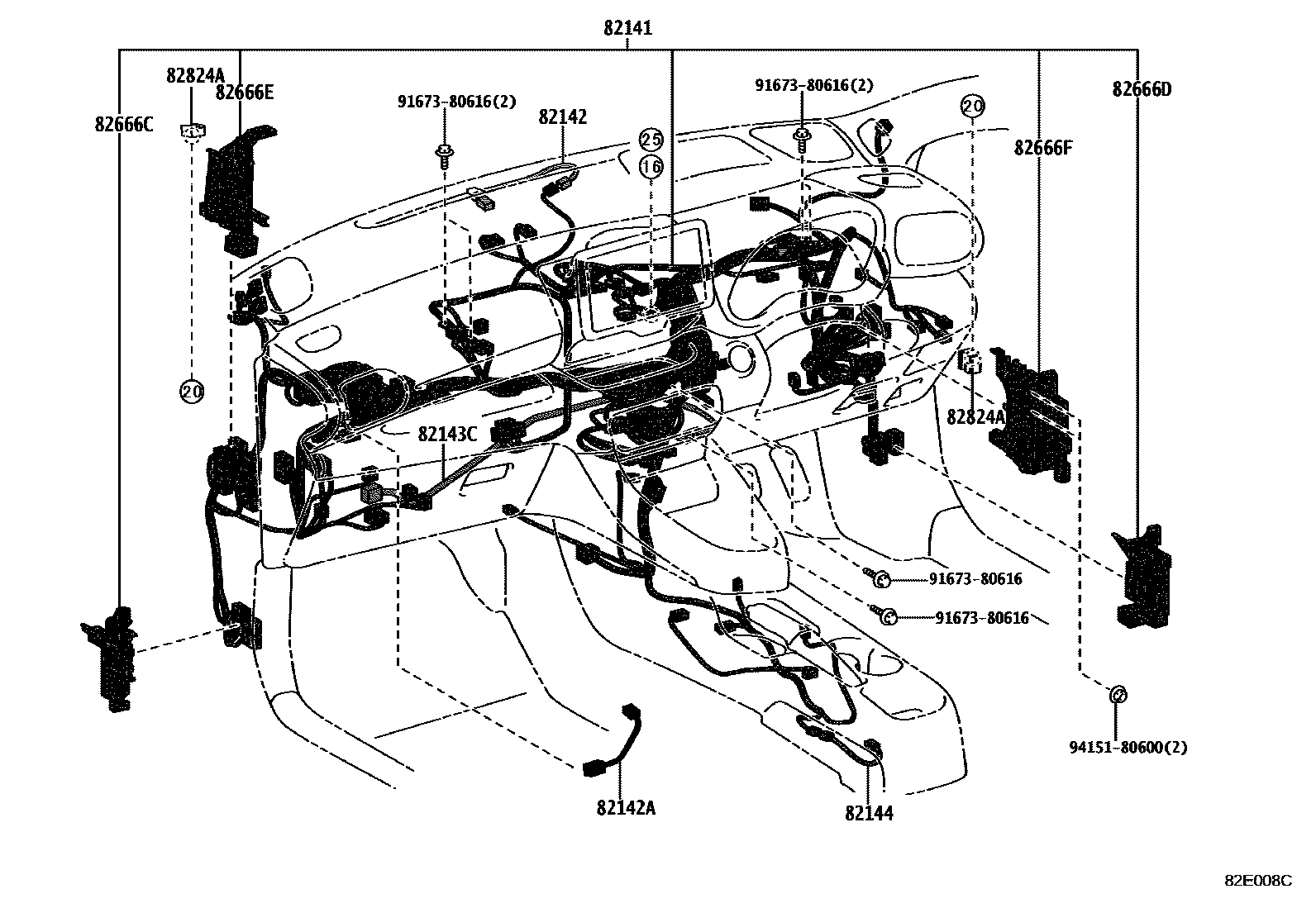

| 82141 | Dashboard wiring harness | 82145-5CP60 · 82145-5CU00 · 82145-5DP70 · 82145-5DQ00 · 82145-5DQ10 · 82145-5DQ30 · 82145-5DQ40 · 82146-52890 · 82146-52A20 · 82146-52A30 · 82146-52C70 · 82146-52C90 · 82146-52D40 · 82146-52D50 · 82146-52D70 · 82146-52K00 · 82146-52K10 · 82146-52L40 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-52630 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-30030 · 82140-K0010 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-K0020 |
| 82144 | Instrument panel wiring harness No. 4 | 82144-52070 |

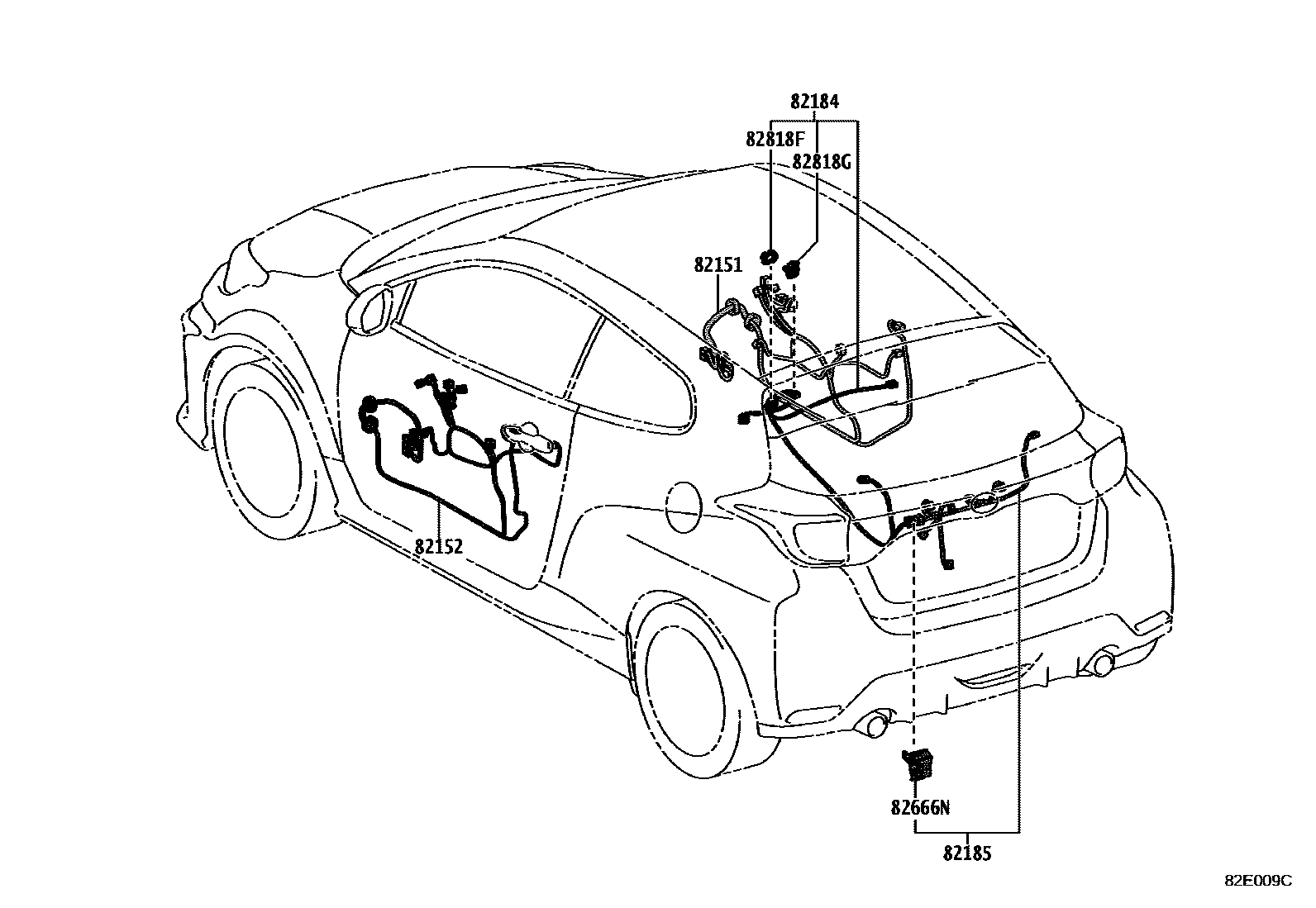

| 82151 | Right front door wiring harness | 82151-5C120 · 82151-5C140 · 82151-5C160 · 82151-5C460 · 82151-5C490 · 82151-5C500 · 82151-5CM60 |
| 82152 | Left front door wiring harness | 82152-52X90 · 82152-52Y10 · 82152-52Y30 · 82152-5C140 · 82152-5CD60 · 82152-5CD70 · 82152-5CG40 |

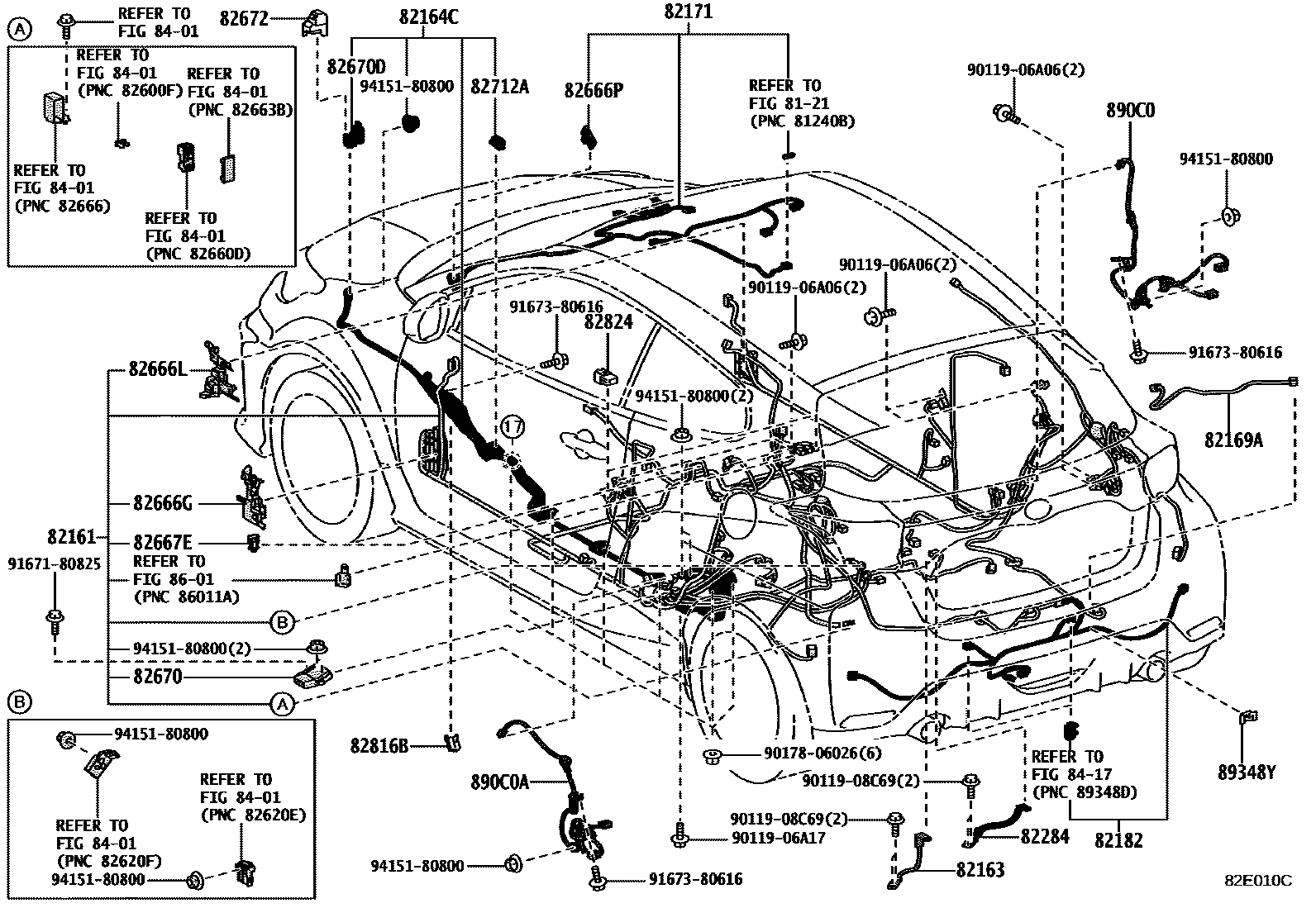

| 82161 | floor wiring harness | 82161-5DU80 · 82161-5DV00 · 82161-5DV10 · 82161-5DV40 · 82161-5DV50 · 82161-5DV60 · 82199-52730 · 82199-5CM20 · 82199-5D580 · 82199-5DW60 · 82199-5DW70 · 82199-5DW90 |
| 82163 | Floor wiring harness No. 3 | 82163-52120 |
| 82164C | No. 4 floor wiring harness | 82164-52190 · 82164-52320 |
| 82169A | Toyota part | 82169-52030 |
| 82171 | Roof No. 1 wiring harness | 82171-52890 · 82171-52A00 · 82171-52A10 · 82171-52A20 · 82171-52G30 · 82171-52G70 · 82171-52G90 · 82171-52J10 · 82171-52L20 · 82171-52L30 |
| 82182 | Luggage No. 2 wiring harness | 82182-52410 · 82182-52470 · 82182-52850 · 82182-52860 |
| 82184 | Rear door No. 1 wiring harness | 82184-52A70 · 82184-52A80 · 82184-52B00 · 82184-52J40 · 82184-52J60 |
| 82185 | Rear door wiring harness No. 2 | 82185-52D60 · 82185-52F30 · 82185-52R10 · 82185-52R60 |
| 82219A | sensor harness | 82219-52100 |

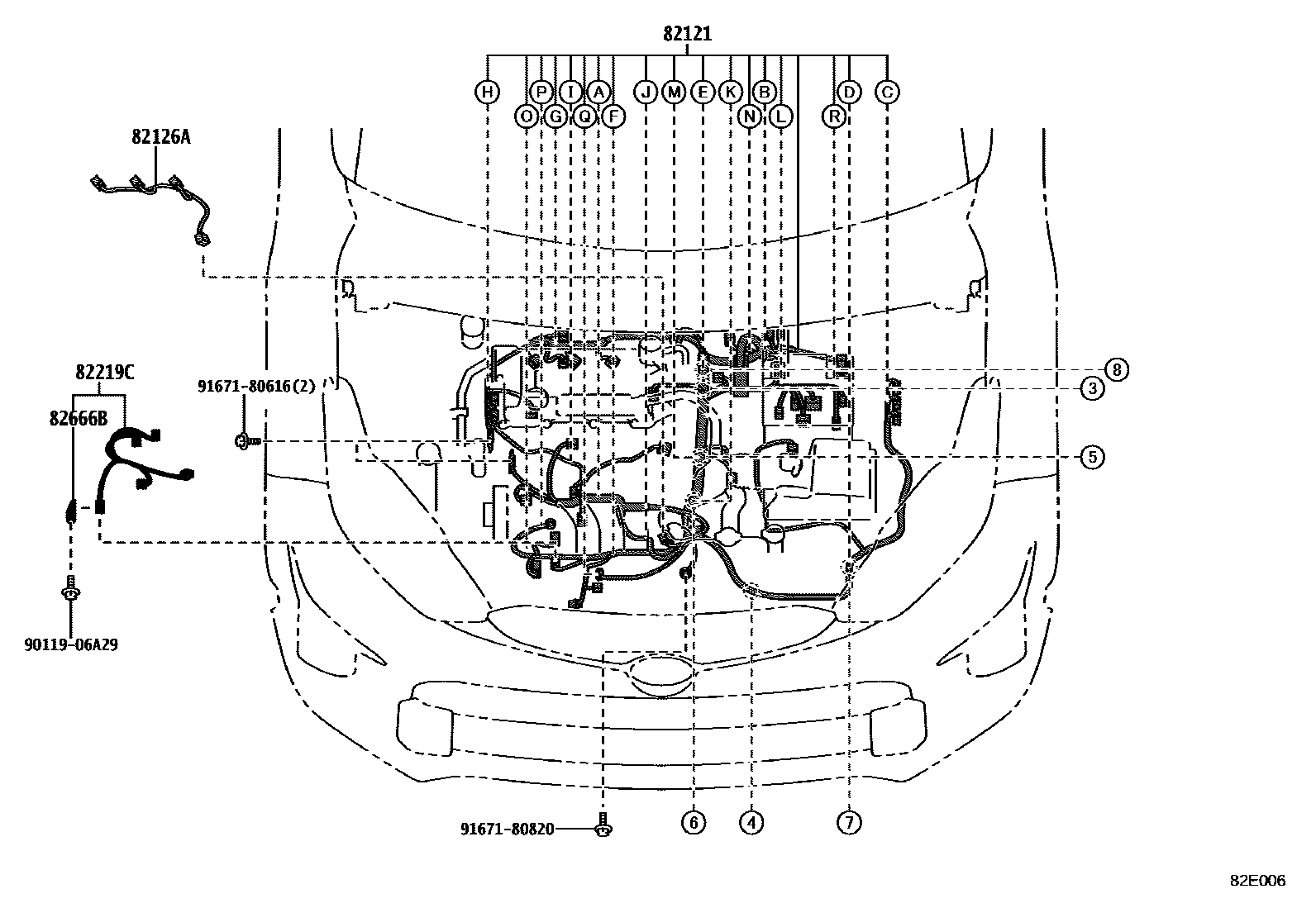

| 82219C | sensor harness | 82219-K0050 |
| 82284 | Ground wire | 82284-12030 |
| 82666A | Connector holder No. 2 | 82666-48130 |
| 82666B | No. 3 connector holder | 82666-K0050 |
| 82666C | No. 4 connector holder | 82666-K0100 |
| 82666D | No. 5 connector holder | 82666-K0110 |
| 82666E | No. 6 connector holder | 82666-K0120 |
| 82666F | No. 7 connector holder | 82666-K0140 |
| 82666G | No. 8 connector holder | 82666-K0070 |
| 82666L | No. 9 connector holder | 82666-K0080 |
| 82666N | No. 10 connector holder | 82666-52430 |
| 82666P | No. 11 Connector Block | 82666-60220 |
| 82667E | Connector No. 20 fixing piece | 82666-26180 |
| 82670 | No. 1 junction box assembly | 82670-52030 |
| 82670D | No. 2 junction box assembly | 82670-52040 |
| 82672 | Junction box cover | 82672-52170 · 82672-52171 |

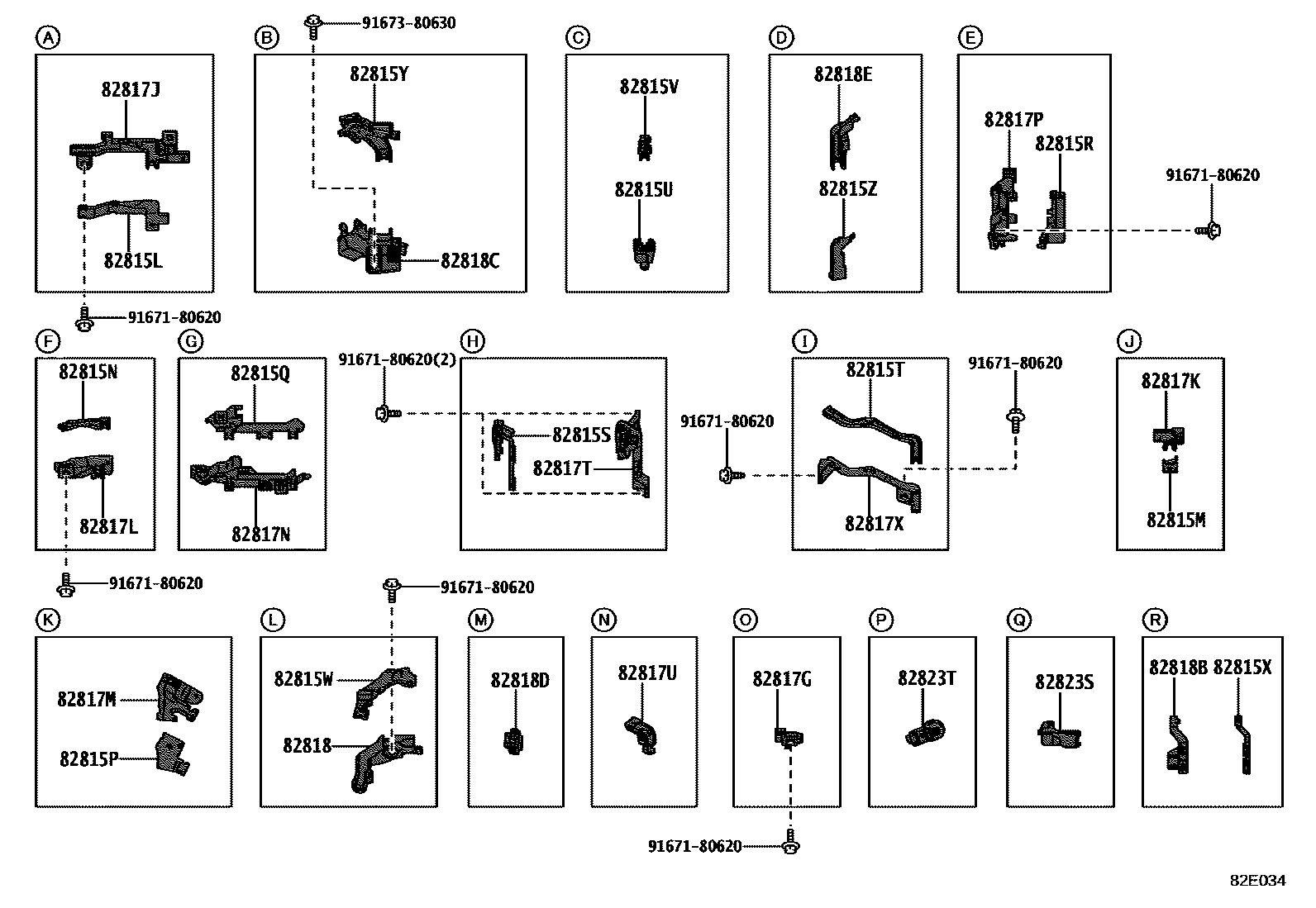

| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-52560 |
| 82815B | Wiring harness protector cover | 82815-52580 · 82815-52B90 |
| 82815G | Wiring harness protector cover | 82815-K0730 |
| 82815H | Wiring harness protector cover | 82815-K0530 |
| 82815J | No. 7 wire harness protector cover | 82815-K0740 |
| 82815K | No. 8 wire harness protector cover | 82815-52740 |
| 82815L | No. 9 wire harness protector cover | 82815-52600 · 82815-K0120 |
| 82815M | No. 10 wire harness protector cover | 82815-52620 · 82815-K0130 |
| 82815N | No. 11 wire harness protector cover | 82815-52630 · 82815-K0140 |
| 82815P | No. 12 wire harness protector cover | 82815-52650 · 82815-K0150 |
| 82815Q | No. 13 wire harness protector cover | 82815-52660 · 82815-52B60 · 82815-K0160 |
| 82815R | No. 14 wire harness protector cover | 82815-52730 · 82815-K0170 |
| 82815S | No. 15 wire harness protector cover | 82815-33J10 · 82815-K0180 |
| 82815T | No. 16 wire harness protector cover | 82815-33L00 · 82815-K0190 |
| 82815U | No. 17 wire harness protector cover | 82815-K0370 |
| 82815V | No. 1 wire harness protector cover | 82815-K0380 |
| 82815W | No. 2 wire harness protector cover | 82815-K0200 |
| 82815X | No. 3 wire harness protector cover | 82815-K0210 |
| 82815Y | Toyota part | 82815-K0260 |
| 82815Z | Toyota part | 82815-K0390 |
| 82816B | Toyota part | 82815-52720 |

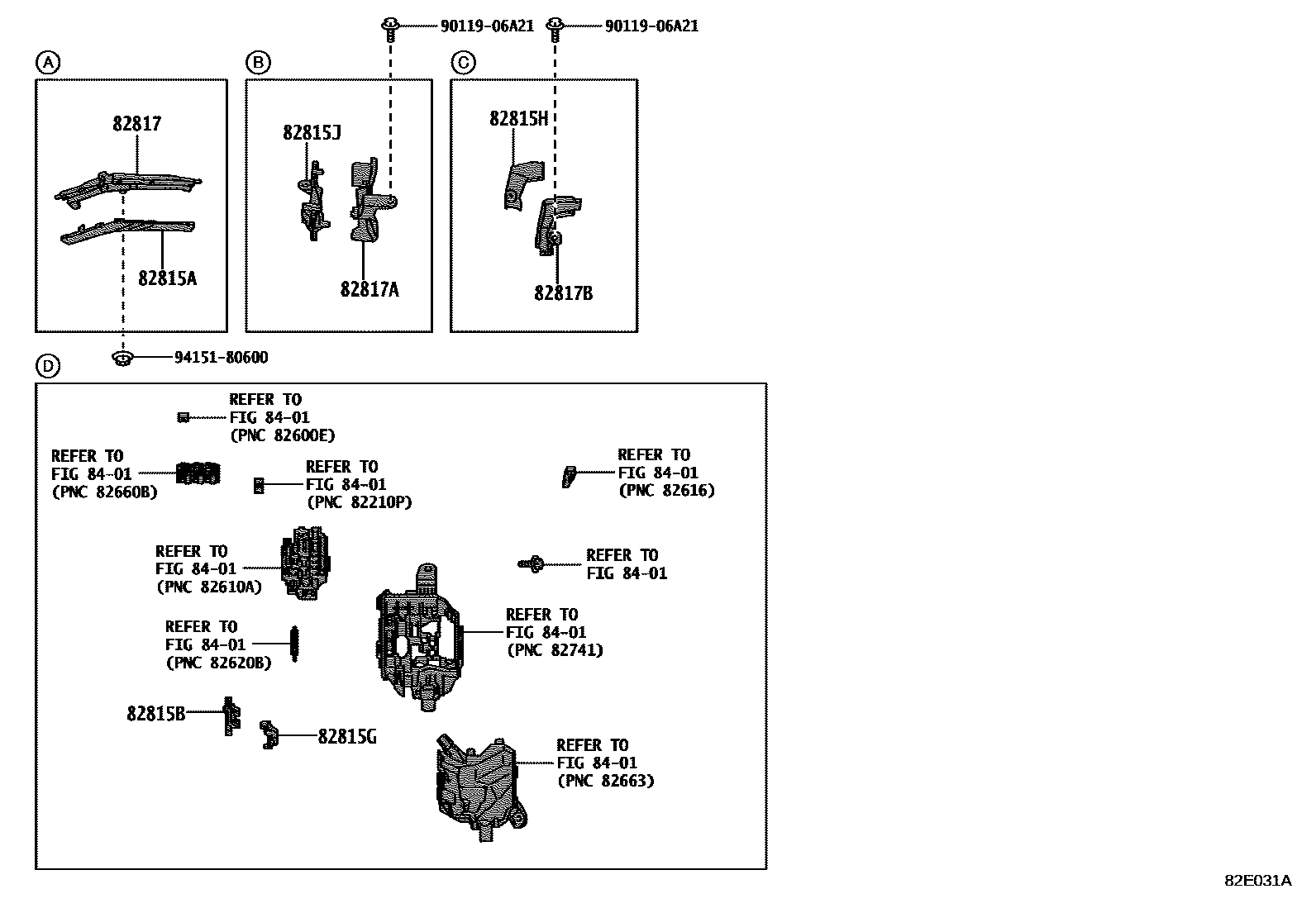

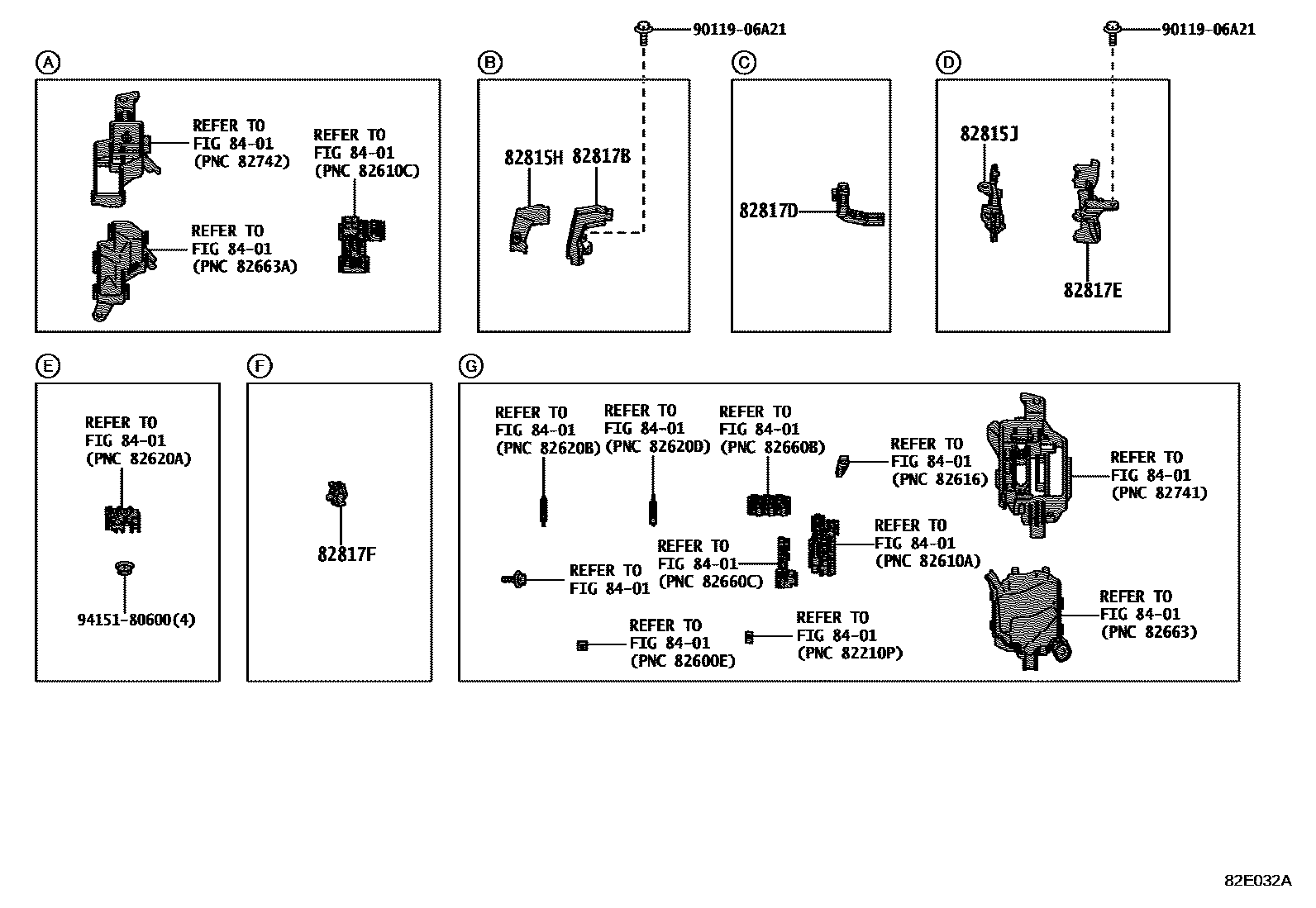

| 82817 | No. 1 wire harness protection device | 82817-52L50 |
| 82817A | No. 2 wire harness protection device | 82817-52L70 |
| 82817B | No. 3 wire harness protection device | 82817-K0750 |
| 82817C | No. 4 wire harness protection device | 82817-52N70 |
| 82817D | No. 5 wire harness protection device | 82817-K0700 |
| 82817E | No. 6 wire harness protection device | 82817-K0A50 |
| 82817F | No. 7 wire harness protection device | 82817-K0A70 |

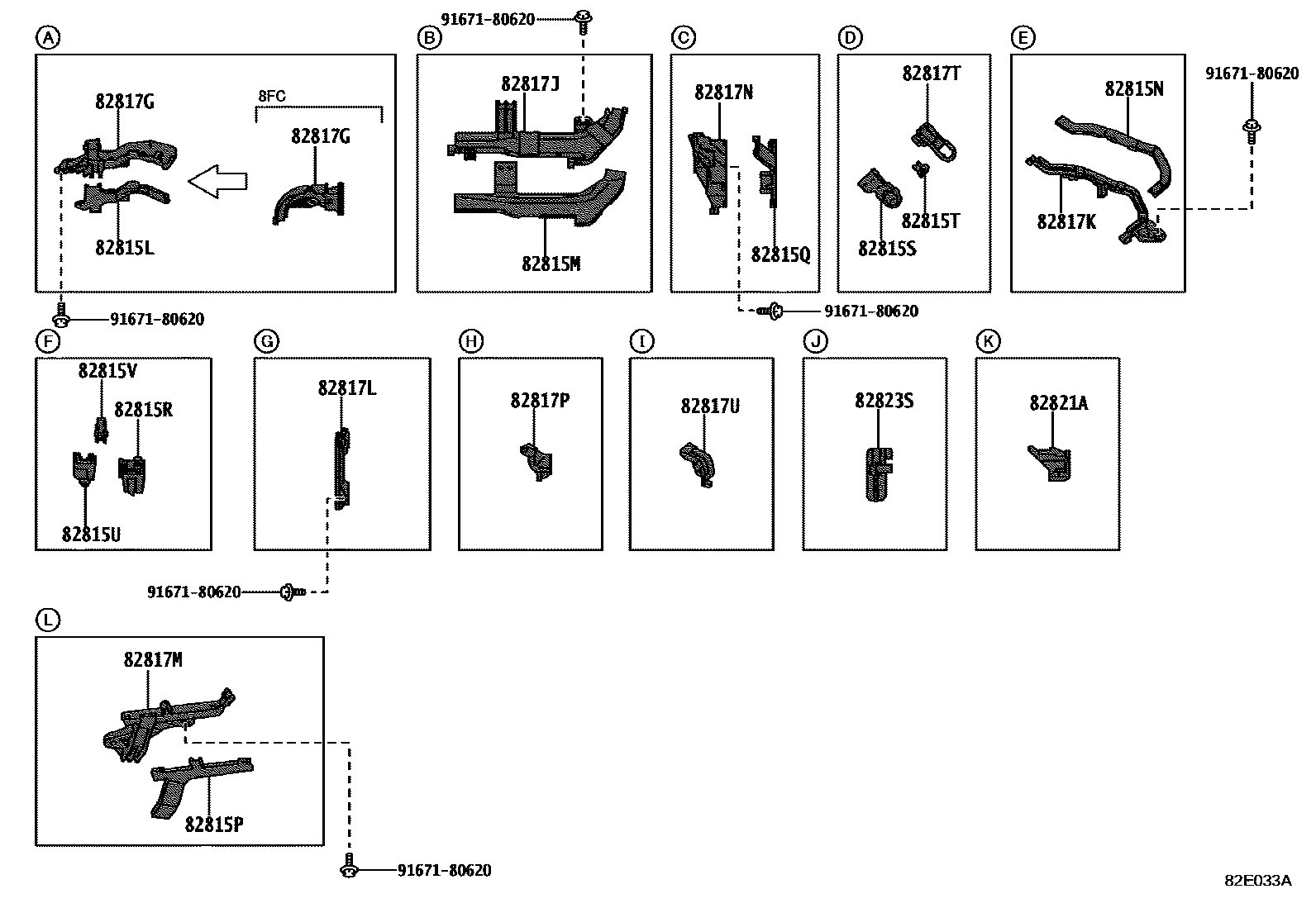

| 82817G | No. 8 wire harness protection device | 82817-52L30 · 82817-52L90 · 82817-52T40 |
| 82817J | No. 9 wire harness protection device | 82817-52M10 · 82817-K0220 |
| 82817K | No. 10 wire harness protection device | 82817-52M20 · 82817-K0230 |
| 82817L | No. 11 wire harness protection device | 82817-52M30 · 82817-K0240 |
| 82817M | No. 12 wire harness protection device | 82817-52M40 · 82817-K0250 |
| 82817N | No. 13 wire harness protection device | 82817-52M50 · 82817-52T50 · 82817-K0260 |
| 82817P | No. 14 wire harness protection device | 82817-52M60 · 82817-K0270 |
| 82817T | No. 15 wire harness protection device | 82817-33S70 · 82817-K0280 |
| 82817U | No. 16 wire harness protection device | 82817-K0390 |
| 82817X | No. 17 wire harness protection device | 82817-K0290 |
| 82818 | No. 2 wire harness protection device | 82817-K0300 |
| 82818B | No. 3 wire harness protection device | 82817-K0310 |
| 82818C | No. 4 wire harness protection device | 82817-K0360 |
| 82818D | No. 5 wire harness protection device | 82817-K0380 |
| 82818E | No. 6 wire harness protection device | 82817-K0540 |
| 82818F | No. 7 wire harness protection device | 82817-52K80 |
| 82818G | No. 8 wire harness protection device | 82817-K2020 |
| 82821A | Connector cover | 82821-52290 |
| 82821E | Connector cover | 82821-52410 |
| 82823S | Toyota part | 82823-20080 · 82823-K0020 |
| 82823T | Toyota part | 82823-K0030 |

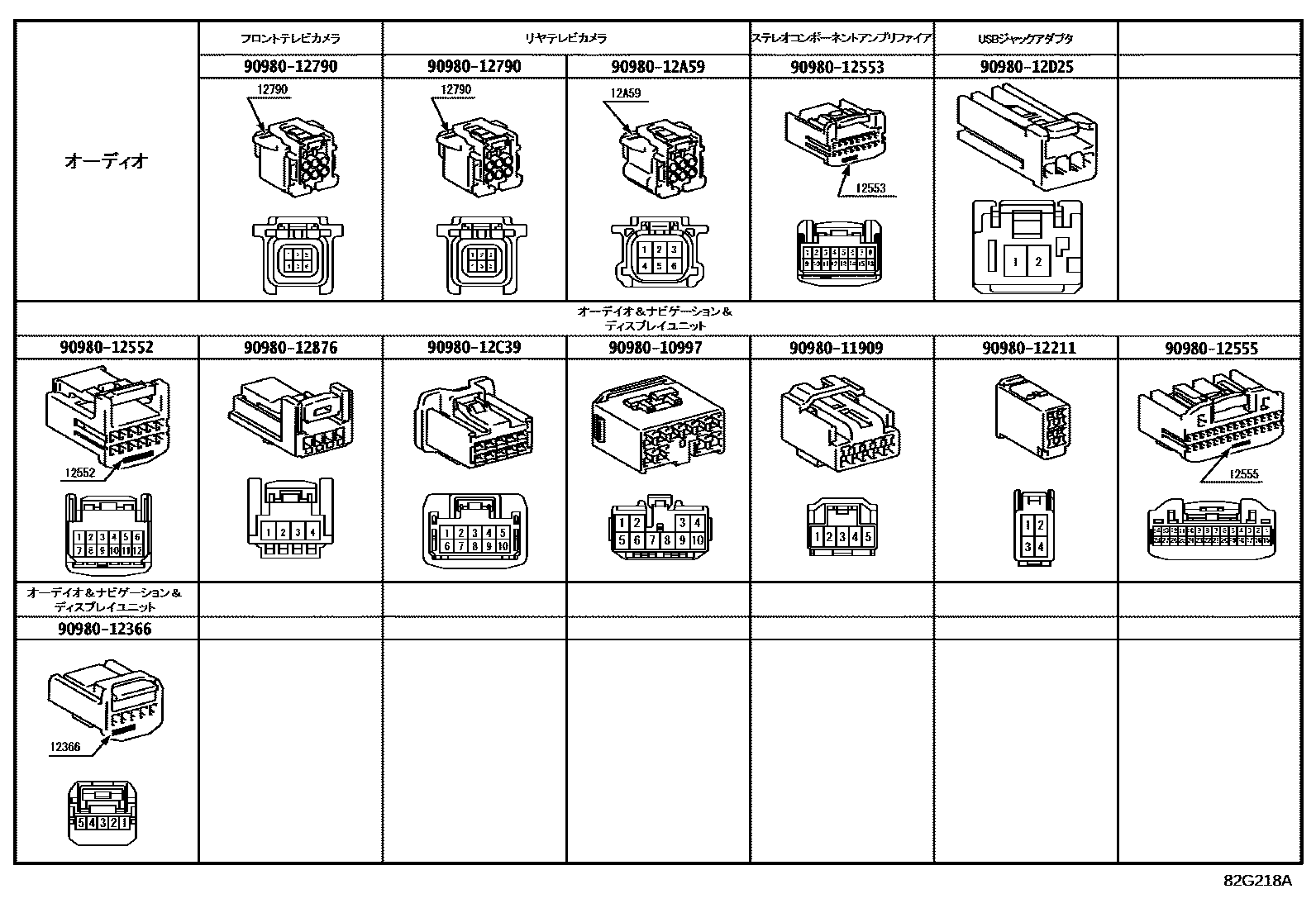

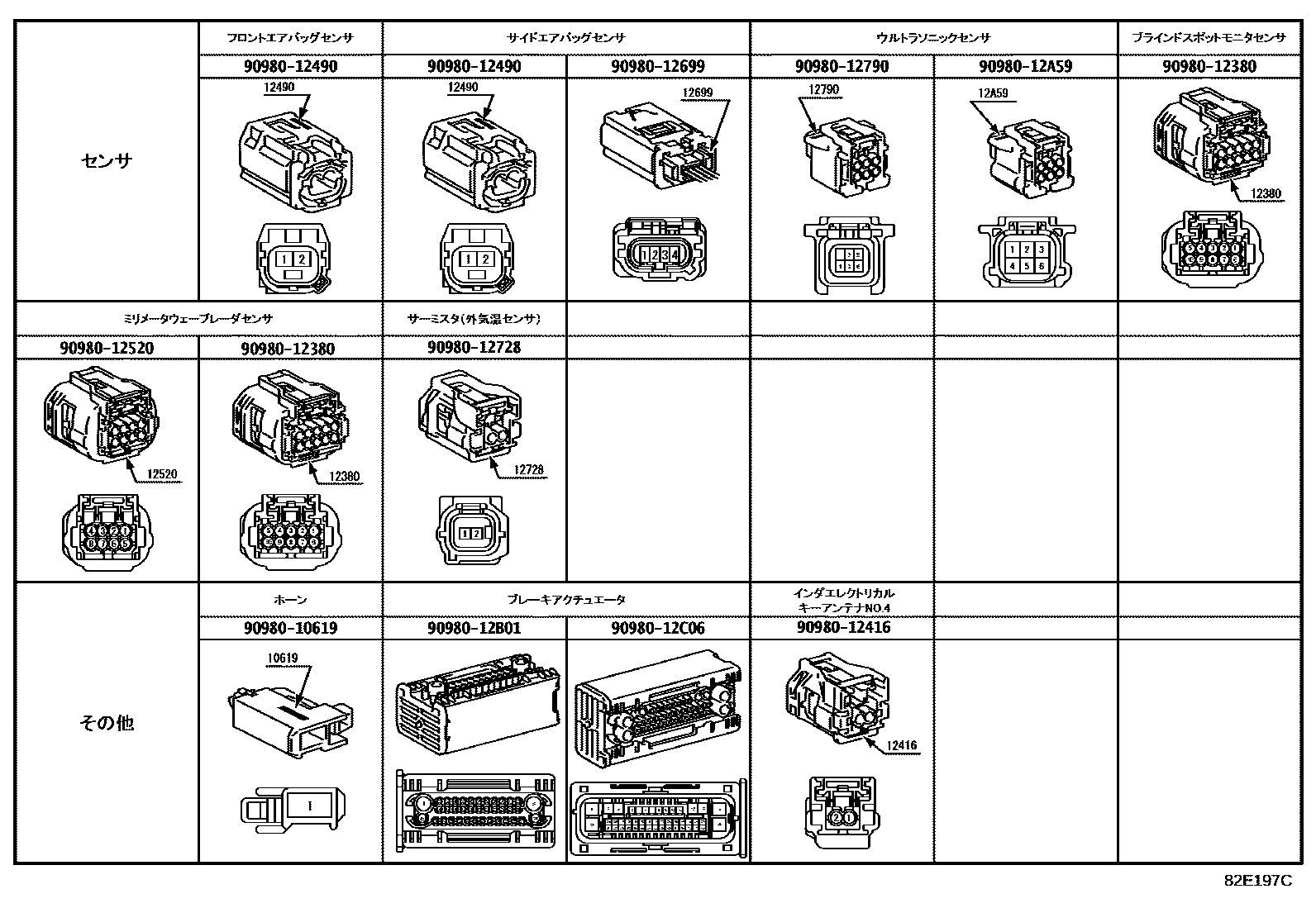

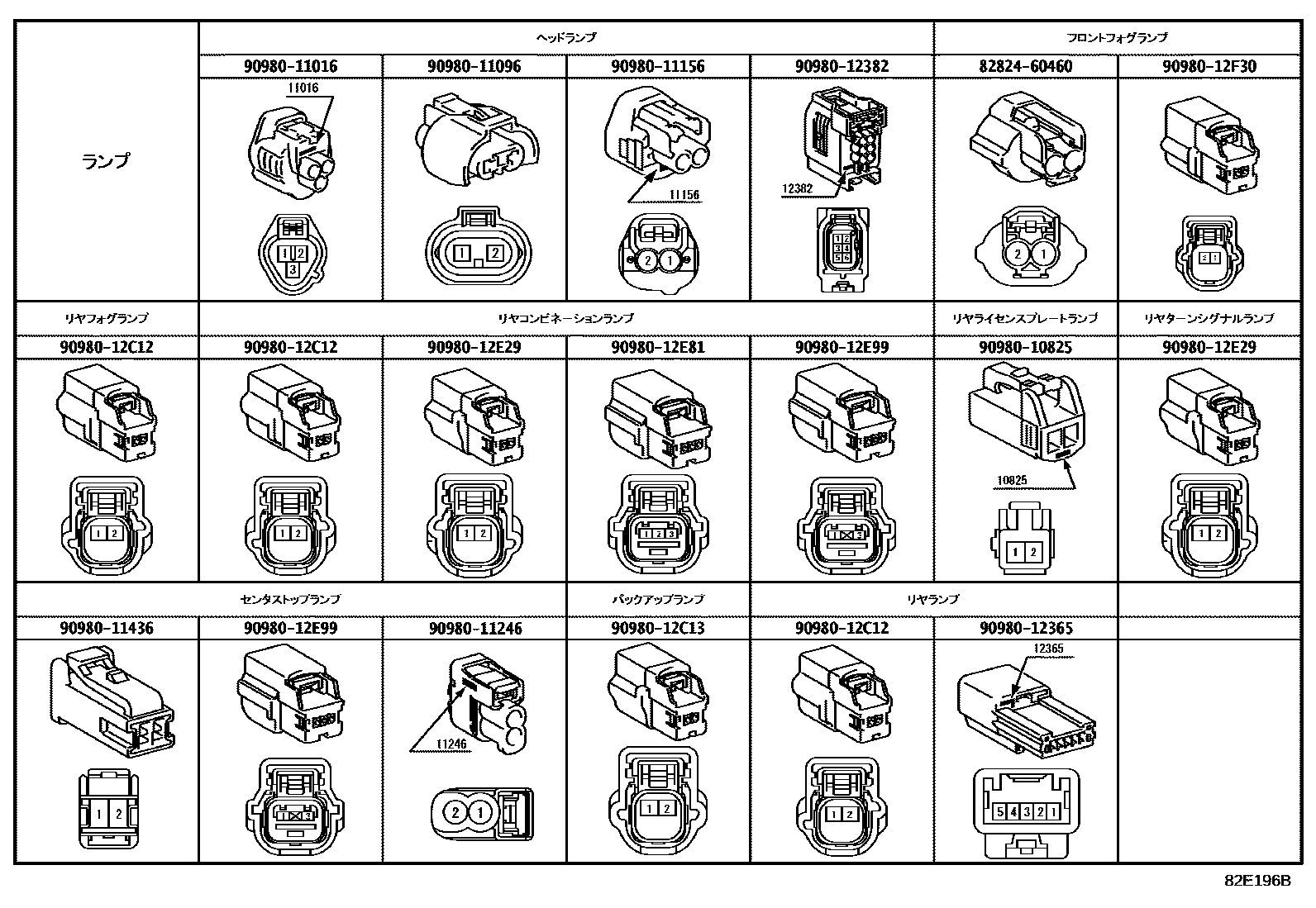

| 82824 | Harness connector | 90980-12373 |
| 82824A | Harness connector | 82824-52300 |
| 890C0 | Toyota part | 890C0-52050 |
| 890C0A | Toyota part | 890C0-52060 |
| 89348Y | Toyota part | 89348-30A00 · 89348-50050 |
