Toyota YARIS 燃油箱和燃油管 — Figure 7701

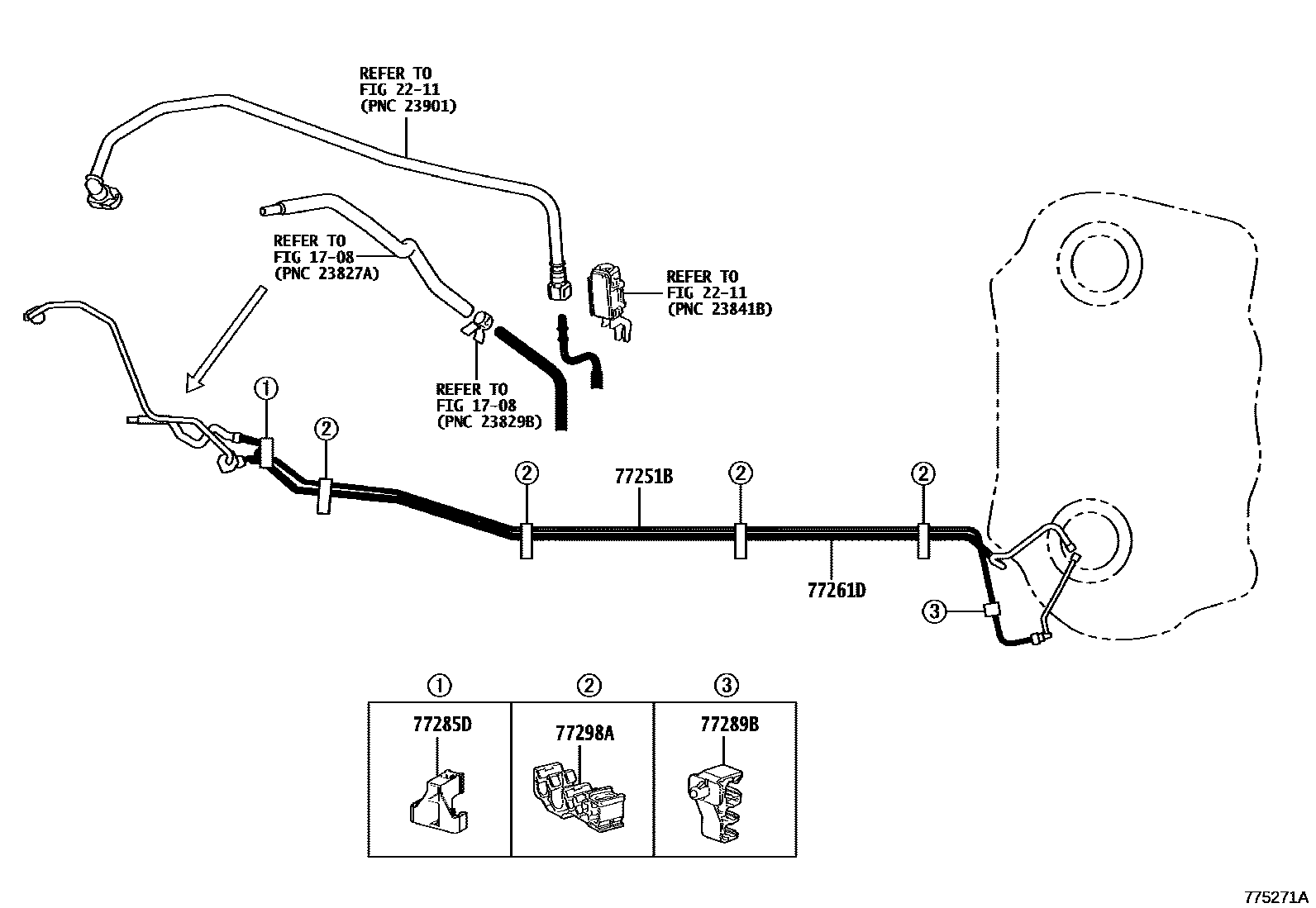

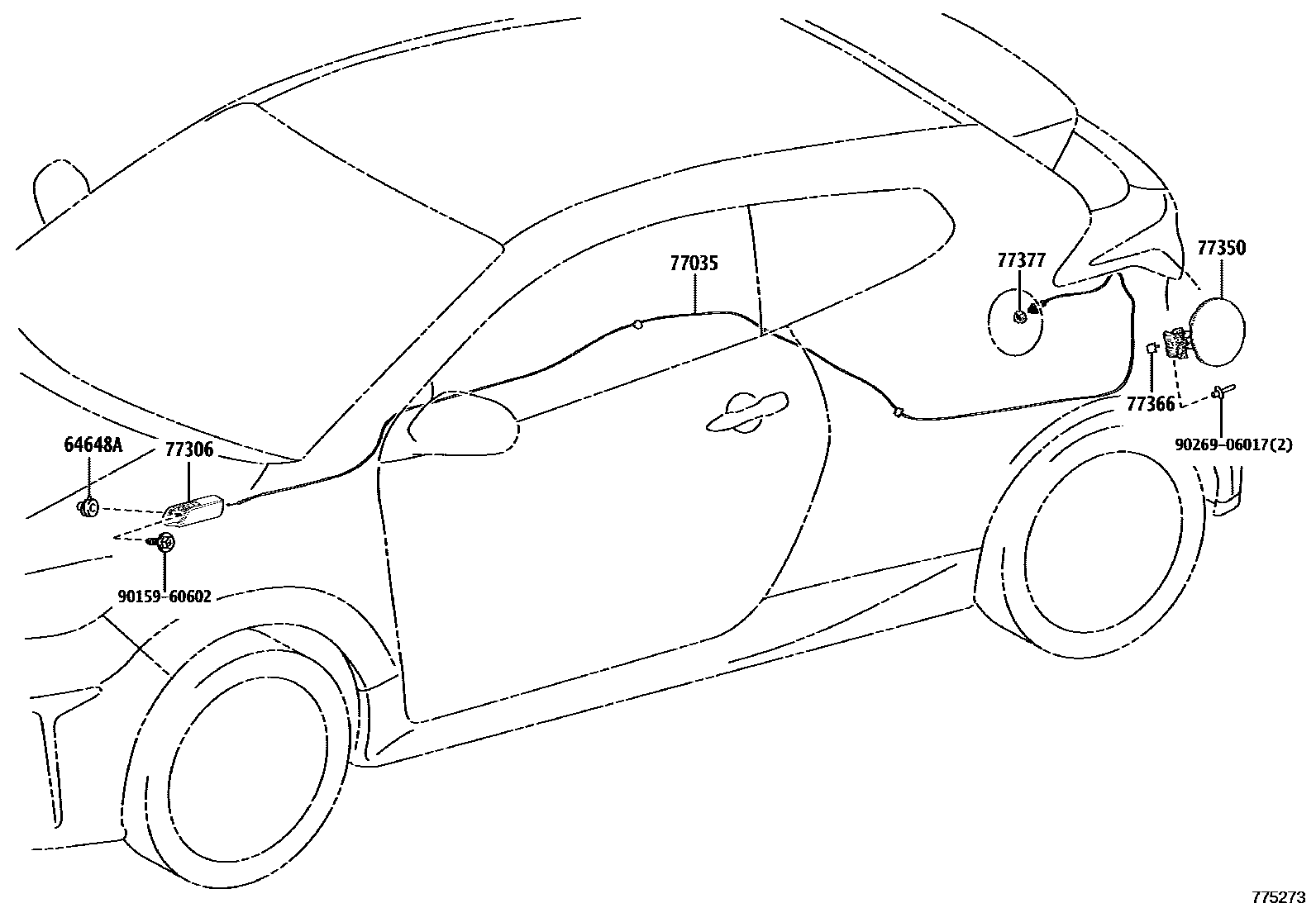

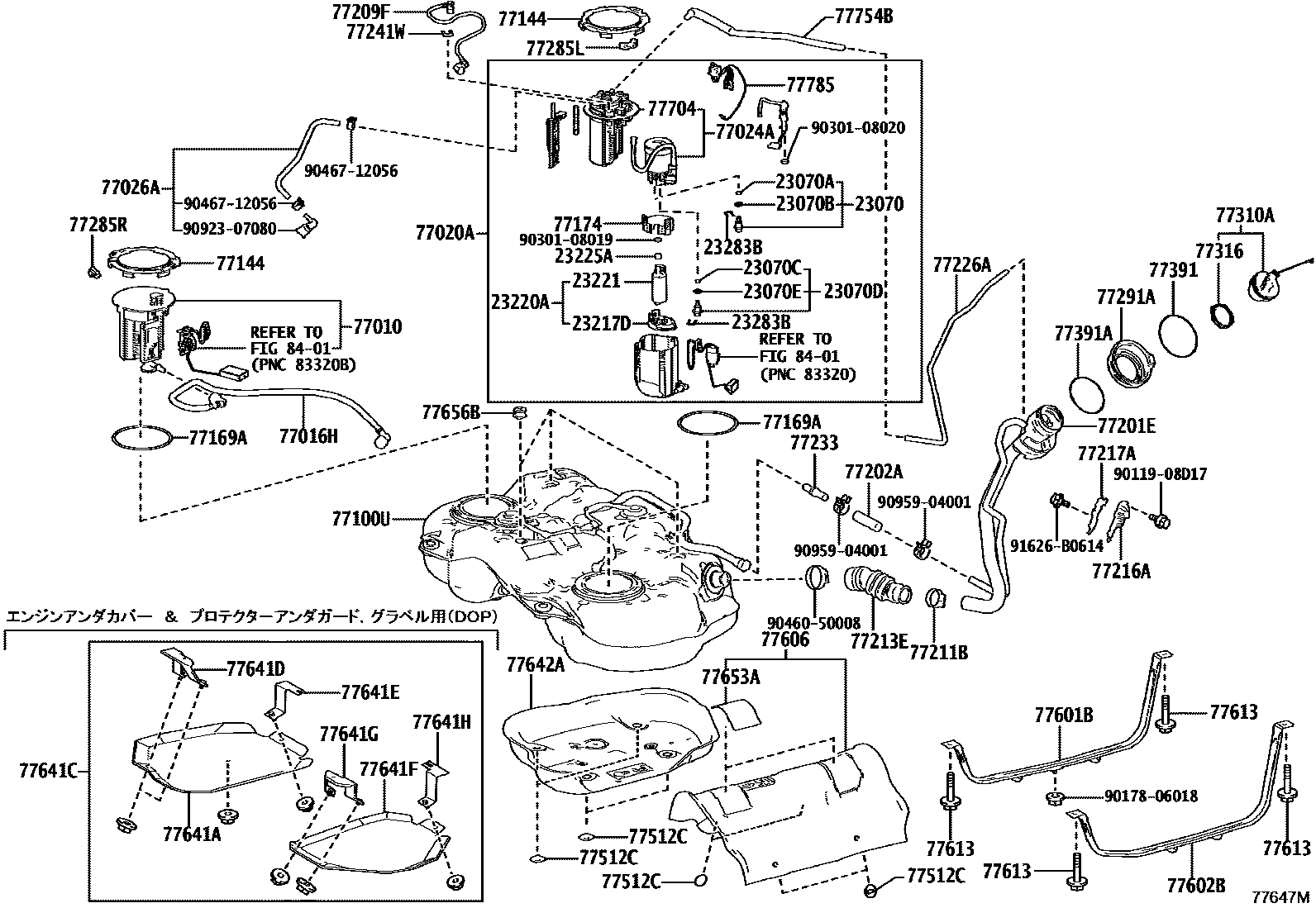

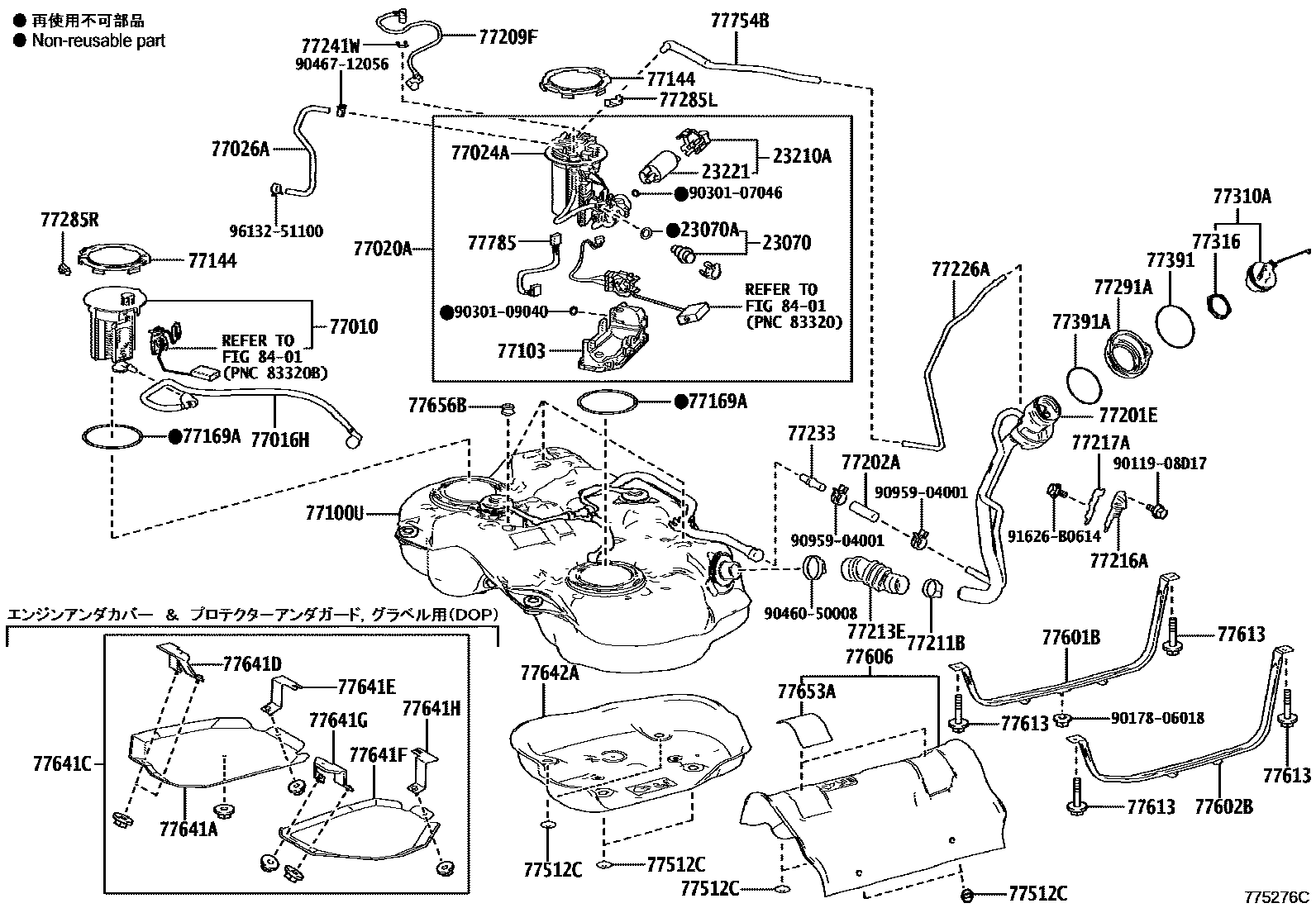

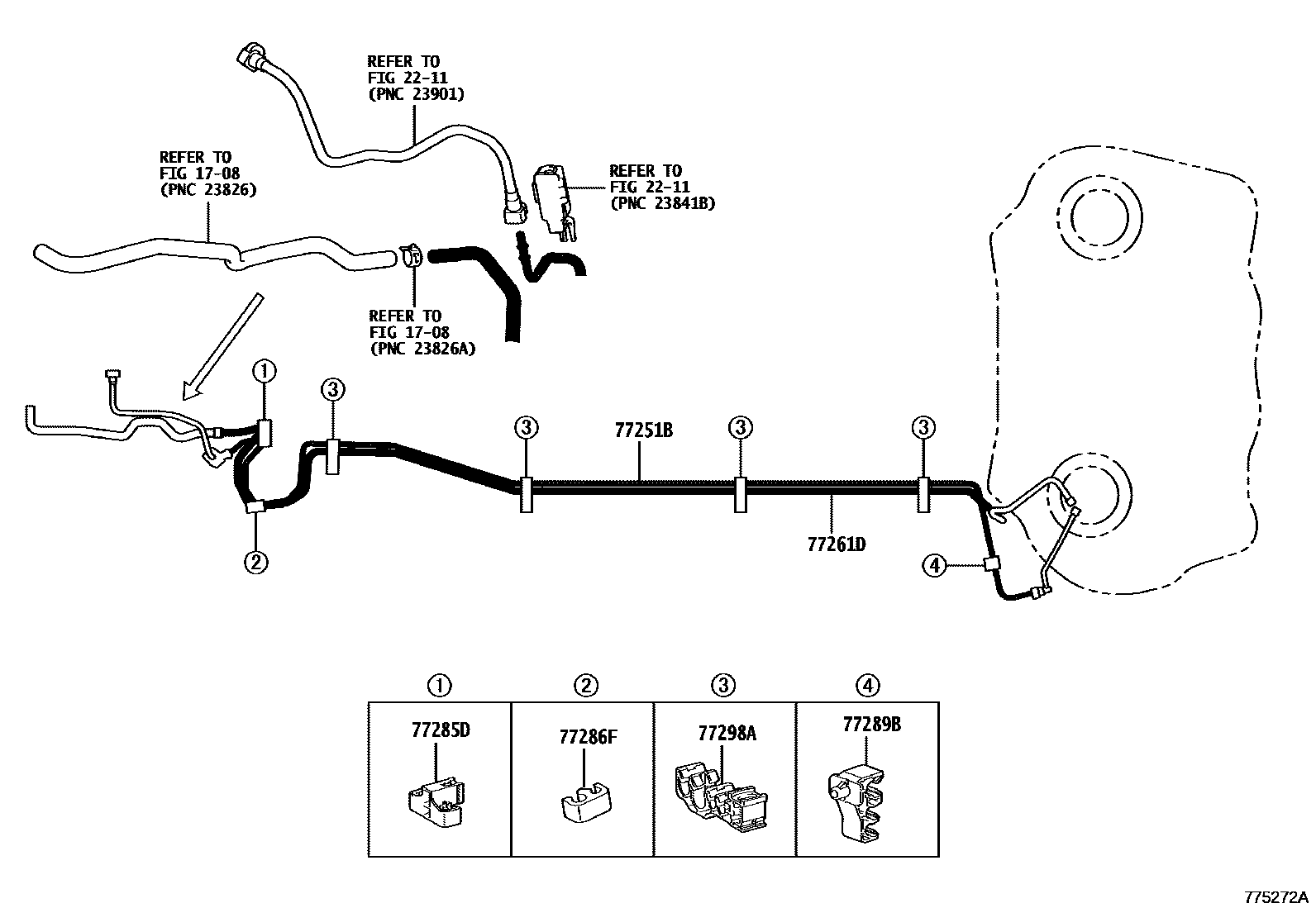

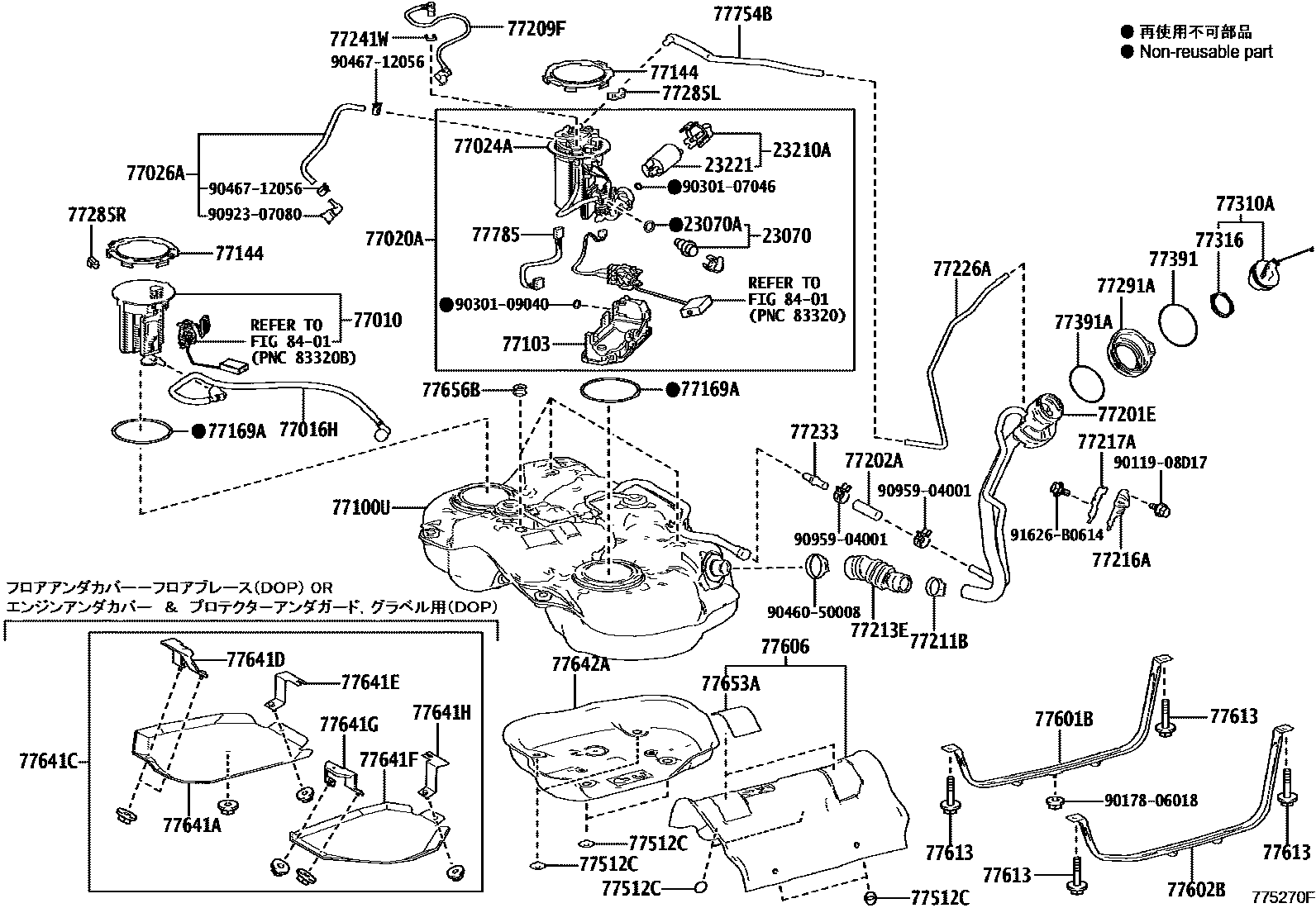

Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 6 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-31030 |
| 23070A | Toyota part | 90301-04013 · 90301-15024 |
| 23070B | Toyota part | 90301-15024 |
| 23070C | Toyota part | 90301-04013 |
| 23070D | Toyota part | 23070-36010 |
| 23070E | Toyota part | 90301-15024 |
| 23210A | Water pump assembly with motor and bracket | 23210-24010 |
| 23217D | fuel pump filter | 23217-31080 |
| 23220A | Fuel pump assembly with filter | 23220-31330 |
| 23221 | fuel pump | 23221-24010 · 23221-31130 |
| 23225A | fuel pump septum | 23225-31010 |
| 23283B | Toyota part | 23283-36010 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77010 | Fuel tank vent pipe assembly | 77010-10180 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-12070 · 77016-52050 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12B50 · 77020-52570 |
| 77024A | Fuel absorber sub-assembly | 77024-12260 · 77024-52340 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-52020 · 77026-52030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-52430 · 77035-52450 · 77035-52480 · 77035-52500 |
| 77100U | Fuel tank sub-assembly | 77001-12E80 · 77001-52640 |
| 77103 | Toyota part | 77103-42080 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-78010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-52570 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95312-13007 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-52260 · 77209-52270 |
| 77211B | Clamp (for fuel filler tube) | 90460-40007 |
| 77213E | Fuel tank to filler pipe hose | 77213-52270 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-52280 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-52160 |
| 77226A | No. 6 fuel tank breather pipe | 77226-52250 |
| 77233 | fuel hose connector | 77233-60020 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-52530 · 77251-52540 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-52540 · 77261-52550 |
| 77285D | No. 1 fuel pipe clamp | 77285-52160 · 77285-52190 |
| 77285L | No. 1 fuel pipe clamp | 77285-12210 |
| 77285R | No. 1 fuel pipe clamp | 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-11070 |
| 77289B | No. 3 fuel pipe clamp | 77289-52170 · 77289-52180 |
| 77291A | Fuel tank filler pipe cover | 77291-52130 |
| 77298A | No. 4 fuel pipe clamp | 77298-52080 · 77298-52110 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 |
| 77310A | Fuel tank cap assembly | 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-52230 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-12090 |
| 77391 | fuel inlet ring | 77391-75010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512C | Toyota part | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-52070 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-52020 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12240 · 77606-52130 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-52220 |
| 77641C | Toyota part | 77641-52160 |
| 77641D | Toyota part | 77641-52230 |
| 77641E | Toyota part | 77641-52240 |
| 77641F | Toyota part | 77642-52150 |
| 77641G | Toyota part | 77642-52160 |
| 77641H | Toyota part | 77642-52170 |
| 77642A | No. 2 fuel tank protective shell | 77642-52120 |
| 77653A | No. 3 fuel tank liner | 77653-60060 |
| 77656B | No. 6 fuel tank liner | 77656-30030 |
| 77704 | Carbon canister sub-assembly | 77704-12610 |
| 77754B | Carbon canister outlet hose | 77754-52100 |
| 77785 | fuel pump wiring harness | 77785-33150 · 77785-76010 |
