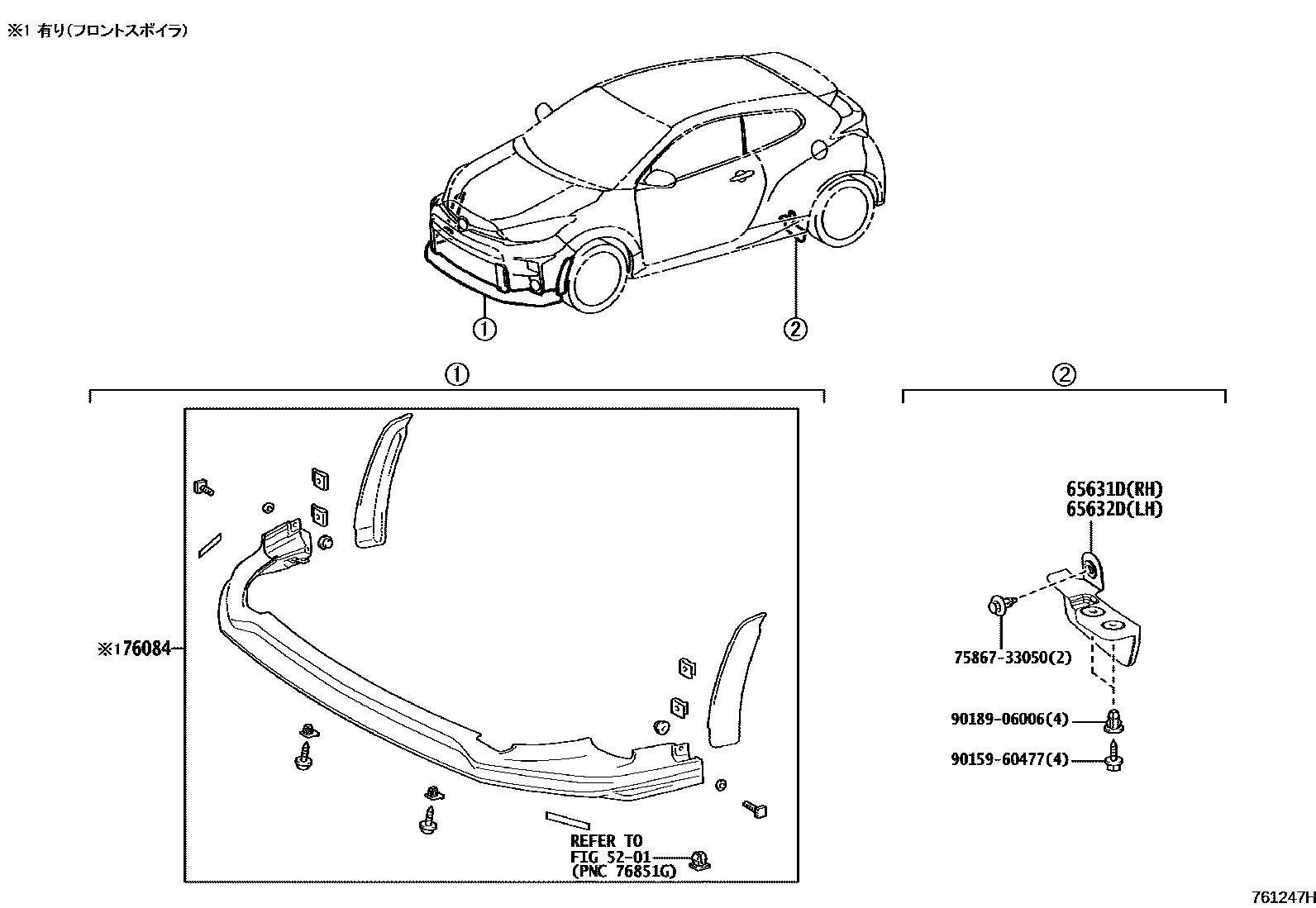

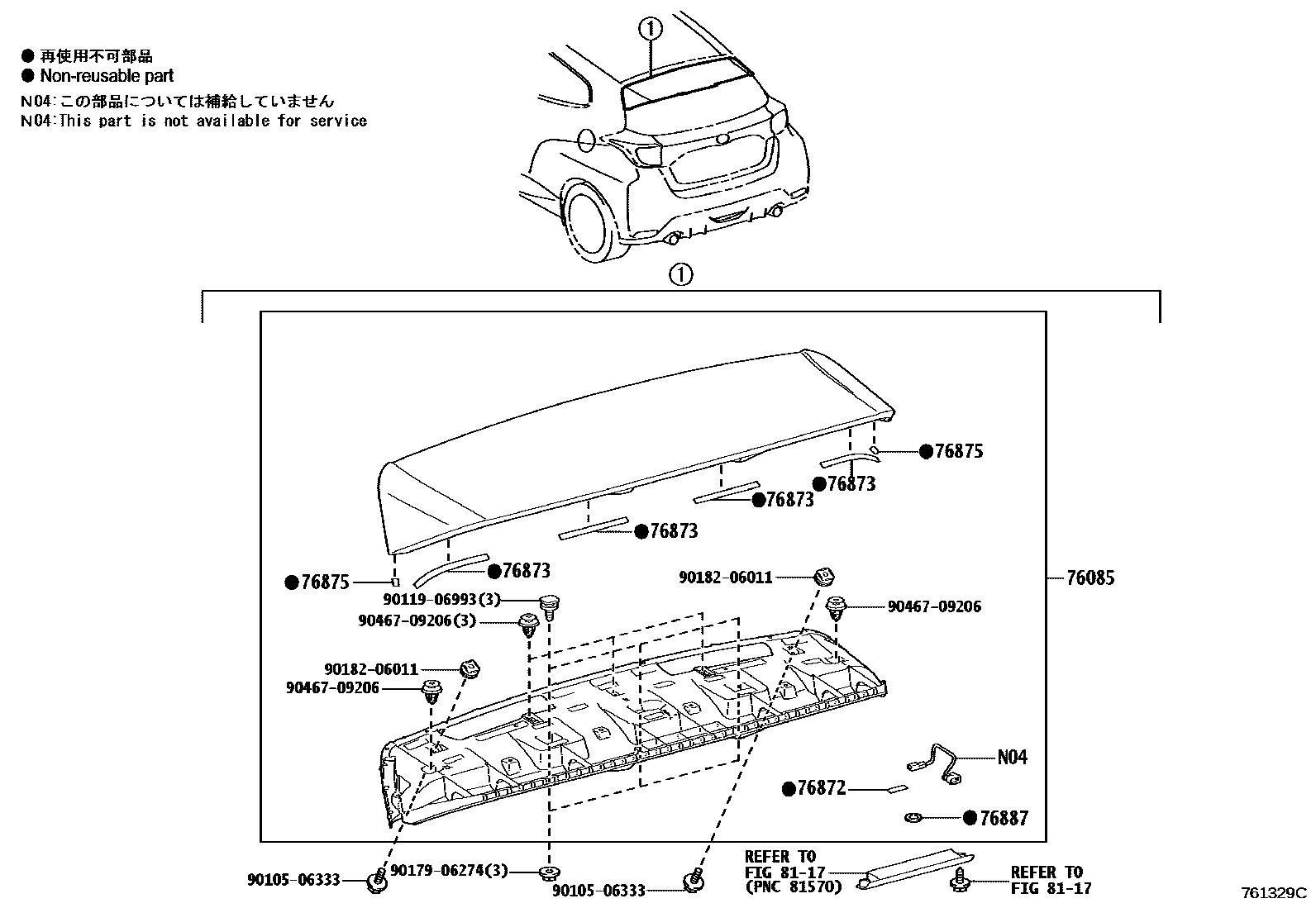

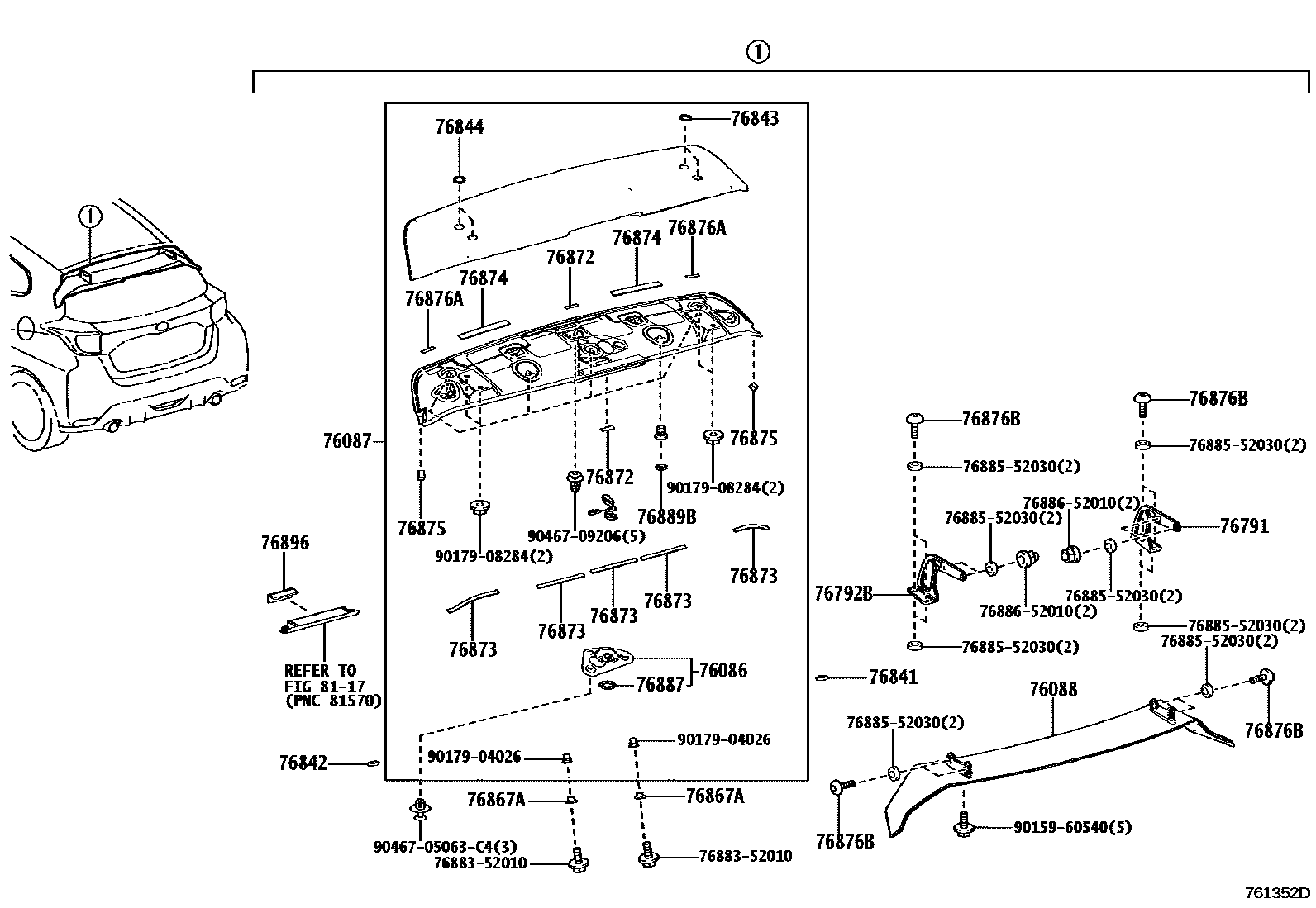

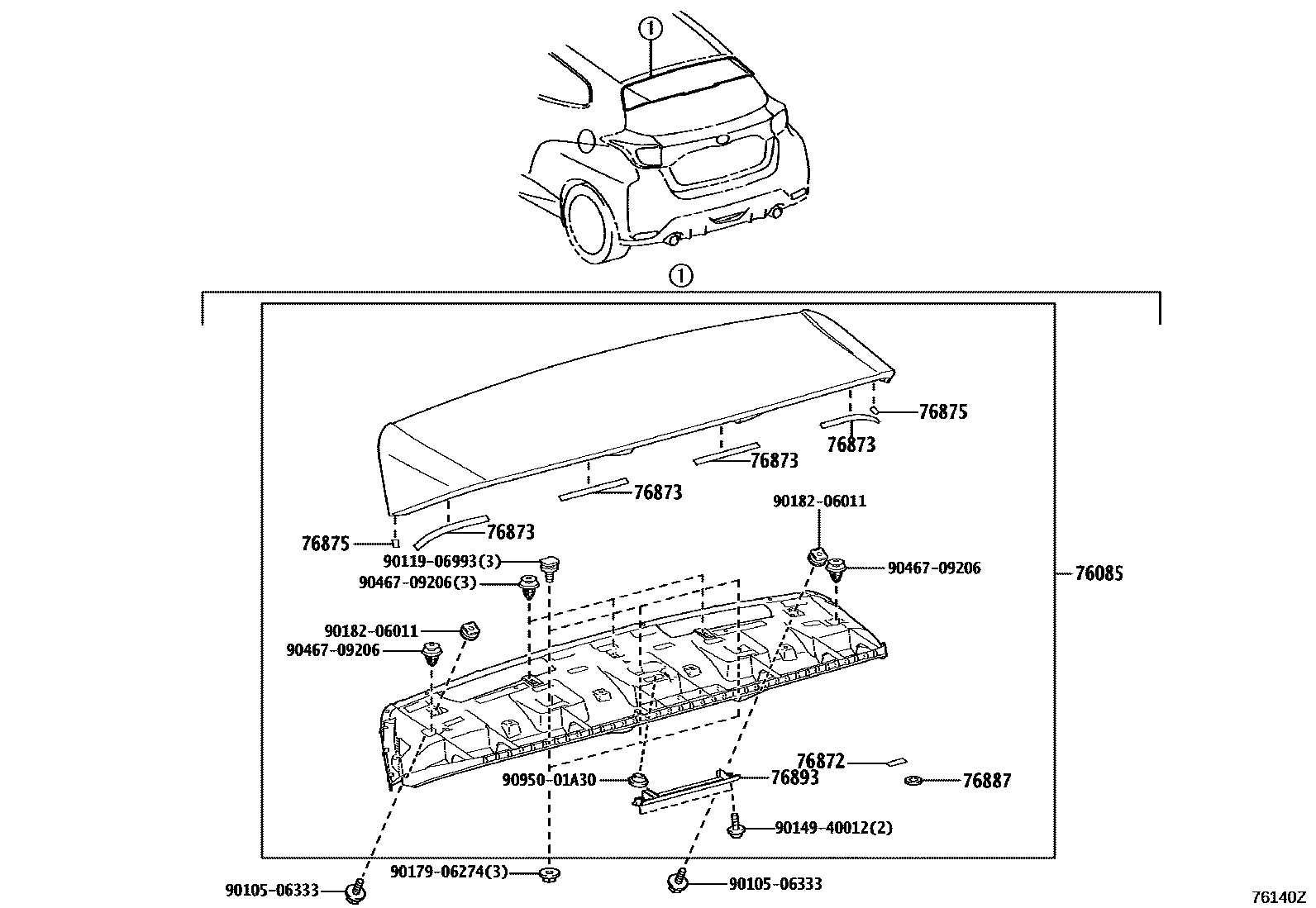

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-K0010 |
| 65632D | Left rear wheel house front panel | 65632-K0010 |
| 76084 | front spoiler assembly | 76084-52120 |
| 76085 | Rear spoiler sub-assembly | 76085-52410 · 76085-52923 · 76085-52927 |
| 76086 | Rear spoiler fixing sub-assembly | 76086-52010 |
| 76087 | No. 1 rear spoiler sub-assembly | 76087-52040 · 76087-52900 |
| 76088 | No. 2 rear spoiler sub-assembly | 76088-52010 |
| 76791 | No. 1 right rear lower spoiler bracket | 76791-52010 |
| 76792B | No. 1 left rear spoiler bracket | 76792-52010 |
| 76841 | No. 5 right rear spoiler protective strip | 76841-52010 |
| 76842 | No. 5 left rear spoiler protective strip | 76841-52010 |
| 76843 | No. 11 right rear spoiler protective strip | 76843-52010 |
| 76844 | No. 11 left rear spoiler protective strip | 76843-52010 |
| 76867A | No. 3 rear spoiler fixing piece | 76867-52030 |
| 76872 | No. 1 rear spoiler protective strip | 76872-52140 |
| 76873 | No. 2 rear spoiler protective strip | 76873-52150 |
| 76874 | No. 3 rear spoiler protective strip | 76874-52110 |
| 76875 | No. 4 rear spoiler protective strip | 76875-52050 · 76875-52090 |
| 76876A | No. 10 rear spoiler protective strip | 76872-52140 · 76876-52120 |
| 76876B | Rear spoiler insert | 76876-52050 |
| 76887 | Rear spoiler seal | 76887-52060 |
| 76889B | No. 1 rear spoiler seal | 76889-52080 |
| 76893 | No. 1 rear spoiler cover | 76893-52100 |
| 76896 | No. 6 rear spoiler protective strip | 76896-52030 |
