Toyota YARIS 侧防护条 — Figure 7503

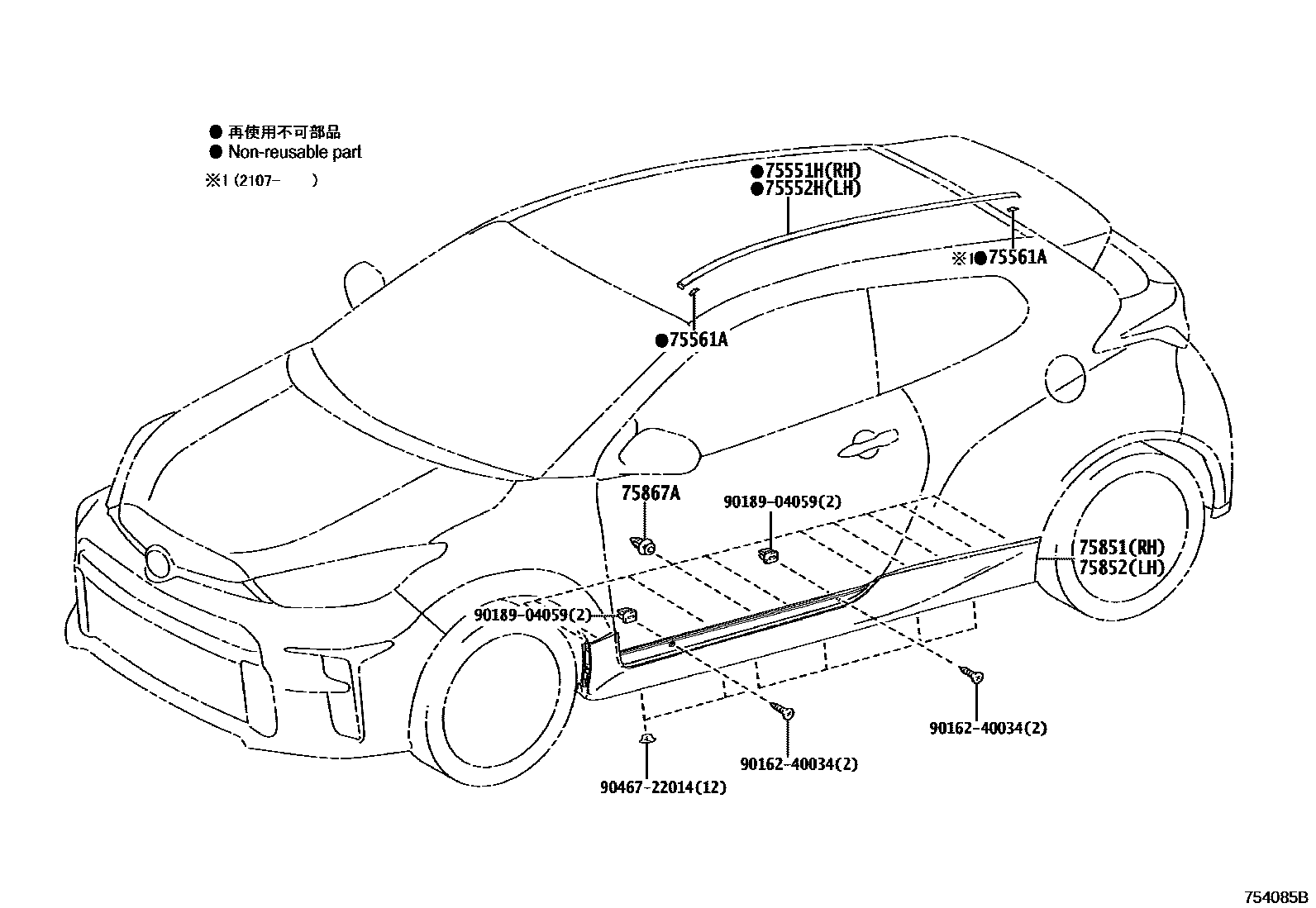

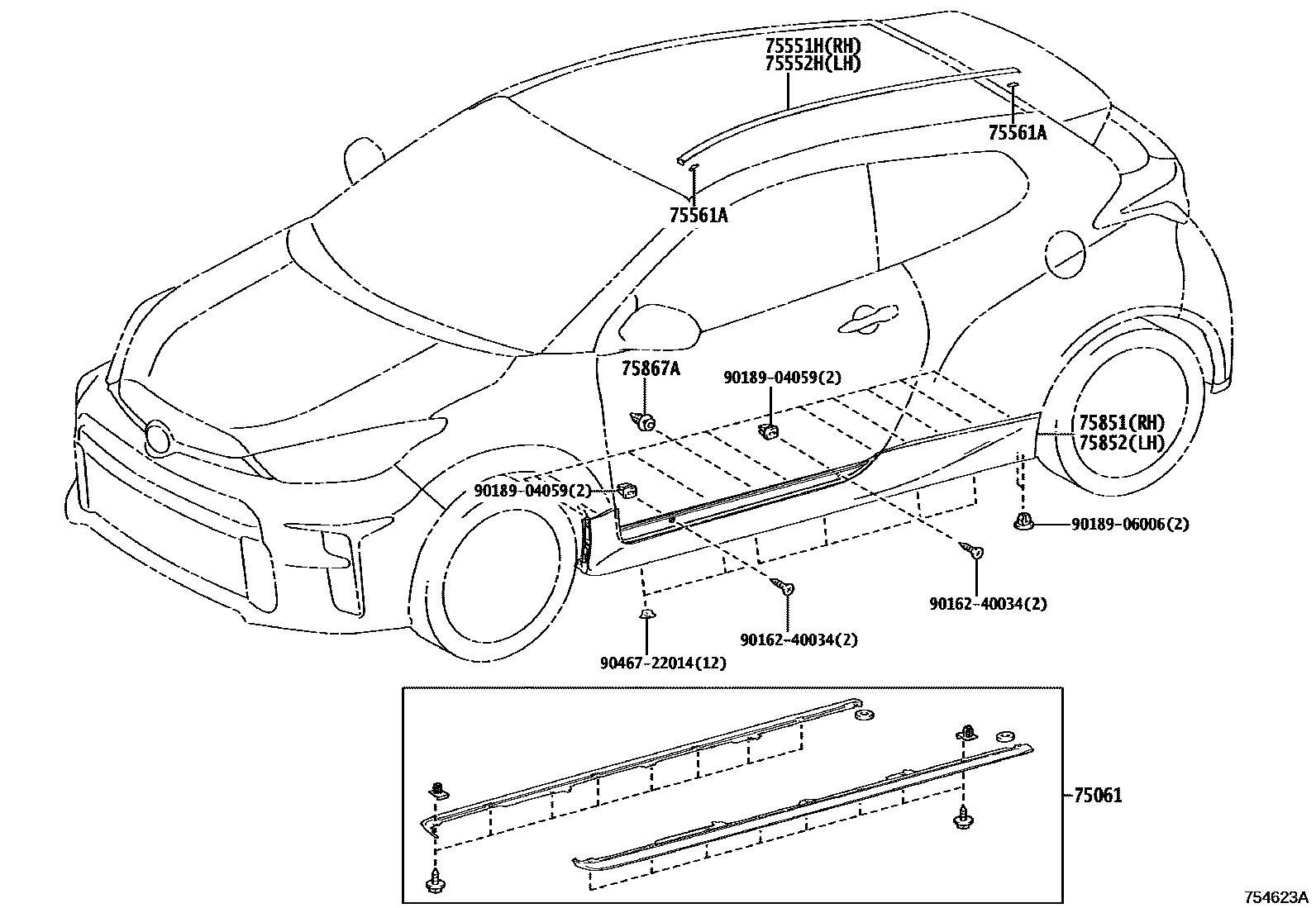

Toyota YARIS EPC diagram 7503, 侧防护条, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75061 | Outer protective strip components | 75850-52160 |
| 75551H | Drainage groove side on the right side of the roof | 75551-52250 · 75551-52251 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75552-52220 · 75552-52221 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52050 |
| 75867A | Door sill panel protective strip clip | 75867-33040 |
