Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 8 PNC and OE references.

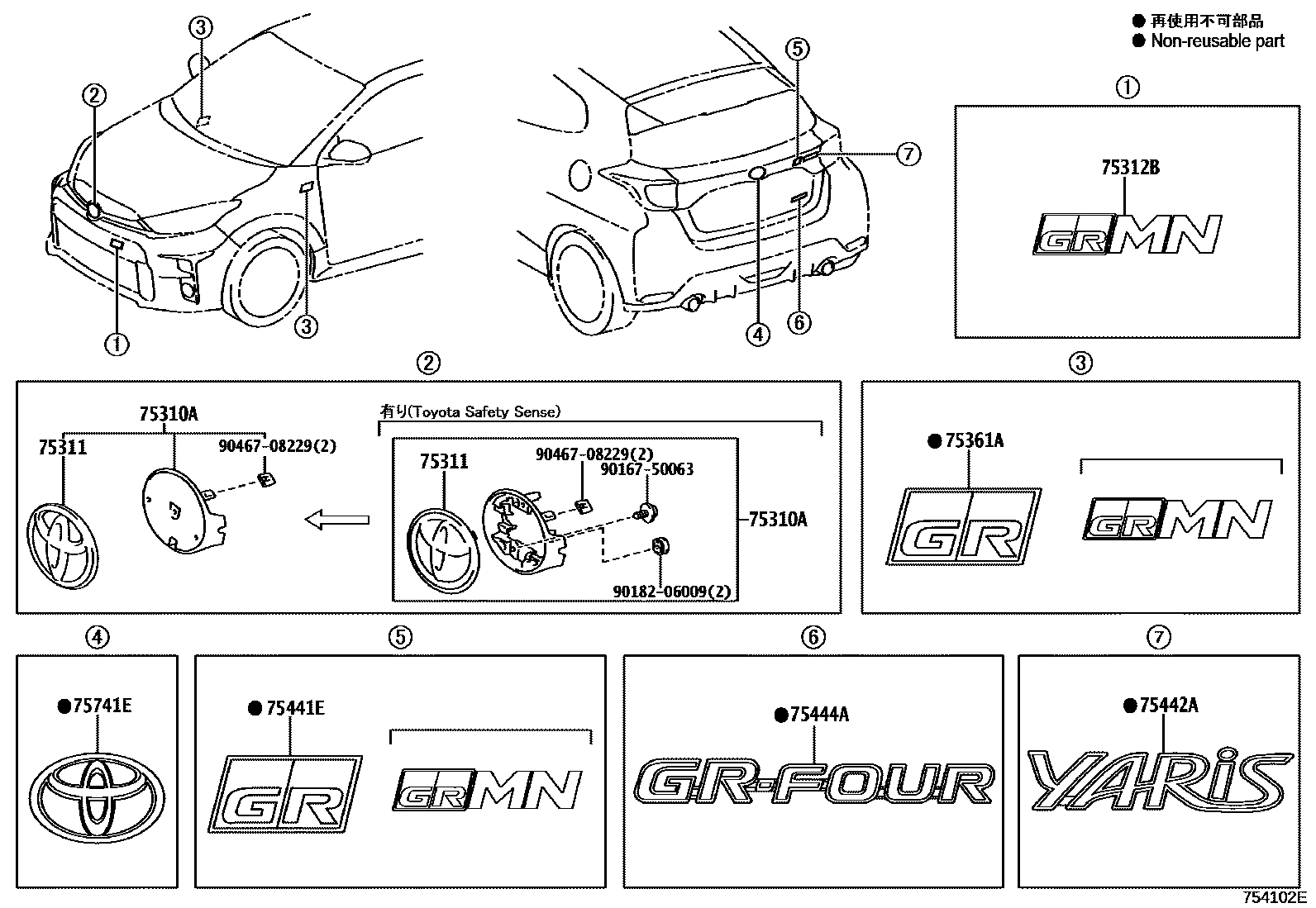

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754102E
丰田徽标和铭牌(车外和车内) — 754102E (202008 – 202404)

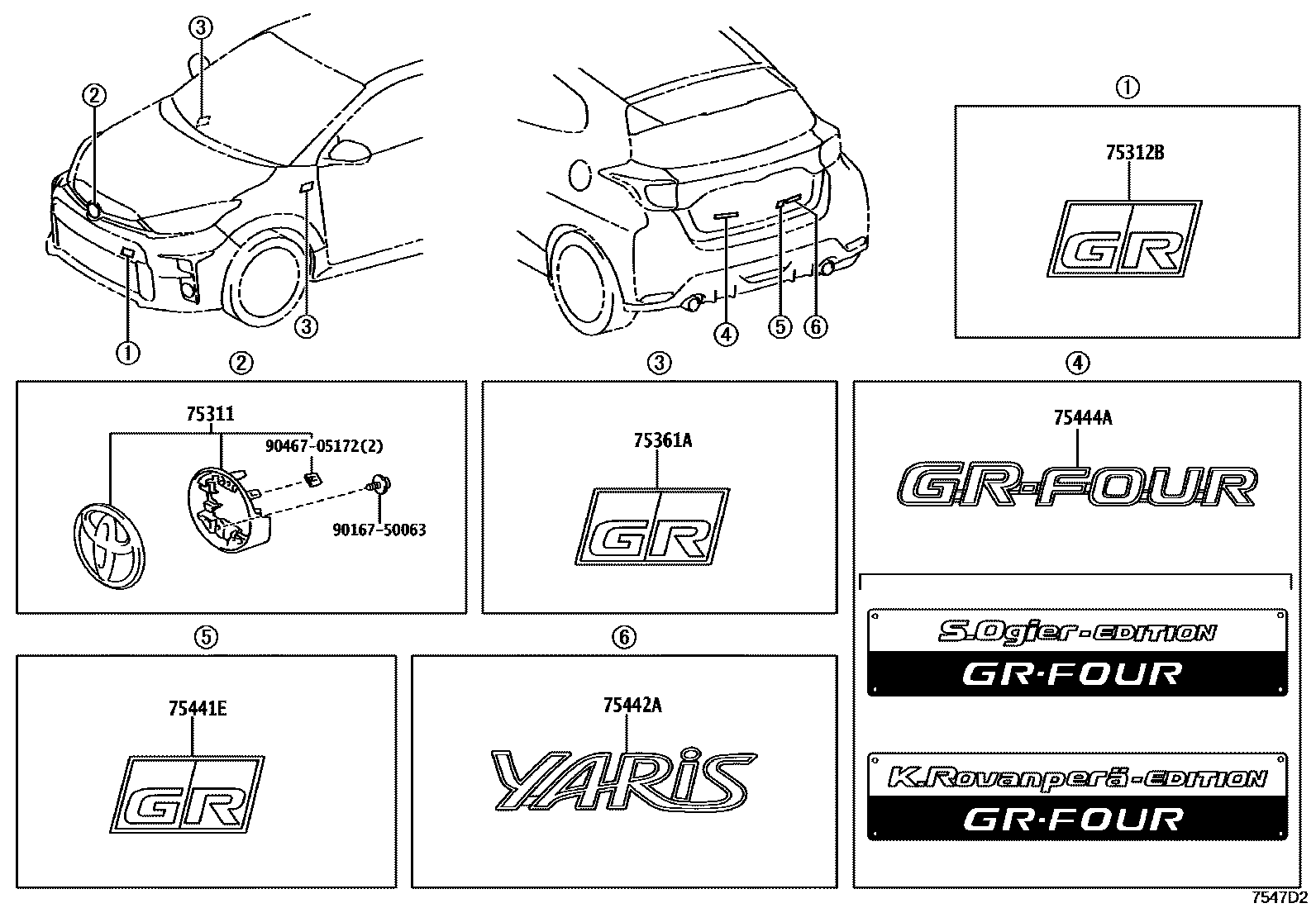

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 7547D2
丰田徽标和铭牌(车外和车内) — 7547D2 (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52070 · 75310-52080 · 75310-52140 · 75310-52150 · 75310-52160 · 75310-52170
75311Radiator grille (or front panel) plate75403-52030 · 75403-52050 · 75403-52060 · 90975-02124 · 90975-02149
75312BRadiator grille number 2 plate75310-52060 · 75441-52180
75361AFront fender No. 1 nameplate75350-52010 · 75350-52020 · 75361-52110 · 75362-52090
75441EBack door No. 1 nameplate75430-52030 · 75441-52230 · 75441-52300
75442ANo. 2 nameplate on back door75442-52480 · 75442-52481 · 75442-52600
75444ANo. 4 nameplate on back door75444-52180 · 75444-52250 · 75444-52260
75741Elogo90975-02138
