Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 12 PNC and OE references.

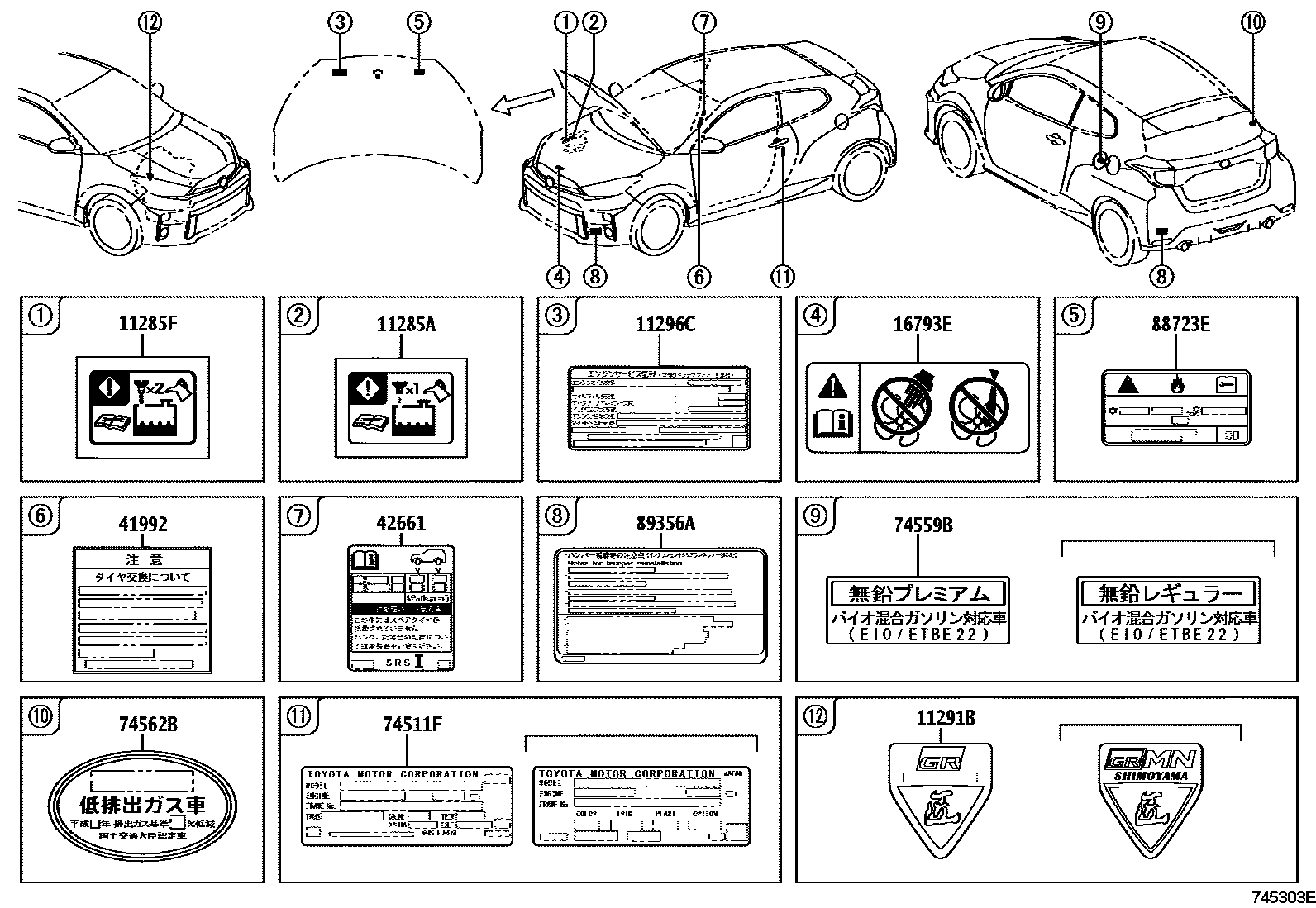

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745303E
警示铭牌(车外和车内) — 745303E (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11285ACoolant System Caution Labels11285-11020
11285FToyota part11285-11030
11291BToyota part11291-18030 · 11291-18040 · 11291-18050
11296CEngine maintenance information label11296-18010 · 11296-24020
16793EToyota part16793-36030
41992Differential attention label41992-33010
42661Toyota part42661-52E90 · 42661-52F11 · 42661-52M60
74511FNameplate (laser identification label)74511-2B300
74559Bfuel information label74559-48060 · 74559-78010
74562BEmission information label74562-24100 · 74562-52020
88723ECooler maintenance warning label88723-52200 · 88723-K0010
89356AToyota part89356-47020
