Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 5 PNC and OE references.

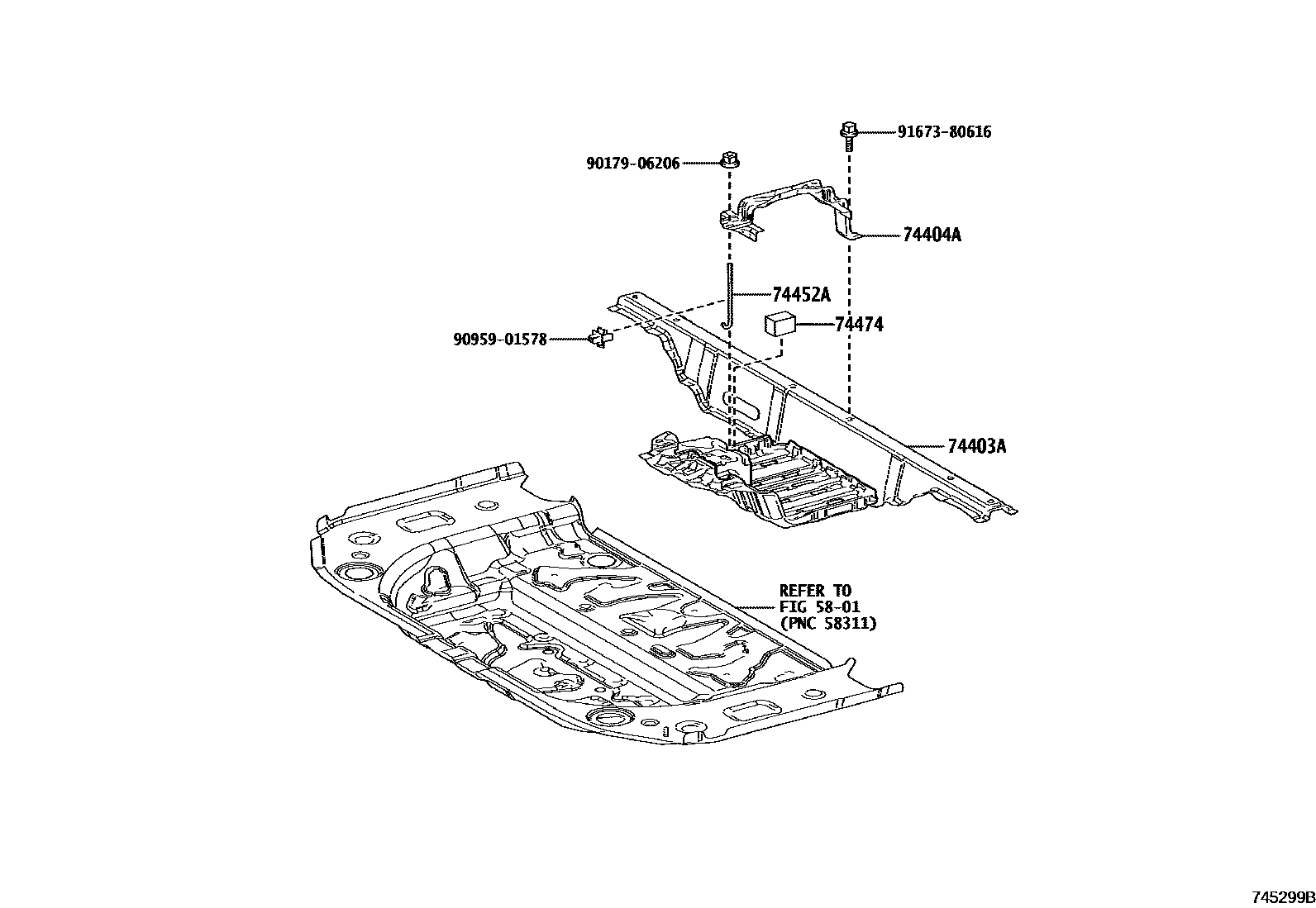

Toyota YARIS battery holder EPC diagram — 745299B
battery holder — 745299B (202008 – 999999)

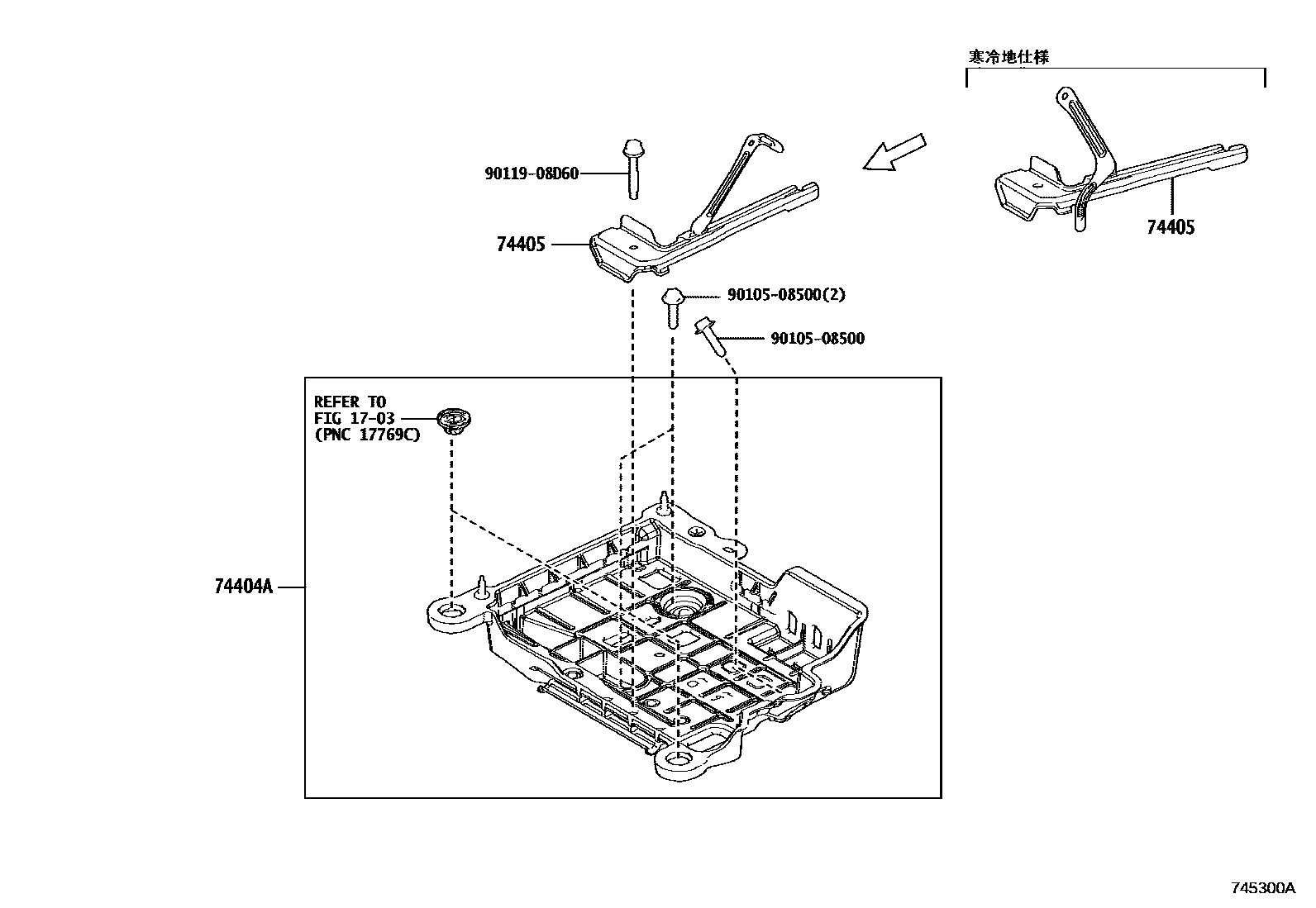

Toyota YARIS battery holder EPC diagram — 745300A
battery holder — 745300A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
74403ABattery bracket sub-assembly74403-52060
74404ABattery clip sub-assembly74404-52160 · 74404-52200
74405No. 2 battery clip sub-assembly74405-K0010 · 74405-K2010
74452ANo. 2 battery clamp bolt74452-30010
74474Battery gasket52462-30130
