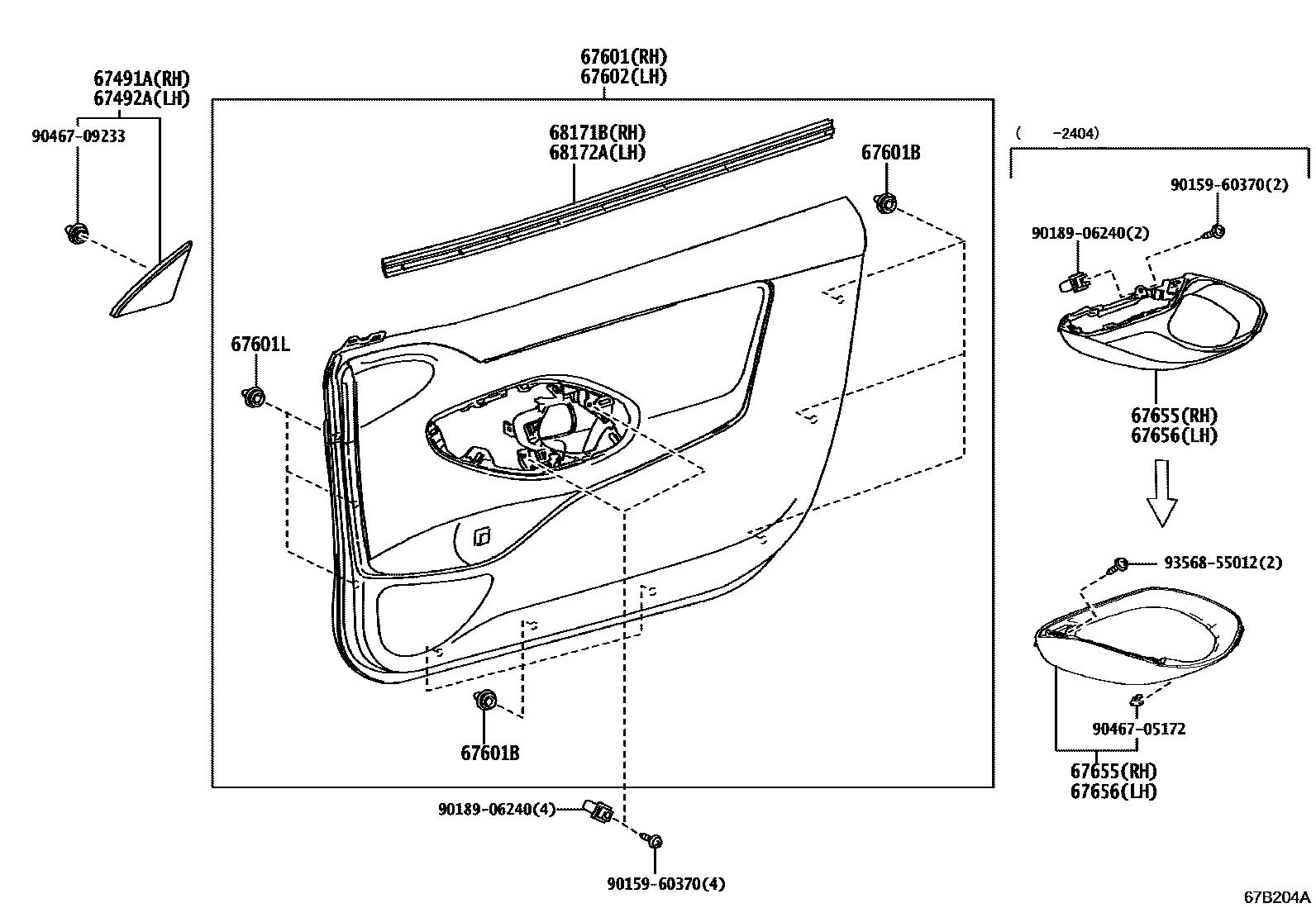

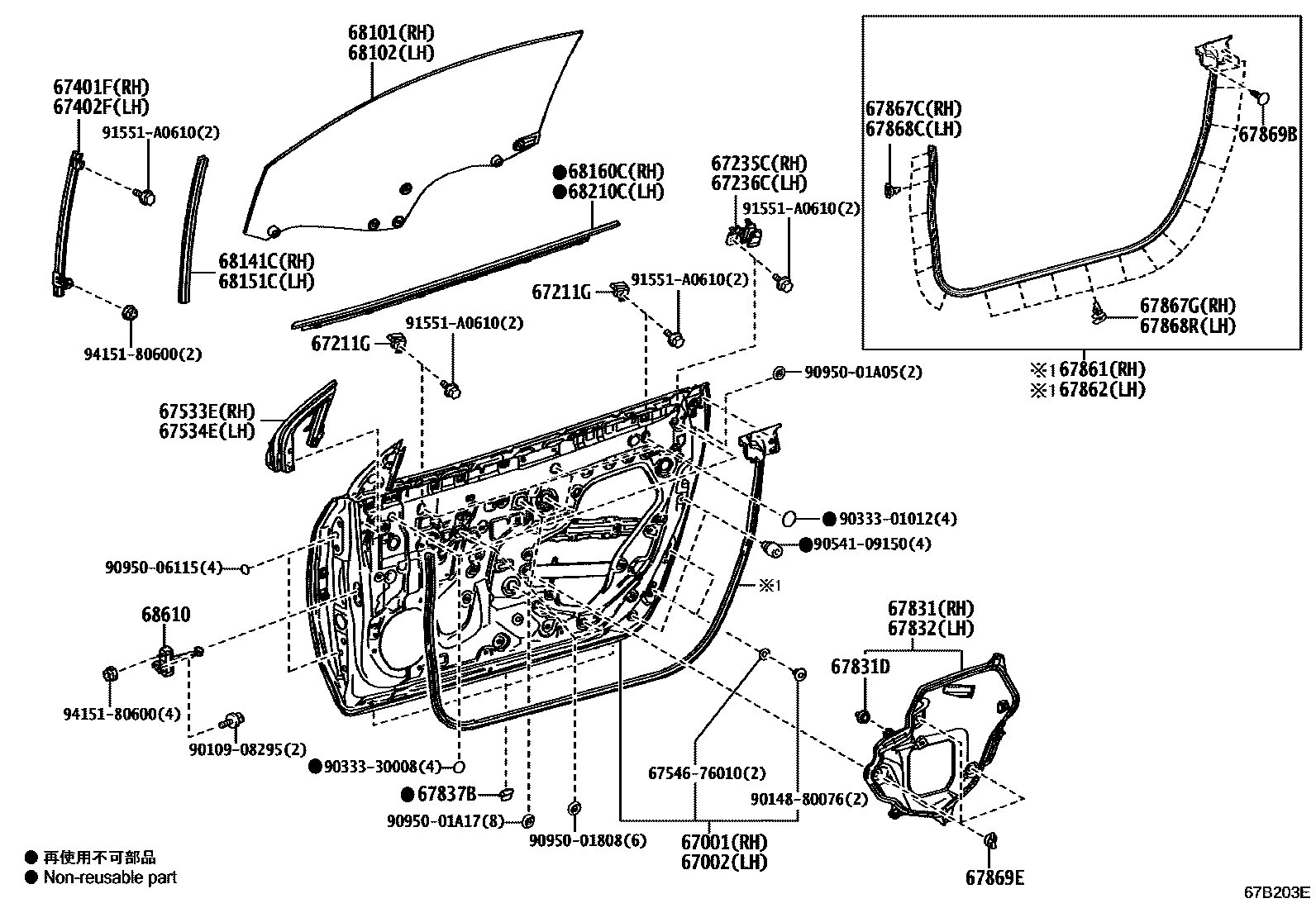

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-59025 |
| 67002 | Left front door panel sub-assembly | 67002-59025 |
| 67211G | Front door window upper block | 67211-24030 |
| 67235C | Right door glass recessed stabilizer | 67235-11020 |
| 67236C | Left door glass recessed stabilizer | 67236-11020 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-52190 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-52160 |
| 67533E | Right front door divider seal | 67533-52010 |
| 67534E | Left front door divider seal | 67534-52010 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67601L | Catch (for front door trim panel) | 90467-09233 |
| 67831 | Right front door access hole cover | 67831-52480 |
| 67831D | Catch (for front door access hole cover) | 90467-09206 |
| 67832 | Left front door access hole cover | 67832-52350 |
| 67837B | Front door dust seal retainer | 67837-76030 |
| 67861 | Right front door seal | 67861-52360 |
| 67862 | Left front door seal | 67862-52330 |
| 67867C | Right front door seal strip fixing | 67867-50170 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-50170 |
| 67868R | Toyota part | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67869E | Front door seal strip clip | 67869-50010 |
| 68101 | Right front door glass sub-assembly | 68101-52170 · 68101-52230 · 68101-52231 |
| 68102 | Left front door glass sub-assembly | 68102-52100 · 68102-52160 · 68102-52161 |
| 68141C | Right front door glass lift channel | 68141-52350 |
| 68151C | Left front door glass lift channel | 68141-52350 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-52220 |
| 68171B | Right front door glass inner sealing strip | 68171-52260 |
| 68172A | Left front door glass inner sealing strip | 68172-52240 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-52230 |
| 68610 | Front door opening limiter assembly | 68610-52220 |
