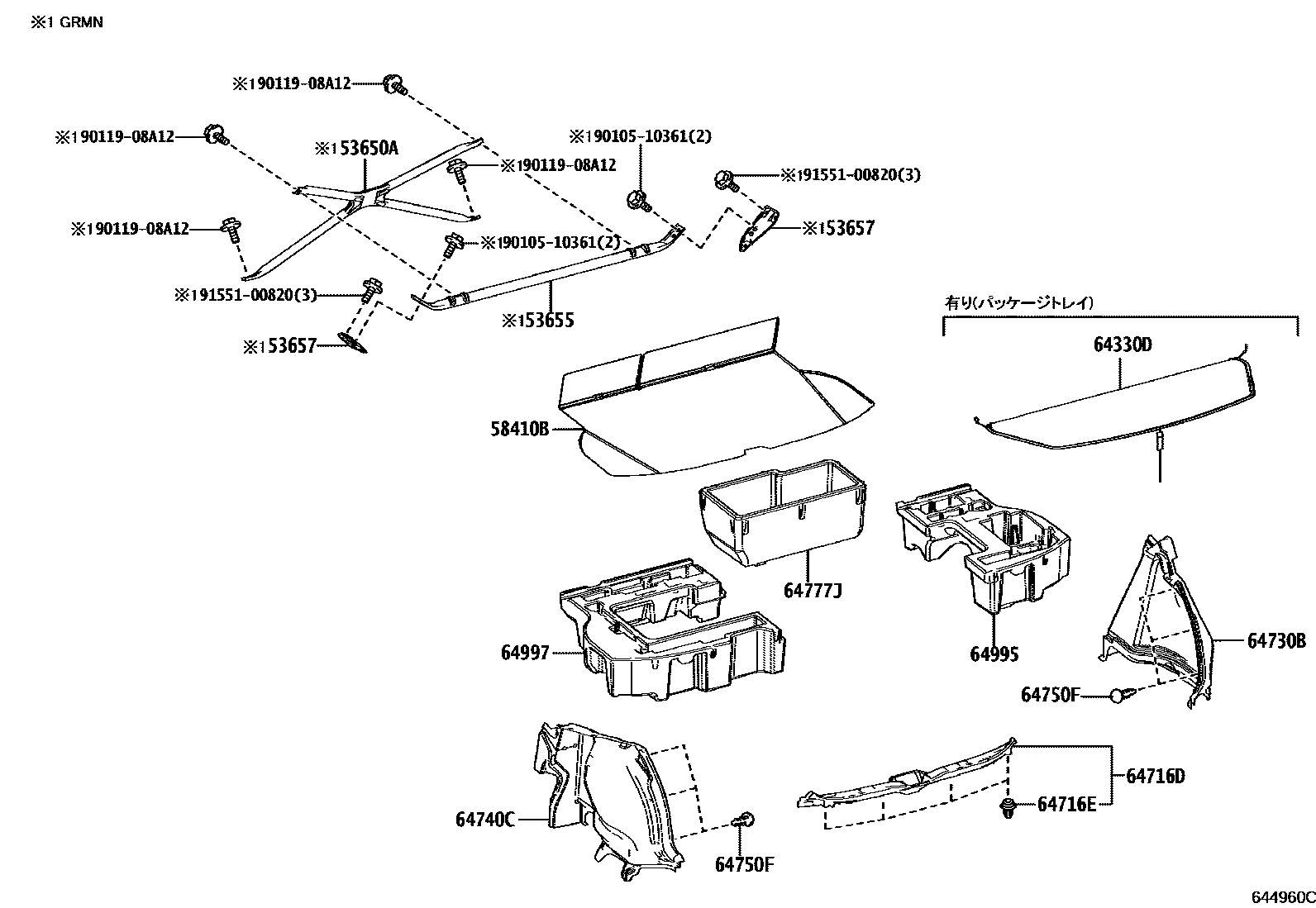

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53650A | Toyota part | 53650-52010 |
| 53655 | Rear suspension center upper bracket | 53655-52010 |
| 53657 | No. 1 rear suspension bracket seat | 53657-52010 · 53658-52010 |
| 64330D | Glove box decorative panel assembly | 64330-52430 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-52110 |
| 64995 | Bottom right floor box | 64995-52120 |
| 64997 | Bottom left floor box | 64997-52150 |
