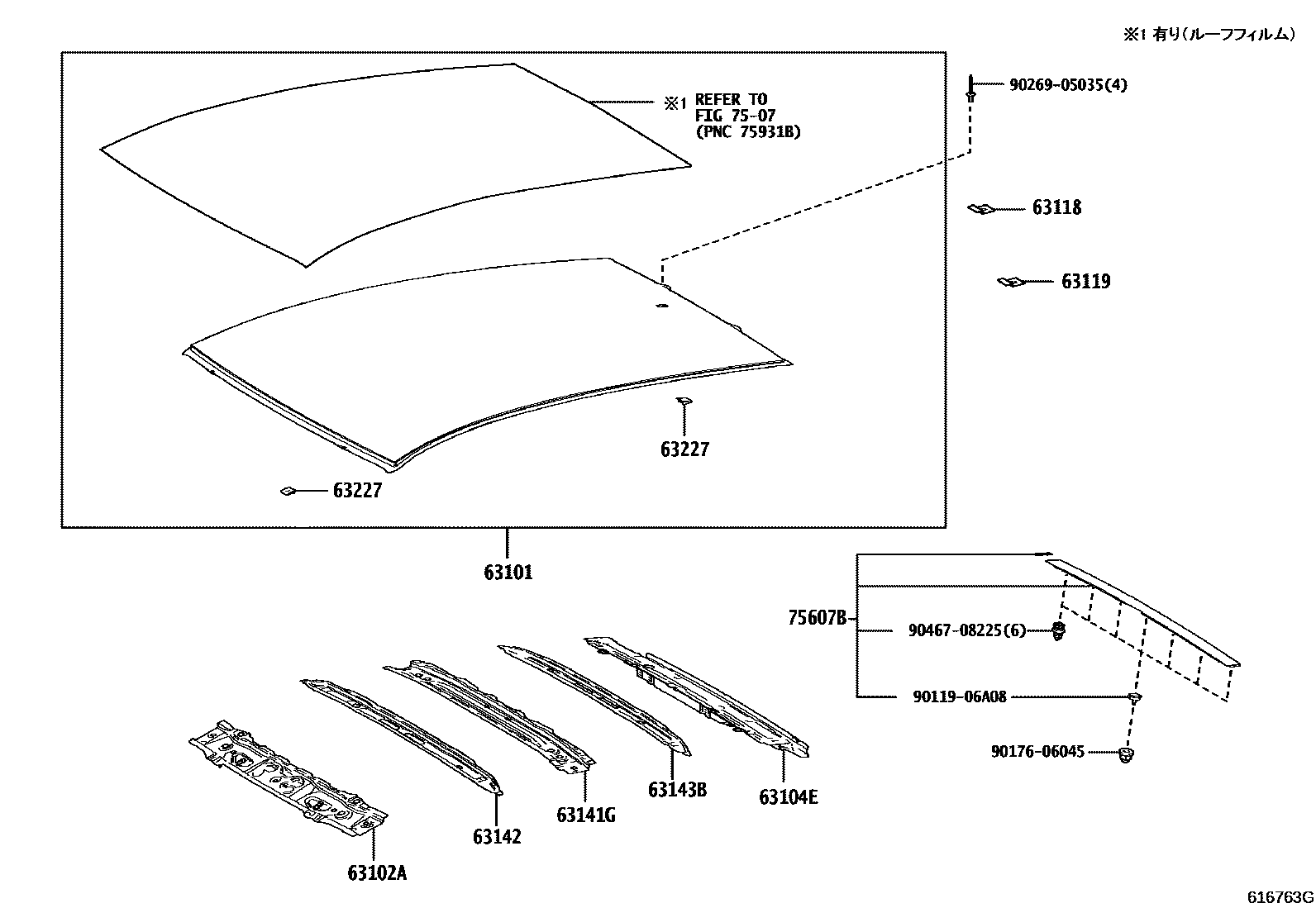

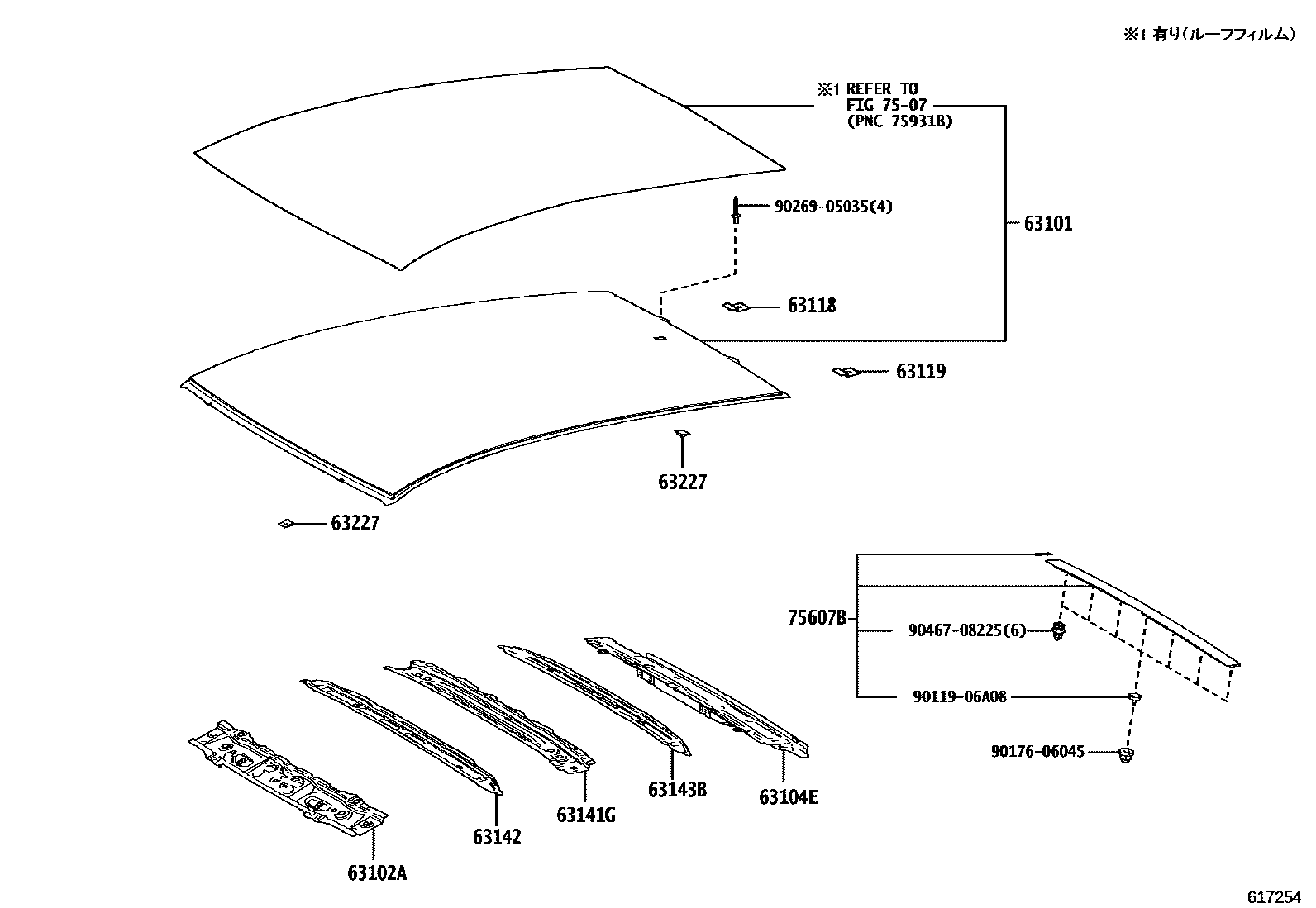

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63101 | Roof panel sub-assembly | 63101-52640 · 63101-52641 · 63101-52740 · 63101-52741 · 63101-52770 |
| 63102A | Windshield roof sub-assembly | 63102-52260 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-52070 |
| 63118 | Right roof panel bracket | 63118-52080 |
| 63119 | Left roof panel bracket | 63118-52080 |
| 63141G | No. 1 roof panel reinforcement | 63141-52200 |
| 63142 | No. 2 roof panel reinforcement | 63142-52110 |
| 63143B | No. 3 roof panel reinforcement | 63143-52220 |
| 63227 | Roof deflector clip | 63227-11020 · 63227-24020 |
| 75607B | Roof protection strip sub-assembly | 75607-52010 |
