Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 61 PNC and OE references.

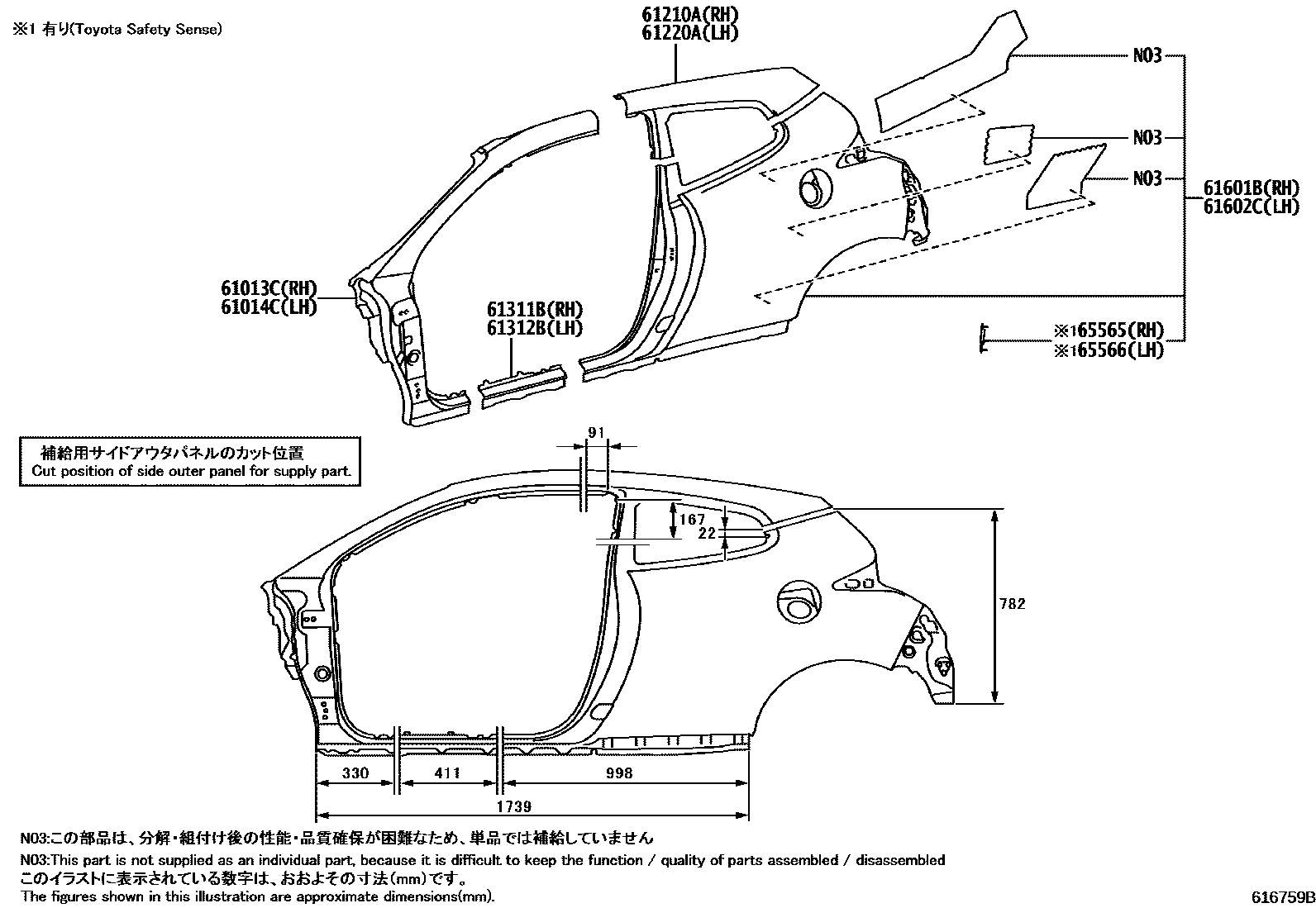

Toyota YARIS 侧梁 EPC diagram — 616759B
侧梁 — 616759B (202008 – 999999)

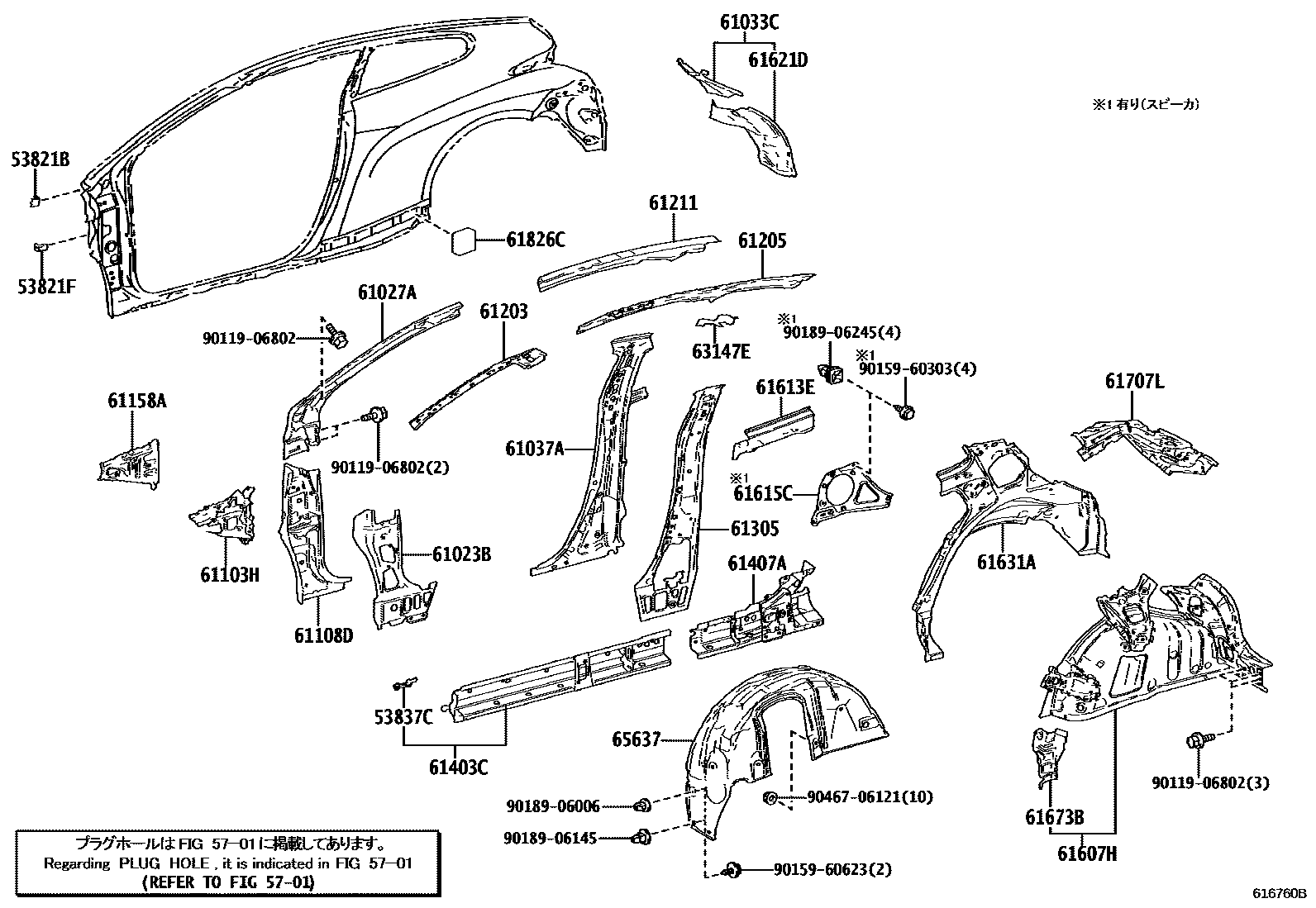

Toyota YARIS 侧梁 EPC diagram — 616760B
侧梁 — 616760B (202008 – 999999)

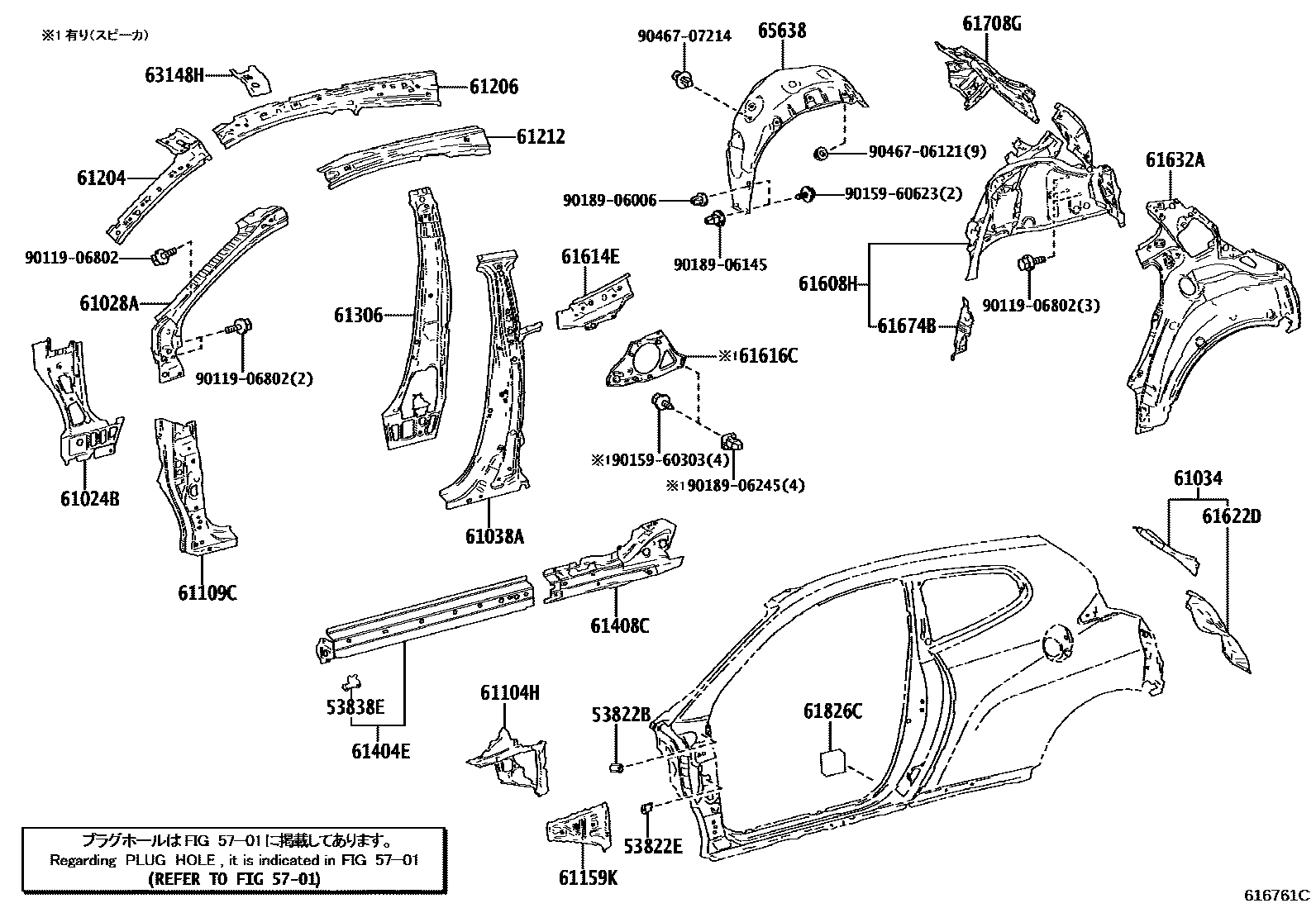

Toyota YARIS 侧梁 EPC diagram — 616761C
侧梁 — 616761C (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
53821BRight front fender rear support53821-52030
53821FNo. 2 right front fender rear support53821-75020
53822BLeft front fender rear support53821-52030
53822ENo. 2 left front fender rear support53821-75020
53837CNo. 2 right front side panel bracket53837-K0010
53838ENo. 2 left front side panel bracket53838-K0010
61013CRight inner panel sub-assembly61013-52090
61014CLeft inner panel sub-assembly61014-52080
61023BRight body inner front pillar sub-assembly61023-K0010
61024BLeft body inner front pillar sub-assembly61024-K0010
61027ARight body outer front pillar sub-assembly61027-52901
61028ALeft body outer front pillar sub-assembly61028-52901
61033CToyota part61033-52100 · 61033-52190
61034Rear door opening left reinforcement sub-assembly61034-52100 · 61034-52190
61037ARight body center pillar reinforcement sub-assembly61037-52330
61038ALeft body center pillar reinforcement sub-assembly61038-52330
61103HToyota part61103-52020
61104HToyota part61104-52020
61108DFront panel right lower reinforcement sub-assembly61108-52200
61109CFront panel left lower reinforcement sub-assembly61109-52230
61158AExtension section under right front pillar61158-52040
61159KExtension section under left front pillar61159-52040
61203Roof right inner longitudinal beam sub-assembly61203-52080
61204Roof left inner longitudinal beam sub-assembly61204-52080
61205Right rear roof inner longitudinal beam sub-assembly61205-52030
61206Left rear roof inner longitudinal beam sub-assembly61206-52060
61210AToyota part61210-52010
61211Roof right outer longitudinal beam61211-52230
61212Roof left outer longitudinal beam61212-52230
61220AToyota part61220-52010
61305Right body center pillar lower reinforcement sub-assembly61305-52110
61306Left body center pillar lower reinforcement sub-assembly61306-52110
61311BRight body outer center pillar61311-52110
61312BLeft body outer center pillar61312-52090
61403CRight door outer sill reinforcement sub-assembly61403-52902
61404ELeft door outer sill reinforcement sub-assembly61404-52902
61407AToyota part61407-52900
61408CToyota part61408-52900
61601BRight side enclosure sub-assembly61601-52720 · 61601-52730
61602CLeft side enclosure sub-assembly61602-52860 · 61602-52870
61607HRight side wheel cover lining plate sub-assembly61607-52440 · 61607-52580
61608HLeft side wheel cover lining plate sub-assembly61608-52500 · 61608-52610
61613ERight side inner panel61613-52070
61614ELeft side inner panel61614-52060
61615CRight side panel center inner panel61615-52040
61616CLeft side enclosure center inner panel61616-52020
61621DBack door right opening slot61621-52210
61622DRear door left opening slot61622-52220
61631ARight wheel cover outer panel61631-52220
61632ALeft side wheel cover outer panel61632-52220
61673BRight wheel housing lining panel reinforcement61673-52030
61674BLeft side wheel housing lining plate reinforcement61674-52030
61707LRight front roof inner panel sub-assembly61707-52090
61708GLeft front roof inner panel sub-assembly61708-52110
61826CNo. 3 silencer panel gasket61826-52040
63147ERoof panel reinforcement bracket63147-K0010
63148HRoof panel reinforcement bracket63148-K0010
65565Right side panel rear end lining65565-50010
65566Left side panel rear end lining65565-50010
65637Right rear wheel house lining65637-52030 · 65637-52040 · 65637-52090
65638Left rear wheel house lining65638-52030 · 65638-52040 · 65638-52090
