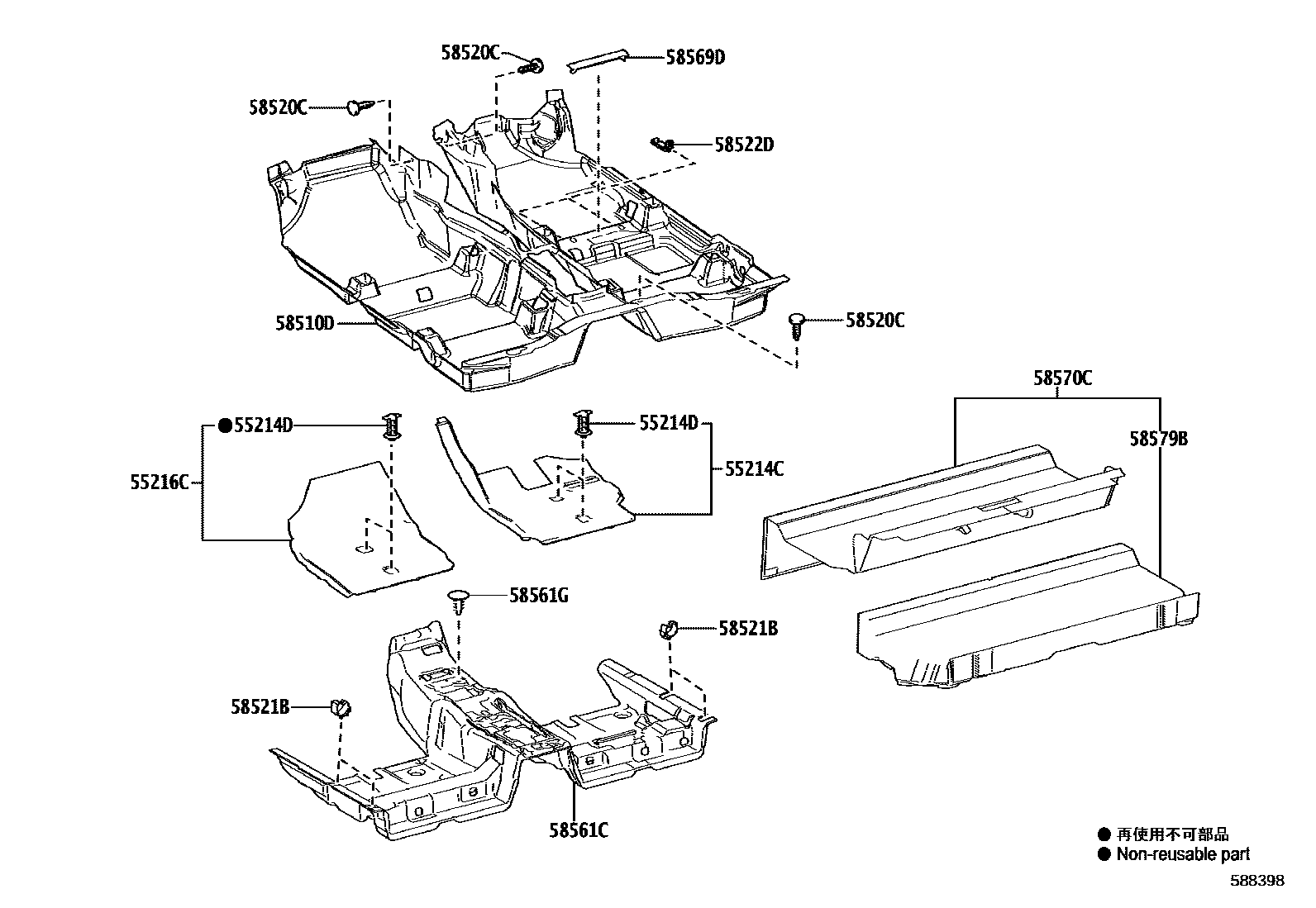

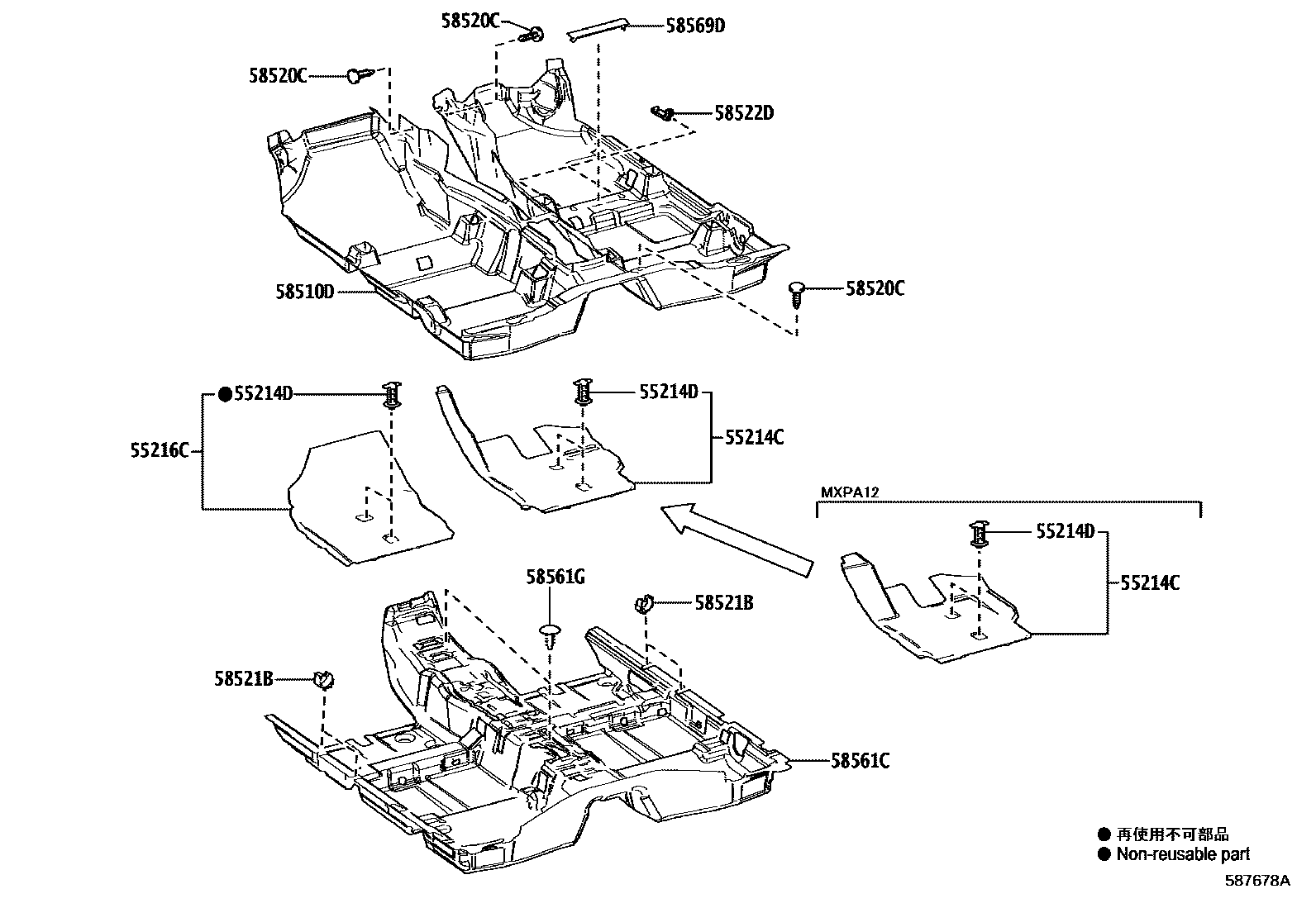

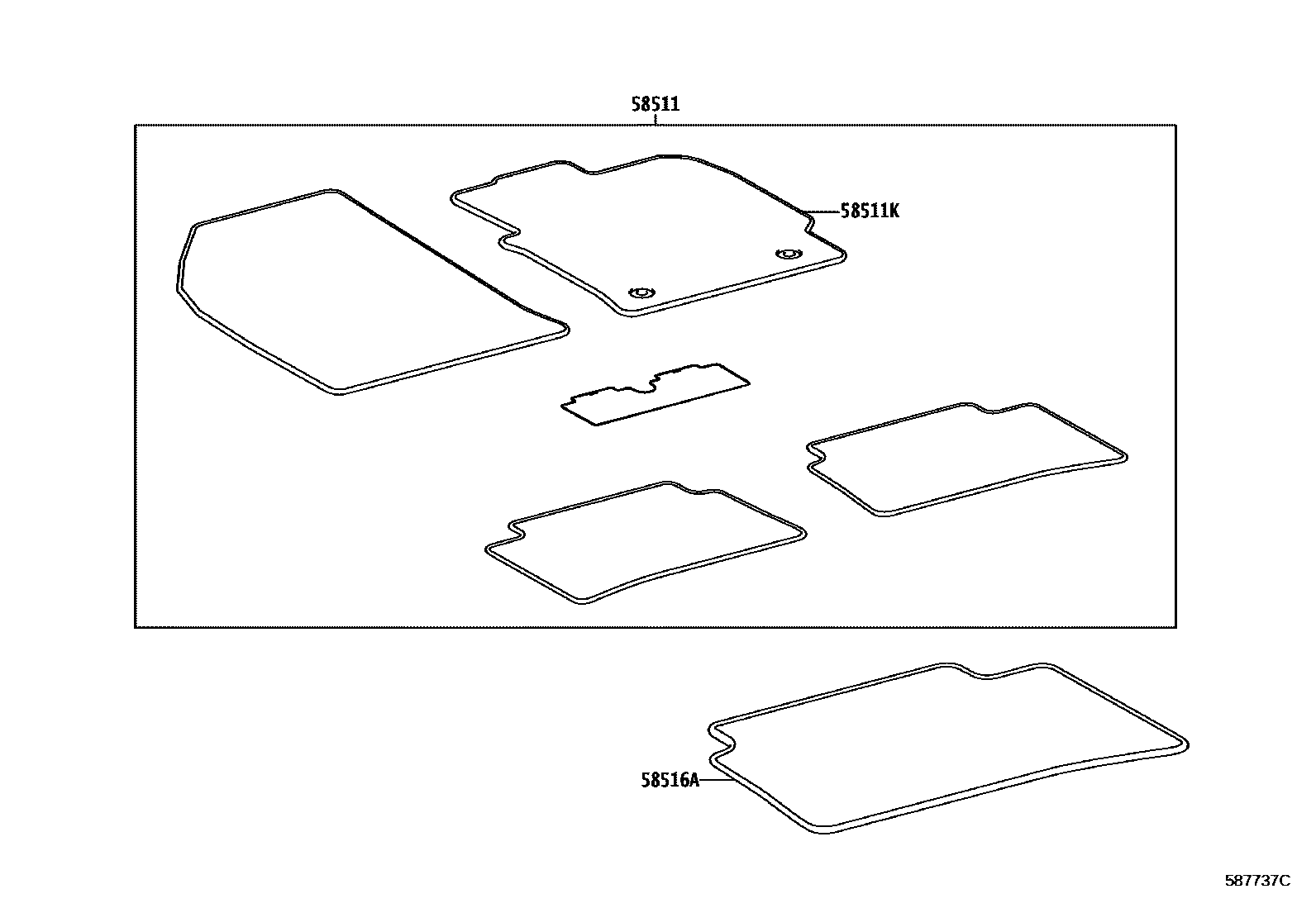

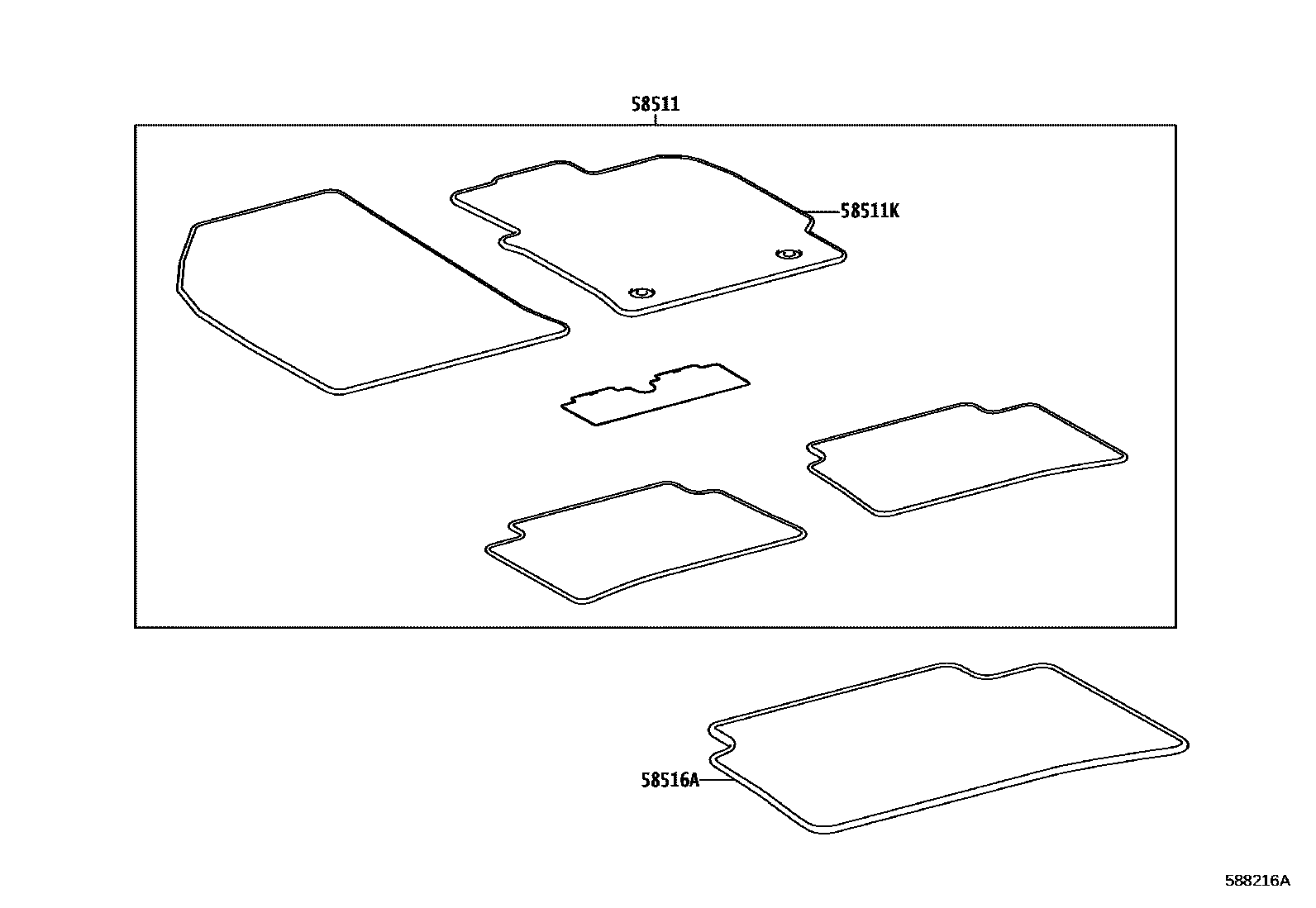

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-52210 · 55214-52260 · 55214-52360 |
| 55214D | Toyota part | 58198-52020 · 58198-52040 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-52100 |
| 58511 | front floor mat | 58501-52010 · 58501-52020 · 58501-52080 · 58501-52100 |
| 58511K | Toyota part | 58511-52010 · 58511-52020 · 58511-52060 · 58511-52070 |
| 58516A | rear center carpet | 58516-52010 |
| 58521B | carpet hook | 58521-33060 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-52420 · 58561-52440 · 58561-52470 · 58561-52540 |
| 58579B | rear floor pad | 58579-52030 |
