Toyota YARIS 地板隔热垫 — Figure 5802

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 2 images and 4 PNC and OE references.

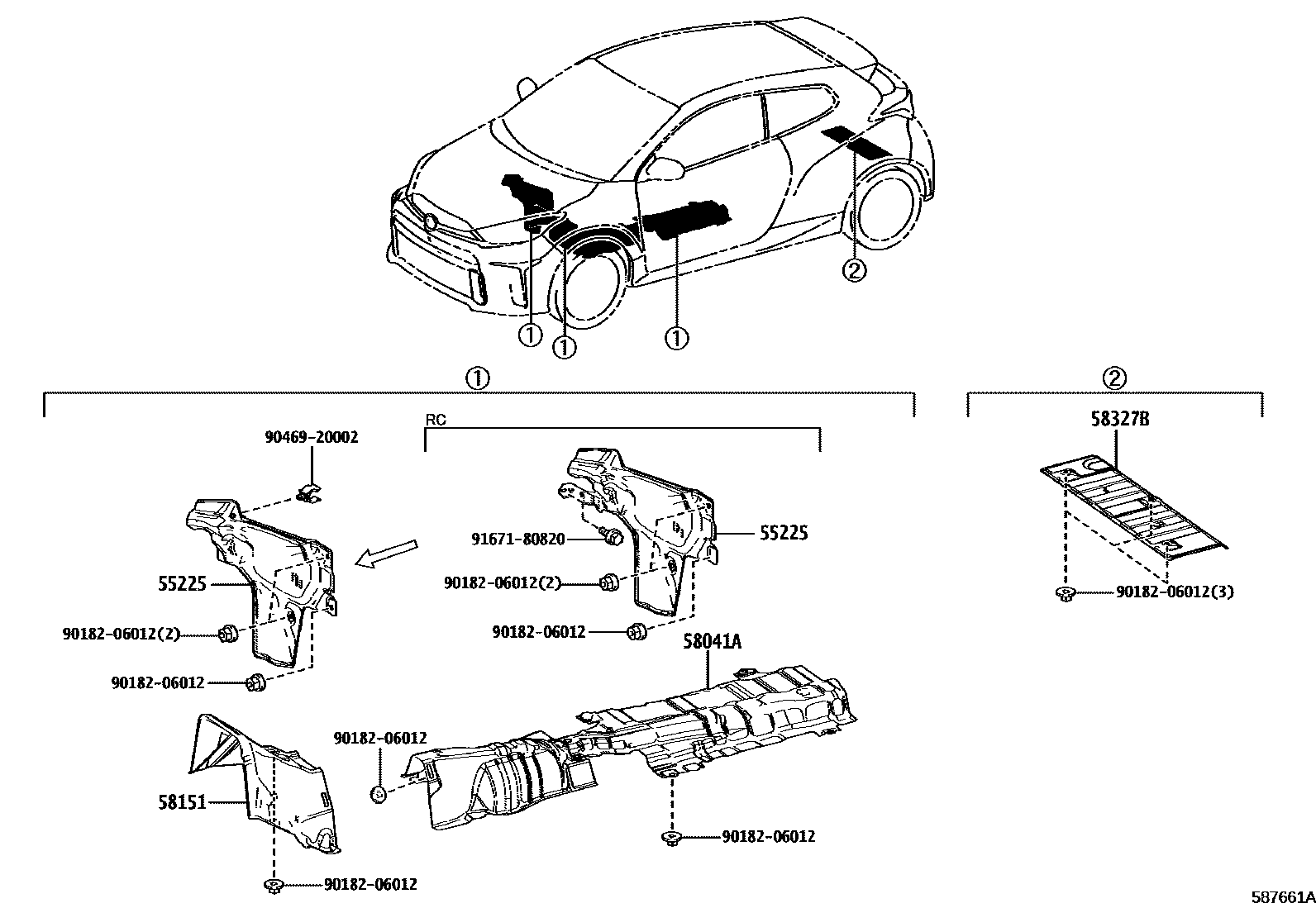

Toyota YARIS 地板隔热垫 EPC diagram — 587661A
地板隔热垫 — 587661A (202008 – 999999)

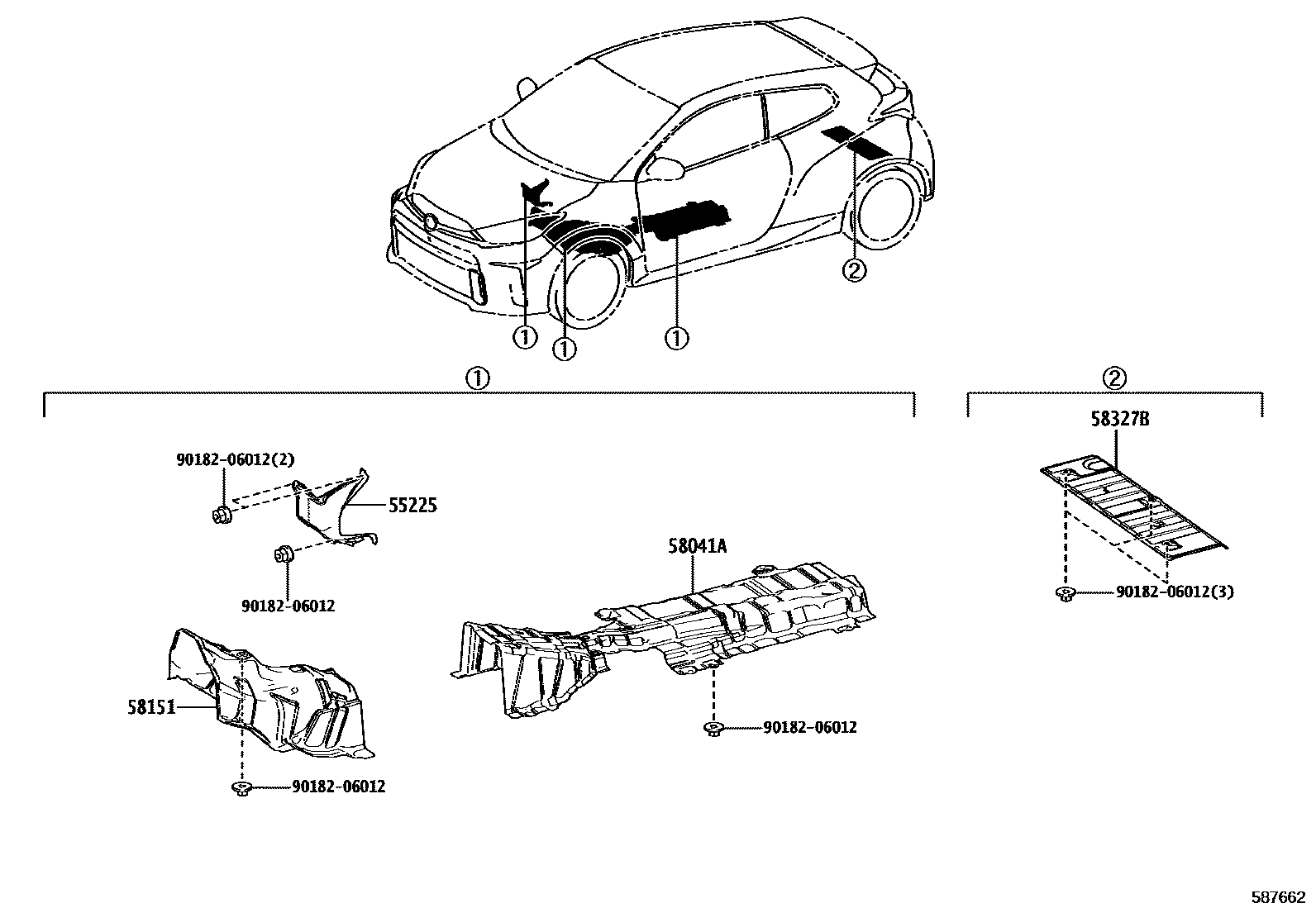

Toyota YARIS 地板隔热垫 EPC diagram — 587662
地板隔热垫 — 587662 (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
55225Front wall insulation pad55225-52010 · 55225-52040 · 55225-K0030
58041AFront floor insulation pad sub-assembly No. 158041-52050 · 58041-52060 · 58041-52090
58151Front floor insulation mat No. 158151-52130 · 58151-K0010
58327BMain muffler heat insulation pad58327-52180
