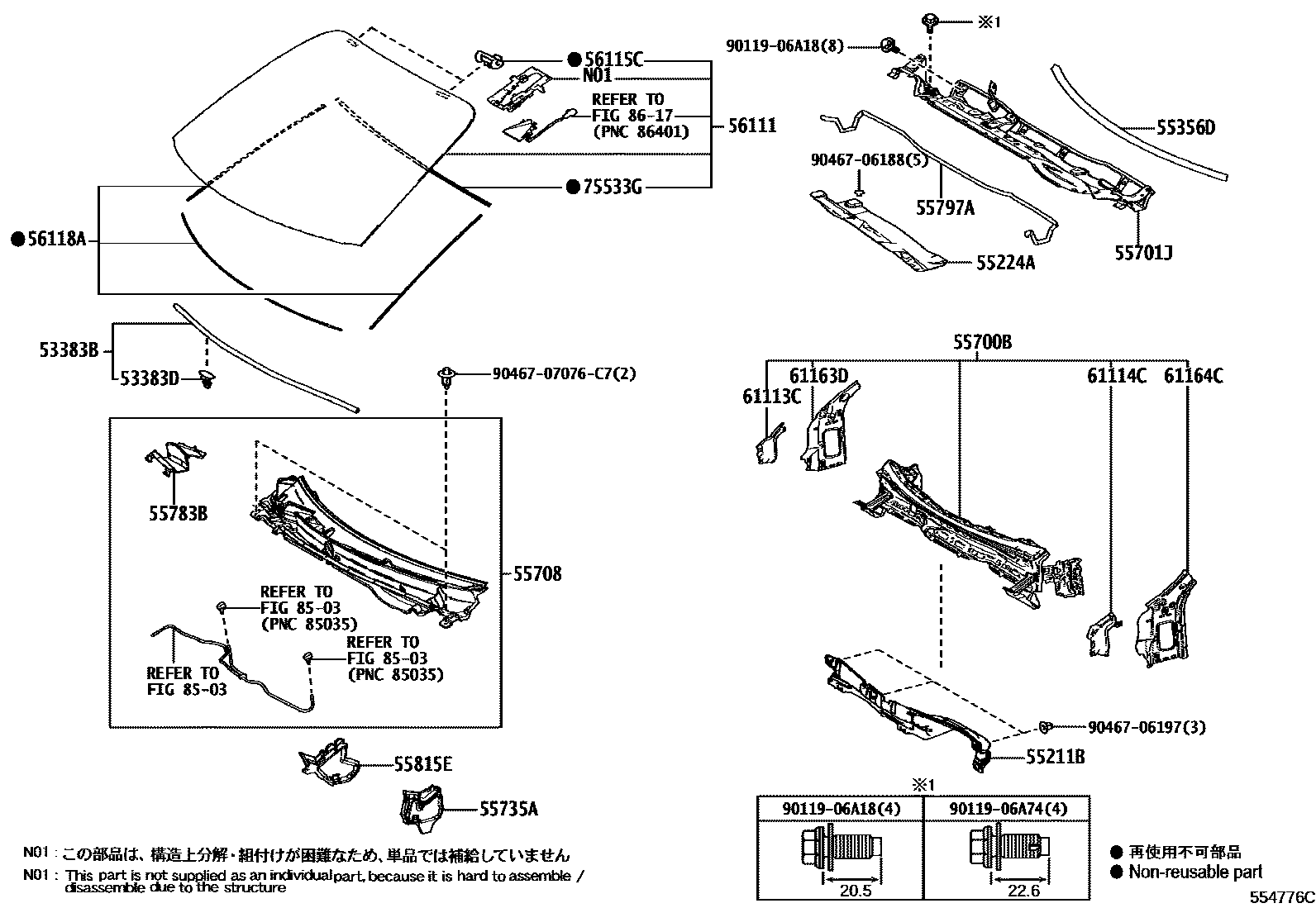

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-K0010 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55211B | Front panel silencer | 55211-K0050 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-52050 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-K2010 |
| 55700B | Toyota part | 55700-52460 · 55700-52520 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-52420 · 55701-52480 |
| 55708 | Toyota part | 55708-K0010 · 55708-K0020 |
| 55735A | Left waterproof cover panel | 55735-52150 · 55735-K0060 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-K0010 |
| 55797A | Front wall pumping device seal | 55797-52100 · 55797-K0010 |
| 55815E | No. 1 front vent seal | 55815-K0060 |
| 56111 | windshield | 56101-52F90 · 56101-52G30 · 56101-52L40 · 56101-52L60 · 56101-52P40 · 56101-52P60 · 56101-52P90 · 56101-52Q10 · 56101-52V90 · 56101-52W00 · 56101-52W10 · 56101-52W20 · 56101-52W40 · 56101-52W60 · 56101-5C370 |
| 56115C | windshield block | 56115-50100 |
| 61113C | Toyota part | 61113-K0010 |
| 61114C | Toyota part | 61114-K0010 |
| 61163D | Toyota part | 61163-52060 |
| 61164C | Toyota part | 61164-52070 |
| 75533G | Windshield outer protective strip | 75533-52310 |
