Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 56 PNC and OE references.

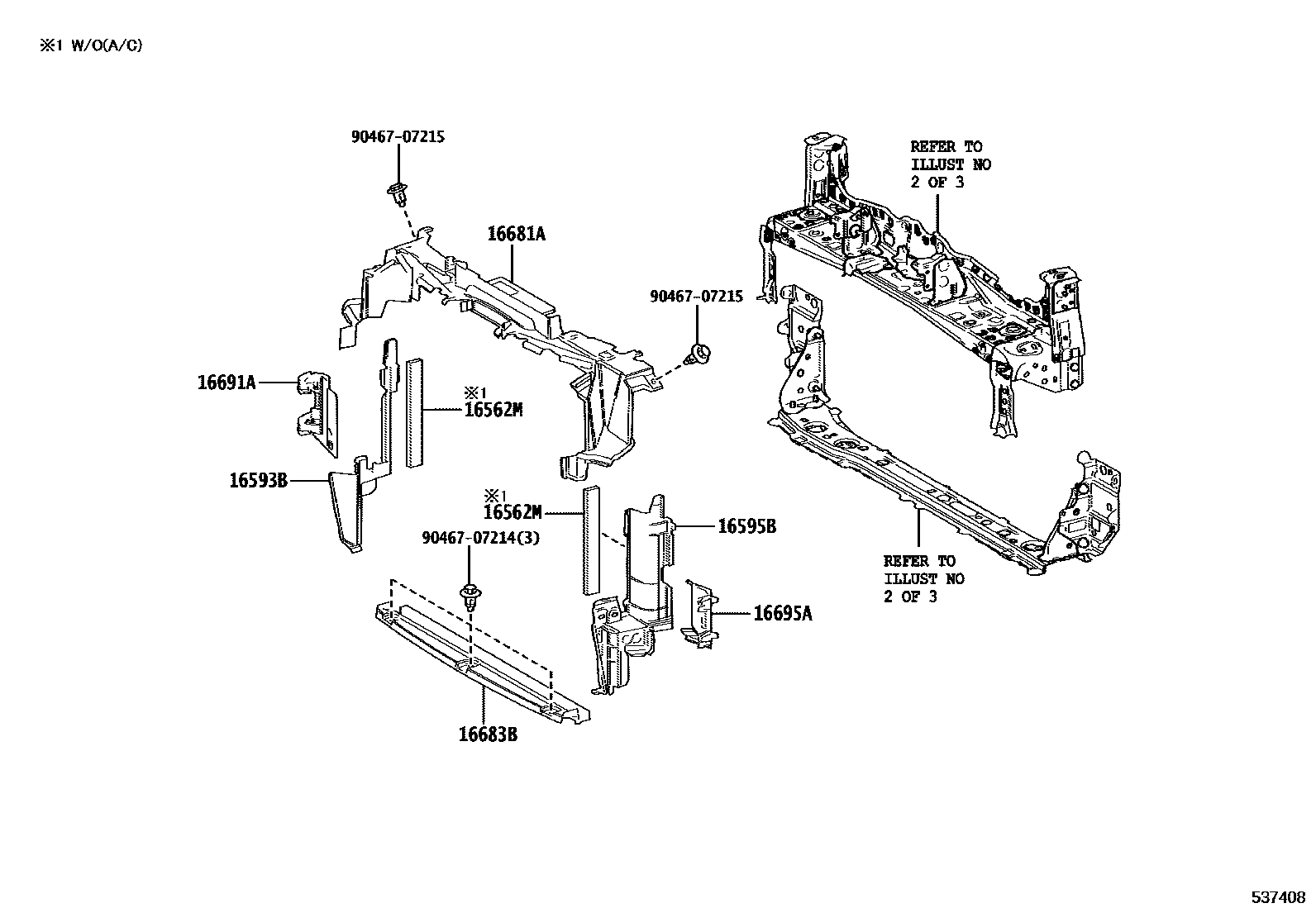

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 537408
前翼子板挡泥板和前围板 — 537408 (202008 – 999999)

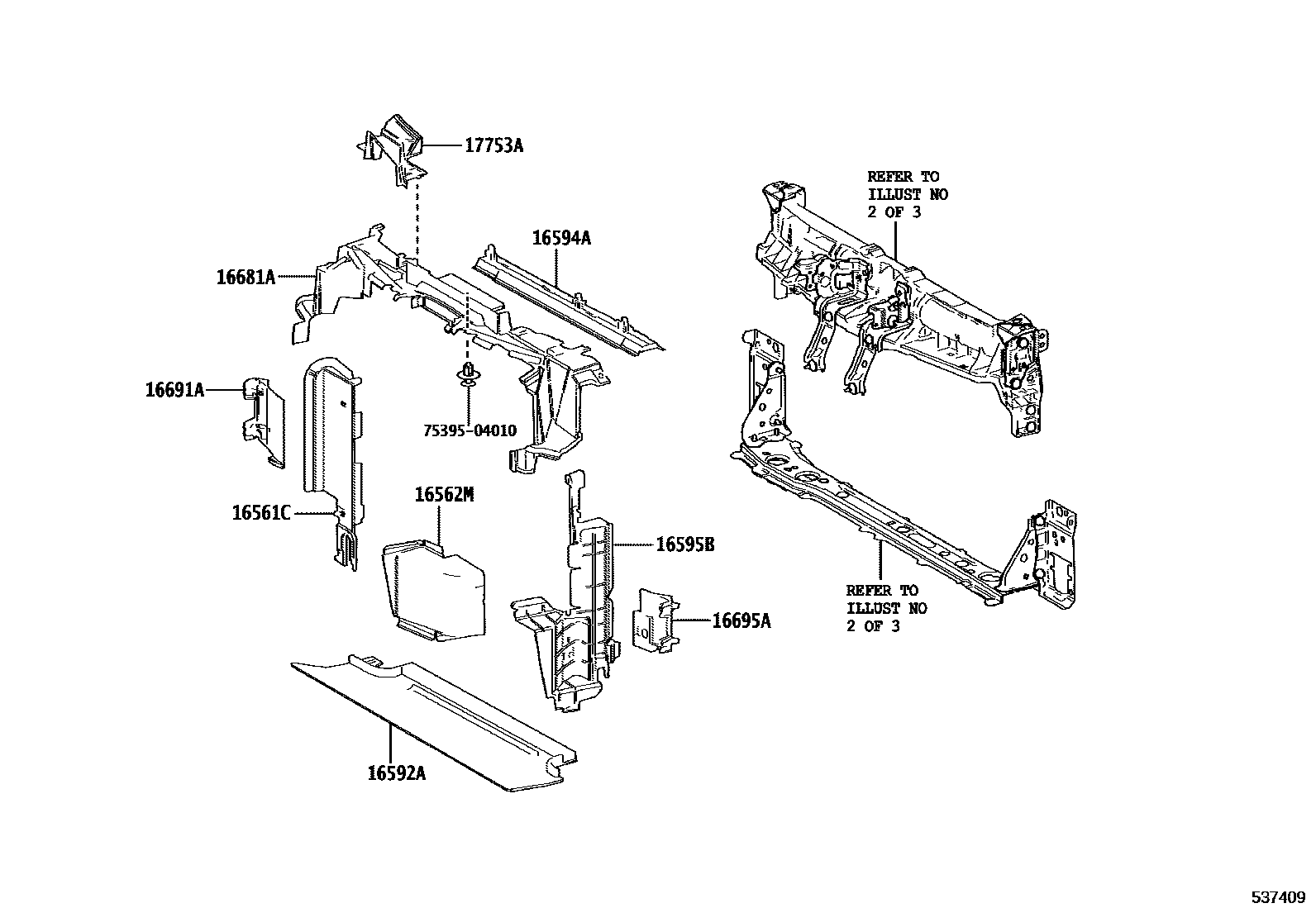

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 537409
前翼子板挡泥板和前围板 — 537409 (202009 – 999999)

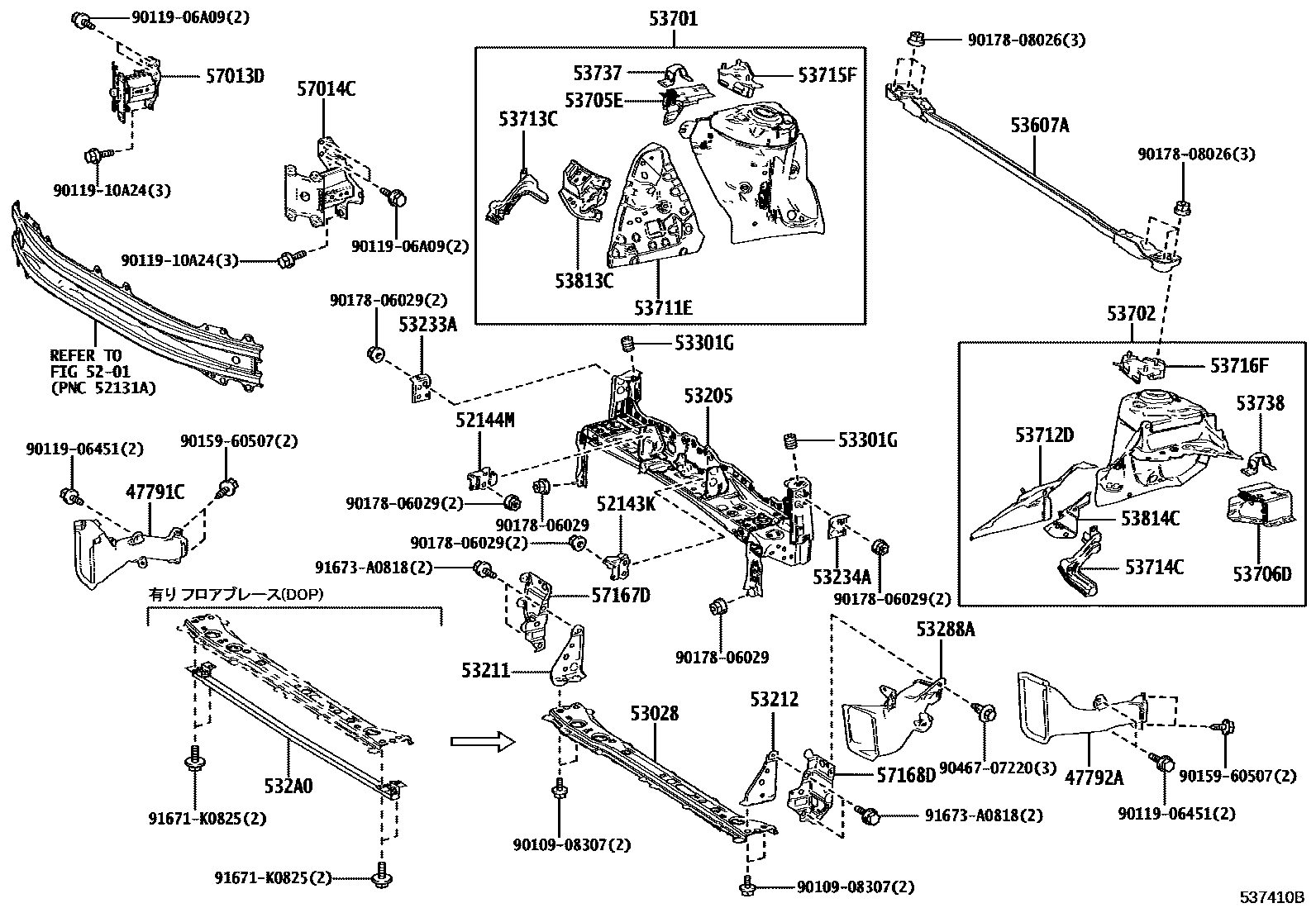

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 537410B
前翼子板挡泥板和前围板 — 537410B (202008 – 202404)

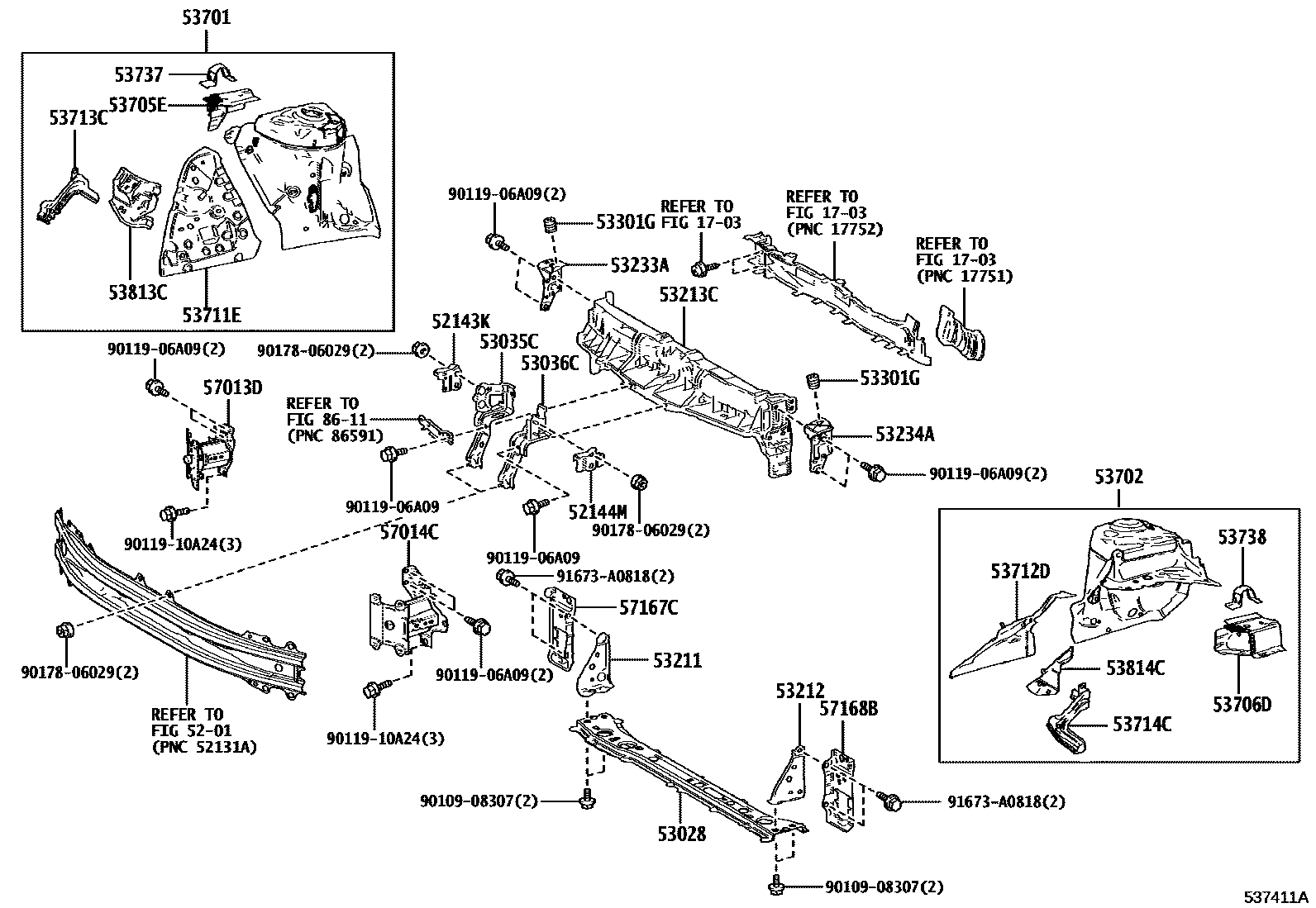

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 537411A
前翼子板挡泥板和前围板 — 537411A (202009 – 999999)

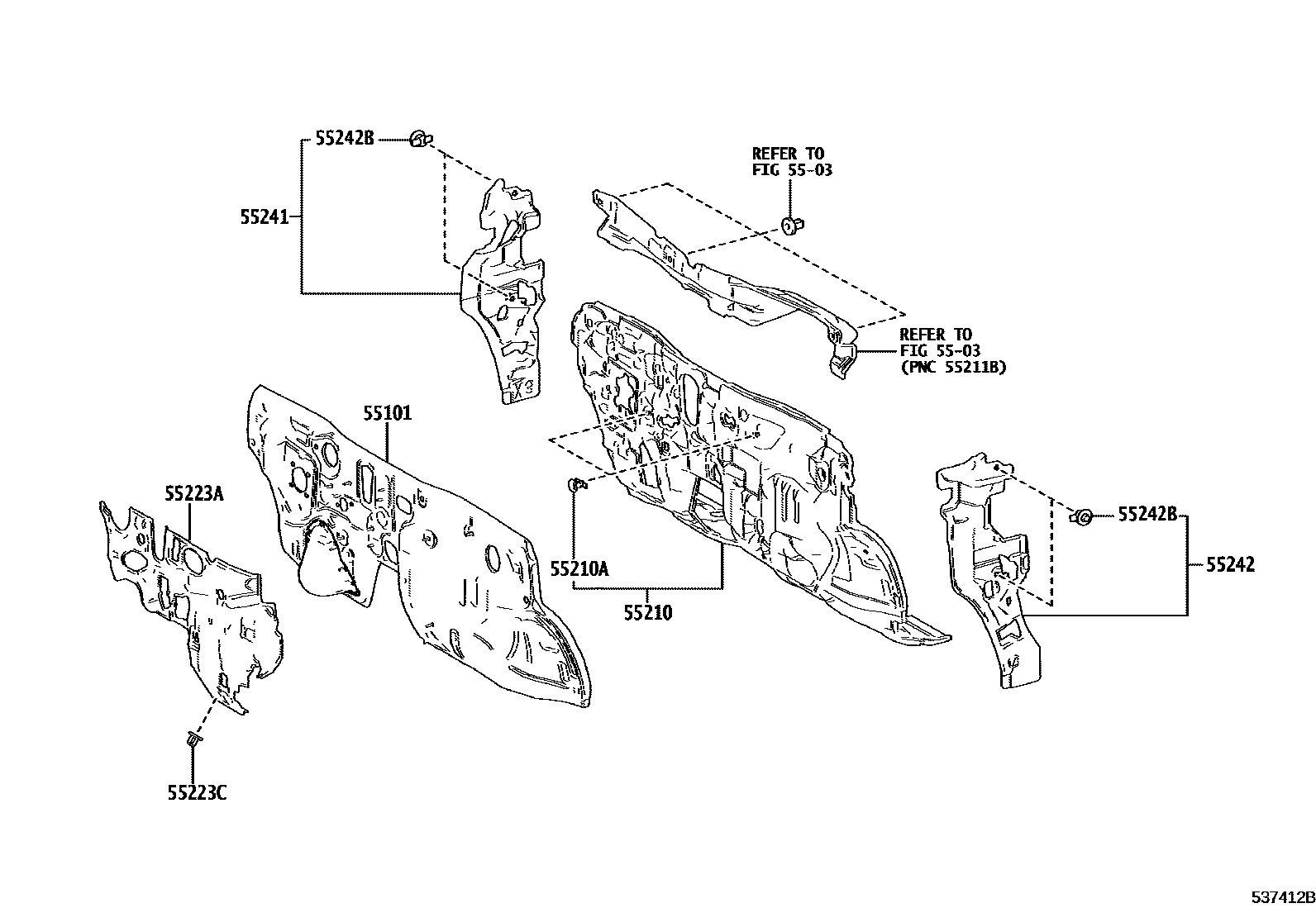

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 537412B
前翼子板挡泥板和前围板 — 537412B (202008 – 999999)

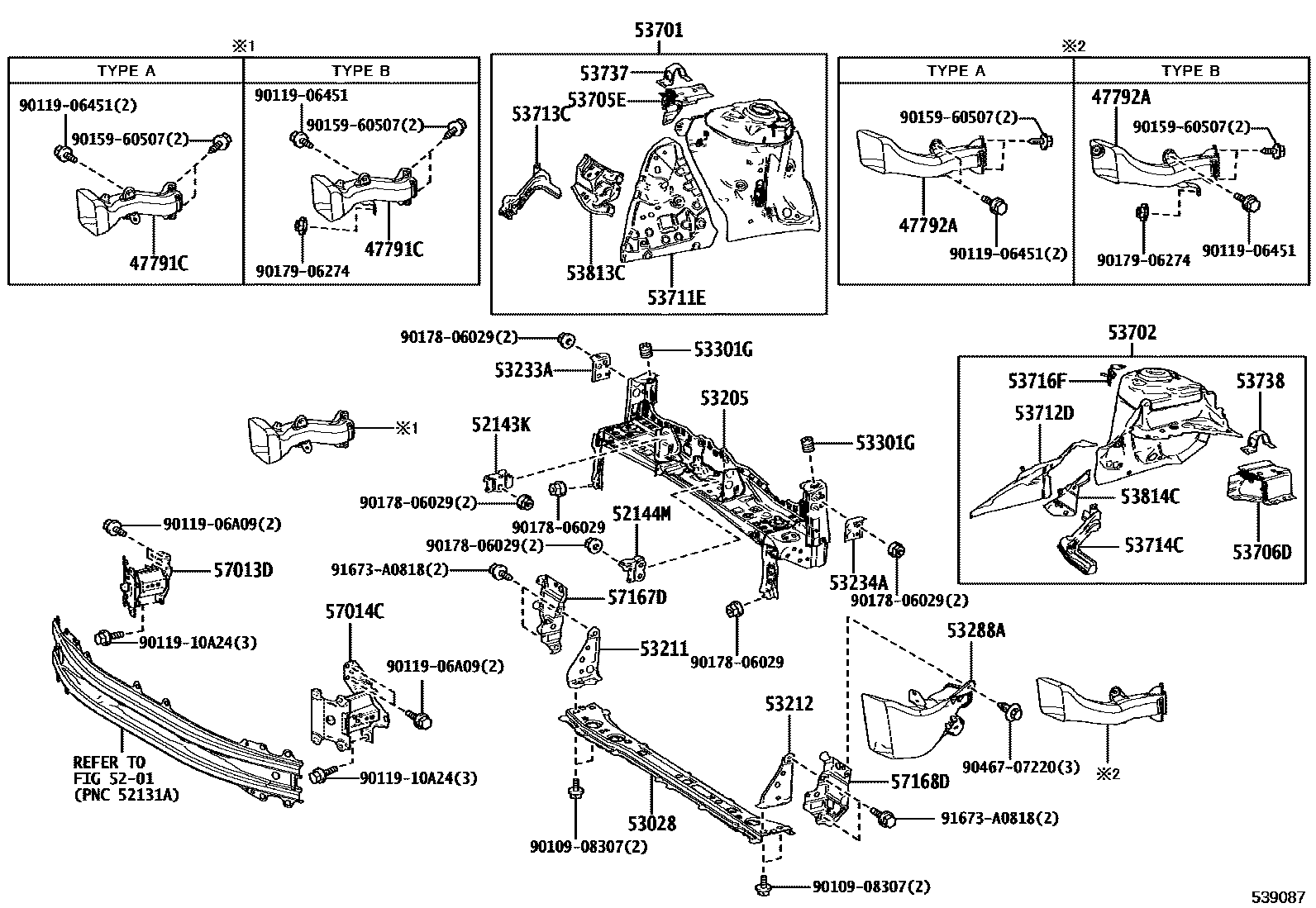

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 539087
前翼子板挡泥板和前围板 — 539087 (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
16561CToyota part16561-15010
16562MToyota part16562-15060 · 16562-18040
16592AToyota part16592-15050
16593BToyota part16593-18020 · 16593-18040
16594AToyota part16594-15010
16595BToyota part16595-18010 · 16595-18020 · 16595-18040
16681AToyota part16681-18010 · 16681-18030
16683BToyota part16683-18010 · 16683-18020
16691AToyota part16691-15020 · 16691-18010
16695AToyota part16695-15010 · 16695-18010
17753AToyota part17753-15030
47791CToyota part47791-52010 · 47791-52020 · 47791-52040
47792AToyota part47792-52010 · 47792-52020 · 47792-52040
52143KToyota part52143-K0030
52144MToyota part52144-K0030
53028Radiator lower bracket sub-assembly53028-52110 · 53028-52150 · 53028-52180 · 53028-K0010
53035CToyota part53035-K0010
53036CToyota part53036-K0010
53205Radiator upper bracket sub-assembly53205-52200 · 53205-52201 · 53205-52240
53211Radiator right side support53211-K0010
53212Radiator left support53212-K0010
53213CRadiator front upper bracket53213-52180 · 53213-K0010
53233ANo. 1 right headlight bracket53233-52100 · 53233-K0010
53234ANo. 1 left headlight bracket53234-52110 · 53234-K0010
53288Acold air intake pipe53285-52590 · 53285-52600
532A0Toyota part532A0-52010
53301Gengine cover cushion90541-15034 · 90541-15040
53607AFront suspension center upper bracket sub-assembly53607-52040
53701Right front fender fender sub-assembly53701-52260 · 53701-52280 · 53701-52320 · 53701-52360
53702Left front fender fender sub-assembly53702-52230 · 53702-52270 · 53702-52310 · 53702-52330
53705EFront fender to front wall right side beam sub-assembly53705-K0010
53706DFront fender to front wall left side beam sub-assembly53706-K0010
53711EToyota part53711-K0010
53712DToyota part53712-K0010
53713CRight front fender fender front extension53713-52120
53714CLeft front fender fender front extension53714-52150
53715FRight fender fender53715-52060
53716FLeft fender fender53716-52060 · 53716-52100
53737Right front fender to front wall side sill53737-K0010
53738Left front fender to front wall side sill53738-K0010
53813CRight front fender extension53813-K0010
53814CLeft front fender extension53814-K0010
55101Front apron sub-assembly55101-52700 · 55101-52720 · 55101-52800
55210Front wall insulation pad assembly55210-52460
55210Aclip90467-11122
55223AFront wall outer heat insulation pad55223-52140 · 55223-52150
55223Cclip90467-06197
55241Front panel No. 1 right side silencer55241-K0030
55242Front panel No. 1 left side silencer55242-52050 · 55242-K0030
55242BToyota part90467-13079
57013DToyota part57013-K0010
57014CToyota part57014-K0010
57167CFront cross member right corner panel57167-K0010
57167DFront cross member right side reinforcement57167-52020
57168BFront cross member left corner panel57168-K0010
57168DFront cross member left reinforcement57168-52020
