Toyota YARIS 发动机盖和前翼子板 — Figure 5302

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 40 PNC and OE references.

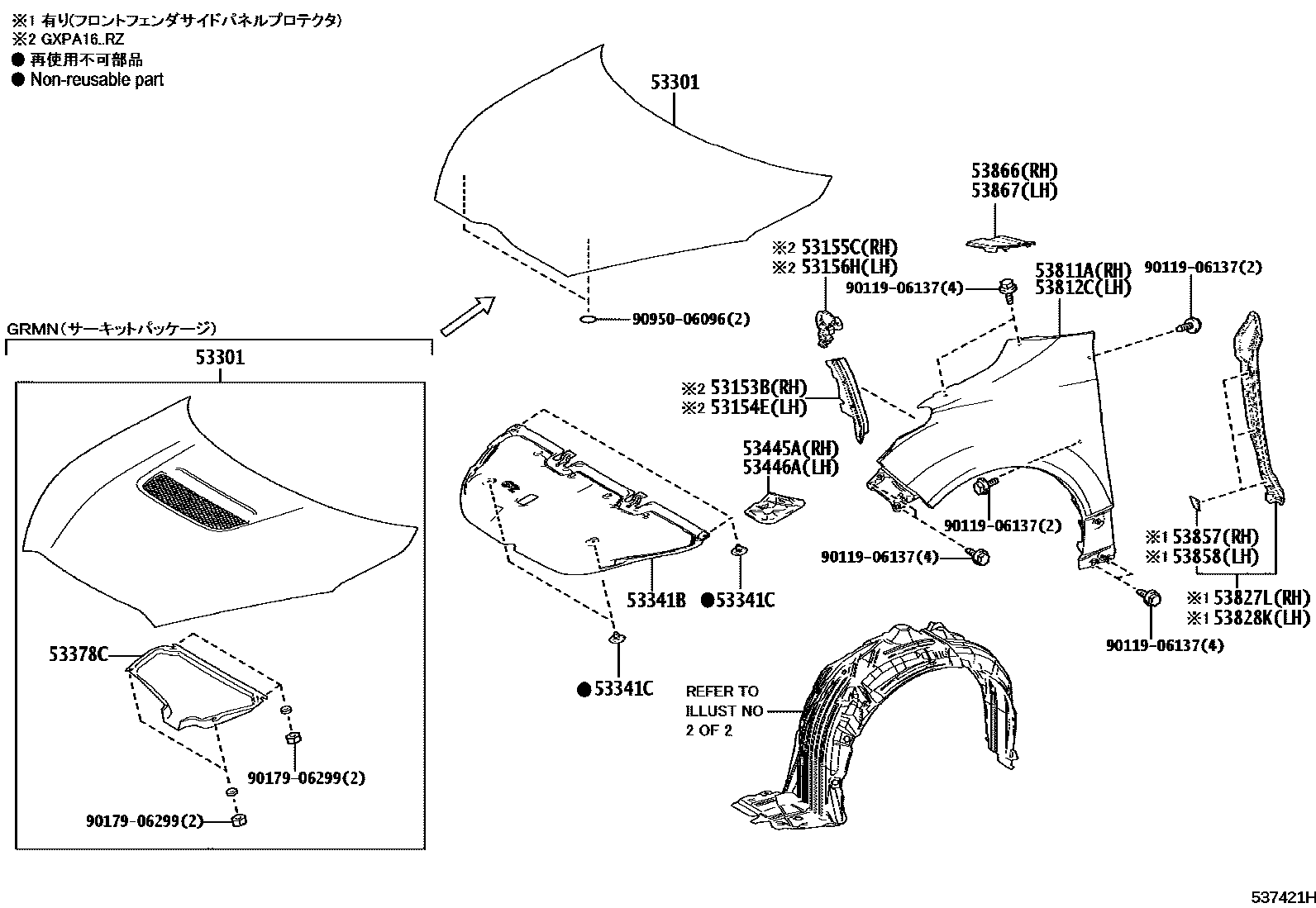

Toyota YARIS 发动机盖和前翼子板 EPC diagram — 537421H
发动机盖和前翼子板 — 537421H (202008 – 999999)

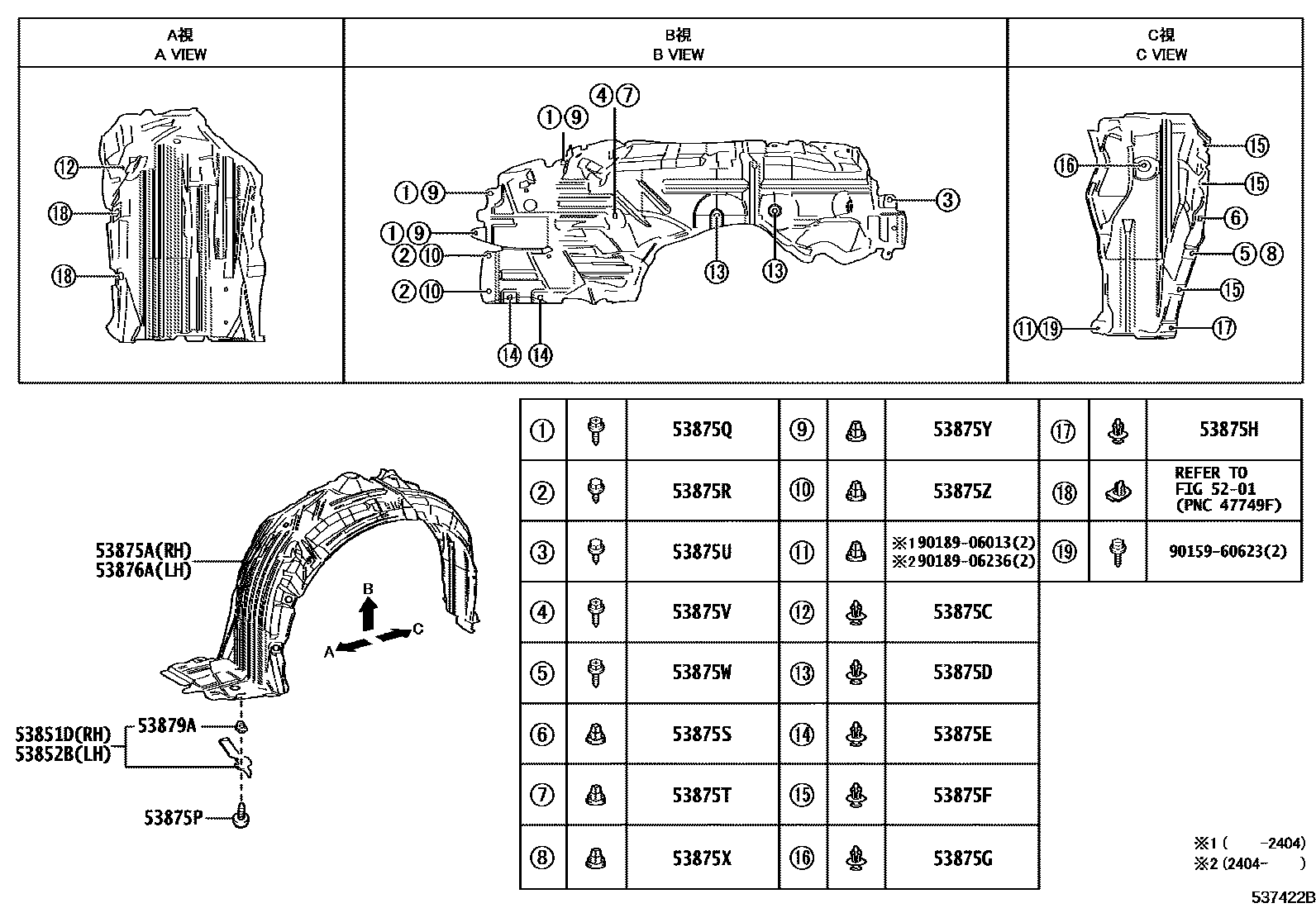

Toyota YARIS 发动机盖和前翼子板 EPC diagram — 537422B
发动机盖和前翼子板 — 537422B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153Bfront side deflector53153-52040
53154EToyota part53154-52040
53155CRadiator grille seal No. 153155-52080 · 53155-52330
53156HToyota part53156-52040 · 53156-52100
53301Engine cover sub-assembly53301-52420 · 53310-52010
53341Bengine cover gasket53341-K0050
53341CClip (for engine cover gasket)90467-09050
53378CEngine cover air intake pipe seal53378-52010
53445AToyota part53445-52030
53446AToyota part53446-52030
53811Aright front fender53811-52600
53812Cleft front fender53812-52600
53827LRight front fender side panel protector53827-52210
53828KLeft front fender side panel protector53828-52220
53851DRight front fender outer panel pad53851-K0010
53852BLeft front fender exterior panel pad53852-K0010
53857Right front fender external panel fixing piece53857-12010
53858Left front fender external panel fixing piece53857-12010
53866Right front fender to cowl side seal53866-K0010
53867Left front fender to cowl side seal53867-K0010
53875ARight front fender lining53875-52520 · 53875-52540 · 53875-52630 · 53875-52640
53875CFront fender lining clip90467-07214
53875DToyota part90467-07214
53875EToyota part90467-07214
53875FToyota part90467-07214
53875GToyota part90467-07214
53875HToyota part90467-07214
53875PToyota part90159-60477
53875QToyota part90159-60477
53875RToyota part90159-60477
53875SToyota part90189-06013 · 90189-06236
53875TToyota part90189-06230 · 90189-06236
53875UToyota part90159-60623
53875VToyota part90159-60623
53875WToyota part90159-60623
53875XToyota part90189-06230
53875YToyota part90189-06237
53875ZToyota part90189-06237
53876ALeft front fender lining53876-52520 · 53876-52540 · 53876-52630 · 53876-52640
53879AFront fender lining fixing parts53879-17020
