VOCR EPC

Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.

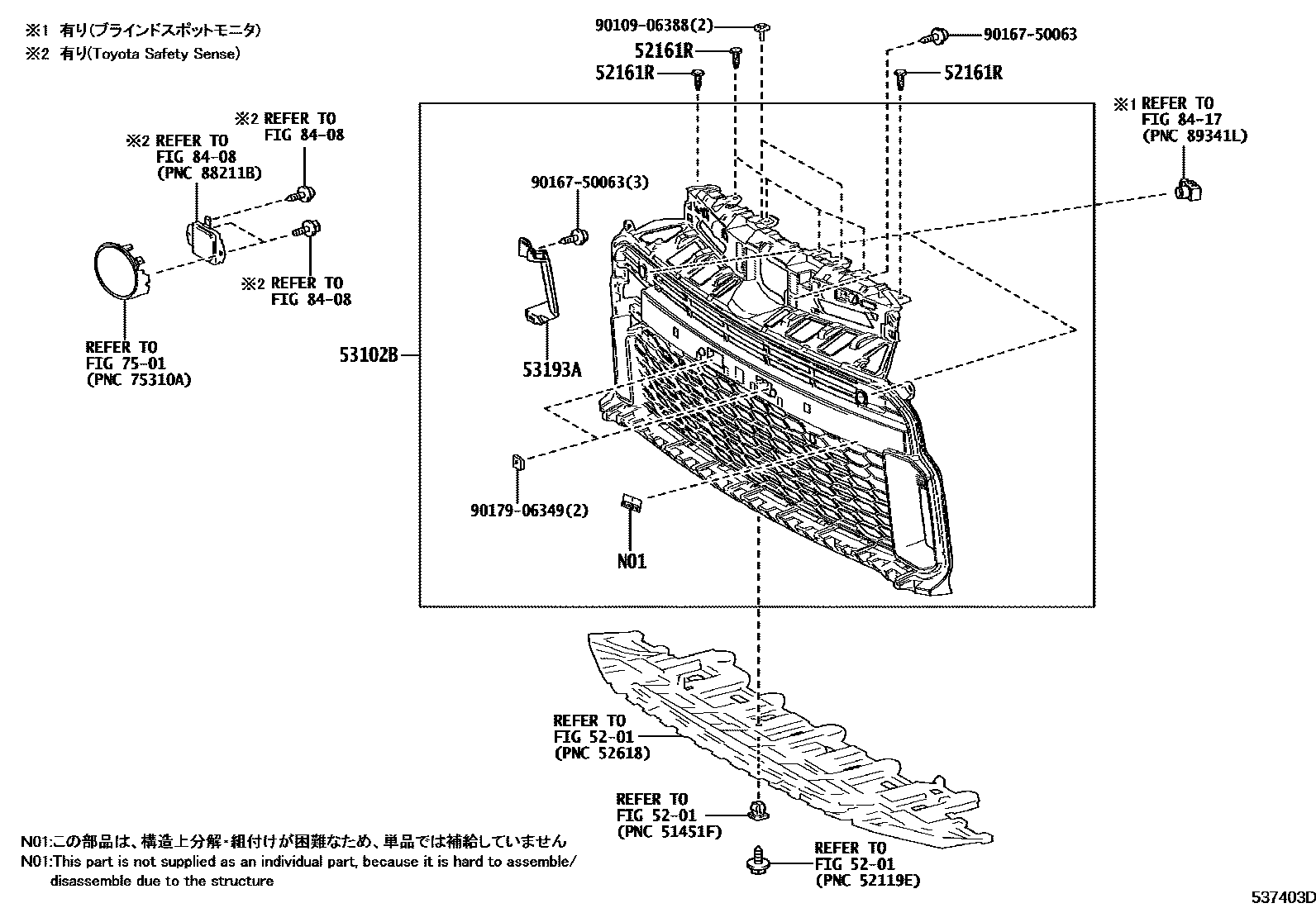

Toyota YARIS radiator grille EPC diagram — 537403D
radiator grille — 537403D (202008 – 999999)

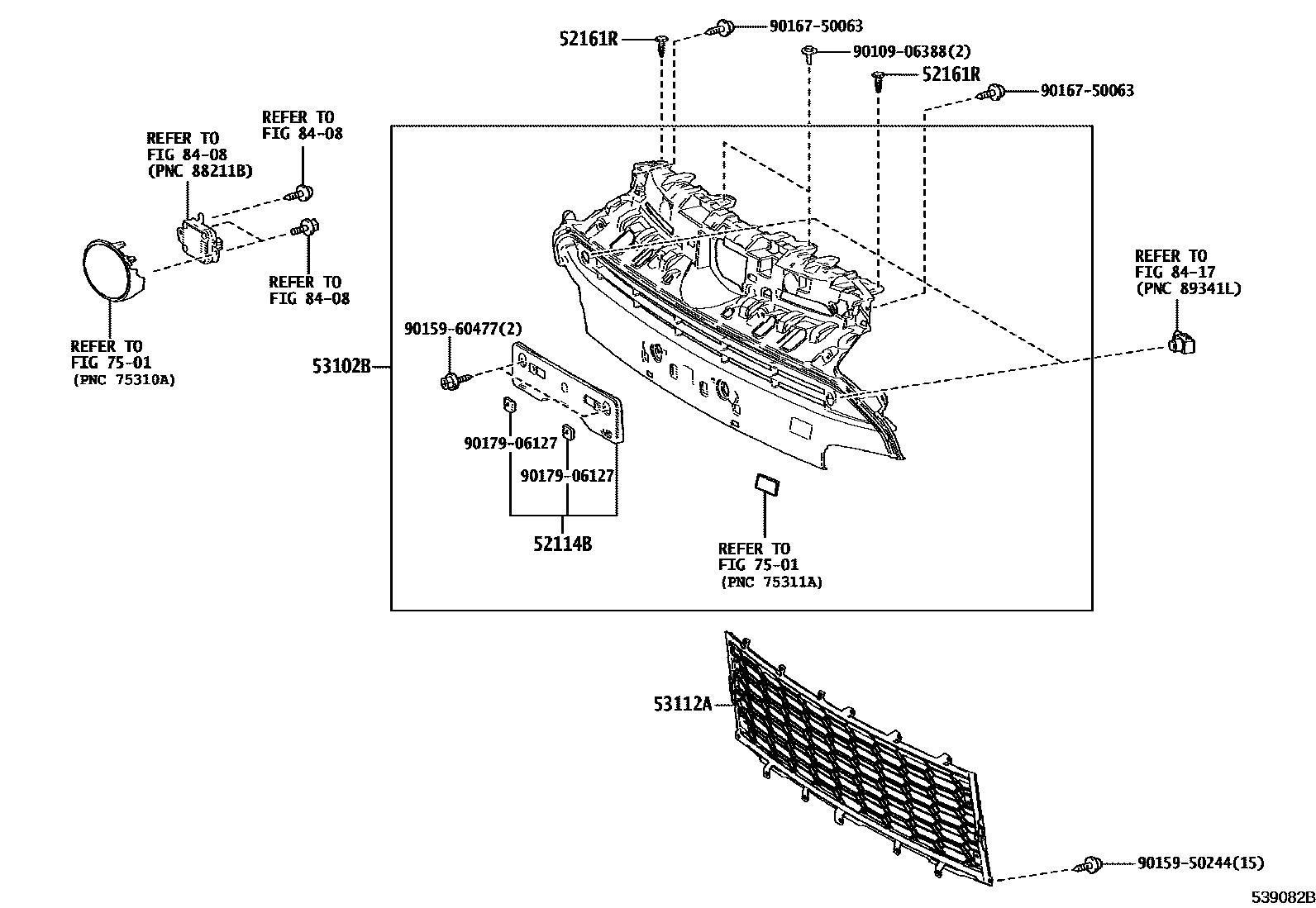

Toyota YARIS radiator grille EPC diagram — 539082B
radiator grille — 539082B (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
52114BToyota part52114-52250
52161Rfront bumper insert52161-16010
53102BToyota part53102-52140 · 53102-52150 · 53102-52180 · 53102-52220 · 53102-52270 · 53102-52290 · 53102-52300 · 53102-52310 · 53102-52320 · 53102-52330 · 53102-52380
53112ALower radiator grille53101-52F70
53193ARadiator grille lower right fixing piece53193-52010
