Toyota YARIS 后盘式制动器卡钳和防尘罩 — Figure 4707

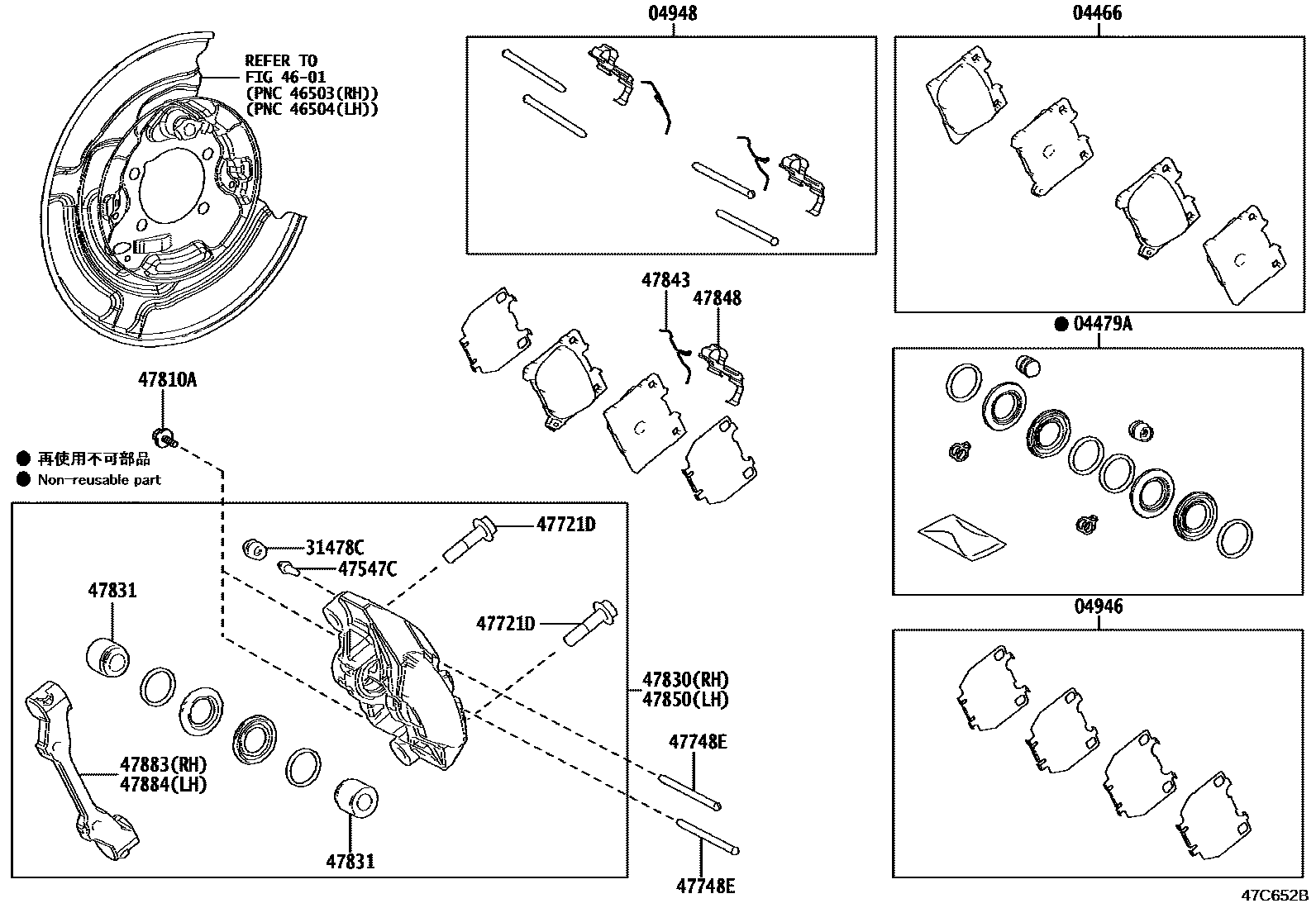

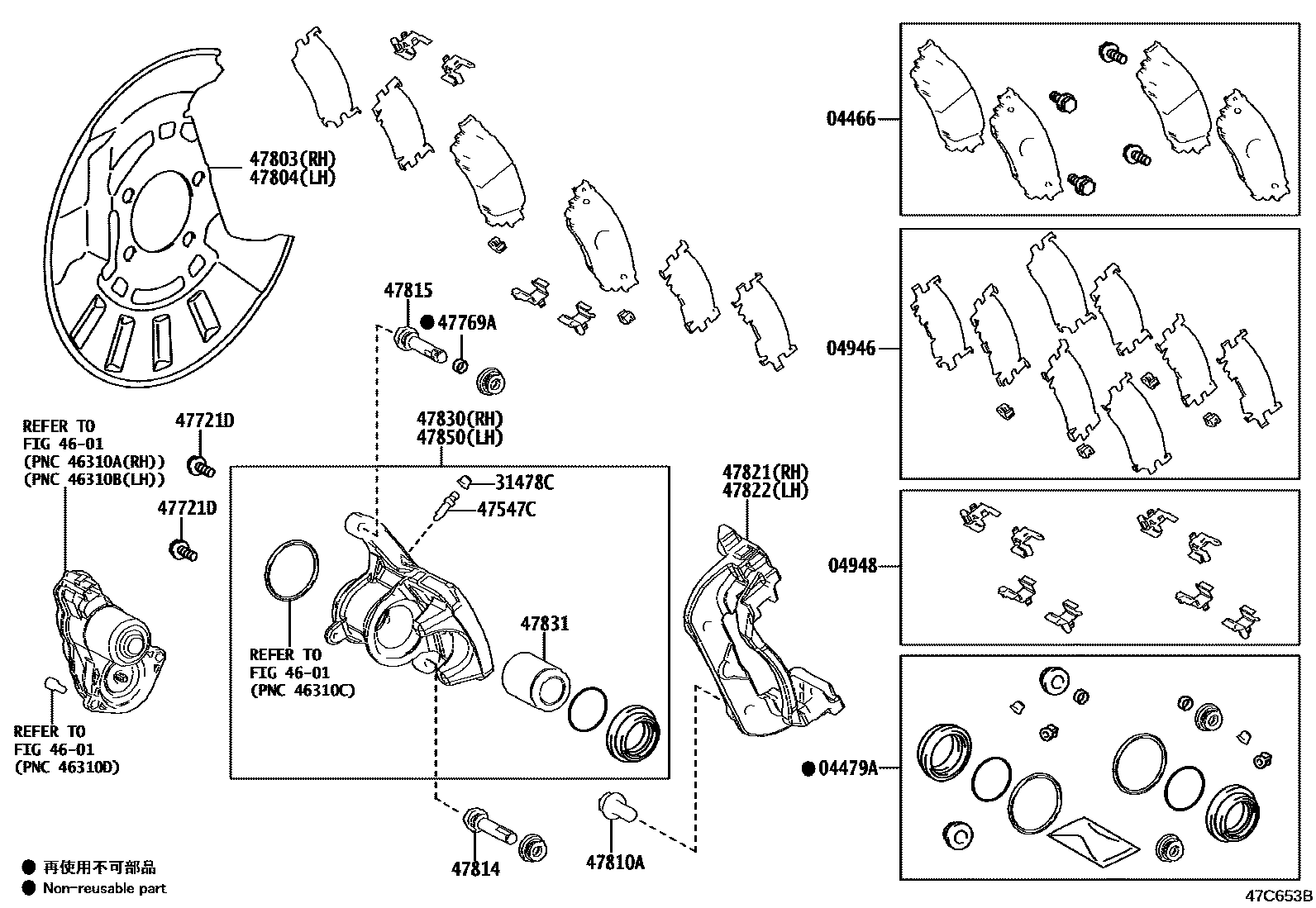

Toyota YARIS EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-10011 · 04466-52200 |
| 04479A | Rear disc brake cylinder assembly | 04479-10091 · 04479-52280 · 04479-52290 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-48130 · 04946-52120 |
| 04948 | Rear disc brake mounting assembly | 04948-52050 · 04948-58010 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 · 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 · 47547-35020 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA603 · 90015-AA604 |
| 47748E | Holed pin (for rear disc brake) | 47735-52310 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-50010 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-33010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-33010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-78010 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-78010 |
| 47821 | Right disc brake cylinder retaining bracket | 47821-10030 |
| 47822 | Left disc brake cylinder retaining bracket | 47822-10030 |
| 47830 | Right rear disc brake cylinder assembly | 47830-52250 · 47830-52260 · 47830-52270 · 47830-52340 |
| 47831 | rear disc brake piston | 47731-18030 · 47831-10030 |
| 47843 | Rear disc brake pin retaining clip | 47843-52250 |
| 47848 | Anti-vibration spring No. 1 (for rear disc brake) | 47848-52250 |
| 47850 | Left rear disc brake cylinder assembly | 47850-52250 · 47850-52260 · 47850-52270 · 47850-52340 |
| 47883 | Right rear brake caliper bracket | 47883-52040 |
| 47884 | Left rear brake caliper bracket | 47883-52040 |
