Toyota YARIS 制动助力器和真空管 — Figure 4703

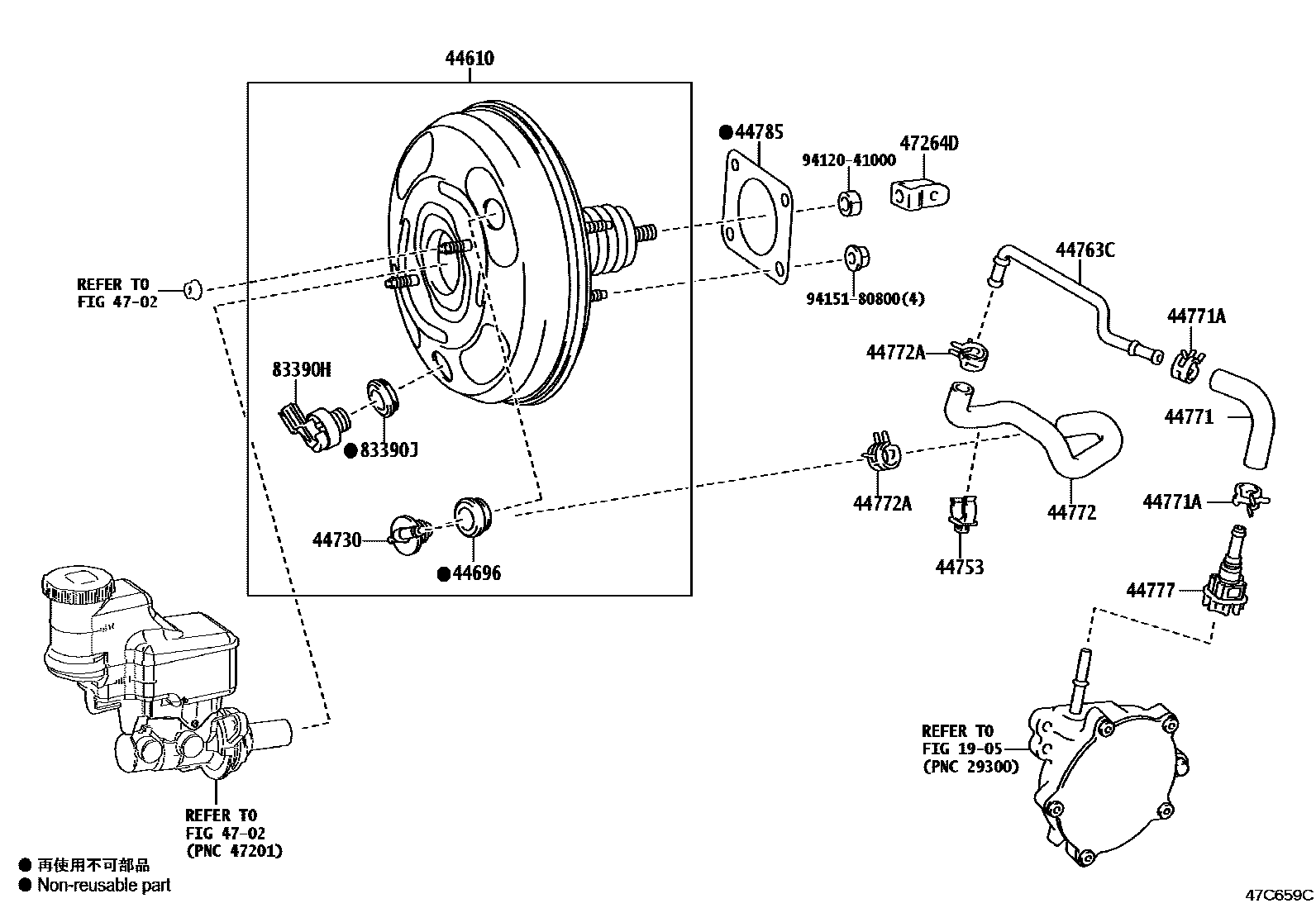

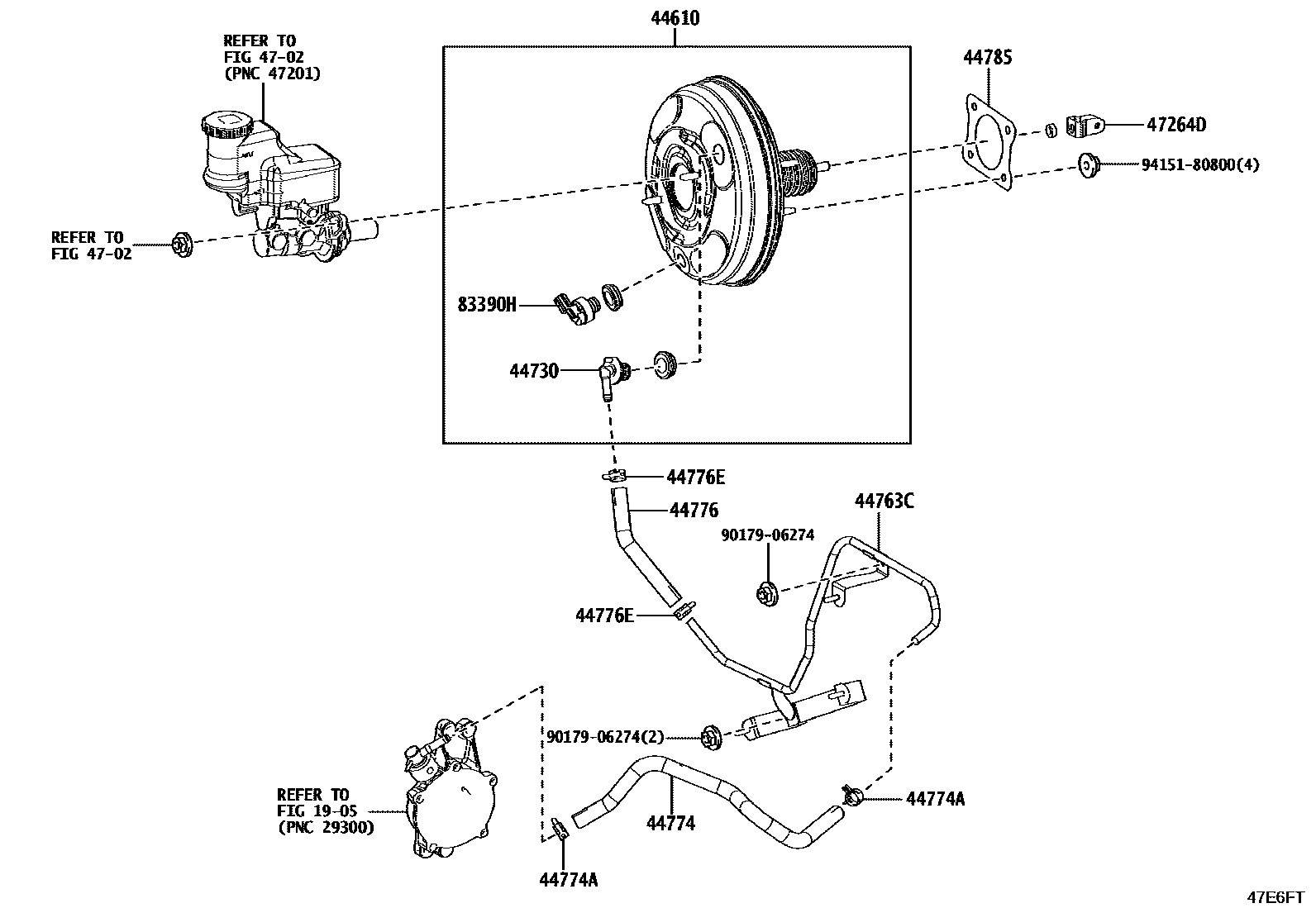

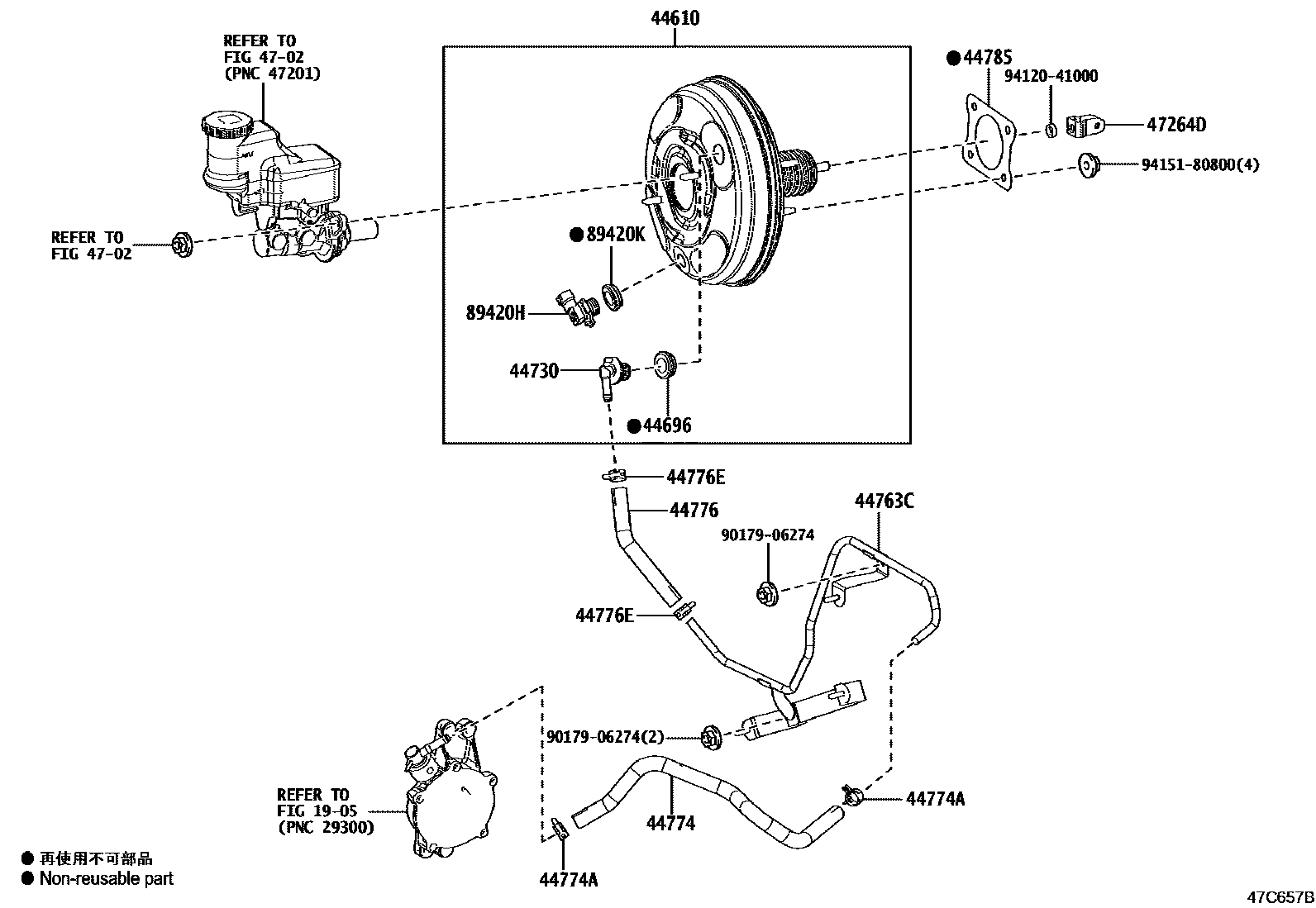

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52J60 · 44610-52J70 · 44610-52K00 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44753 | No. 2 vacuum reservoir clip | 44753-30320 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-52220 · 44763-K0060 |
| 44771 | Vacuum tube connector hose | 44771-K0030 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-52350 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-52230 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44776 | brake booster hose | 44776-52100 |
| 44776E | Toyota part | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-K0010 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Toyota part | 90480-24439 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
| 89420K | Toyota part | 90480-24439 |
