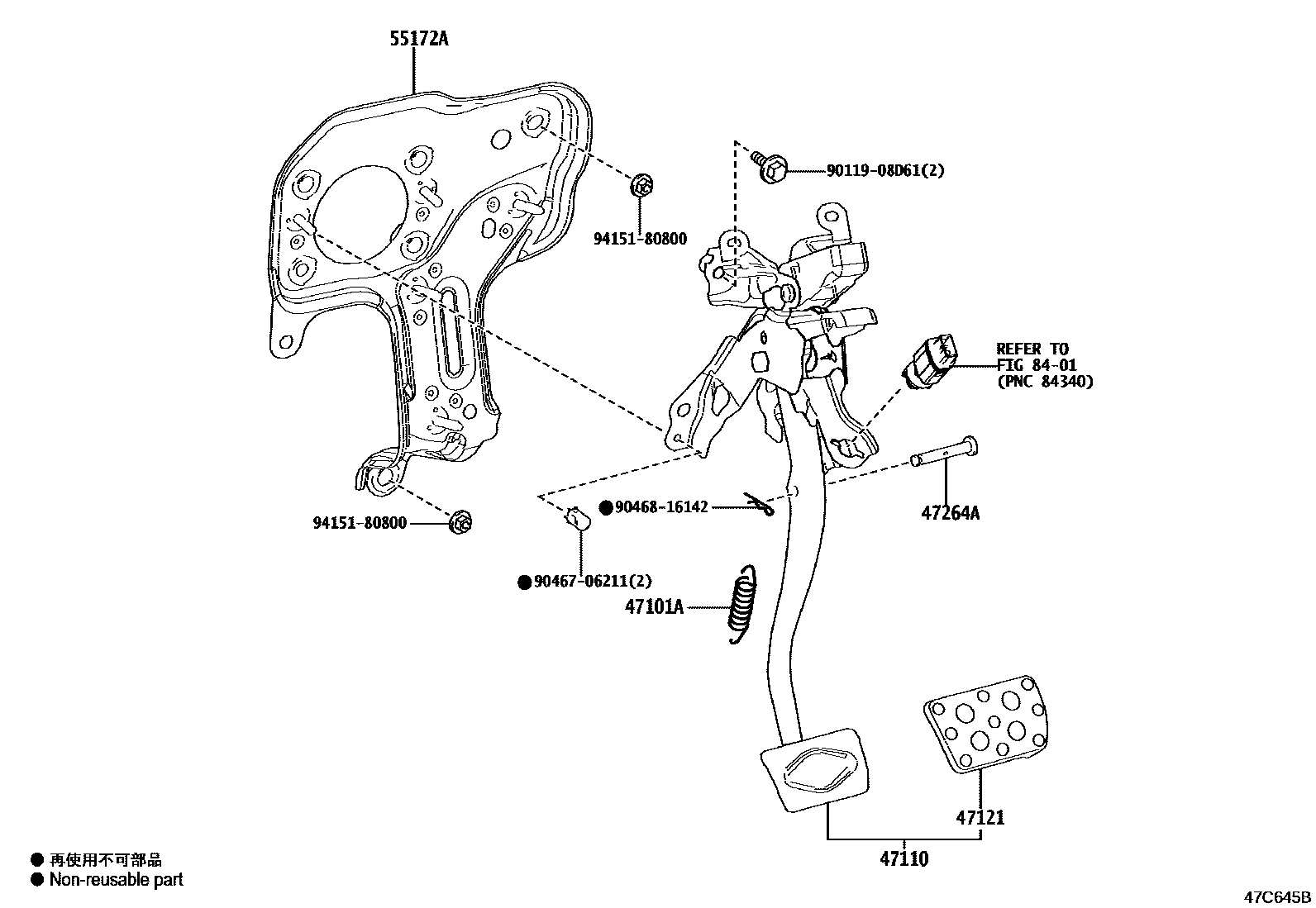

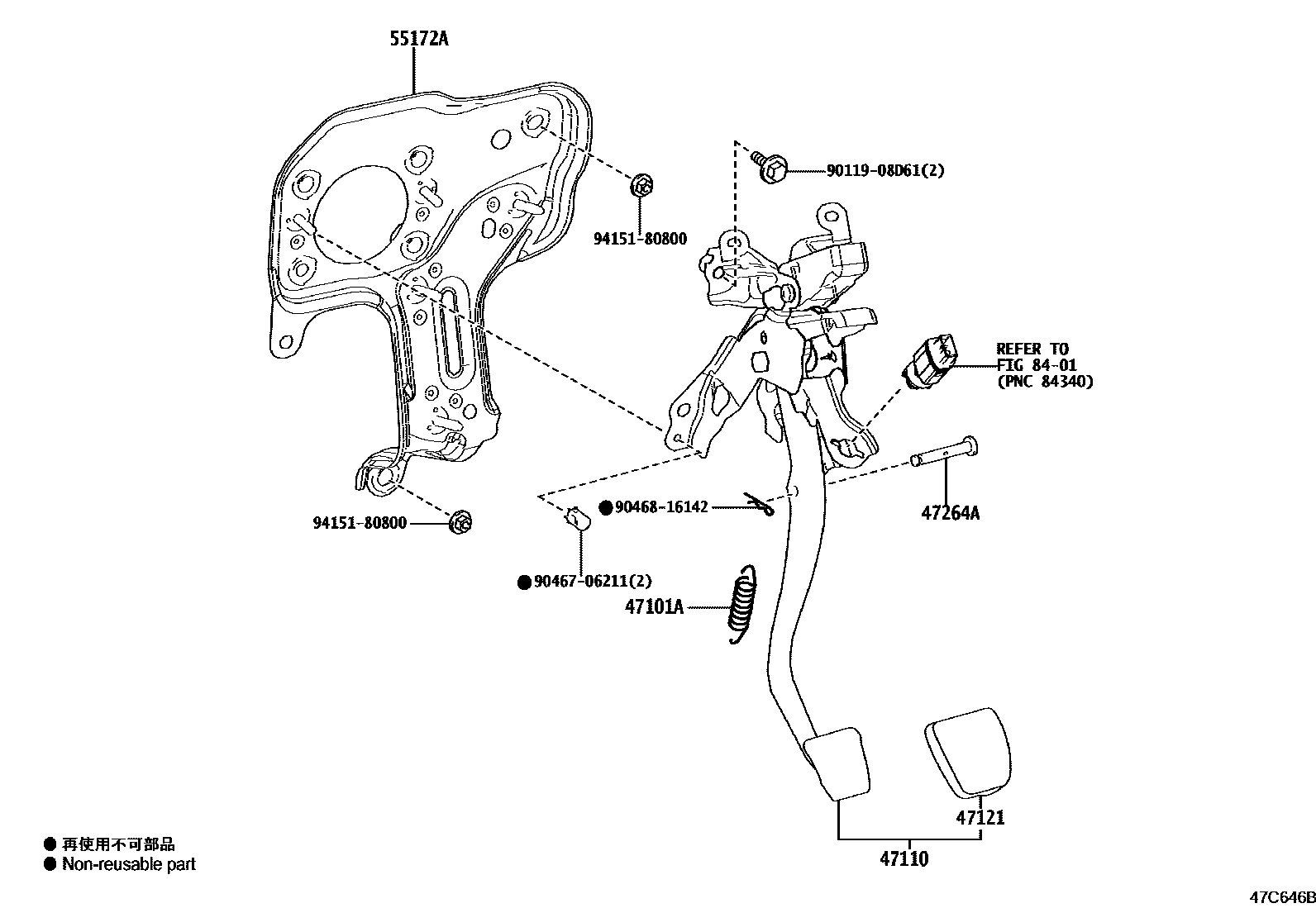

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90506-17003 |
| 47110 | Brake pedal bracket assembly | 47110-52500 · 47110-52520 · 47110-K0070 · 47110-K0080 |
| 47121 | brake pedal pad | 47121-10040 · 47121-12040 · 47121-47010 · 47121-78010 |
| 47264A | Pin (for push rod) | 90249-08051 |
| 55172A | Toyota part | 55172-K0010 |
