Toyota YARIS 变速器油冷却器和配管(ATM) — Figure 3514

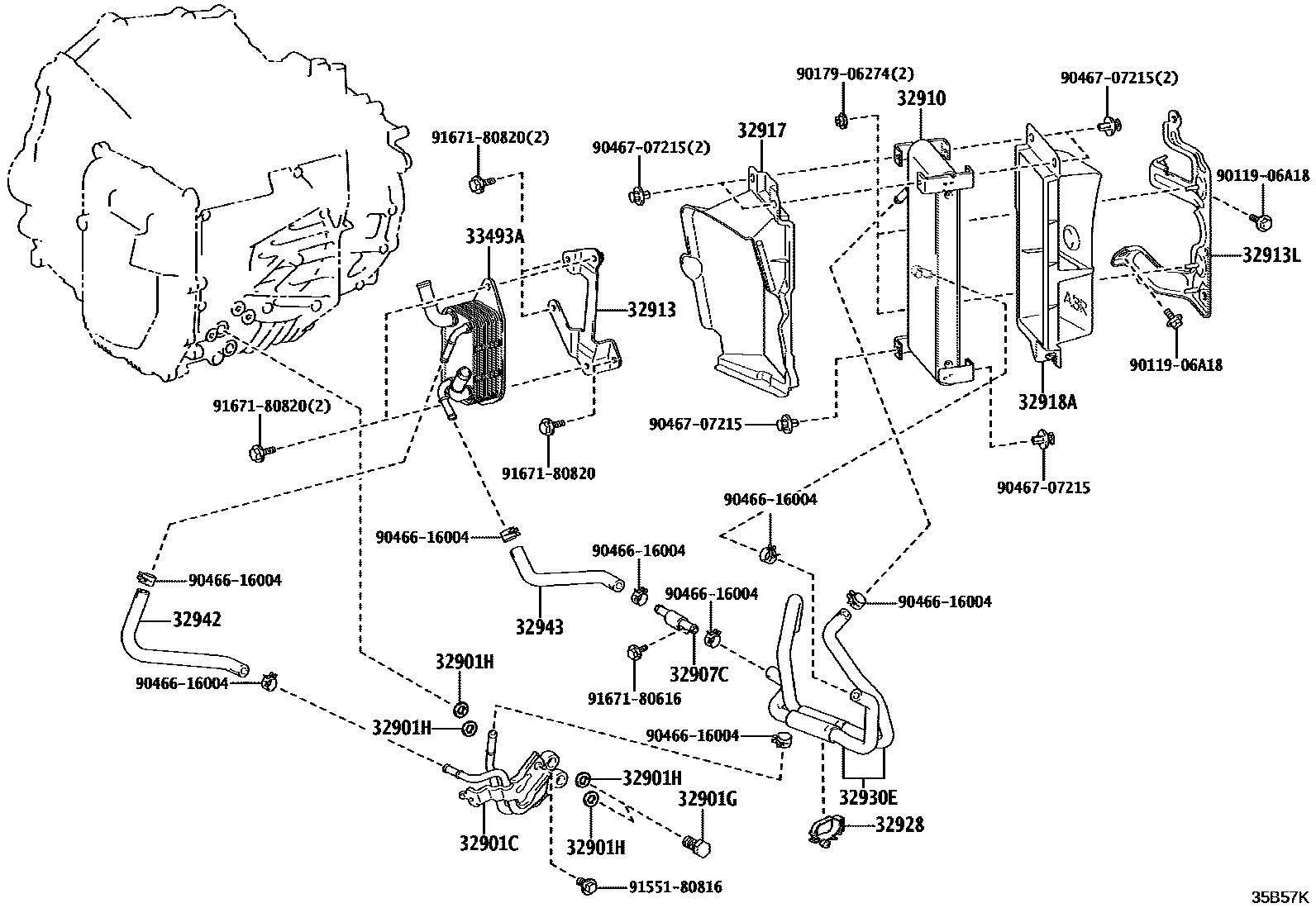

Toyota YARIS EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 14 PNC and OE references.

Toyota YARIS 变速器油冷却器和配管(ATM) EPC diagram — 35B57K
变速器油冷却器和配管(ATM) — 35B57K (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
32901CTransmission oil cooler joint sub-assembly32901-52020
32901GToyota part90401-14003
32901HToyota part90430-14016
32907CNo. 1 transmission oil cooler pipe sub-assembly without hose32907-60350
32910Oil cooler assembly32910-52010
32913Transmission oil cooler bracket32913-52020
32913LToyota part32913-52010
32917Transmission oil cooler air duct32917-52010
32918AToyota part32918-52010
32928No. 1 Flexible Hose Clamp32928-42040
32930ENo. 1 transmission oil cooler hose assembly32930-52010
32942No. 1 transmission oil cooler oil outlet hose32942-52040
32943No. 1 transmission oil cooler hose32943-52020
33493ATransmission oil cooler33493-52080
