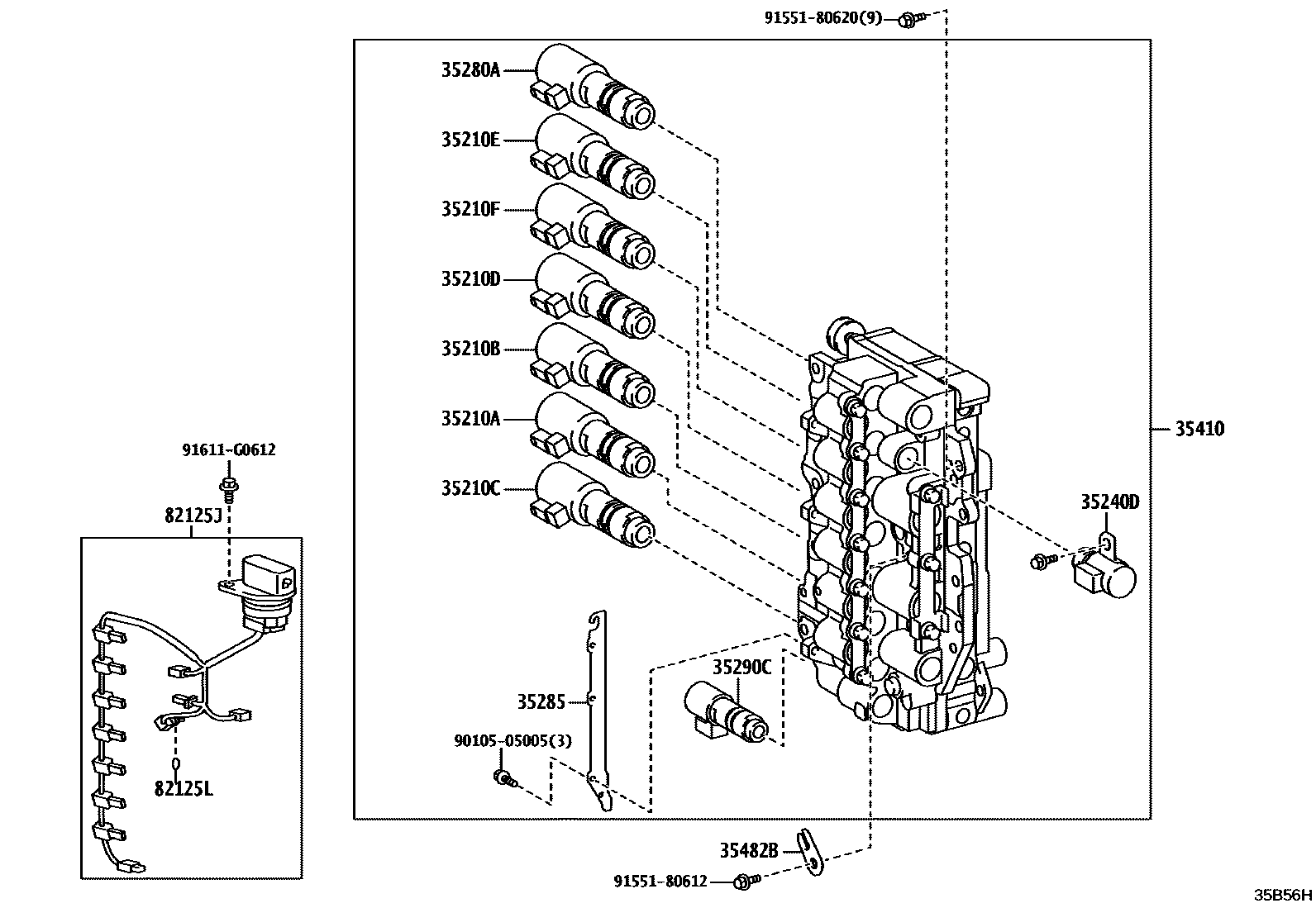

Toyota YARIS 阀体和滤油网(ATM) — Figure 3512
Toyota YARIS EPC diagram 3512, 阀体和滤油网(ATM), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35210A | Toyota part | 35210-33070 |
| 35210B | Toyota part | 35210-33070 |
| 35210C | Toyota part | 35210-33070 |
| 35210D | Toyota part | 35210-33070 |
| 35210E | Toyota part | 35210-33070 |
| 35210F | Toyota part | 35210-33070 |
| 35240D | Toyota part | 35240-48020 |
| 35280A | Toyota part | 35280-48030 |
| 35285 | Solenoid valve lock plate | 35285-48030 |
| 35290C | Toyota part | 35290-06010 · 35290-48030 |
| 35410 | Transmission valve body assembly | 35410-52240 |
| 35482B | temperature sensor clip | 35482-73010 |
| 82125J | Transmission wiring harness | 82125-33171 |
| 82125L | O-ring (for transmission wiring harness) | 90301-06025 |
