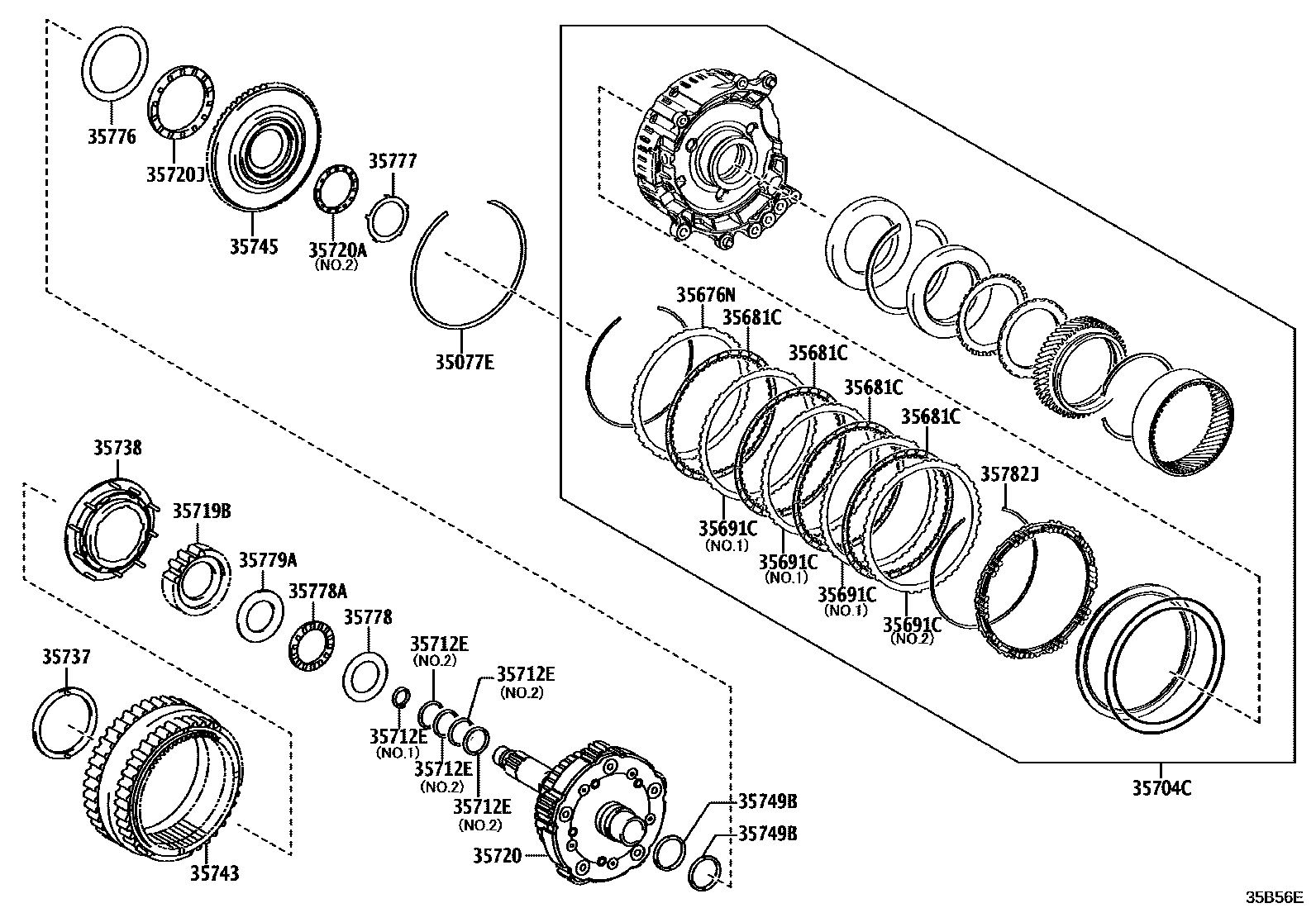

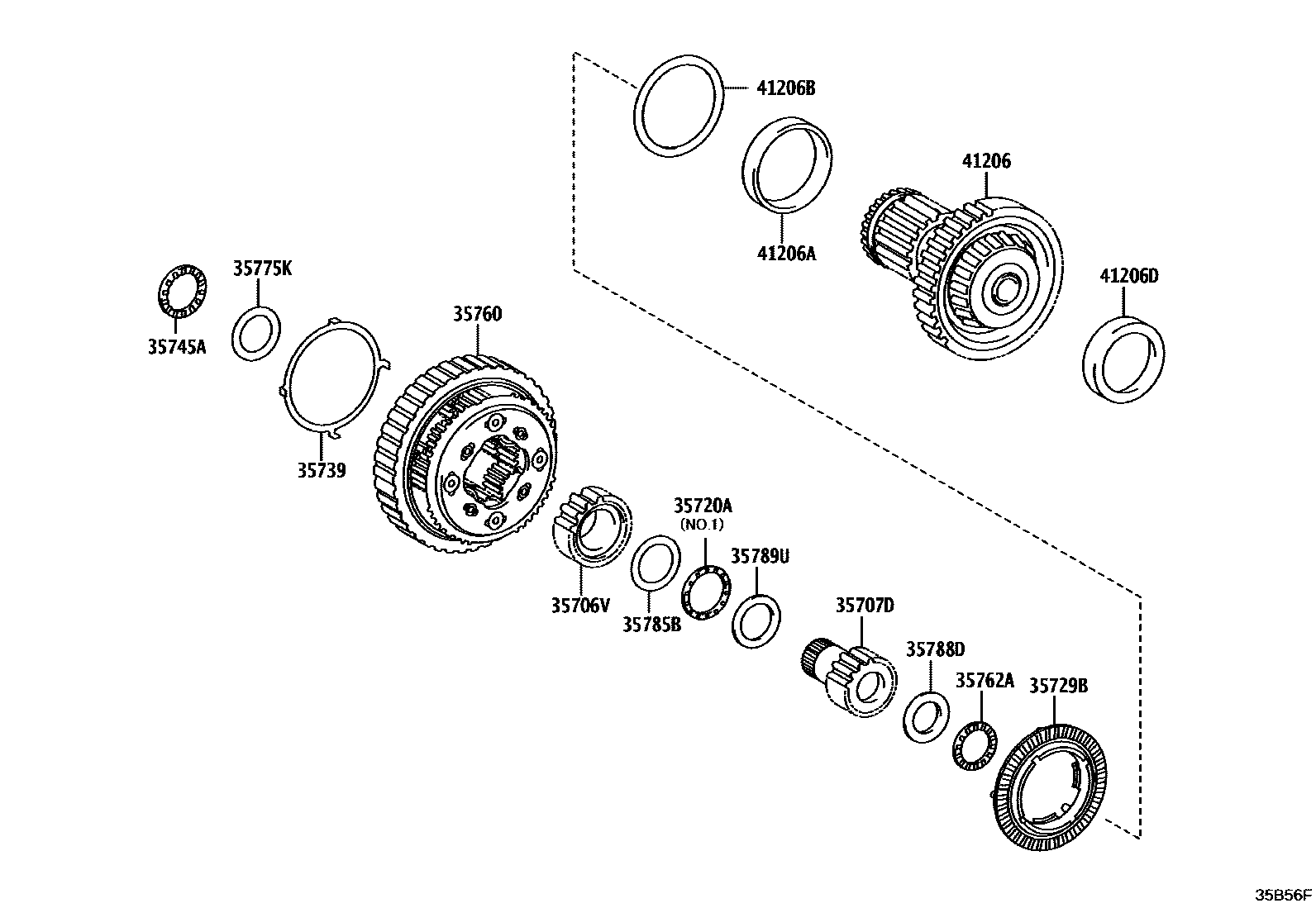

Toyota YARIS 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota YARIS EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35077E | Snap ring (for rear planetary gear flange) | 90520-99176 |
| 35676N | Toyota part | 35676-48380 · 35676-48390 · 35676-48400 · 35676-48410 · 35676-48420 · 35676-48430 · 35676-48440 |
| 35681C | Toyota part | 35681-52070 |
| 35691C | Toyota part | 35691-48010 · 35691-48020 |
| 35704C | Toyota part | 35704-52010 |
| 35706V | Planetary gear train sun gear sub-assembly | 35706-52050 |
| 35707D | Toyota part | 35707-52030 |
| 35712E | Toyota part | 35617-60030 · 35712-48030 |
| 35719B | planetary gear system sun gear | 35719-48030 |
| 35720 | Front planetary gear assembly | 35720-78011 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-33012 · 90374-39009 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-58005 |
| 35729B | Toyota part | 35729-52010 |
| 35737 | Planetary gear carrier thrust washer | 35737-48080 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-48040 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-48030 |
| 35743 | Front planetary ring gear | 35743-52070 |
| 35745 | Front planetary gear flange | 35745-52040 |
| 35745A | Toyota part | 90374-33010 |
| 35749B | Toyota part | 35749-48020 |
| 35760 | Rear planetary gear assembly | 35760-52030 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-24007 |
| 35775K | Toyota part | 35775-48040 |
| 35776 | Main reduction driven gear | 35776-78010 |
| 35777 | No. 7 thrust bearing race | 35777-48040 |
| 35778 | No. 8 thrust bearing race | 35778-48020 |
| 35778A | Thrust needle roller bearing | 90374-31012 |
| 35779A | No. 9 thrust bearing race | 35779-48020 |
| 35782J | snap ring | 90520-99178 |
| 35785B | No. 4 thrust bearing race | 35785-48040 |
| 35788D | No. 3 thrust bearing race | 35788-48020 |
| 35789U | thrust bearing race | 35789-48100 |
| 41206 | Toyota part | 41206-78020 |
| 41206A | Toyota part | 90366-41011 |
| 41206B | Toyota part | 90564-67047 · 90564-67048 · 90564-67049 · 90564-67050 · 90564-67051 · 90564-67052 · 90564-67053 · 90564-67054 · 90564-67055 · 90564-67056 · 90564-67057 · 90564-67058 · 90564-67059 · 90564-67060 · 90564-67061 · 90564-67062 · 90564-67063 · 90564-67064 · 90564-67065 · 90564-67066 · 90564-67067 · 90564-67068 · 90564-67069 · 90564-67071 · 90564-67072 · 90564-67073 · 90564-67074 · 90564-67075 · 90564-67076 · 90564-67077 · 90564-67078 · 90564-67079 · 90564-67080 · 90564-67081 · 90564-67082 |
| 41206D | Toyota part | 90366-33015 |
