Toyota YARIS 3号制动器、一档和倒档制动器(ATM) — Figure 3509

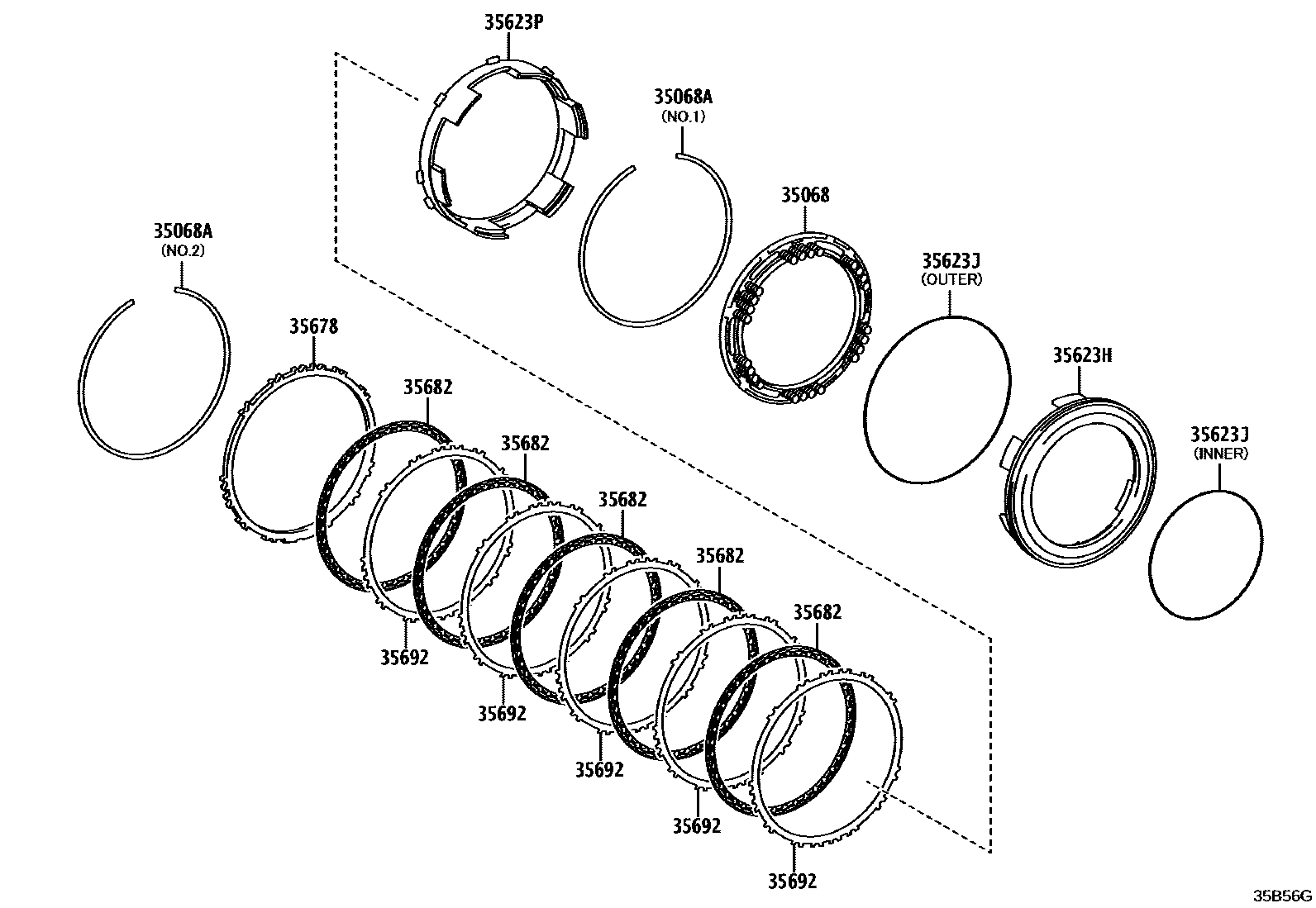

Toyota YARIS EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-48020 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-99174 · 90520-99175 |
| 35623H | First and reverse brake piston | 35623-48050 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99209 · 90301-99210 |
| 35623P | No. 2 first and reverse brake piston | 35624-48030 |
| 35678 | Brake flange (for second gear brake) | 35678-78050 · 35678-78060 · 35678-78070 · 35678-78080 · 35678-78090 · 35678-78100 · 35678-78110 |
| 35682 | Brake disc (for second gear brake) | 35682-78010 |
| 35692 | Brake pads (for second gear brake) | 35692-48020 |
