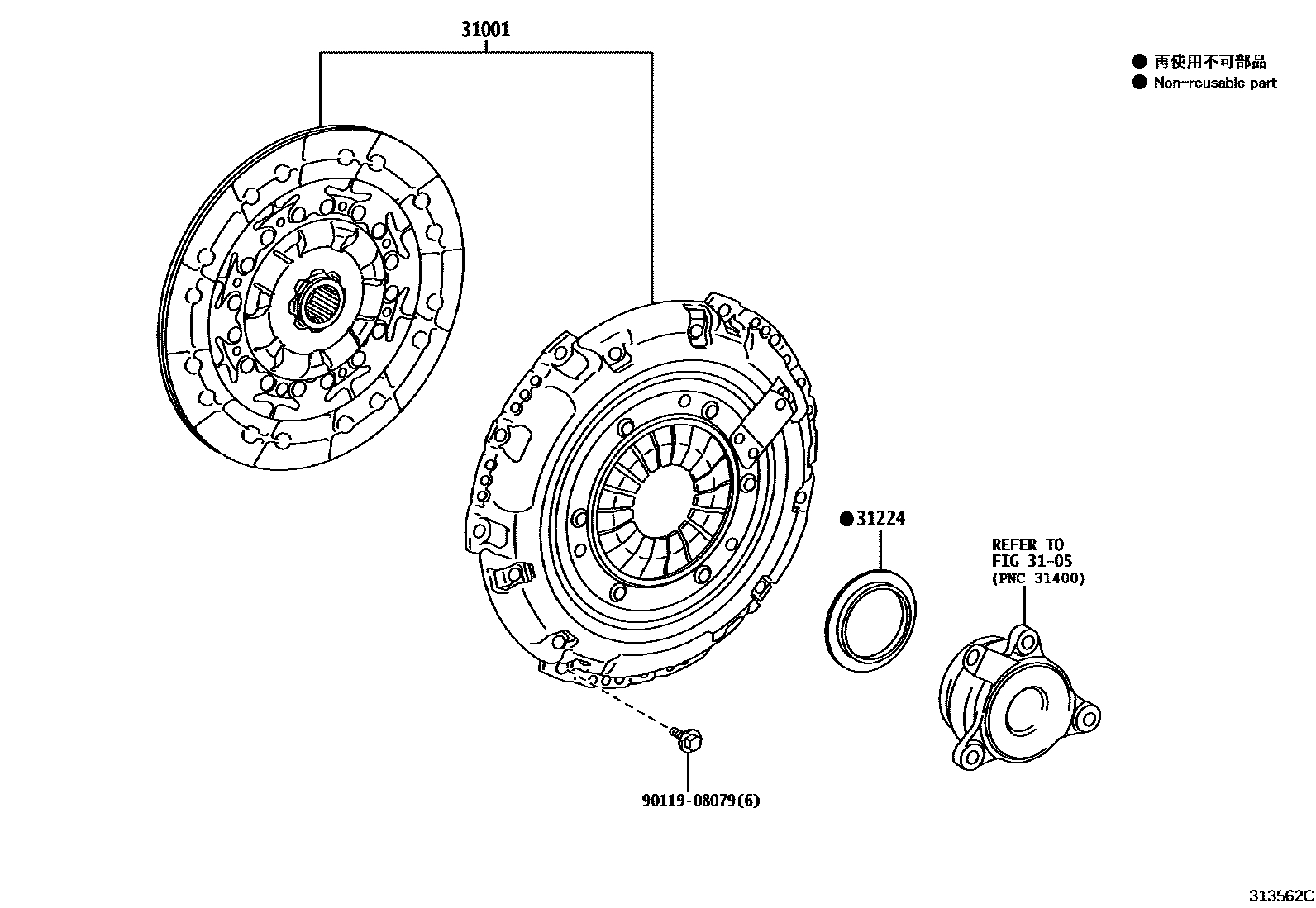

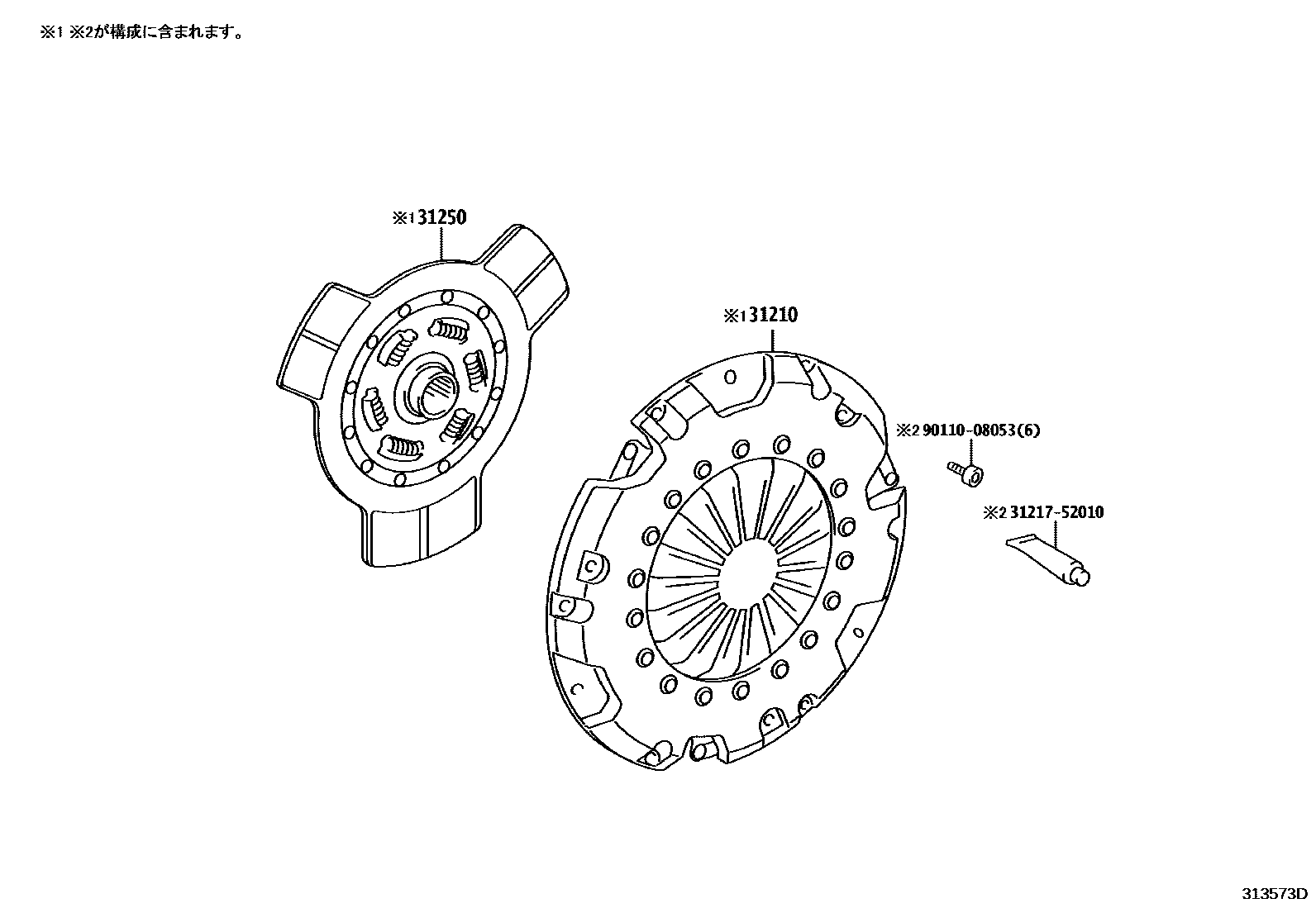

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31001 | Clutch cover and clutch disc assembly | 31001-52010 · 31001-52011 · 31001-52040 |
| 31210 | Clutch cover assembly | 31210-52220 |
| 31224 | Clutch release bearing plate | 31224-52010 |
| 31250 | Clutch disc assembly | 31250-52290 |
